Ice machines — 380V, capacity 5-15 tonne. The complete factory specification follows. Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Ice Machines
- Power: 20810w
- Voltage: 380V
- Ice Storage Capacity: no
- Capacity: 5-15 tonne
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Ice Shape | ICE BLOCK |
|---|---|
| Ice Storage Capacity | no |
| Voltage | 380V |
| Power | 20810w |
| Compressor Brand | Bitzer, Hanbell |
| Key Selling Points | Easy To Operate |
| Application | Industrial |
| Warranty | 1 Year |
| Core Components | Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 1300 |
| Brand Name | ICESTA |
| Dimension(L*W*H) | 5500*2210*2200mm(216.54*87.01*86.61in) |
| After-Sales Service Provided | Engineers available to service machinery overseas |

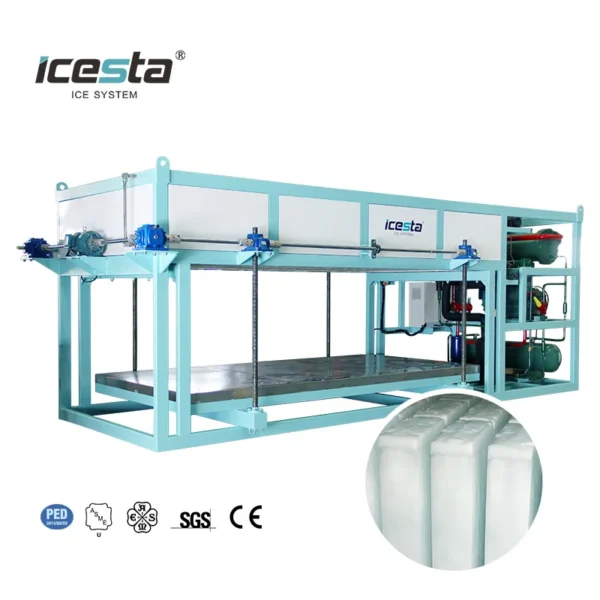

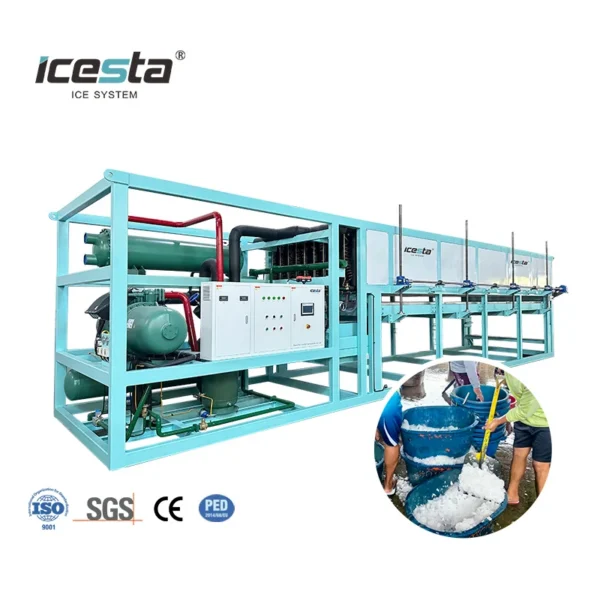

| Name | Brine tank 25 kg 50kg moulde Block ice making machine |
| Capacity | 5-15 tonne |
| Applicable Industries | Hotels |
| Condition | New |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

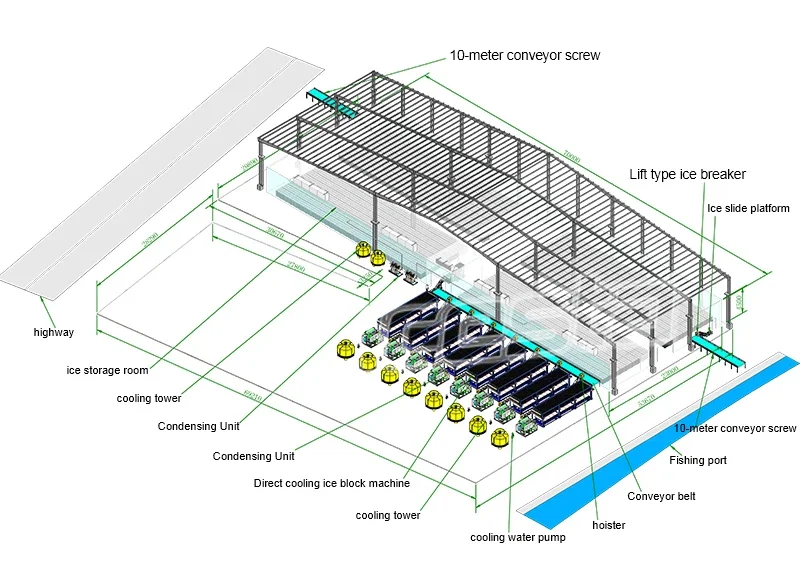

ONE-STOP SOLUTION
One stop turnkey ice project, ice making, ice storage, ice delivery, weighing, packing
— integrated automatic system.

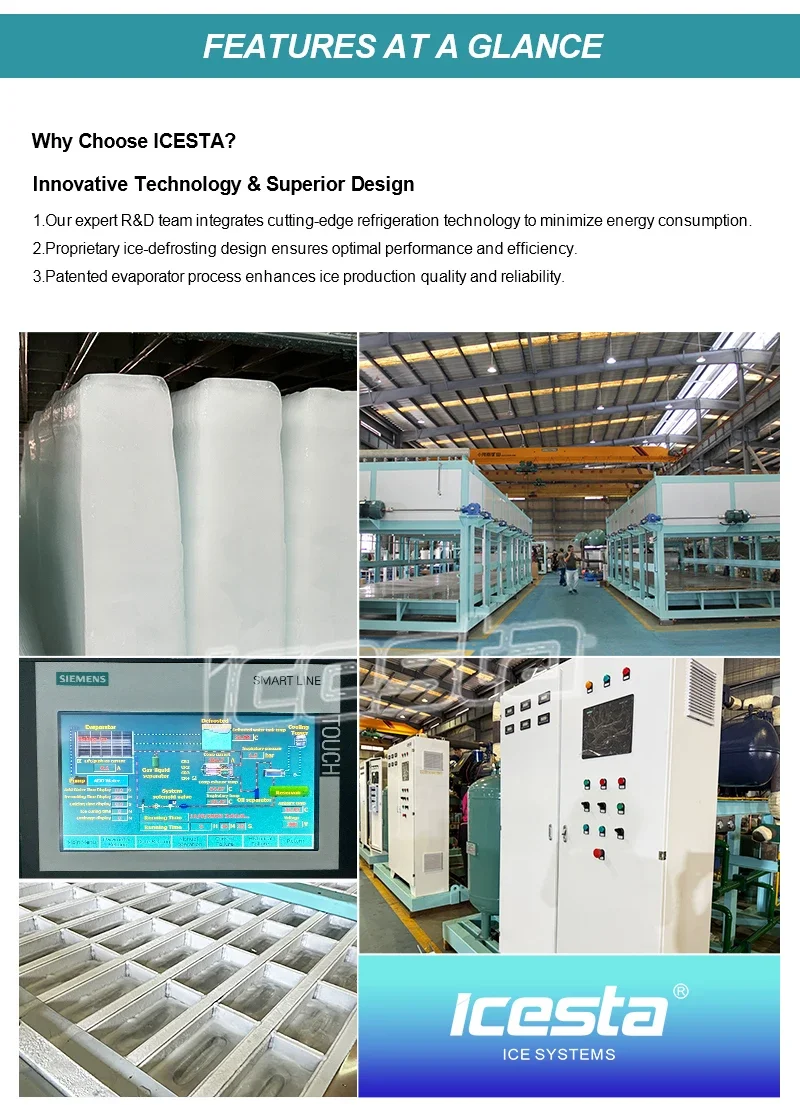

Why choose ICESTA?
Innovative Technology & Superior Design
1. Our expert R&D team integrates cutting-edge refrigeration technology to minimize energy consumption.
2. Proprietary ice -defrosting design ensures optimal performance and efficiency.

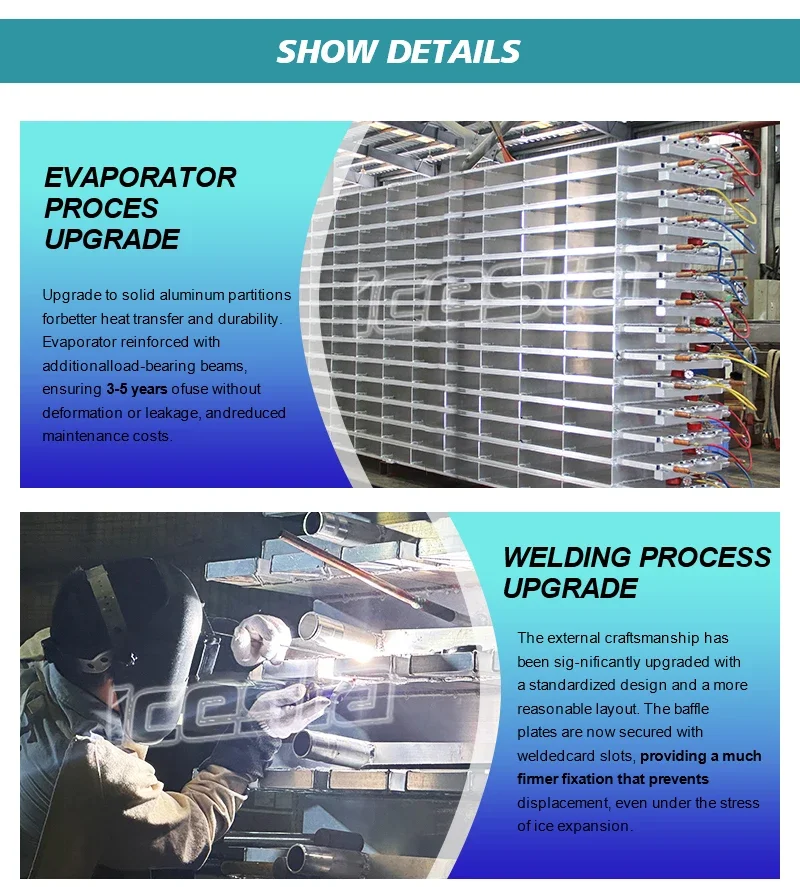

3. Patented evaporator process enhances ice production quality and reliability.
Reliable Global Support
1. Customizable ice sizes to meet diverse industry needs.
2. Localized after-sales teams in key regions for prompt service.
3. Worldwide installation and technical support for seamless operation.
User-Friendly Operation
Fully automated system for hassle-free control.
Simplified in stallation, operation, and maintenance for maximum convenience.

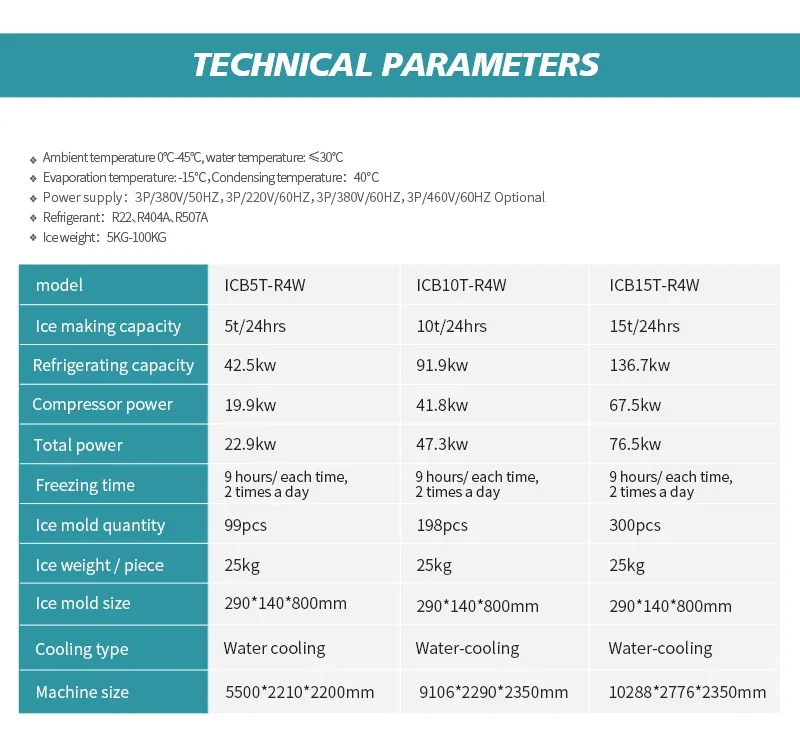

❖ Ambient temperature 0℃-45℃,water temperature: ≤30℃
❖ Evaporation temperature:-15℃,Condensing temperature: 40℃
❖ Power supply: 3P/380V/50HZ,3P/220V/60HZ,3P/380V/60HZ,3P/460V/60HZ Optional
❖ Refrigerant: R22、R404A、R507A
❖ Ice weight: 5KG-100KG
model | ICB5T-R4W | ICB10T-R4W | ICB15T-R4W |
Ice making capacity | 5t/24hrs | 10t/24hrs | 15t/24hrs |
Refrigerating capacity | 42.5kw | 91.9kw | 136.7kw |
Compressor power | 19.9kw | 41.8kw | 67.5kw |
Total power | 22.9kw | 47.3kw | 76.5kw |
Freezing time | 9 hours/each time, 2 times a day | 9 hours/each time, 2 times a day | 9 hours/each time, 2 times a day |
Ice mold quantity | 99pcs | 198pcs | 300pcs |
Ice weight / piece | 25kg | 25kg | 25kg |
Ice model size | 290*140*800mm | 290*140*800mm | 290*140*800mm |
Cooling type | Water cooling | Water cooling | Water cooling |
Machine size | 5500*2210*2200mm | 9106*2290*2350mm | 10288*2776*2350mm |

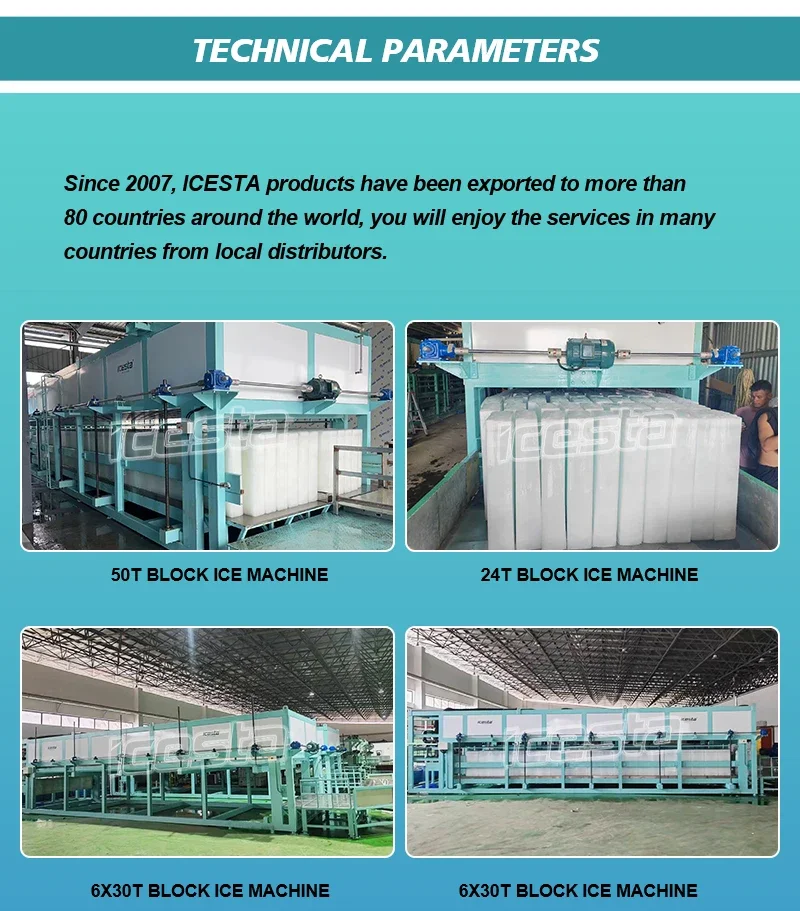

Since 2007, ICESTA products have been exported to more than 80 countries around the world,
you will enjoy the services in many countries from local distributors.
EU CE Certificate and PED Certificate,
USA ASME Certificate. More than 40 National Patents Certificate,
ICESTA
20 years dedication in ice making technology to create excellence.

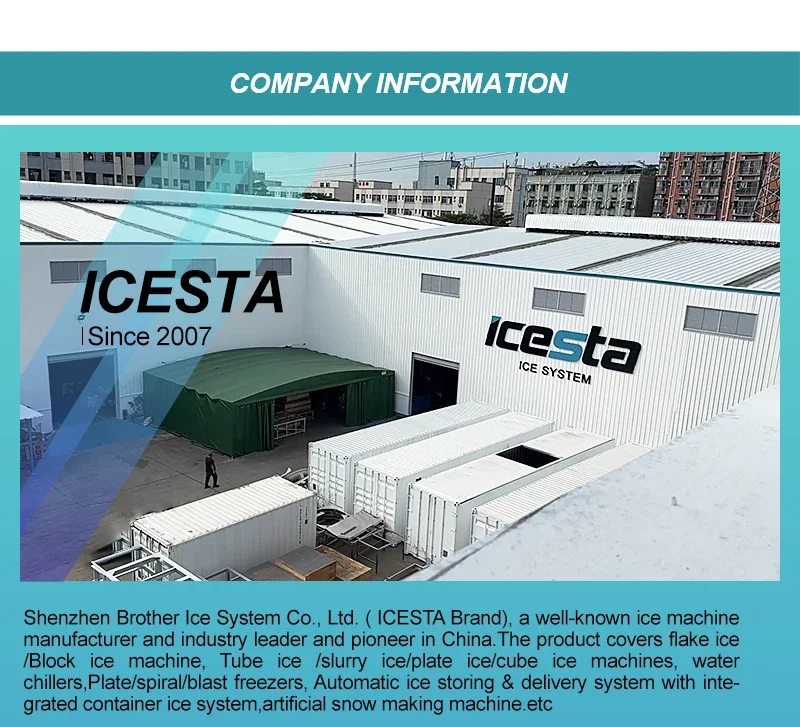

Shenzhen Brother Ice System Co., Ltd. ( ICESTA Brand), a well-known ice machine manufacturer and industry leader and pioneer in China.The product covers flake ice /Block ice machine, Tube ice /slurry ice/plate ice/cube ice machines, water chillers,Plate/spiral/blast freezers, Automatic ice storing & delivery system with integrated container ice system,artificial snow making machine.etc
* Experiences & History:
Decades of Team focus on innovative solution in Ice & Cooling technology. Decadal Professional Manufacturer, Supplier of Excellent Turnkey ice & cooling projects.
* Industry status& Reputation Top Ice Machine Brand in China. 20000 ㎡ Factory ISO 9001, CE, PED, ASME (U.S ) Certificates etc
* Technology & Management capability: 100 + patents High Technology enterprise Certificate
* Services & Global Net Export to 80+ countries Local service in 50+ countries with networks all over the world. 1-2 years warranty covers each component.
Since 2007, ICESTA products have been exported to
over 80 countries and enjoy local services through our agency
network since 2007…
FAQ
1. Questions before quotation
A. Would you make ice from seawater, saltwater or freshwater?
B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?
C. What’s the power supply?
D. What is the application of the flake ice produced?
E. Which cooling mode would you prefer to? Water or air ,Evaporative cooling?
2. Installation & commissioning
A. Installed by customers according to the manuals, online instructions and live video conference of ICESTA.
B. Installed by ICESTA engineers.
a. ICESTA would arrange 1~3 engineers based on the projects to the installation sites for the final supervision of all
installations and commissioning.
b. Customers need to provide local accommodation and round-trip ticket for our engineers and pay for the commissions. US Dollars
100 per engineer per day.
c. Power, water, installation tools and spare parts need to be ready before ICESTA engineers arrive.
3. Warranty & Technical support
A. 1 year after Bill of Lading date.
B. Any failure occurred within the period due to our responsibility, ICESTA will supply the spare parts for free.
C.ICESTA provide full technical support and training courses after equipment installation and commissioning.
C. Permanent technical support & consultation all life long for the machines.
D. Over 25 engineers for instant after-sale services and more than 15 are available for serving overseas.
365 days X 7 X 24 hours phone / EMAIL assistance
4. Failure Claim procedures
a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed description of failure.
b. Relevant pictures are required for failure confirmation.
c. ICESTA engineering and after-sales service team will check and form a diagnosis report.
d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures
A. Would you make ice from seawater, saltwater or freshwater?
B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?
C. What’s the power supply?
D. What is the application of the flake ice produced?
E. Which cooling mode would you prefer to? Water or air ,Evaporative cooling?
2. Installation & commissioning
A. Installed by customers according to the manuals, online instructions and live video conference of ICESTA.
B. Installed by ICESTA engineers.
a. ICESTA would arrange 1~3 engineers based on the projects to the installation sites for the final supervision of all
installations and commissioning.
b. Customers need to provide local accommodation and round-trip ticket for our engineers and pay for the commissions. US Dollars
100 per engineer per day.
c. Power, water, installation tools and spare parts need to be ready before ICESTA engineers arrive.
3. Warranty & Technical support
A. 1 year after Bill of Lading date.
B. Any failure occurred within the period due to our responsibility, ICESTA will supply the spare parts for free.
C.ICESTA provide full technical support and training courses after equipment installation and commissioning.
C. Permanent technical support & consultation all life long for the machines.
D. Over 25 engineers for instant after-sale services and more than 15 are available for serving overseas.
365 days X 7 X 24 hours phone / EMAIL assistance
4. Failure Claim procedures
a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed description of failure.
b. Relevant pictures are required for failure confirmation.
c. ICESTA engineering and after-sales service team will check and form a diagnosis report.
d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1+ unit: US $28000 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machines?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the ice machines be supplied for my local voltage?
The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Brother Ice System Co., Ltd., based in China. The company 18 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shenzhen Brother Ice System Co., Ltd. range on HVACR Nexus.
