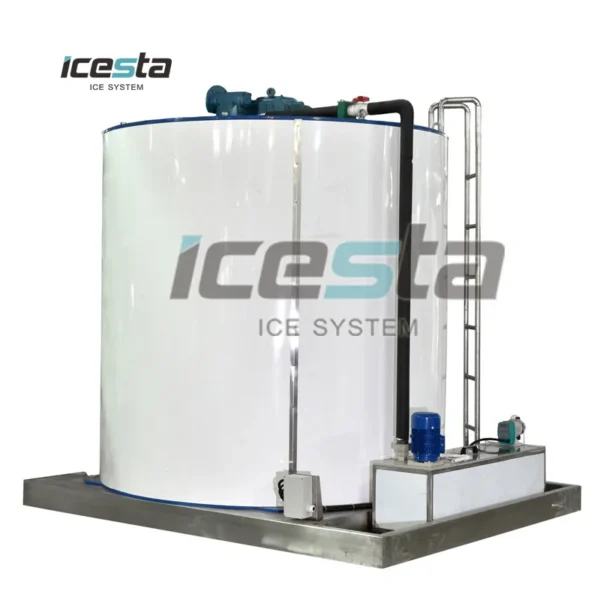

Key specification for this ice machine: 220 V, 380 V, 460V, customized, material Stainless Steel 304/316. Everything below is reproduced from the factory data sheet. Made by Shenzhen Brother Ice System Co., Ltd. (19 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Ice Machine
- Power: other
- Voltage: 220 V, 380 V, 460V, customized
- Ice Storage Capacity: Other
- Material: Stainless Steel 304/316
- Warranty: 1 Year
- Warranty Of Core Components: 1 Year
Technical Specifications
| Ice Shape | Flake Ice |
|---|---|
| Ice Storage Capacity | Other |
| Voltage | 220 V, 380 V, 460V, customized |
| Power | other |
| Compressor Brand | Bitzer, Bock |
| Key Selling Points | Competitive Price |
| Application | Industrial |
| Warranty | 1 Year |
| Core Components | Motor, Bearing, Gearbox, Other |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 160 |
| Brand Name | ICESTA |
| Dimension(L*W*H) | 790*710*860mm(can be customized) |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Certification | CE ISO9001 |
| After-Sales Service | Within 1.5 Years |
| Product Name | Flake ice machine evaporator |
| Material | Stainless Steel 304/316 |
| Applicable Industries | Food & Beverage Factory |
| Condition | New |
| Warranty Of Core Components | 1 Year |
| Selling Units | Single item |
| Single Package Size | 81X73X88 cm |
| Single Gross Weight | 162.000 kg |

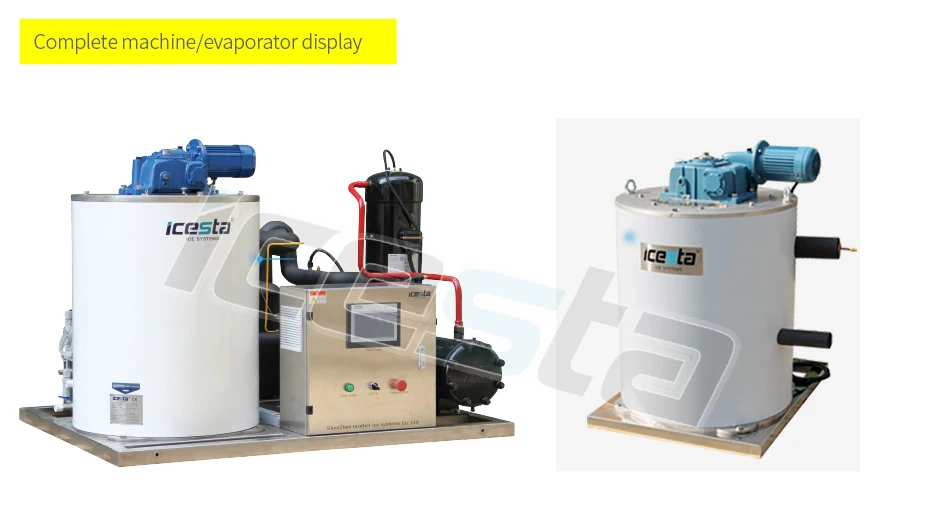

Product Details

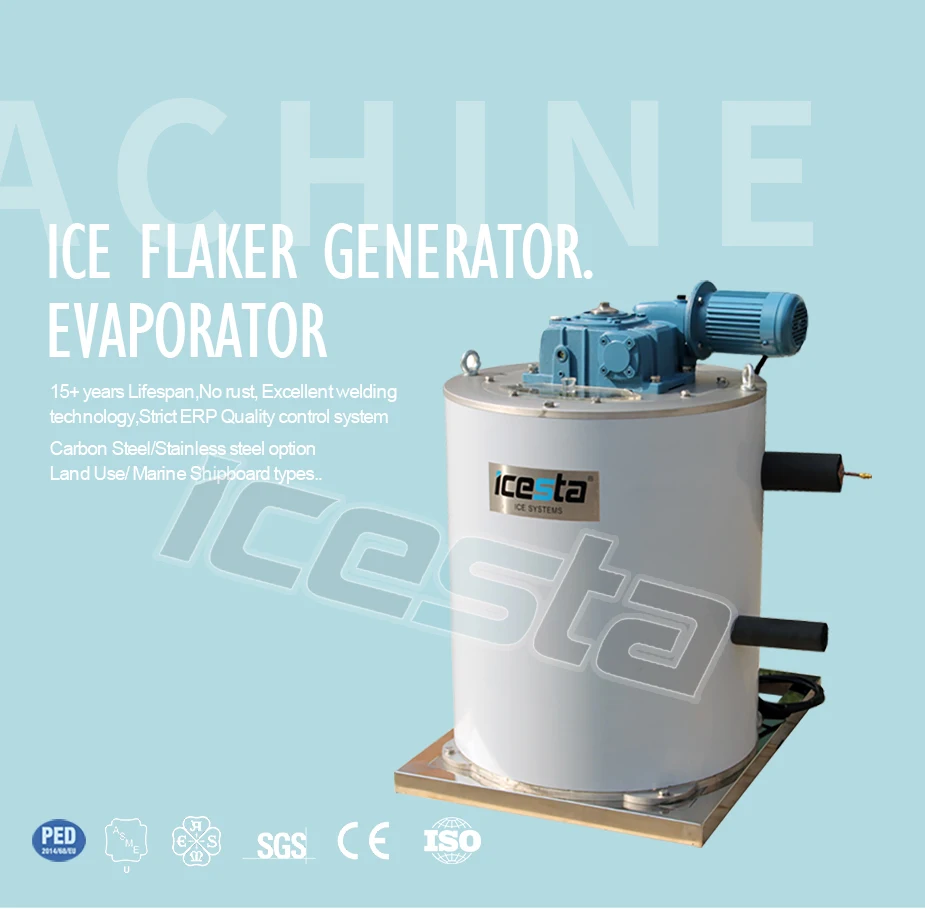

PRODUCT INTRODUCTION
Who purchase the single Ice flaker evaporators?
1. Professional refrigeration contractors, flake ice machine manufacturers. As the tarrif to be charge for components is
comparatively lower and the labor cost is low, purchasing of evaporators for assembly skid-mounted ice machine will help reduce the cost and increase profit.
2. End users who need replace old evaporator
3. Factories which have a central ammonia refrigeration system. Like large scale chemical processing facilities and Aquatic products processing facilities,Meat Processing factory etc
1. Professional refrigeration contractors, flake ice machine manufacturers. As the tarrif to be charge for components is
comparatively lower and the labor cost is low, purchasing of evaporators for assembly skid-mounted ice machine will help reduce the cost and increase profit.
2. End users who need replace old evaporator
3. Factories which have a central ammonia refrigeration system. Like large scale chemical processing facilities and Aquatic products processing facilities,Meat Processing factory etc

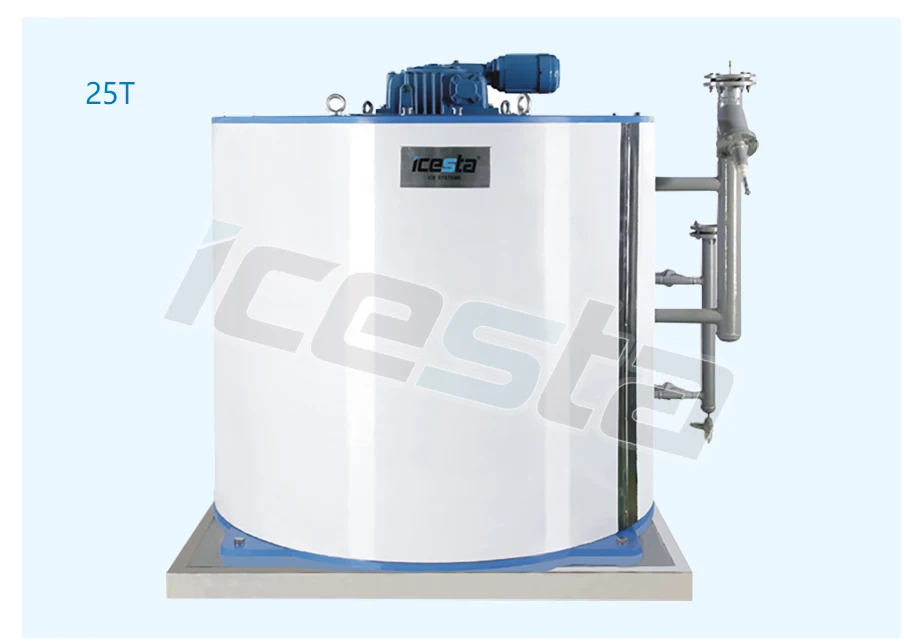

Scope of Evaporator Capacities
Daily production Capacity: 500kg – 60 T (for overseas customers, the maximum capacity is 40T due to the max height restriction of container).

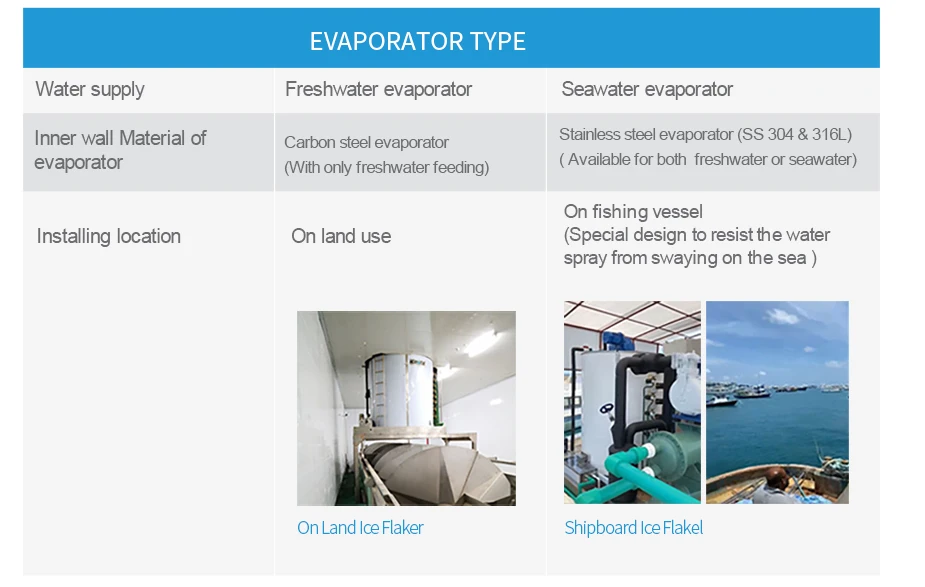

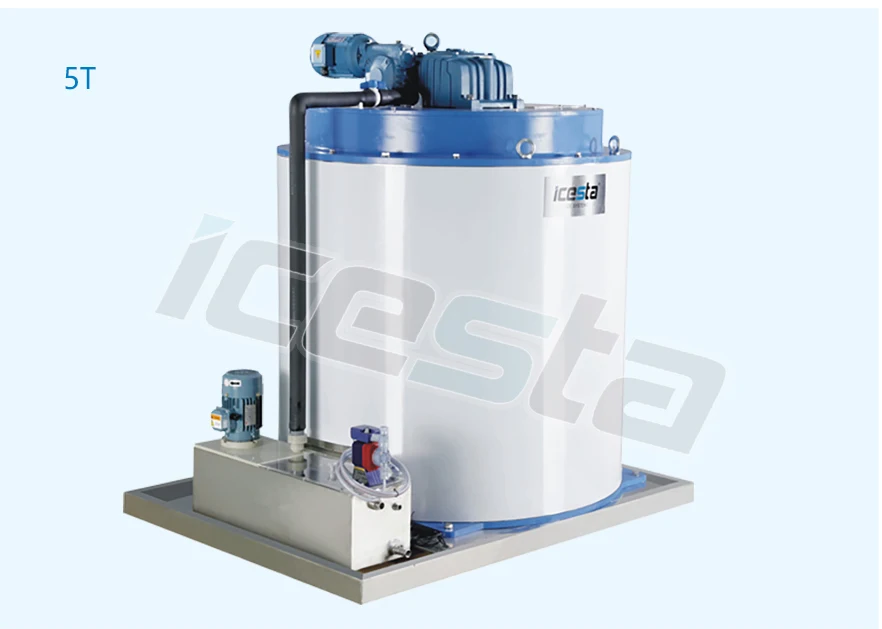

* Classification of Ice flaker evaporator
Daily production Capacity: 500kg – 60 T (for overseas customers, the maximum capacity is 40T due to the max height restriction of container).
* Classification of Ice flaker evaporator
TECHNICAL PARAMETERS
*Power supply: 380V/3P/50HZ, 220V/3P/60HZ, 380V/3P/60HZ, 460V/3P/60HZ
*Ambient temperature 35℃
*Water supply Temp 20℃ ( quality)
*Extreme working condition environment: 5℃～40℃, water supply 5℃～30℃
*Refrigerant: R22, R404A, R507A
*Ambient temperature 35℃
*Water supply Temp 20℃ ( quality)
*Extreme working condition environment: 5℃～40℃, water supply 5℃～30℃
*Refrigerant: R22, R404A, R507A
Model | IFE-1T | IFE-2T | IFE-3T | IFE-5T | IFE-8T |
Daily output | 1t/24hrs | 2t/24hrs | 3t/24hrs | 5t/24hrs | 8t/24hrs |
Necessary refrigerant | 6kw | 12kw | 18kw | 30kw | 48kw |
Rated voltage | 380V/50HZ/3P | 380V/50HZ/3P | 380V/50HZ/3P | 380V/50HZ/3P | 380V/50HZ/3P |
Reducer power | 0.18KW | 0.37kw | 0.37kw | 0.37kw | 0.75KW |
Inlet/drain pipe diameter | 1/2" | 1/2" | 1/2" | 1/2" | ¾“/½" |
Unitsize | 790x710x860mm | 900x850x1030mm | 930x850x1245mm | 1180x1050x1420mm | 1580x1500x1530mm |
Weight | 160kg | 240kg | 260kg | 370kg |
Model | IFE-10T | IFE-15T | IFE-20T | IFE-25T | IFE-30T |
Daily output | 10t/24hrs | 15t/24hrs | 20t/24hrs | 25t/24hrs | 30t/24hrs |
Necessary refrigerant | 60kw | 90kw | 120kw | 150kw | 180kw |
Rated voltage | 380V/50HZ/3P | 380V/50HZ/3P | 380V/50HZ/3P | 380V/50HZ/3P | 380V/50HZ/3P |
Reducer power | 0.75KW | 0.75KW | 1.50.75KW | 0.37kw | 1.5KW |
Inlet/drain pipe diameter | ¾“/½" | ¾“/½" | ¾“/½" | ¾“/½" | ¾“/½" |
Unitsize | 1580x1500x1670mm | 1580x1850X2130mm | 2130x1850x2240mm | 2130x1850x2250mm | 2520x2250x2500mm |
Weight | 1100kg | 1550kg | 2200kg | 2500kg | 3000kg |
APPLICATION INDUSTRY
More and more Cooling or temp.Reduction industry used the ice machines to meet their higher technic request due to their deeper knowledge about this equpment.
WORKING PRINCIPLE

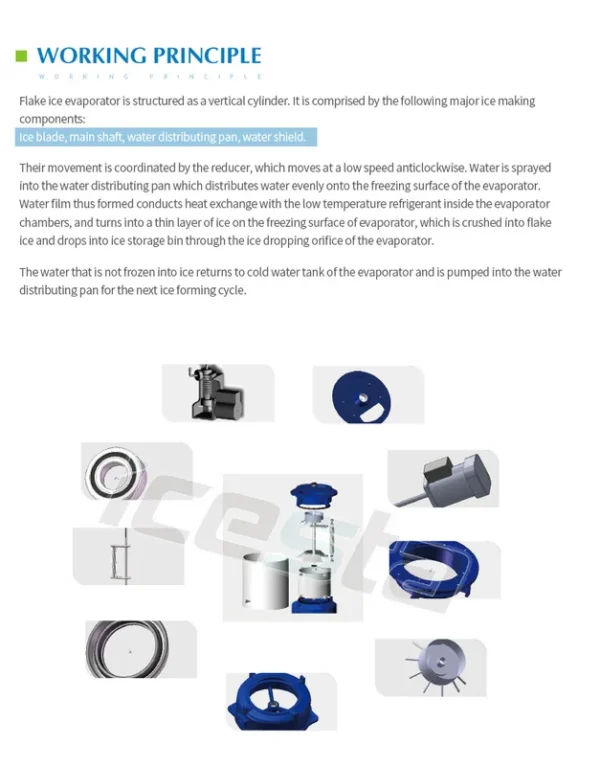

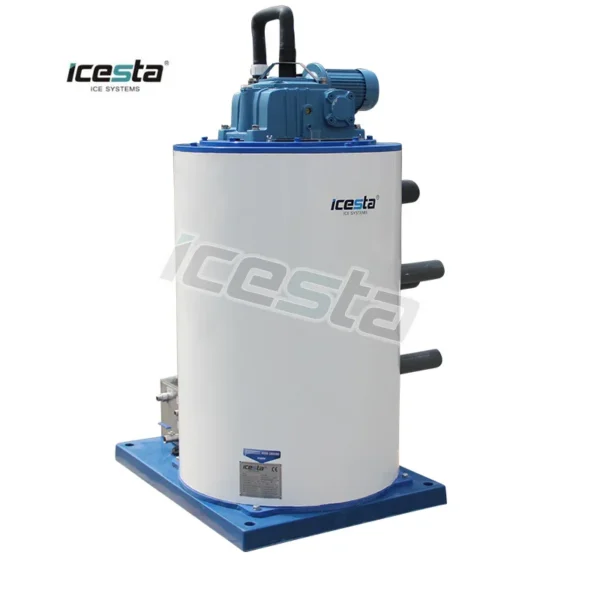

Flake ice evaporator is the key part of ice flake machine,structured as a vertical cylinder. It is comprised by the following
major ice making components:

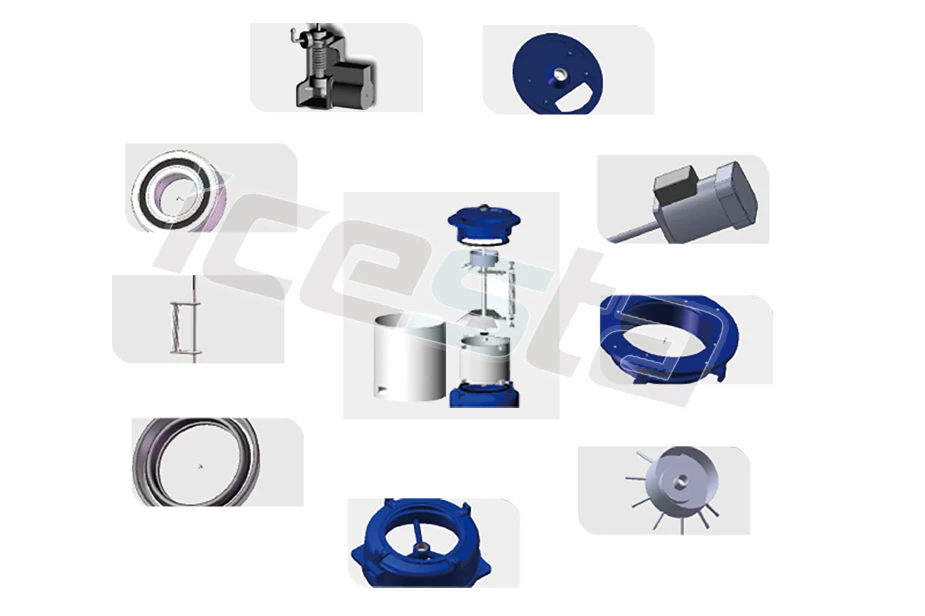

Ice maker drum, blade, main shaft, water distributing pan, water shield,etc.
Their movement is coordinated by the reducer, which moves at a low speed anticlockwise. Water is sprayed into the water
distributing pan which distributes water evenly onto the freezing surface of the evaporator. Water film thus formed conducts heat exchange with the low temperature refrigerant inside the evaporator chambers, and turns into a thin layer of ice on the freezing surface of evaporator, which is crushed into flake ice and drops into ice storage bin through the ice dropping orifice of the evaporator.
The water that is not frozen into ice returns to cold water tank of the evaporator and is pumped into the water distributing pan for the next ice forming cycle.
major ice making components:
Ice maker drum, blade, main shaft, water distributing pan, water shield,etc.
Their movement is coordinated by the reducer, which moves at a low speed anticlockwise. Water is sprayed into the water
distributing pan which distributes water evenly onto the freezing surface of the evaporator. Water film thus formed conducts heat exchange with the low temperature refrigerant inside the evaporator chambers, and turns into a thin layer of ice on the freezing surface of evaporator, which is crushed into flake ice and drops into ice storage bin through the ice dropping orifice of the evaporator.
The water that is not frozen into ice returns to cold water tank of the evaporator and is pumped into the water distributing pan for the next ice forming cycle.
Characteristics

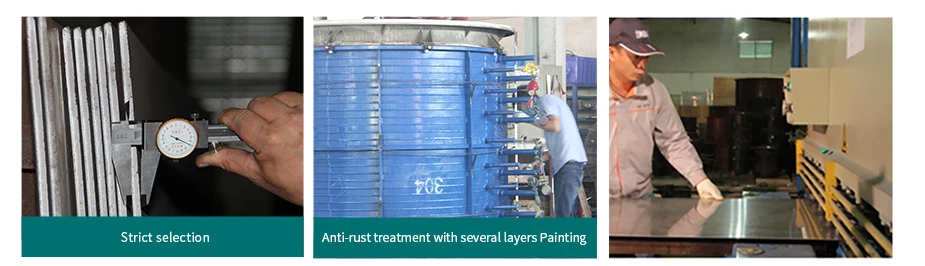

Rigorous pick-up of raw material. Not every kind of Stainless Steel is the same in terms quality on the market. When we choose stainless steel, we use the material of high quality with Qualified Material Certificate only.
*Strict ERP Quality control system
*Prominent Technology of Welding Detecting Ray
*Ice Blade weldless Forming
*Excellent Heat treatment of stress relief by annealing
*Prominent X-radial welding detecting technics
*Chromium Coating (carbon steel )
*Quantity & loops of refrigerant chambers designed Stringently
*A multiple of cleaning jobs for the refrigerant chamber
*Evaporator never meet deformation
*No refrigerant leak
*Ice scraping smoothly
*Strict ERP Quality control system
*Prominent Technology of Welding Detecting Ray
*Ice Blade weldless Forming
*Excellent Heat treatment of stress relief by annealing
*Prominent X-radial welding detecting technics
*Chromium Coating (carbon steel )
*Quantity & loops of refrigerant chambers designed Stringently
*A multiple of cleaning jobs for the refrigerant chamber
*Evaporator never meet deformation
*No refrigerant leak
*Ice scraping smoothly

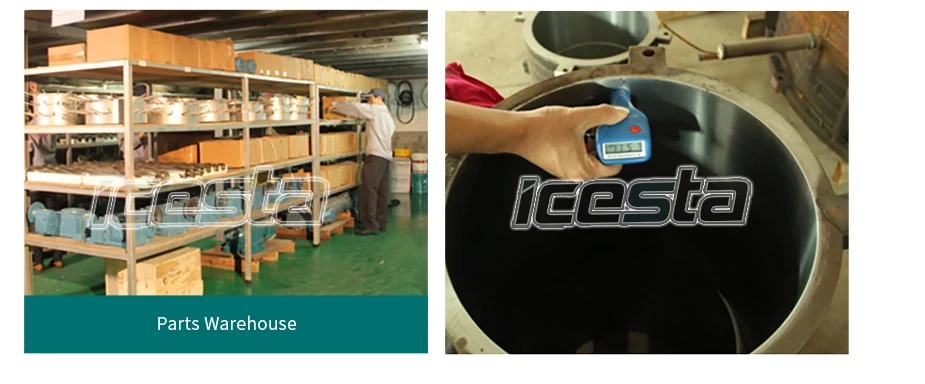

ICESTA First-Class Craftsmanship
Key points of Quality control of flake ice machine
Pontos-chave de controlo de qualidade de uma máquina de gelo em flocos
1. Evaporator Machining and Processing
*Spiral Refrigerant Chamber Design of the evaporator, compared to other designs, assures that refrigeration oil mixed in
refrigerant gas return to compressor, and in the same time, dry evaporating style of ICESTA evaporator will eradicate the damage of compressor slugging.
* When the refrigerant chambers of the evaporator have been properly welded, a heat treatment of stress relief by annealing is done to eradicate effectively the hidden danger of evaporator deforming.
* Chromium coating of evaporator freezing surface (carbon steel only) will enhance hardness and wearability.
Key points of Quality control of flake ice machine
Pontos-chave de controlo de qualidade de uma máquina de gelo em flocos
1. Evaporator Machining and Processing
*Spiral Refrigerant Chamber Design of the evaporator, compared to other designs, assures that refrigeration oil mixed in
refrigerant gas return to compressor, and in the same time, dry evaporating style of ICESTA evaporator will eradicate the damage of compressor slugging.
* When the refrigerant chambers of the evaporator have been properly welded, a heat treatment of stress relief by annealing is done to eradicate effectively the hidden danger of evaporator deforming.
* Chromium coating of evaporator freezing surface (carbon steel only) will enhance hardness and wearability.

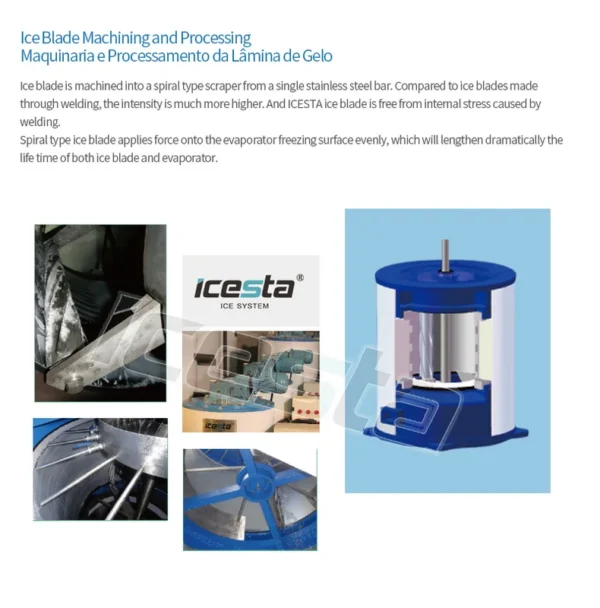

2. Ice Blade Machining and Processing
Maquinaria e Processamento da Lâmina de Gelo
Ice blade is machined into a spiral type scraper from a single stainless steel bar. Compared to ice blades made through welding, the intensity is much more higher. And ICESTA ice blade is free from internal stress caused by welding.
Maquinaria e Processamento da Lâmina de Gelo
Ice blade is machined into a spiral type scraper from a single stainless steel bar. Compared to ice blades made through welding, the intensity is much more higher. And ICESTA ice blade is free from internal stress caused by welding.
Spiral type ice blade applies force onto the evaporator freezing surface evenly, which will lengthen dramatically the life time of both ice blade and evaporator.

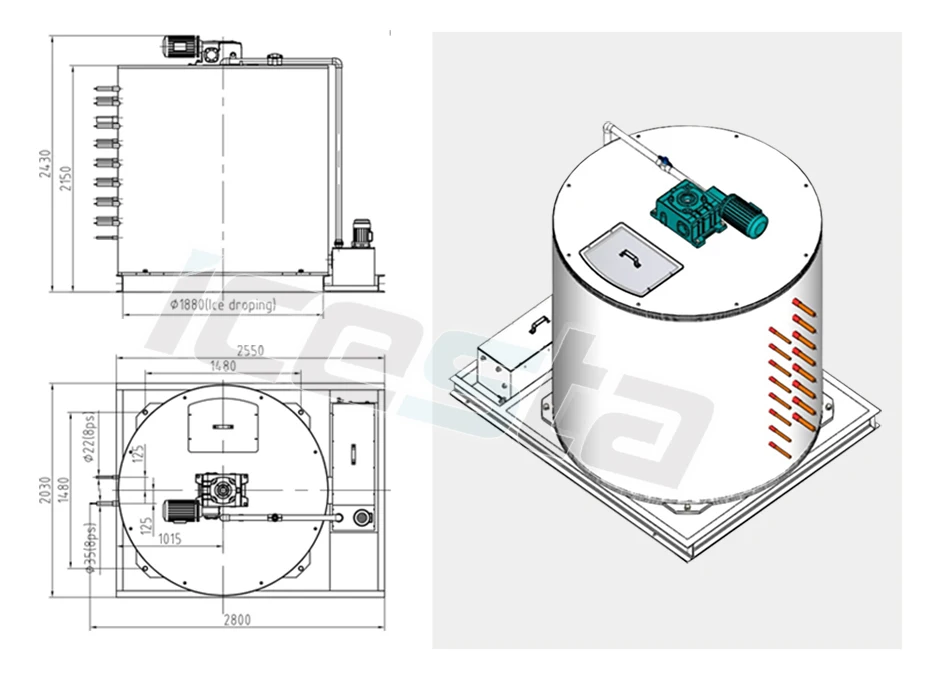

DRAWING DISPLAY
The ICESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production.

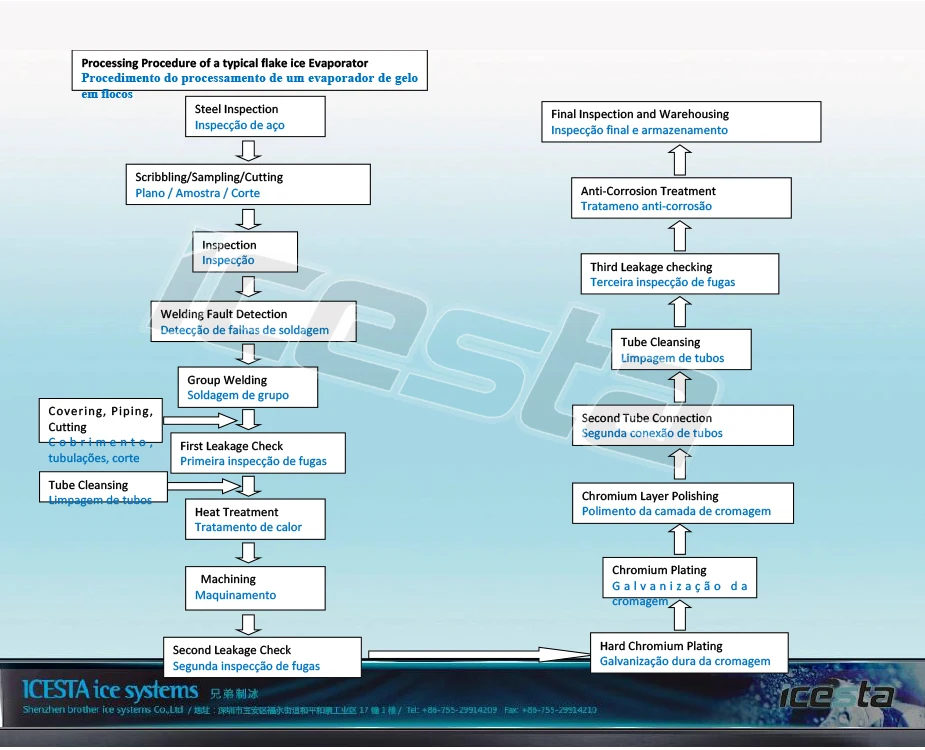

PROCESSING FLOW CHART

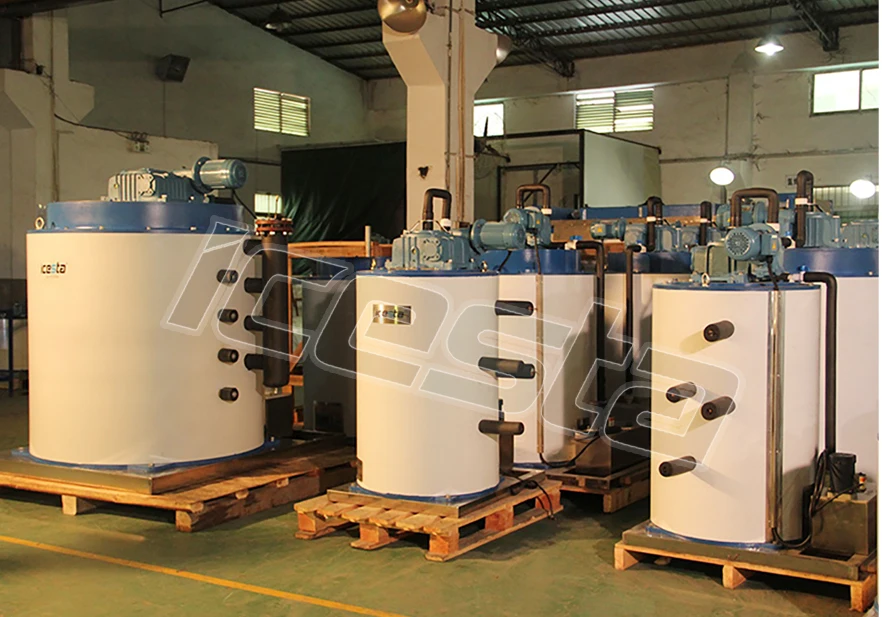

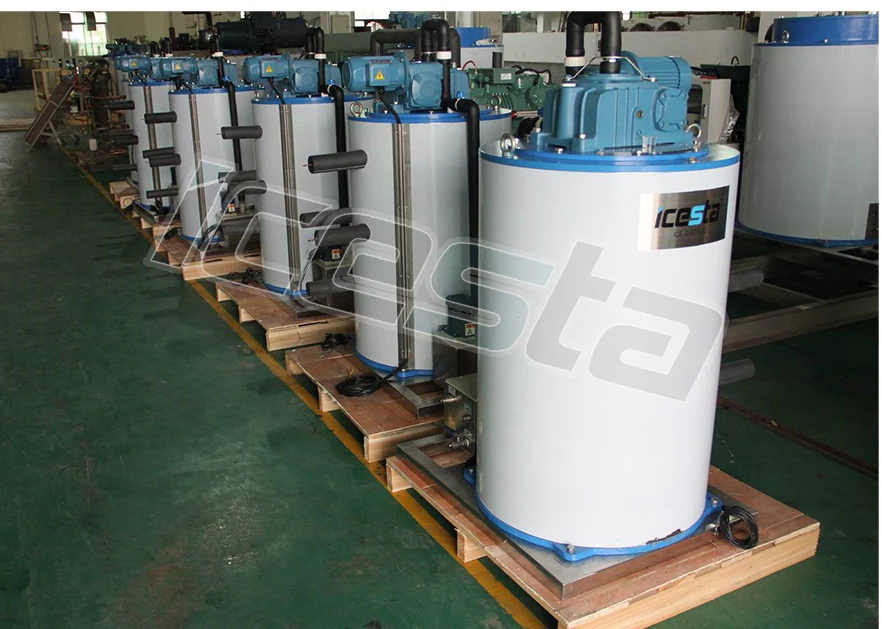

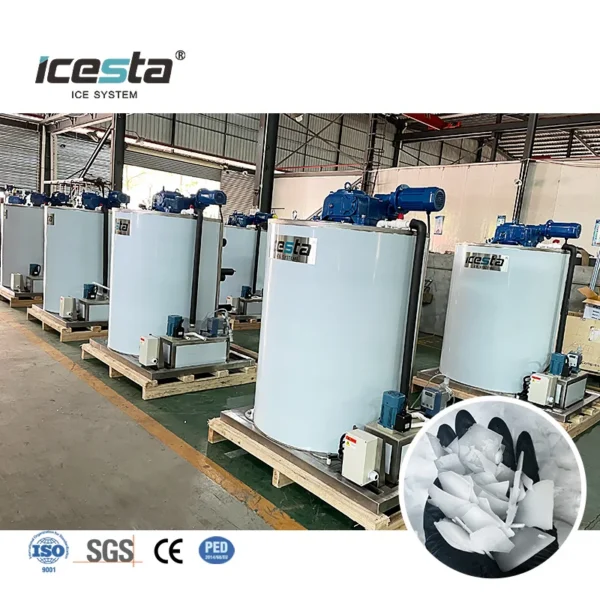

PICTURE DISPLAY
Technology, change the world, innovate, and subvert tradition. We are committed to making people's production and life more convenient, efficient and beautiful

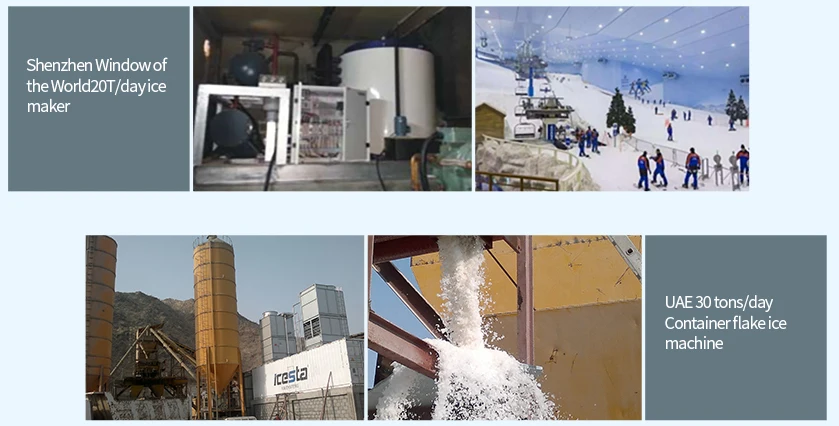

Engineering Case

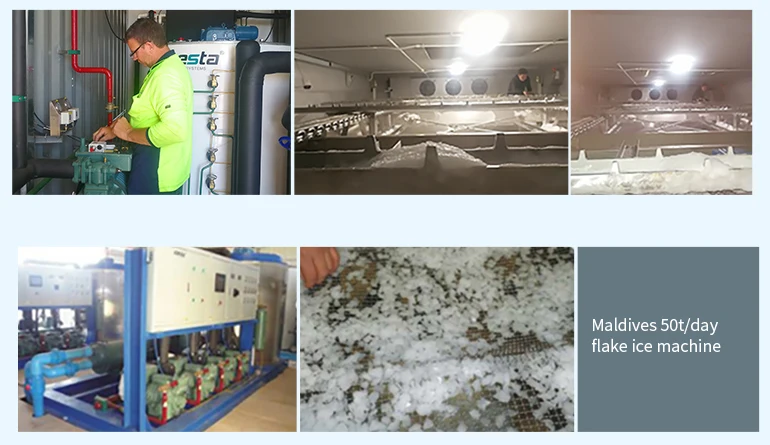

Since 2007, ICESTA products have been sold to more than 80 countries around the world, and provide distributor services in many regions
Product Hot Sale
Why choose us
ICESTA 20 years dedication in ice making technology to create excellence.
Shenzhen Brother Ice System Co., Ltd. ( ICESTA Brand), a well-known ice machine manufacturer and industry leader and pioneer in China.The product covers flake ice /Block ice machine, Tube ice /slurry ice/plate ice/cube ice machines, water
chillers,Plate/spiral/blast freezers, Automatic ice storing & delivery system with integrated container ice system,artificial snow making machine.etc
Experiences & History:
20-Years Team focus on innovative solution in Ice & Cooling technology.
17-Years Professional Manufacturer, Supplier of Excellent Turnkey ice & cooling projects.
Industry status& Reputation:
* TOP 3 of China industrial ice machine Brand with strong capability of R&D
* 20000㎡ Factory
* ISO 9001 , CE, PED, ASME (U.S ) Certificates etc
Technology & Management capability:
* 80+ patents Certificates
* High Technology enterprise Certificate
Services & Global Net:
* Export to 80+ countries
* Local service in 50+ countries with networks all over the world.
* 1-2 years warranty covers each component.
chillers,Plate/spiral/blast freezers, Automatic ice storing & delivery system with integrated container ice system,artificial snow making machine.etc
Experiences & History:
20-Years Team focus on innovative solution in Ice & Cooling technology.
17-Years Professional Manufacturer, Supplier of Excellent Turnkey ice & cooling projects.
Industry status& Reputation:
* TOP 3 of China industrial ice machine Brand with strong capability of R&D
* 20000㎡ Factory
* ISO 9001 , CE, PED, ASME (U.S ) Certificates etc
Technology & Management capability:
* 80+ patents Certificates
* High Technology enterprise Certificate
Services & Global Net:
* Export to 80+ countries
* Local service in 50+ countries with networks all over the world.
* 1-2 years warranty covers each component.
FAQ
FAQ (Frequently Asked Questions)
1. Questions before quotationA. Would you make ice from seawater, saltwater or freshwater?
B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?
C. What’s the power supply?
D. What is the application of the flake ice produced?
E. Which cooling mode would you prefer to? Water or air ,Evaporative cooling?
2. Installation & commissioning
A. Installed by customers according to the manuals, online instructions and live video conference of ICESTA.
B. Installed by ICESTA engineers.
a. ICESTA would arrange 1~3 engineers based on the projects to the installation sites for the final supervision of all
installations and commissioning.
b. Customers need to provide local accommodation and round-trip ticket for our engineers and pay for the commissions. US Dollars 100 per engineer per day.
c. Power, water, installation tools and spare parts need to be ready before ICESTA engineers arrive.
3. Warranty & Technical support
A. 1 year after Bill of Lading date.
B. Any failure occurred within the period due to our responsibility, ICESTA will supply the spare parts for free.
C.ICESTA provide full technical support and training courses after equipment installation and commissioning.
C. Permanent technical support & consultation all life long for the machines.
D. Over 25 engineers for instant after-sale services and more than 15 are available for serving overseas.
365 days X 7 X 24 hours phone / EMAIL assistance
4. Failure Claim procedures
a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed description of failure.
b. Relevant pictures are required for failure confirmation.
c. ICESTA engineering and after-sales service team will check and form a diagnosis report.
d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures
Ordering and Pricing
- Minimum order quantity: 1 unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machine?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ice machine carry?
It is supplied with CE ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ice machine be supplied for my local voltage?
The standard configuration is 220 V, 380 V, 460V, customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
