Key specification for this spiral freezer: 220V/380V or Customized, material Stainless Steel 304. Everything below is reproduced from the factory data sheet. Made by Shenzhen Brother Ice System Co., Ltd. (19 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Spiral Freezer
- Power(W): Customized
- Voltage: 220V/380V or Customized
- Material: Stainless Steel 304
- Refrigerant: R-404A, R-22, R-717
- Warranty: 1 Year
- Certification: CE/ISO9001
Technical Specifications
| Type | Spiral Freezer |
|---|---|
| Temperature Control | Customized |
| Refrigerant | R-404A, R-22, R-717 |
| Voltage | 220V/380V or Customized |
| Compressor Brand | Bitzer, Copeland, Bock |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | PLC, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Key Selling Points | Automatic, High Productivity, Long Service Life |
| Power(W) | Customized |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 10000 |
| Brand Name | ICESTA |
| Dimension(L*W*H) | Customized |
| After-Sales Service Provided | Service Machinery Overseas |
| After-Sale Service | Within 1 Year |
| Certification | CE/ISO9001 |
| Condenser Form | water cooling or air cooling |
| Material | Stainless Steel 304 |
| Application | Seafood/Meat/Vegetable Processing Plants |
| Control Panel | PLC touch screen, SS panel |
| Applicable Industries | Food Quick Frozen Machine |
| Effective Layers | 6-40 |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

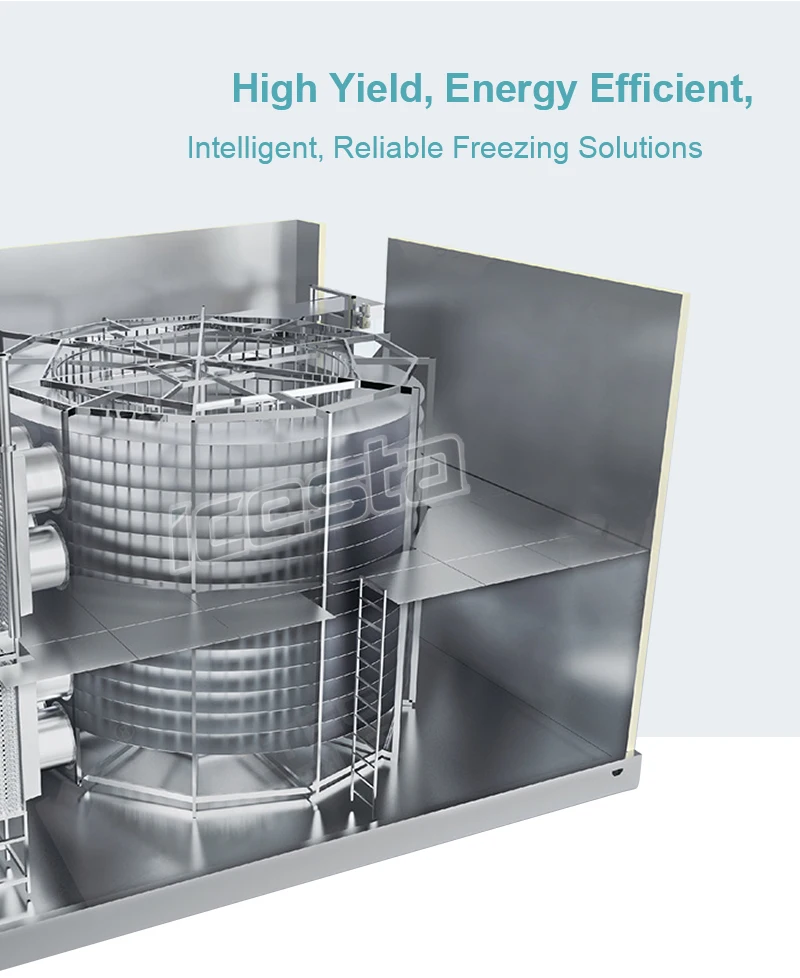

Key Features of Spiral Freezers:

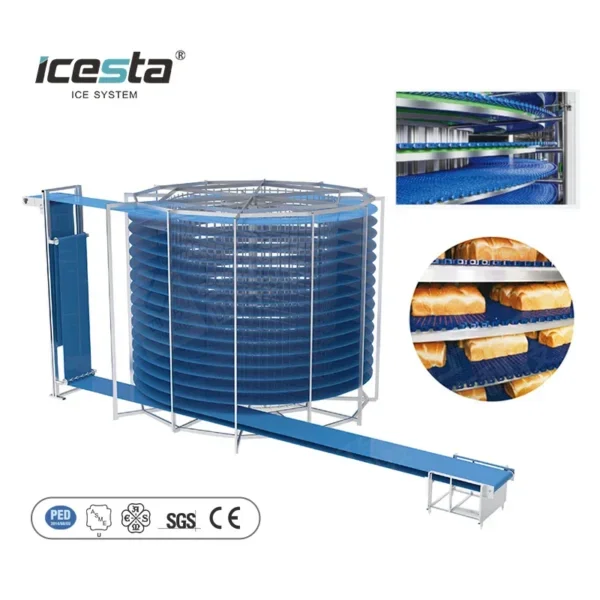

1. Space Efficiency: The spiral design allows for vertical stacking of the freezing process, optimizing floor space while handling large quantities of product.
1. Space Efficiency: The spiral design allows for vertical stacking of the freezing process, optimizing floor space while handling large quantities of product.
2. Continuous Operation: Products are fed onto a conveyor belt that spirals through the freezing chamber, allowing for a continuous flow of food items, which increases processing efficiency.
3. Rapid Freezing: Spiral freezers typically use blast freezing technology, which rapidly lowers food temperatures to preserve texture and minimize ice crystal formation.
4. Temperature Control: They are designed with precise temperature and airflow control to ensure consistent freezing across all products.

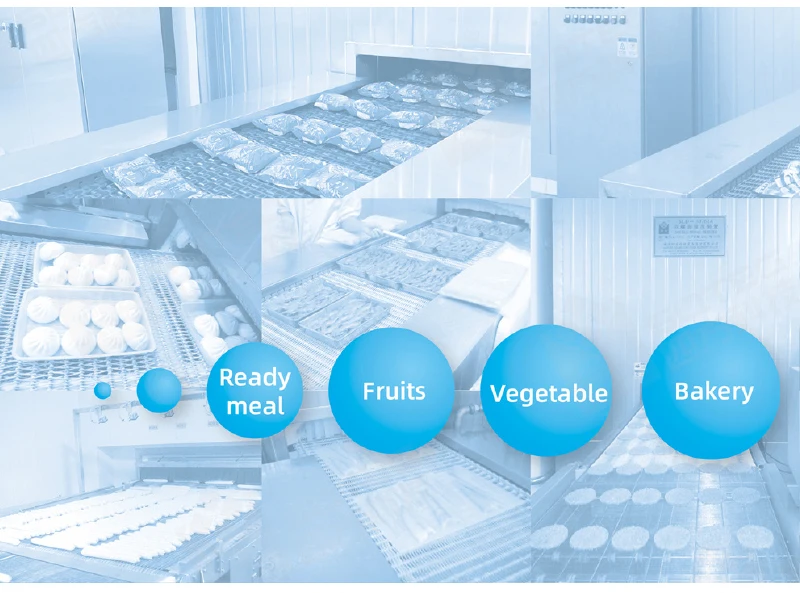

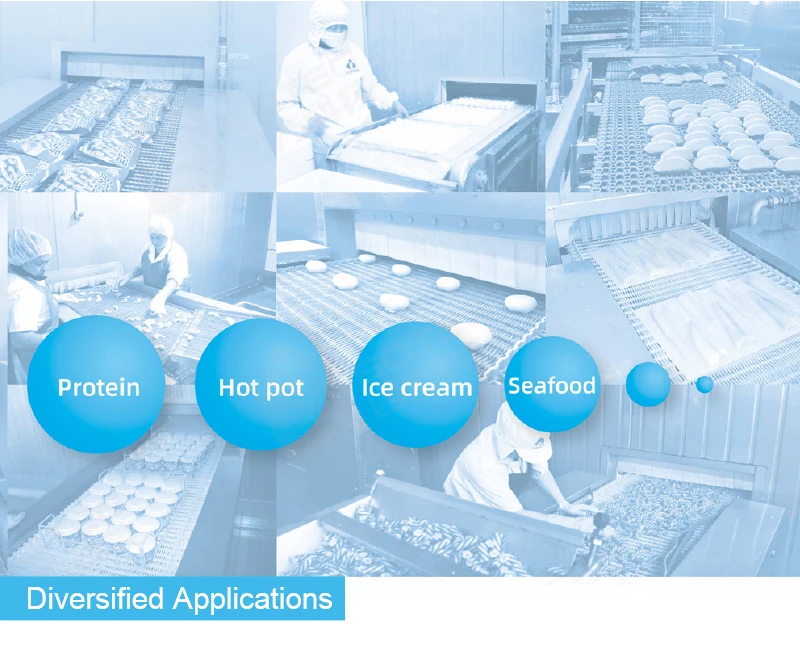

5. Versatility: These freezers can handle a wide variety of foods, including meat, seafood, bakery items, and ready-to-eat meals.
6. Efficient Energy Use: Advanced design features, such as insulated walls and efficient airflow systems, help reduce energy consumption.
3. Rapid Freezing: Spiral freezers typically use blast freezing technology, which rapidly lowers food temperatures to preserve texture and minimize ice crystal formation.
4. Temperature Control: They are designed with precise temperature and airflow control to ensure consistent freezing across all products.
5. Versatility: These freezers can handle a wide variety of foods, including meat, seafood, bakery items, and ready-to-eat meals.
6. Efficient Energy Use: Advanced design features, such as insulated walls and efficient airflow systems, help reduce energy consumption.
Technical Data

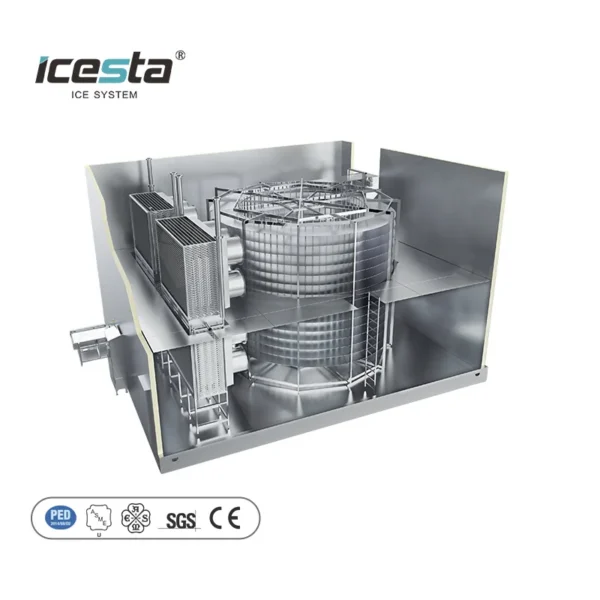

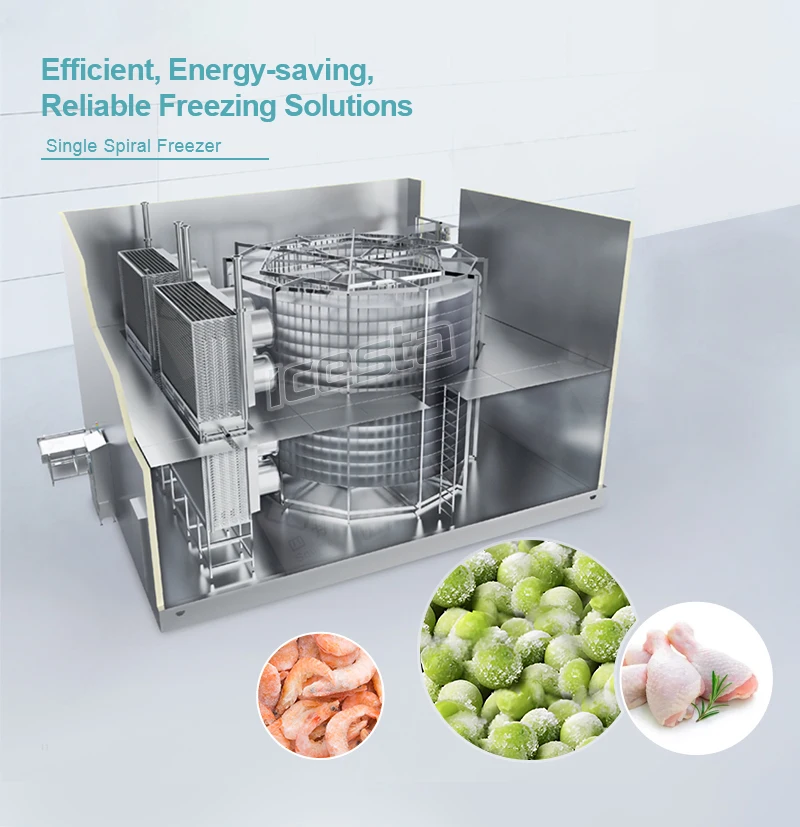

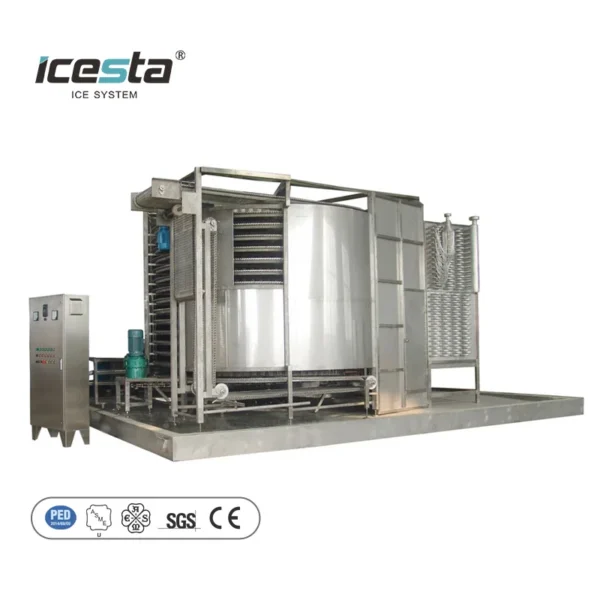

Structure | Single drum spiral freezer |
Drum Diameter | 1620~5800mm |
Layers | 6-40 |
Insulated Enclosure | PIR/PU, double sides stainless steel panel |
Mesh Belt Width | 520~1372mm |
Infeed Length | 500mm |
Outfeed Length | 500mm |
Control Panel | PLC touch screen, SS panel |
Refrigerant | Freon, Ammonia, CO₂ |
Evaporator | Al/SS tube, aluminum fin, variable fin pitch |
Defrost | Water/hot /ADF optional |
Freezing/Cooling Time | Stepless variable frequency adjustable |
Cleaning | ManualBeltWasherCIP |
Freezing capacity | 200kg to 10000kg/h |

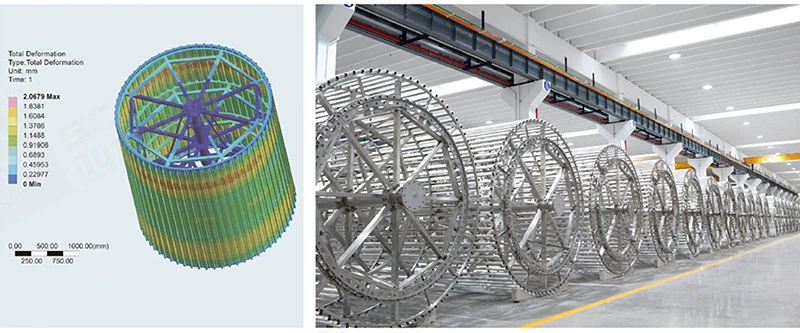

Finite Element Analysis
When designing a spiral freezer, structural analysis is perfomed to ensure its structural integrity during operation.
The system cleans and disinfects the interi or of the freezer completely to meet the sanitary requirements of food safety production.

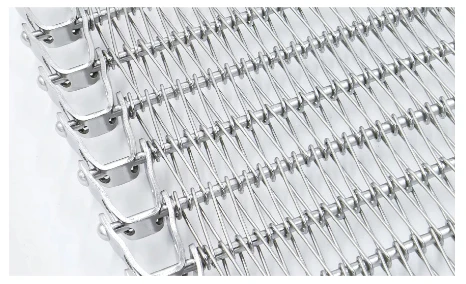

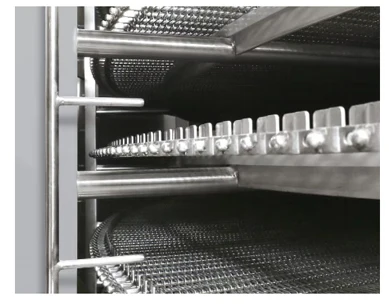

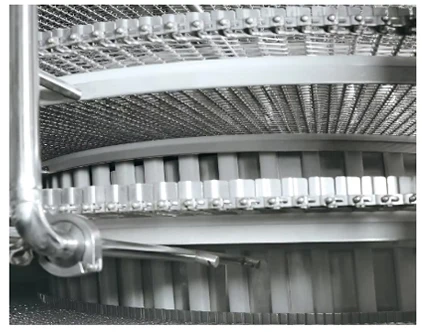

Stainless Steel Mesh Belt
SUS304 food-grade spring wire, high strength, 8–10 years of service life. Open structure, easy to clean, suitable width: 400–1372 mm. Optional edge guard board to prevent products from dropping. High ventilation, high efficiency.
Belt Flip Detector
The Belt Flip Detector is a feature that helps to ensure the smooth and efficient operation of the spiral freezer. It works by
detecting any issues with the conveyor belt that could cause it to flip or become misaligned. If a problem is detected, the Belt
Flip Detector will automatically shut down the freezer to prevent any damage or downtime. This helps to reduce maintenance costs
and increase the overall reliability of the spiral freezer.
detecting any issues with the conveyor belt that could cause it to flip or become misaligned. If a problem is detected, the Belt
Flip Detector will automatically shut down the freezer to prevent any damage or downtime. This helps to reduce maintenance costs
and increase the overall reliability of the spiral freezer.
Fully welded floor
Modular stainless steel fully welded floor, leak proof.
Sloped floor, fast drainage through four drains at the corners. Easy Access.
Multi-Zone Temperature Monitor
The Multi-Zone Temperature Monitor is a feature that allows you to monitor the temperature of different areas within the spiral
freezer. It is made up of several sensors that are strategically placed around the freezer to give real-time readings of the
temperature. This lets you keep track of how well the freezer is working and make any changes you need to for the best temperature
control.
freezer. It is made up of several sensors that are strategically placed around the freezer to give real-time readings of the
temperature. This lets you keep track of how well the freezer is working and make any changes you need to for the best temperature
control.

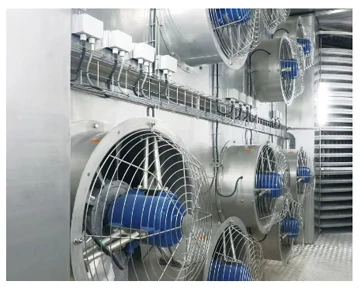

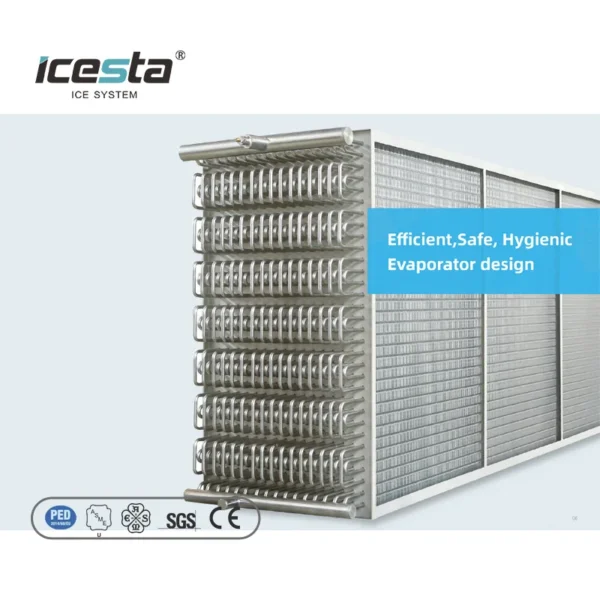

Efficient Evaporator
Our design was simulated with European professional heat exchanger software. All tubes are expanded hydraulically rather than
mechanically, which improves heat exchange performance due to more uniform expansion and a tighter fit between tube and fin.
Variable fin pitch is used to delay frost formation on the filn's surface. Longer frosting interval. Easy access and cleaning.
mechanically, which improves heat exchange performance due to more uniform expansion and a tighter fit between tube and fin.
Variable fin pitch is used to delay frost formation on the filn's surface. Longer frosting interval. Easy access and cleaning.

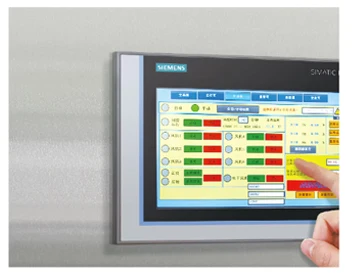

Intelligent Control System
PLC touch screen, friendly interface, easy operation. Real-time display of equipment running status, the temperature of each area,
and fault alarm. Preset freezing programs tailored for different products. Optional remote troubleshooting module.
Why choose us

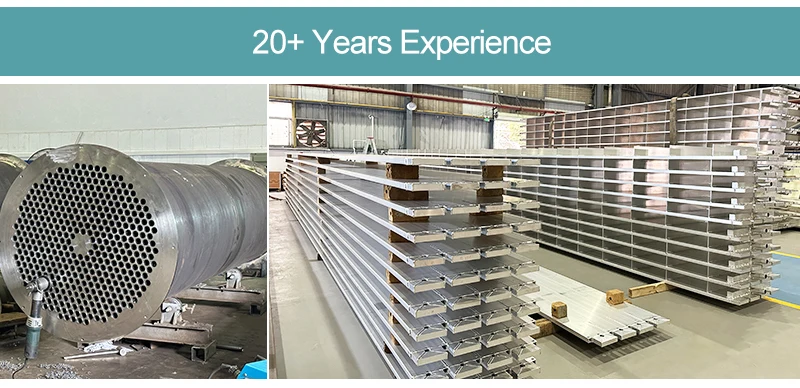

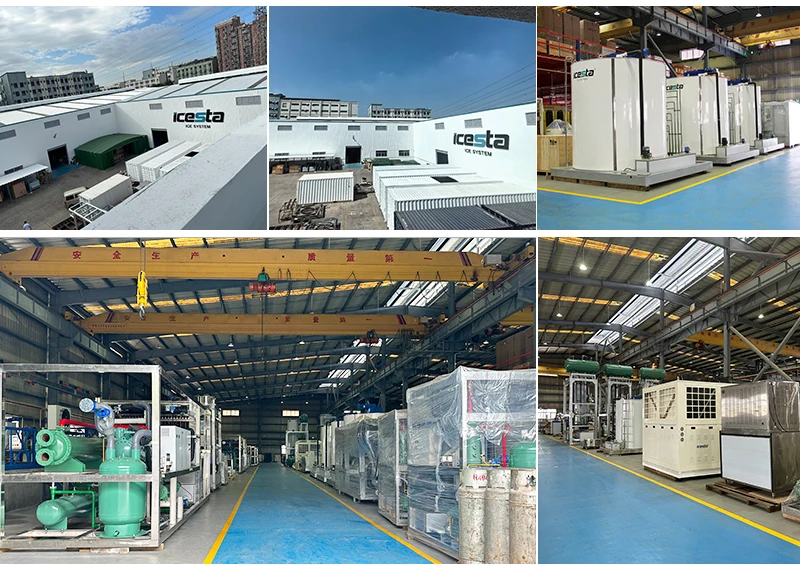

ICESTA 20 years focus on innovative solution in ice making and cooling technology

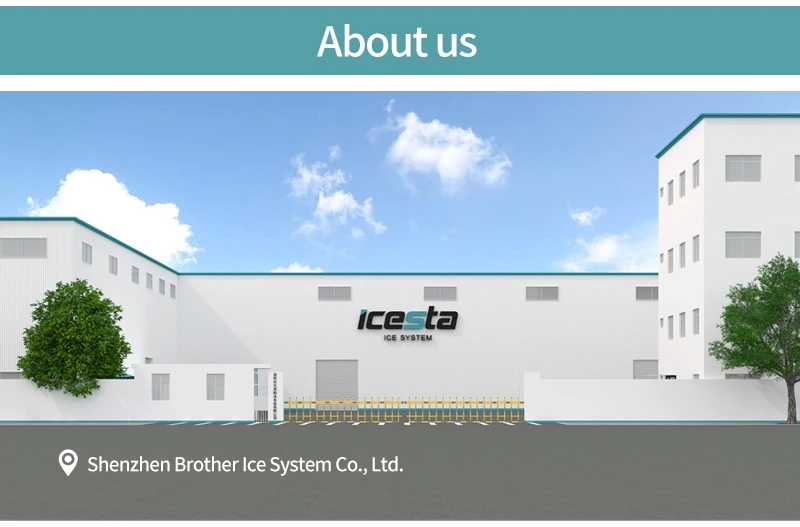

Shenzhen Brother Ice System Co., Ltd. ( ICESTA Brand), a well-known ice machine manufacturer and industry leader and pioneer in China.The product covers flake ice /Block ice machine, Tube ice /slurry ice/plate ice/cube ice machines, water
chillers,Plate/spiral/blast freezers, Automatic ice storing & delivery system with integrated container ice system,artificial snow making machine.etc
Experiences & History:
20-Years Team focus on innovative solution in Ice & Cooling technology.
17-Years Professional Manufacturer, Supplier of Excellent Turnkey ice & cooling projects.
Industry status& Reputation:
* TOP 3 of China industrial ice machine Brand with strong capability of R&D
* 20000㎡ Factory
* ISO 9001 , CE, PED, ASME (U.S ) Certificates etc
Technology & Management capability:
* 80+ patents Certificates
* High Technology enterprise Certificate
Services & Global Net:
* Export to 80+ countries
* Local service in 50+ countries with networks all over the world.
* 1-2 years warranty covers each component.
chillers,Plate/spiral/blast freezers, Automatic ice storing & delivery system with integrated container ice system,artificial snow making machine.etc
Experiences & History:
20-Years Team focus on innovative solution in Ice & Cooling technology.
17-Years Professional Manufacturer, Supplier of Excellent Turnkey ice & cooling projects.
Industry status& Reputation:
* TOP 3 of China industrial ice machine Brand with strong capability of R&D
* 20000㎡ Factory
* ISO 9001 , CE, PED, ASME (U.S ) Certificates etc
Technology & Management capability:
* 80+ patents Certificates
* High Technology enterprise Certificate
Services & Global Net:
* Export to 80+ countries
* Local service in 50+ countries with networks all over the world.
* 1-2 years warranty covers each component.
FAQ
FAQ (Frequently Asked Questions)
1. Questions before quotationA. Would you make ice from seawater, saltwater or freshwater?
B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?
C. What’s the power supply?
D. What is the application of the flake ice produced?
E. Which cooling mode would you prefer to? Water or air ,Evaporative cooling?
2. Installation & commissioning
A. Installed by customers according to the manuals, online instructions and live video conference of ICESTA.
B. Installed by ICESTA engineers.
a. ICESTA would arrange 1~3 engineers based on the projects to the installation sites for the final supervision of all
installations and commissioning.
b. Customers need to provide local accommodation and round-trip ticket for our engineers and pay for the commissions. US Dollars 100 per engineer per day.
c. Power, water, installation tools and spare parts need to be ready before ICESTA engineers arrive.
3. Warranty & Technical support
A. 1 year after Bill of Lading date.
B. Any failure occurred within the period due to our responsibility, ICESTA will supply the spare parts for free.
C.ICESTA provide full technical support and training courses after equipment installation and commissioning.
C. Permanent technical support & consultation all life long for the machines.
D. Over 25 engineers for instant after-sale services and more than 15 are available for serving overseas.
365 days X 7 X 24 hours phone / EMAIL assistance
4. Failure Claim procedures
a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed description of failure.
b. Relevant pictures are required for failure confirmation.
c. ICESTA engineering and after-sales service team will check and form a diagnosis report.
d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1 set: US $120000 / set
- 2+ set: US $115000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this spiral freezer?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this spiral freezer carry?
It is supplied with CE/ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the spiral freezer be supplied for my local voltage?
The standard configuration is 220V/380V or Customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
