Ice machines — 220 V, 380 V, 460V, 121.1KW. The complete factory specification follows. Made by Shenzhen Brother Ice System Co., Ltd. (19 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of These Ice Machines

• Model Number: ICB24T-R4W
• Power: 121.1KW
• Voltage: 220 V, 380 V, 460V
• Ice Storage Capacity: Other
• Refrigerant: R404A, R507, R410A
• Warranty: 1 Year

Technical Specifications

Product Details

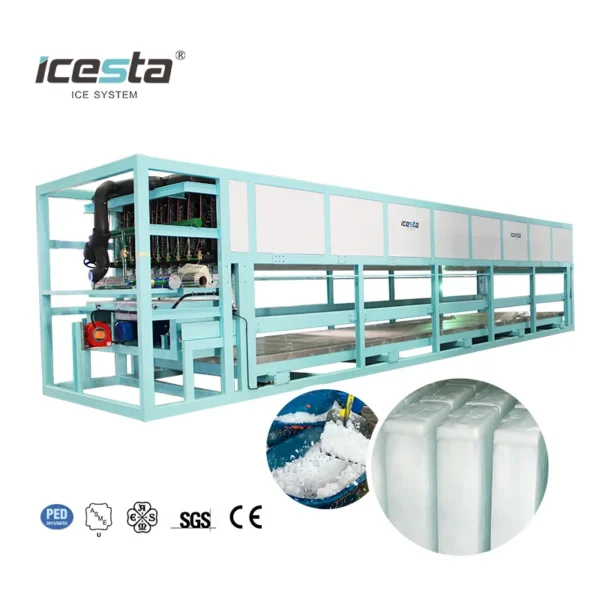

Introduction of direct cooling block ice machine

The Direct Cooling Block ice machine is a new type of high efficient Block ice machine，different from the traditional Brine cooling, the evaporator（Block ice moulds） is made of aluminum alloy, the refrigerant evaporates and exchanges heat directly in the evaporator to make ice without salt water,thus the machine has long life-span,never rust in the evaproator. The deicing is semi-automatically without any crane and manual harvest to give users most convenience .

We also provide containerized direct cooling block ice machines and brine block ice machines, and containerized brine block ice machines.

Technical Parameters

Ambient temperature 0°C-45°C, water temperature: ≤30°C
Evaporation temperature: -15℃，Condensing temperature：40℃
Power supply：3P/380V/50HZ，3P/220V/60HZ，3P/380V/60HZ，3P/460V/60HZ Optional
Refrigerant：R22、R404A、R507A
Ice weight：5KG-100KG

Model	ICB1T-R4W	ICB20T-R4W	ICB24T-R4W	ICB30T-R4W
Ice making capacity	1t/24hrs	20t/24hrs	24t/24hrs	30t/24hrs
Refrigerating capacity	9.36kw	193.7kw	245kw	294.9kw
Compressor power	4.65kw	86.1kw	107.9kw	115.2kw
Total power	5.95kw	99.3kw	121.1kw	132.4kw
Freezing time	6 hours/ each time, 3 times a day	10 hours/ each time,2 times a day	10 hours/ each time,2 times a day	10 hours/ each time,2 times a day
Ice mold quantity	35 pcs	200pcs	240pcs	308pcs
Ice weight/piece	10kg	50kg	50kg	50kg
Ice mold size	250*100*500mm	410*160*900mm	410*160*900mm	410*160*925mm
Cooling type	Water cooling	Water cooling	Water cooling	Water cooling
Machine size	3389*1626*1800mm	10333*2672*2520mm	12100*2780*2530mm	13400*3570*2700mm

Picture display

Technology, change the world, innovate, and subvert tradition. We are committed to making people's production and life more convenient, efficient and beautiful

Show Details

All great works are moving in countless details, and every high-quality ice machine is precisely carved out ofthe details.

Drawing display

The ICESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production.

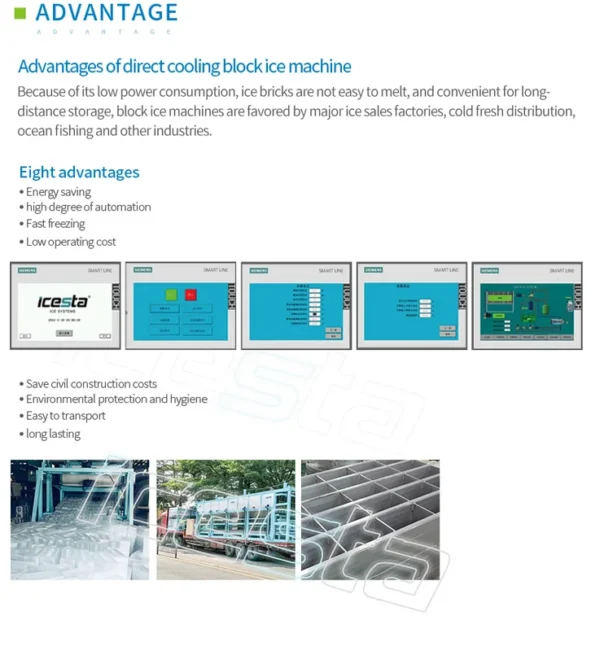

Advantage

Advantages of direct cooling block ice machine
Because of its low power consumption, ice bricks are not easy to melt, and convenient for long-distance storage, block ice
machines are favored by major ice sales factories, cold fresh distribution,ocean fishing and other industries.

Eight advantages
* Energy saving
* high degree of automation
* Fast freezing
* Low operating cost

* Save civil construction costs
* Environmental protection and hygiene
* Easy to transport
* long lasting

Application industry

More and more cooling or temp.Reduction industry used the ice machines to meet their higher technic request due to their deeper knowledge about this equpment.

AUXILIARY EQUIPMENT

* Ice Crusher
The ice crusher is an ice-breaking device specially designed for the direct cooling block ice machine, which can crush 5kg-100kg of block ice. The ice crushing speed is fast, it only takes 3-4 seconds to crush 1 piece of ice And the crushed ice particles are uniform. The whole ice crusher is made of 304 stainless steel, which has strong anti-corrosion properties and has a service life of more than 10 years.

* Block ice conveying device:
In order to provide customers with the greatest convenience, the ICESTA technical team has continuously developed various convenient supporting devices. The conveying device is ICESTA's original creation,which can automatically slide out the ice cubes and easily lift them to the supporting container or ice storage.

Engineering Case

Since 2007, ICESTA products have been sold to more than 80 countries around the world, and provide distributor services in many regions.

Block ice machine 3D picture display Machine and lavout plan

Product Hot Sale

Why choose us

ICESTA

20 years dedication in ice making technology to create excellence.

Shenzhen Brother Ice System Co., Ltd. ( ICESTA Brand), a well-known ice machine manufacturer and industry leader and pioneer in China.The product covers flake ice /Block ice machine, Tube ice /slurry ice/plate ice/cube ice machines, water
chillers,Plate/spiral/blast freezers, Automatic ice storing & delivery system with integrated container ice system,artificial snow making machine.etc

Experiences & History:
20-Years Team focus on innovative solution in Ice & Cooling technology.
18-Years Professional Manufacturer, Supplier of Excellent Turnkey ice & cooling projects.

Industry status& Reputation:
* TOP 3 of China industrial ice machine Brand with strong capability of R&D
* 20000㎡ Factory
* ISO 9001 , CE, PED, ASME (U.S ) Certificates etc

Technology & Management capability:
* 80+ patents Certificates
* High Technology enterprise Certificate

Services & Global Net:
* Export to 80+ countries
* Local service in 50+ countries with networks all over the world.
* 1-2 years warranty covers each component.

FAQ

FAQ (Frequently Asked Questions)

1. Questions before quotation
A. Would you make ice from seawater, saltwater or freshwater?
B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?
C. What’s the power supply?
D. What is the application of the flake ice produced?
E. Which cooling mode would you prefer to? Water or air ,Evaporative cooling?

2. Installation & commissioning
A. Installed by customers according to the manuals, online instructions and live video conference of ICESTA.
B. Installed by ICESTA engineers.
a. ICESTA would arrange 1~3 engineers based on the projects to the installation sites for the final supervision of all
installations and commissioning.
b. Customers need to provide local accommodation and round-trip ticket for our engineers and pay for the commissions. US Dollars 100 per engineer per day.
c. Power, water, installation tools and spare parts need to be ready before ICESTA engineers arrive.

3. Warranty & Technical support
A. 1 year after Bill of Lading date.
B. Any failure occurred within the period due to our responsibility, ICESTA will supply the spare parts for free.
C.ICESTA provide full technical support and training courses after equipment installation and commissioning.
C. Permanent technical support & consultation all life long for the machines.
D. Over 25 engineers for instant after-sale services and more than 15 are available for serving overseas.
365 days X 7 X 24 hours phone / EMAIL assistance

4. Failure Claim procedures
a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed description of failure.
b. Relevant pictures are required for failure confirmation.
c. ICESTA engineering and after-sales service team will check and form a diagnosis report.
d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1+ piece: US $80000 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this ice machines?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this ice machines carry?

It is supplied with CE ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the ice machines be supplied for my local voltage?

The standard configuration is 220 V, 380 V, 460V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
