This ice machine is published with the manufacturer’s full specification — voltage 380, capacity 1-80 ton. Made by Shenzhen Brother Ice System Co., Ltd. (19 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Ice Machine
- Power: 7.4kw
- Voltage: 380
- Ice Storage Capacity: Other
- Capacity: 1-80 ton
- Material: Stainless steel
- Warranty: 1 Year
Technical Specifications
| Ice Shape | Flake Ice |
|---|---|
| Ice Storage Capacity | Other |
| Voltage | 380 |
| Power | 7.4kw |
| Compressor Brand | Bitzer, Copeland, Bock |
| Key Selling Points | Low Maintenance Cost |
| Application | Industrial |
| Warranty | 1 Year |
| Core Components | Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, PLC, Other |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 180 |
| Brand Name | ICESTA |
| Dimension(L*W*H) | 1400*1000*980mm |
| Capacity | 1-80 ton |
| Showroom Location | Russia |
| Cooling Way | water-cooling |
| Material | Stainless steel |
| Keyword | seawater flake ice machine |
| Water Supply Mode | seawater |
| Ice Cutting Time | Only 1 minute running |
| Warranty Of Core Components | 1 Year |
| Condition | New |
| Weight | 180KG |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product Introduction
The ICESTA seawater type flake ice machines is always used on fishing boat, for its special design and completely
stainless-steel-material used to prevent the machine from corrosion, and the instability due to the unfavorable condition and ship swaying in the sea.
On the fishing, the machines make ice from seawater directly, and also make the heat exchange via the condenser. The
low-temperature seawater as well as its salinity, makes the ice at an excellent ice degree, to give better fresh keeping for the fish.
stainless-steel-material used to prevent the machine from corrosion, and the instability due to the unfavorable condition and ship swaying in the sea.
On the fishing, the machines make ice from seawater directly, and also make the heat exchange via the condenser. The
low-temperature seawater as well as its salinity, makes the ice at an excellent ice degree, to give better fresh keeping for the fish.
Application Industry
More and more Cooling or temp.Reduction industry used the ice machines to meet their higher technic request due to their deeper knowledge about this equpment.
Technical Parameters
*The technical data based on 25°C ambient temp.20°C water inlet temp
* Power supply：3P/380V/50HZ，3P/220V/60HZ，3P/380V/60HZ，3P/460V/60HZ Optional.
* The ice thickness：1.6-2.3mm.
* Refrigerant: R404A(R22 R17 R507 is optional).
* Power supply：3P/380V/50HZ，3P/220V/60HZ，3P/380V/60HZ，3P/460V/60HZ Optional.
* The ice thickness：1.6-2.3mm.
* Refrigerant: R404A(R22 R17 R507 is optional).
Model | IFS1T-R4W | IFS2T-R4W | IFS3T-R4W | IFS5T-R4W | IFS10T-R4W |
Ice production | 1t/24h | 2t/24hrs | 3t/24hrs | 5t/24hrs | 10t/24hrs |
Cooling capacity | 7.4kw | 13.7kw | 18kw | 32.5kw | 65kw |
Evaporation temperature | -28°C | -28°C | -28°C | -28°C | -28°C |
Condensing temperature | 36°C | 36°C | 36°C | 36°C | 36°C |
Input total power | 5.68kw | 9.2kw | 12.09kw | 20.39kw | 40.72kw |
Compressor power | 4.67kw | 7.99kw | 10.1kw | 18.4kw | 36.8kw |
Ice bucket pump input power | 0.09kw | 0.09kw | 0.12kw | 0.12kw | 0.37kw |
Reducer power | 0.37kw | 0.37kw | 0.37kw | 0.37kw | 0.55kw |
Unit size | 1400*1000*980mm | 1500*1200*1420mm | 1500*1200*1500mm | 1800*1500*1680mm | 3200*2050*1870mm |
Weight | 180kg | 530kg | 645kg | 920kg | 1980kg |
Show Details
ADVANTAGES / SPECIAL DESIGN FOR ice flaker on board use
Material of evaporator:
External surface: Glass fiber steel (never getting rust)
Inner surface : 316L Stainless steel
(High reliability for anti-corrosion even feeding seawater for ice making)
Supporting base: 304 Stainless steel
Top/bottom cover of ice flake evaporator : 304 Stainless steel
Material of evaporator:
External surface: Glass fiber steel (never getting rust)
Inner surface : 316L Stainless steel
(High reliability for anti-corrosion even feeding seawater for ice making)
Supporting base: 304 Stainless steel
Top/bottom cover of ice flake evaporator : 304 Stainless steel
Special ice scraping system for seawater ice flaker drum. (To deal with the soft ice )
All great works are moving in countless details, and every high-quality ice machine is precisely carved out of the details.
dvantages & Customer -oriented Design

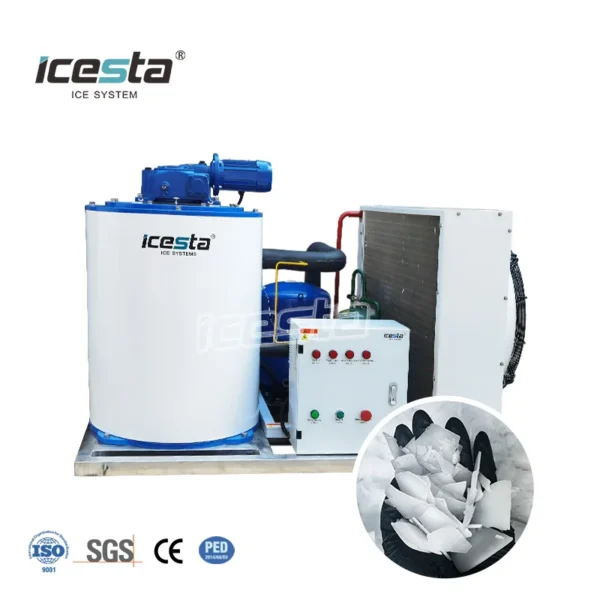

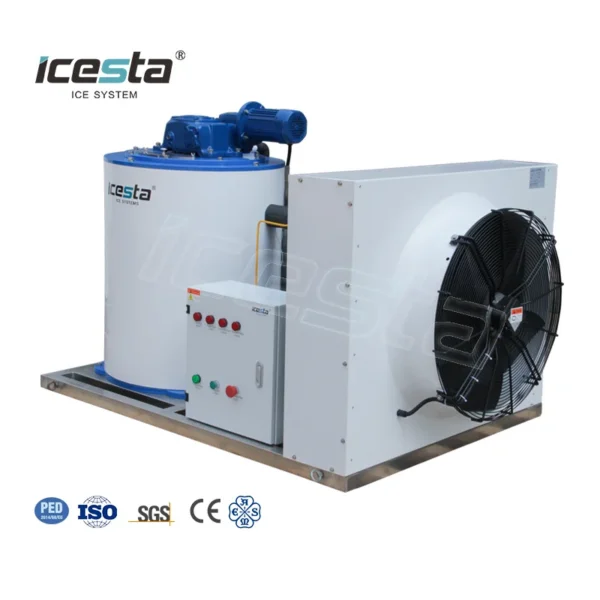

Marine Flake Ice Machine
1.Deep Oil Sump of BOCK/BITZER Compressor,to avoid oil leakage when boat is swaying.
2. Condenser are made of copper-nickel Alloy material, anti-corrosive inner lining.
3. IP55 rated control box is equipped with a special structure and vents design. Failure & Buzz indicator has a warning sound while flashing rapidly.
4. Better water proof—-Control box and Pressure Gauges placed on a higher position ,cables go into the box from bottom.
5. Metal level switches to eliminate wrong warnings during bumpy sailing.
6. Gearbox cushion is in place to prevent contamination onto the cover of the ice maker.
7. Thicker protective layer to prevent corrosion onto the gearbox.
1.Deep Oil Sump of BOCK/BITZER Compressor,to avoid oil leakage when boat is swaying.
2. Condenser are made of copper-nickel Alloy material, anti-corrosive inner lining.
3. IP55 rated control box is equipped with a special structure and vents design. Failure & Buzz indicator has a warning sound while flashing rapidly.
4. Better water proof—-Control box and Pressure Gauges placed on a higher position ,cables go into the box from bottom.
5. Metal level switches to eliminate wrong warnings during bumpy sailing.
6. Gearbox cushion is in place to prevent contamination onto the cover of the ice maker.
7. Thicker protective layer to prevent corrosion onto the gearbox.
Marine Flake Ice Machine With A Protective Enclosure
For the vessels that do not contain a designated ice making area, the flake ice machine shall be placed in open air. We have specially designed flake ice machine with a protective enclosure as shown above：
For the vessels that do not contain a designated ice making area, the flake ice machine shall be placed in open air. We have specially designed flake ice machine with a protective enclosure as shown above：
Advantage
Advantages of ICESTA flake ice machine
1.Rigorous pick-up of raw material. Not every kind of Stainless Steel is the same in terms quality on the market. When we choose stainless steel, we use the material of high quality with Qualified Material Certificate only.
2.Compared to Carbon Steel, stainless steel evaporator and top/bottom covers requires a high criterion in the processes of welding, machining and Annealing. Coarse machining may make the machine prone to deformation and short life time. ICESTA fine and meticulous craftsmanship and innovative design makes our stainless steel evaporator endure.
1.Rigorous pick-up of raw material. Not every kind of Stainless Steel is the same in terms quality on the market. When we choose stainless steel, we use the material of high quality with Qualified Material Certificate only.
2.Compared to Carbon Steel, stainless steel evaporator and top/bottom covers requires a high criterion in the processes of welding, machining and Annealing. Coarse machining may make the machine prone to deformation and short life time. ICESTA fine and meticulous craftsmanship and innovative design makes our stainless steel evaporator endure.
3.Diversified choice. ICESTA provides customer oriented designs in accordance with machining artwork, working conditions and water quality, in an attempt to offer performance stability and ice use satisfaction as well as cost effectiveness.
Intellectualized PLC controller with touch-screen
*All failure record & instant solution available
*Stop-time setting at will.
*Different languages version
*All failure record & instant solution available
*Stop-time setting at will.
*Different languages version
Elaborate details design gives all-sided convenience
*Human-machine interactive intelligent touch screen control system
*Sufficient ice output
*Human-machine interactive intelligent touch screen control system
*Sufficient ice output
PICTURE DISPLAY
Technology, change the world, innovate, and subvert tradition. We are committed to making people's production and life more convenient, efficient and beautiful
Engineering Case
Since 2007, ICESTA products have been sold to more than 80 countries around the world, and provide distributor services in many regions
Product Hot Sale
Why choose us
ICESTA 20 years dedication in ice making technology to create excellence.
Shenzhen Brother Ice System Co., Ltd. ( ICESTA Brand), a well-known ice machine manufacturer and industry leader and pioneer in China.The product covers flake ice /Block ice machine, Tube ice /slurry ice/plate ice/cube ice machines, water
chillers,Plate/spiral/blast freezers, Automatic ice storing & delivery system with integrated container ice system,artificial snow making machine.etc
Experiences & History:
20-Years Team focus on innovative solution in Ice & Cooling technology.
16-Years Professional Manufacturer, Supplier of Excellent Turnkey ice & cooling projects.
Industry status& Reputation:
* TOP 3 of China industrial ice machine Brand with strong capability of R&D
* 20000㎡ Factory
* ISO 9001 , CE, PED, ASME (U.S ) Certificates etc
Technology & Management capability:
* 80+ patents Certificates
* High Technology enterprise Certificate
Services & Global Net:
* Export to 80+ countries
* Local service in 50+ countries with networks all over the world.
* 1-2 years warranty covers each component.
chillers,Plate/spiral/blast freezers, Automatic ice storing & delivery system with integrated container ice system,artificial snow making machine.etc
Experiences & History:
20-Years Team focus on innovative solution in Ice & Cooling technology.
16-Years Professional Manufacturer, Supplier of Excellent Turnkey ice & cooling projects.
Industry status& Reputation:
* TOP 3 of China industrial ice machine Brand with strong capability of R&D
* 20000㎡ Factory
* ISO 9001 , CE, PED, ASME (U.S ) Certificates etc
Technology & Management capability:
* 80+ patents Certificates
* High Technology enterprise Certificate
Services & Global Net:
* Export to 80+ countries
* Local service in 50+ countries with networks all over the world.
* 1-2 years warranty covers each component.
FAQ
FAQ (Frequently Asked Questions)
1. Questions before quotationA. Would you make ice from seawater, saltwater or freshwater?
B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?
C. What’s the power supply?
D. What is the application of the flake ice produced?
E. Which cooling mode would you prefer to? Water or air ,Evaporative cooling?
2. Installation & commissioning
A. Installed by customers according to the manuals, online instructions and live video conference of ICESTA.
B. Installed by ICESTA engineers.
a. ICESTA would arrange 1~3 engineers based on the projects to the installation sites for the final supervision of all
installations and commissioning.
b. Customers need to provide local accommodation and round-trip ticket for our engineers and pay for the commissions. US Dollars
100 per engineer per day.
c. Power, water, installation tools and spare parts need to be ready before ICESTA engineers arrive.
3. Warranty & Technical support
A. 1 year after Bill of Lading date.
B. Any failure occurred within the period due to our responsibility, ICESTA will supply the spare parts for free.
C.ICESTA provide full technical support and training courses after equipment installation and commissioning.
C. Permanent technical support & consultation all life long for the machines.
D. Over 25 engineers for instant after-sale services and more than 15 are available for serving overseas.
365 days X 7 X 24 hours phone / EMAIL assistance
4. Failure Claim procedures
a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed
description of failure.
b. Relevant pictures are required for failure confirmation.
c. ICESTA engineering and after-sales service team will check and form a diagnosis report.
d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $3400 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machine?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the ice machine be supplied for my local voltage?
The standard configuration is 380. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Brother Ice System Co., Ltd., based in China. The company 19 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shenzhen Brother Ice System Co., Ltd. range on HVACR Nexus.
