The sale commercial tube listed here carries 380V, 5kw, 4.81kw, documented exactly as the manufacturer publishes it. Made by Shenzhen Brother Ice System Co., Ltd. (19 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Sale Commercial Tube
- Power: 5kw, 4.81kw
- Voltage: 380V
- Ice Storage Capacity: Other
- Material: Stainless Steel
- Refrigerant: R404a
- Warranty: 1 Year
Technical Specifications
| Ice Shape | tube ice |
|---|---|
| Ice Storage Capacity | Other |
| Voltage | 380V |
| Power | 5kw, 4.81kw |
| Compressor Brand | Bitzer, Copeland, Bock |
| Key Selling Points | High Productivity |
| Application | Commercial |
| Warranty | 1 Year |
| Core Components | Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, PLC, Other |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 950 |
| Brand Name | ICESTA |
| Dimension(L*W*H) | 1600*1100*1970mm |

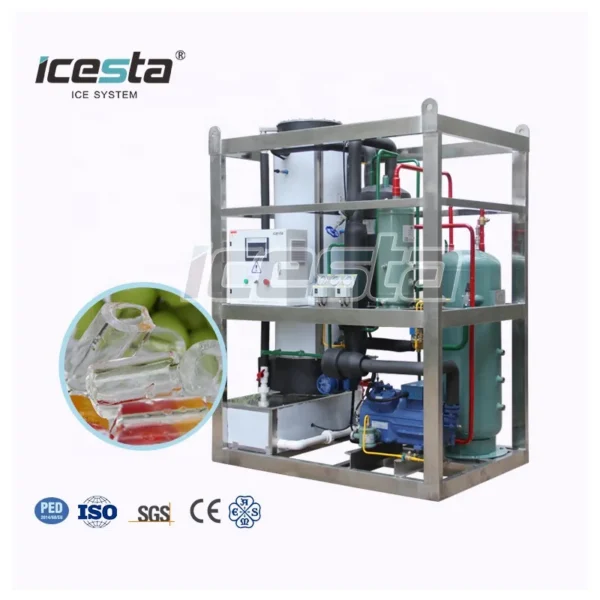

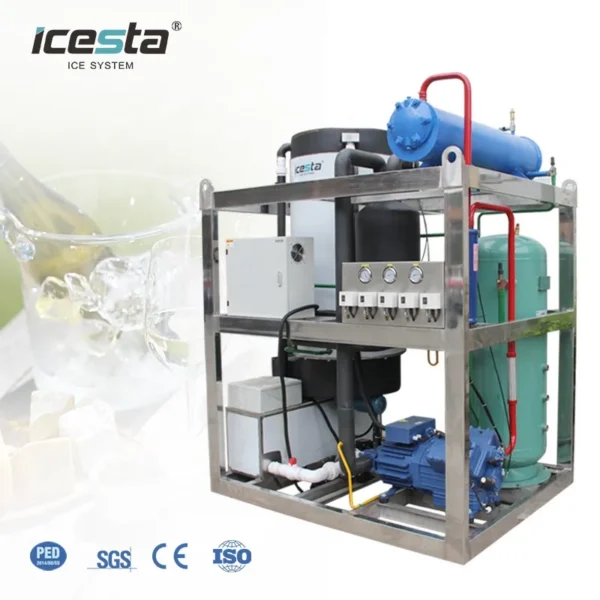

| Name | Edible tube ice making machine |

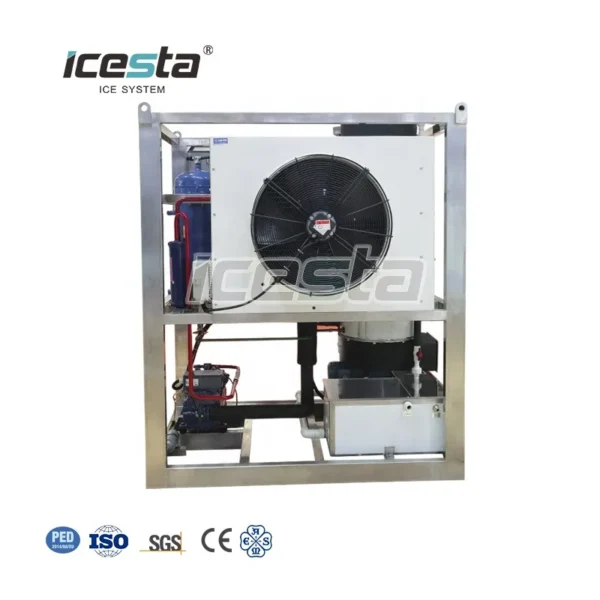

| Cooling Way | Air Cooling |
| Refrigerant | R404a |
| Material | Stainless Steel |
| Certification | ce |
| Condition | New |
| Applicable Industries | Other |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Technical Parameters
* The technical data based on 30°Cambient temp.20°Cwater inlet temp.
* The evaporating / condensing temp.:-15C/40°C(Air-coole) 38°C(Water cooled)
* Power supply: 3P/380V/50HZ(3P/220/60HZ,3P/380V/60HZ,3P/460V/60HZ Optional)
* Refrigerant: R404A(R22 R17 R507 is optional)
* Ice tube diameter: Φ22,Φ29,Φ35,Φ42 is optional
1t，2t，3t，5t，10t/24h
* The evaporating / condensing temp.:-15C/40°C(Air-coole) 38°C(Water cooled)
* Power supply: 3P/380V/50HZ(3P/220/60HZ,3P/380V/60HZ,3P/460V/60HZ Optional)
* Refrigerant: R404A(R22 R17 R507 is optional)
* Ice tube diameter: Φ22,Φ29,Φ35,Φ42 is optional
1t，2t，3t，5t，10t/24h
model | IT1T-R2/4A | IT2T-R2/4A | IT3T-R2/4A | IT5T-R2/4A | IT10T-R2/4A |
Ice output | 1t/24hrs | 2t/24hrs | 3t/24hrs | 5t/24hrs | 10t/24hrs |
lce tube diameter | Φ29 | Φ29 | Φ29 | Φ29 | Φ29 |
Cooling Capacity | 7.37kw | 18KW | 24.9kw | 45kw | 82.2kw |
input power | 4.81kw | 8.56KW | 11.89kw | 20.95kw | 40.35kw |
Compressor input power | 3.66kw | 7.04kw | 9.77kw | 17.3kw | 32.6kw |
lce cut reducer input power | 0.18kw | 0.37KW | 0.37kw | 0.75kw | 0.75kw |
Water pump input | 0.37kw | 0.55KW | 0.55kw | 1.1kw | 1.5kw |
Ice machine Weight | 950KG | 1150KG | 1280KG | 1600KG | 2750KG |
Ice Machine Diameter | 1600X1100X1970mm | 1700*1200*2220mm | 1800X1200X2220mm | 2000X1400X2500mm | 2600X1700X3200mm |
Product Introduction
ICESTA is providing the world Excellent Tube ice solutions with high ice output, reliable performance and humanization design.

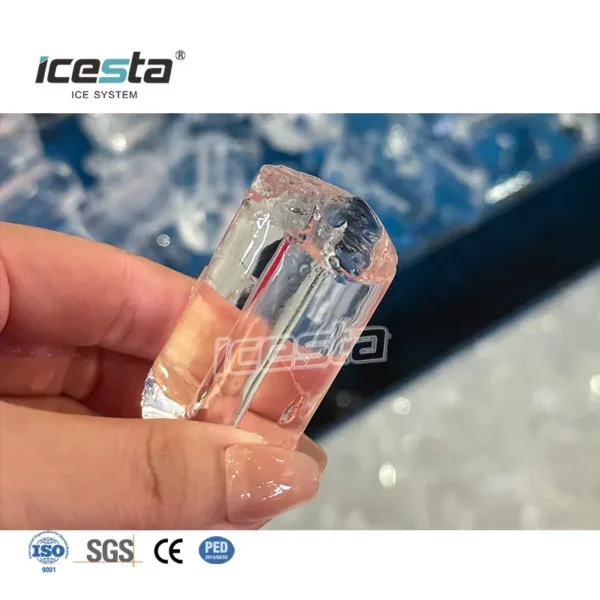

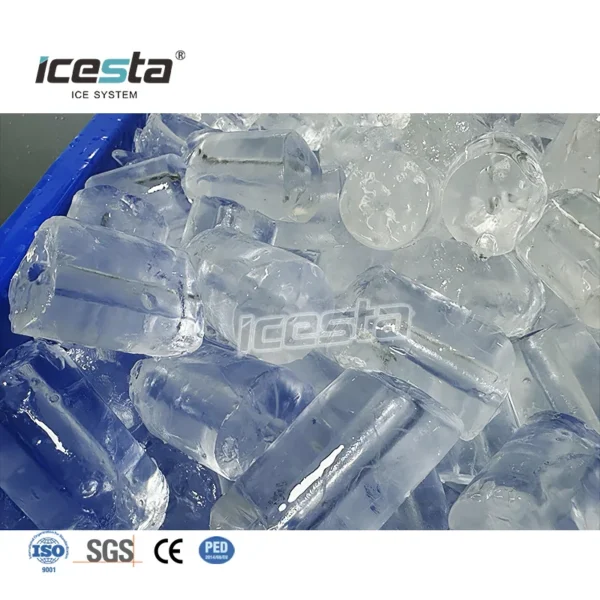

Tube ice is in the shape of crystal and powderless tubes. Comprared with flake ice, the melting time of tube ice is longer, and it is more suitable for cooling in an unisulated environment. Tube ice is comparatively solid and less prone to ice lumps, so it is more suitable for long distance delivery.
Tube ice is in the shape of crystal and powderless tubes. Comprared with flake ice, the melting time of tube ice is longer, and it is more suitable for cooling in an unisulated environment. Tube ice is comparatively solid and less prone to ice lumps, so it is more suitable for long distance delivery.
Application Industry
ICESTA is providing the world Excellent Tube ice solutions with high ice output, reliable performance and humanization design.
FEATURES AT A GLANCE
Why Choose ICESTA?
Innovative Technology & Superior Design
1.Our expert R&D team integrates cutting-edge refrigeration technology to minimize energy consumption.
2.Proprietary ice-defrosting design ensures optimal performance and efficiency.
3.Patented evaporator process enhances ice production quality and reliability.
4.Specially engineered ice cutter delivers consistent, high-quality tube ice.
Reliable Global Support
1.Customizable ice sizes to meet diverse industry needs.
2.Localized after-sales teams in key regions for prompt service.
3.Worldwide installation and technical support for seamless operation.
User-Friendly Operation
Fully automated system for hassle-free control.
Simplified installation, operation, and maintenance for maximum convenience.
ICESTA combines innovation, durability, and global service to deliver the ultimate tube ice solution.
Innovative Technology & Superior Design
1.Our expert R&D team integrates cutting-edge refrigeration technology to minimize energy consumption.
2.Proprietary ice-defrosting design ensures optimal performance and efficiency.
3.Patented evaporator process enhances ice production quality and reliability.
4.Specially engineered ice cutter delivers consistent, high-quality tube ice.
Reliable Global Support
1.Customizable ice sizes to meet diverse industry needs.
2.Localized after-sales teams in key regions for prompt service.
3.Worldwide installation and technical support for seamless operation.
User-Friendly Operation
Fully automated system for hassle-free control.
Simplified installation, operation, and maintenance for maximum convenience.
ICESTA combines innovation, durability, and global service to deliver the ultimate tube ice solution.
Engineering Case
Drawing Display
The ICESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production.
3D diagram display of tube ice machine and office building layout plan
AdvantageADVANTAGES OF ICESTA TUBE ICE PLANTINNOVATIVE DESIGN FOR GENERATOR
1. Innovative manufacturing artwork has been adopted.The lce stripping surface is smooth as a mirror. That has
tremendously increased ice stripping efficiency and energy-efficiency ratio.
2. The ice cutter can be easily dismantled and replaced as a whole.
3. Compared with peers,ICESTA evaporator can form even water membrane more effectively.That makes more even and crystal ice tubes
4. The upper and lower freezing water reservoir is openly structured, which helps a lot with cleaning and disinfection.
5. ICESTA ice plant adopts an optimized driving structural design, which ensures both simple structure and high reliability.
6. ICESTA customizes a reasonable design of ice plant suitable for convenient container transportation for oversea clients.
7. Deice just need 130-200s.
tremendously increased ice stripping efficiency and energy-efficiency ratio.
2. The ice cutter can be easily dismantled and replaced as a whole.
3. Compared with peers,ICESTA evaporator can form even water membrane more effectively.That makes more even and crystal ice tubes
4. The upper and lower freezing water reservoir is openly structured, which helps a lot with cleaning and disinfection.
5. ICESTA ice plant adopts an optimized driving structural design, which ensures both simple structure and high reliability.
6. ICESTA customizes a reasonable design of ice plant suitable for convenient container transportation for oversea clients.
7. Deice just need 130-200s.
PATENTED H-M INTERACTIVE INTELLIGENTCONTROL SYSTEM WITH TOUCH-SCREEN:
1.The working status of the ice system display alive in screen.
2.Setting stop-time at will.
3. All possible failure and trouble-shooting is programmed in.
4.Local time could be set.
2.Setting stop-time at will.
3. All possible failure and trouble-shooting is programmed in.
4.Local time could be set.
Show Details
All great works are moving in countless details, and every high-quality ice machine is precisely carved out of the details.

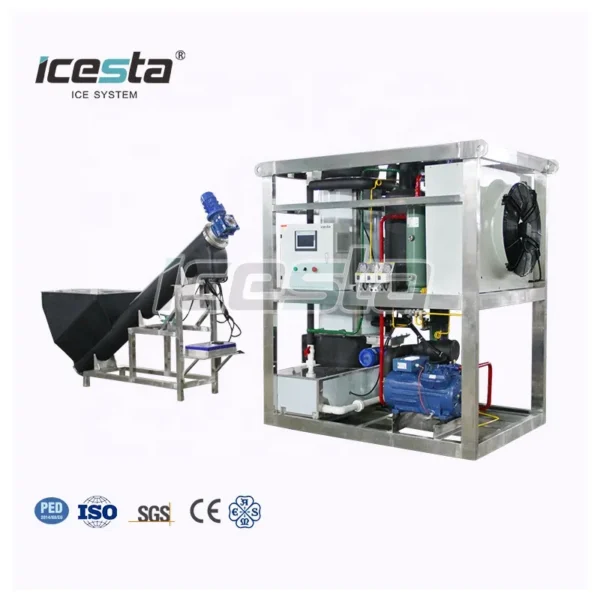

Auxiliary Equipment
Optimal industrial application: lce packing
Components:
1.Buffer Storage Bin (ranging from 50OKG to 2000KG)
2.Built-in delivery screw
3.Dual control system (Manual and foot pedal);
Components:
1.Buffer Storage Bin (ranging from 50OKG to 2000KG)
2.Built-in delivery screw
3.Dual control system (Manual and foot pedal);
Foot pedal can start and stop at will, which is nearly a semi automatic packing machine.
PACKAGE UNIT OF TUBE ICE MAKING, DELIVERING, PACKING,ICE BAGS CONVEYING.
Customer-Oriented design.Our consideration and,innovation reach everywhere.
Since 2007, ICESTA products have been sold to more than 80 countries around the world, and provide distributor services in many regions.
Product Hot Sale
ICESTA 20 years dedication in ice making technology to create excellence.
Shenzhen Brother Ice System Co., Ltd. ( ICESTA Brand), a well-known ice machine manufacturer and industry leader and pioneer in China.The product covers flake ice /Block ice machine, Tube ice /slurry ice/plate ice/cube ice machines, water
chillers,Plate/spiral/blast freezers, Automatic ice storing & delivery system with integrated container ice system,artificial snow making machine.etc
Experiences & History:
20-Years Team focus on innovative solution in Ice & Cooling technology.
18-Years Professional Manufacturer, Supplier of Excellent Turnkey ice & cooling projects.
Industry status& Reputation:
* TOP 3 of China industrial ice machine Brand with strong capability of R&D
* 20000㎡ Factory
* ISO 9001 , CE, PED, ASME (U.S ) Certificates etc
Technology & Management capability:
* 80+ patents Certificates
* High Technology enterprise Certificate
Services & Global Net:
* Export to 80+ countries
* Local service in 50+ countries with networks all over the world.
* 1-2 years warranty covers each component.
chillers,Plate/spiral/blast freezers, Automatic ice storing & delivery system with integrated container ice system,artificial snow making machine.etc
Experiences & History:
20-Years Team focus on innovative solution in Ice & Cooling technology.
18-Years Professional Manufacturer, Supplier of Excellent Turnkey ice & cooling projects.
Industry status& Reputation:
* TOP 3 of China industrial ice machine Brand with strong capability of R&D
* 20000㎡ Factory
* ISO 9001 , CE, PED, ASME (U.S ) Certificates etc
Technology & Management capability:
* 80+ patents Certificates
* High Technology enterprise Certificate
Services & Global Net:
* Export to 80+ countries
* Local service in 50+ countries with networks all over the world.
* 1-2 years warranty covers each component.
FAQ
FAQ (Frequently Asked Questions)
1. Questions before quotationA. Would you make ice from seawater, saltwater or freshwater?
B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?
C. What’s the power supply?
D. What is the application of the flake ice produced?
E. Which cooling mode would you prefer to? Water or air ,Evaporative cooling?
2. Installation & commissioning
A. Installed by customers according to the manuals, online instructions and live video conference of ICESTA.
B. Installed by ICESTA engineers.
a. ICESTA would arrange 1~3 engineers based on the projects to the installation sites for the final supervision of all
installations and commissioning.
b. Customers need to provide local accommodation and round-trip ticket for our engineers and pay for the commissions. US Dollars 100 per engineer per day.
c. Power, water, installation tools and spare parts need to be ready before ICESTA engineers arrive.
3. Warranty & Technical support
A. 1 year after Bill of Lading date.
B. Any failure occurred within the period due to our responsibility, ICESTA will supply the spare parts for free.
C.ICESTA provide full technical support and training courses after equipment installation and commissioning.
C. Permanent technical support & consultation all life long for the machines.
D. Over 25 engineers for instant after-sale services and more than 15 are available for serving overseas.
365 days X 7 X 24 hours phone / EMAIL assistance
4. Failure Claim procedures
a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed description of failure.
b. Relevant pictures are required for failure confirmation.
c. ICESTA engineering and after-sales service team will check and form a diagnosis report.
d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $9000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this sale commercial tube?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this sale commercial tube carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the sale commercial tube be supplied for my local voltage?
The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Brother Ice System Co., Ltd., based in China. The company 19 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shenzhen Brother Ice System Co., Ltd. range on HVACR Nexus.
