Ice machine — 380V/220V/460V, 4193W. The complete factory specification follows. Made by Shenzhen Brother Ice System Co., Ltd. (19 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Ice Machine
- Model Number: IF1T-R4A
- Power: 4193W
- Voltage: 380V/220V/460V
- Ice Storage Capacity: 300 kg, 1000 kg
- Refrigerant: R404A, R507, R22
- Warranty: 1 Year
Technical Specifications
| Ice Shape | Flake Ice |
|---|---|
| Ice Storage Capacity | 300 kg, 1000 kg |
| Voltage | 380V/220V/460V |
| Power | 4193W |
| Refrigerant | R404A, R507, R22 |
| Compressor Brand | Emerson, Copeland, Other, Danfoss |
| Key Selling Points | Competitive Price |
| Application | Commercial |
| Warranty | 1 Year |
| Core Components | Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, PLC, Other |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 170 |
| Brand Name | ICESTA |
| Model Number | IF1T-R4A |
| Dimension(L*W*H) | 1050*700*800 |
| After-Sales Service Provided | Overseas Service Provided |
| After-Sales Service | Within 1Year |

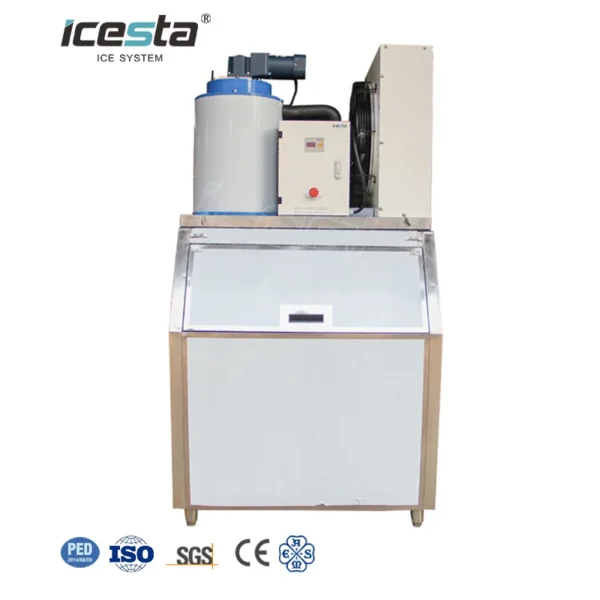

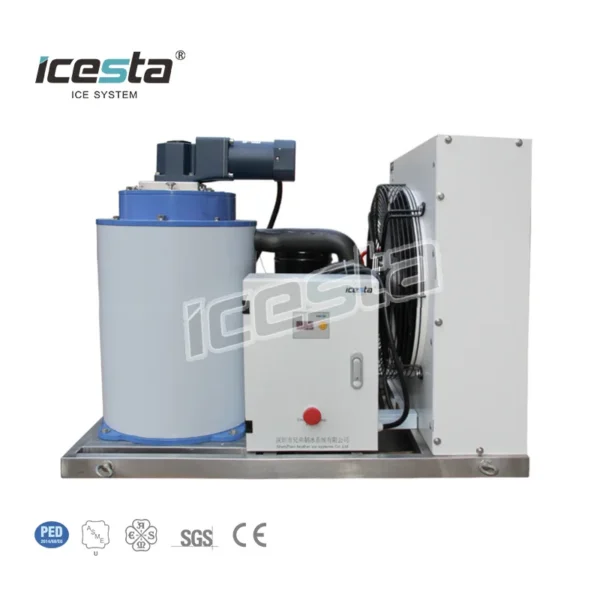

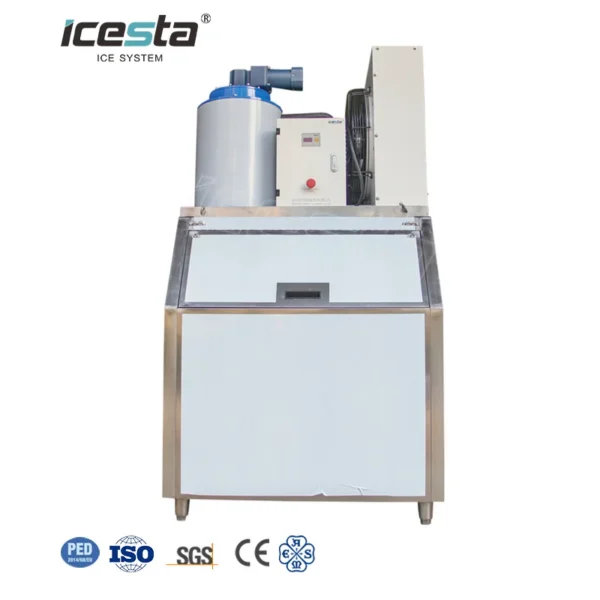

| Product Name | Commercial Flake Ice Machine |
| Certification | CE ISO9001 |
| Control System | PLC+Touch Screen |
| ICE Thickness | 1.6-2.3MM |
| Ice Cutting Time | Only 1 minute running |
| Applicable Industries | Food & Beverage Factory |
| Selling Units | Single item |
| Single Package Size | 106X71X81 cm |
| Single Gross Weight | 180.000 kg |
Product Details

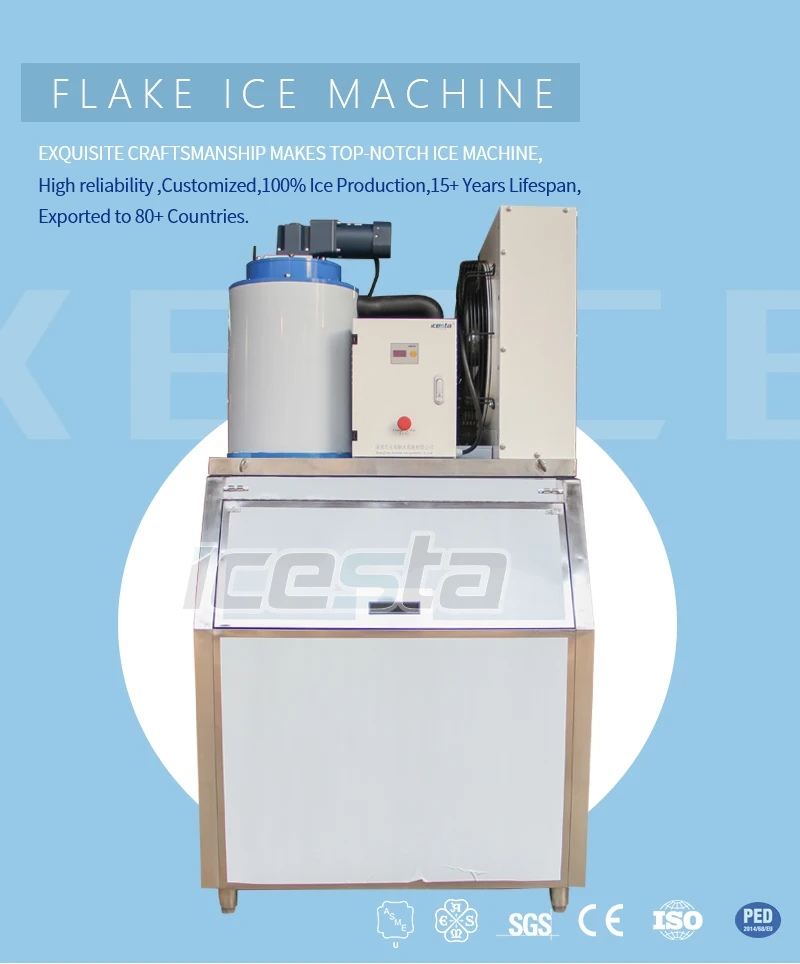

Product Introduction
Icesta commercial flake ice machine for sale compared with similar products on the market, it has incomparable
outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.Brother Ice System summarizes the defects of past products, and continuously improves them. The specifications of Icesta commercial flake ice machine for sale can be customized according to your needs.
Icesta small series of flake ice machine is ranging from 300kg to 10ton per 24hours, with option of with ice bin or no ice bin.
Special customized ice machine also acceptable, for details please contact us.
outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.Brother Ice System summarizes the defects of past products, and continuously improves them. The specifications of Icesta commercial flake ice machine for sale can be customized according to your needs.
Icesta small series of flake ice machine is ranging from 300kg to 10ton per 24hours, with option of with ice bin or no ice bin.
Special customized ice machine also acceptable, for details please contact us.
Technical Parameters
*The technical data based on 25°C ambient temp.20°C water inlet temp
* Power supply：3P/380V/50HZ，3P/220V/60HZ，3P/380V/60HZ，3P/460V/60HZ Optional.

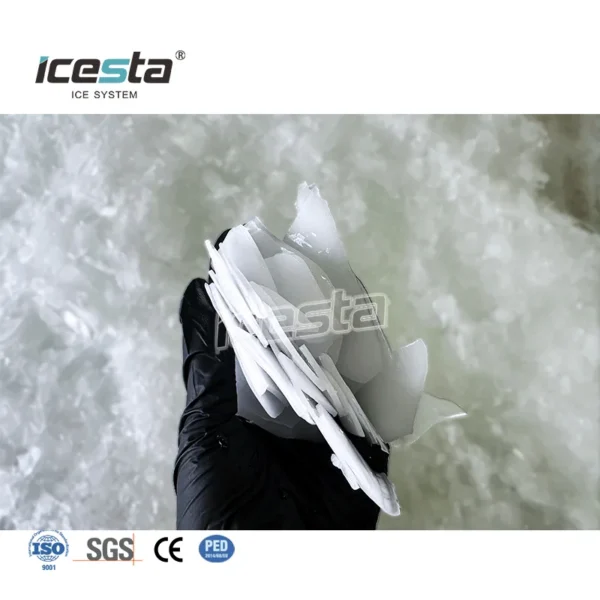

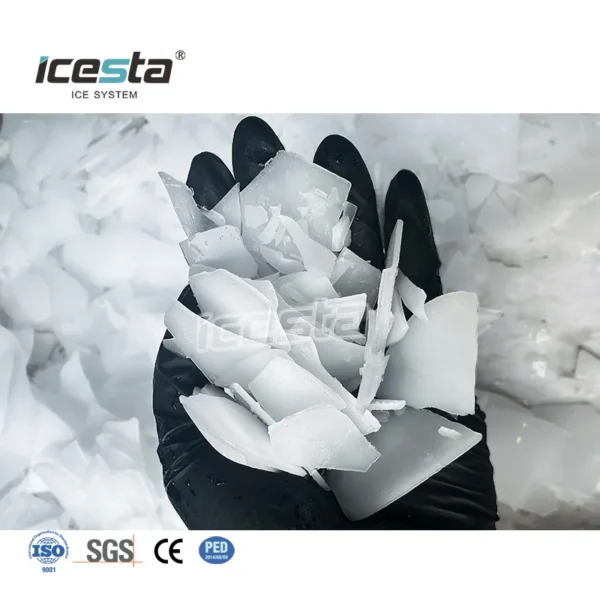

* The ice thickness：1.6-2.3mm.
* Refrigerant: R404A(R22 R17 R507 is optional).
* Power supply：3P/380V/50HZ，3P/220V/60HZ，3P/380V/60HZ，3P/460V/60HZ Optional.
* The ice thickness：1.6-2.3mm.
* Refrigerant: R404A(R22 R17 R507 is optional).
Model | IF0.3T-R4A | IF0.5T-R4A | IF1T-R4A |
Ice production | 0.3t/24h | 0.5t/24hrs | 1t/24hrs |
Cooling capacity | 1.89kw | 3.275kw | 5.677kw |
Evaporation temperature | -20°C | -20°C | -20°C |
Condensing temperature | 40°C | 40°C | 40°C |
Input total power | 2.042kw | 2.378kw | 4.193kw |
Compressor power | 1.69kw | 2.006kw | 3.431kw |
Pump power | 0.002kw | 0.002kw | 0.002kw |
Reducer power | 0.19kw | 0.18kw | 0.18kw |
Unit size | 800*700*600mm | 1050*700*790mm | 1050*700*800mm |
Weight | 120kg | 140kg | 170kg |

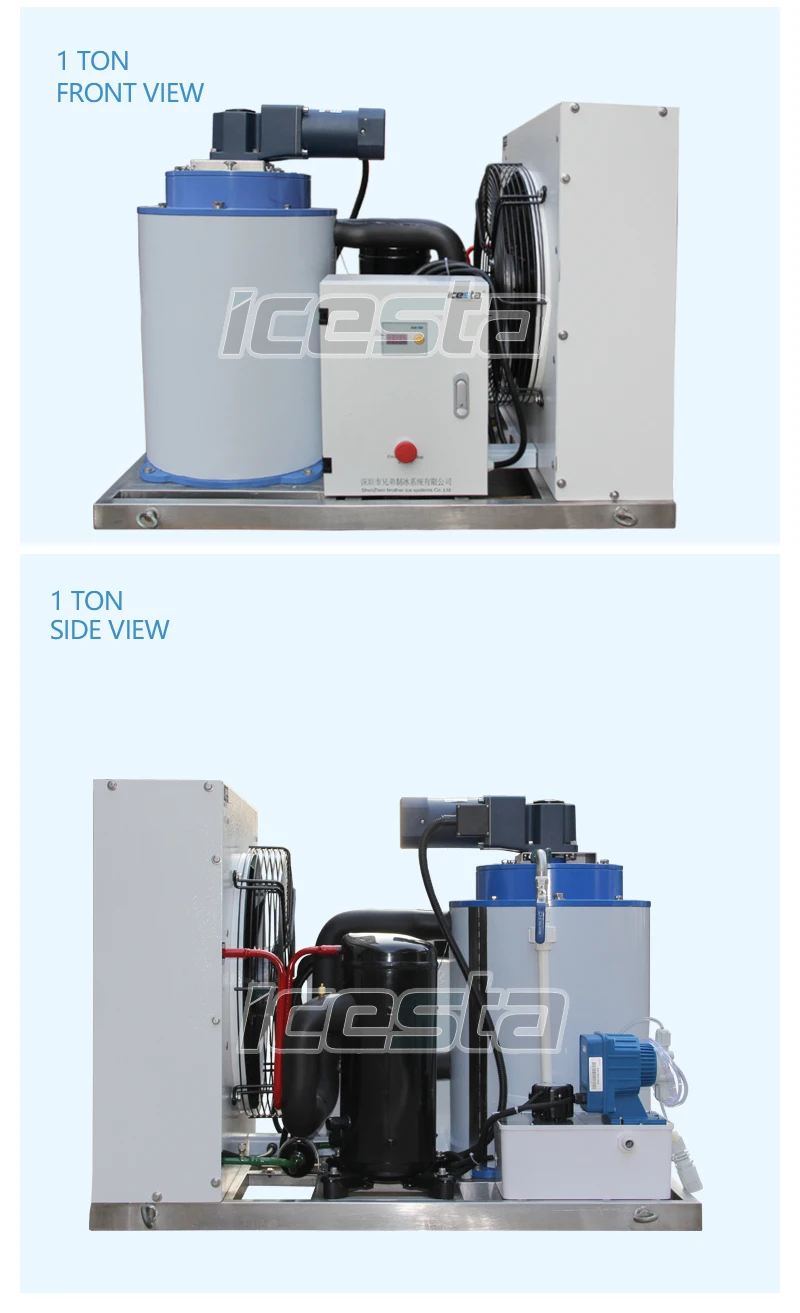

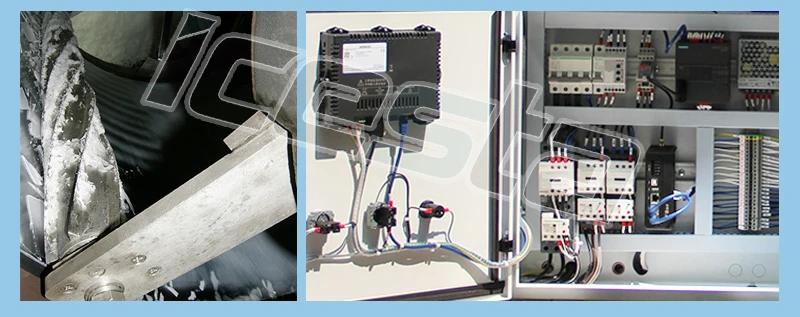

Show Details
All great works are moving in countless details, and every high-quality ice machine is precisely carved out of the details.

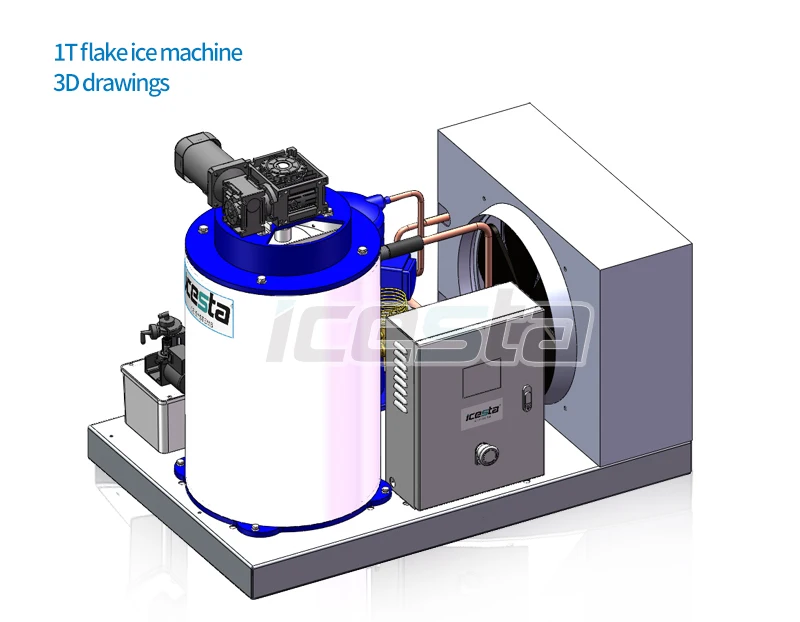

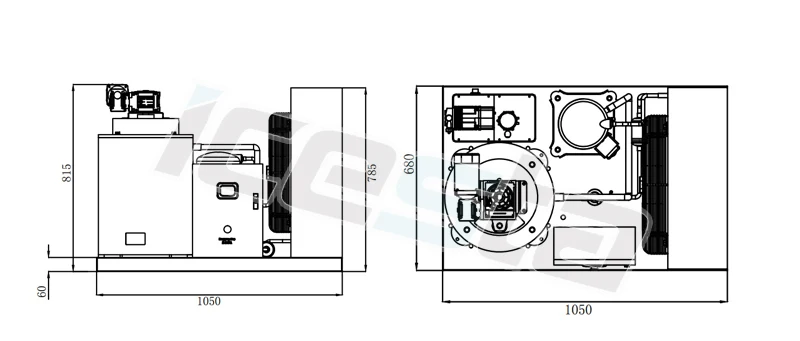

Drawing Display
The ICESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production, over 20 technicians provide life time service.
Advantage
Advantages of ICESTA flake ice machine
The ICESTA series of flake ice machines are the first dynamic process intelligent control system (touch screen) in the industry in our country, which can remotely control the system touch screen, so that the running status of the ice machine can be displayed through touch, and it can quickly search for problem solutions to make the ice machine human Make a more perfect breakthrough.
ICE FLAKER Generator (evaporator)
*Prominent Heat treatment to avoid any SRINKAGE
The ICESTA series of flake ice machines are the first dynamic process intelligent control system (touch screen) in the industry in our country, which can remotely control the system touch screen, so that the running status of the ice machine can be displayed through touch, and it can quickly search for problem solutions to make the ice machine human Make a more perfect breakthrough.
ICE FLAKER Generator (evaporator)
*Prominent Heat treatment to avoid any SRINKAGE
*TOP welding testing technics with X-RAY——Never leak
Application Industry
More and more cooling or temp.Reduction industry used the ice machines to meet their higher technic request due to their deeper knowledge about this equipment.
Auxiliary equipment
Optimal industrialapplication: Ice packing Components: 1.Buffer Storage Bin (ranging from 500KG to 2000KG) 2.Built-in delivery screw 3.Dual control system (Manual and foot pedal) Foot pedal can start and stop at will, which is nearly a semi automatic packing machine.

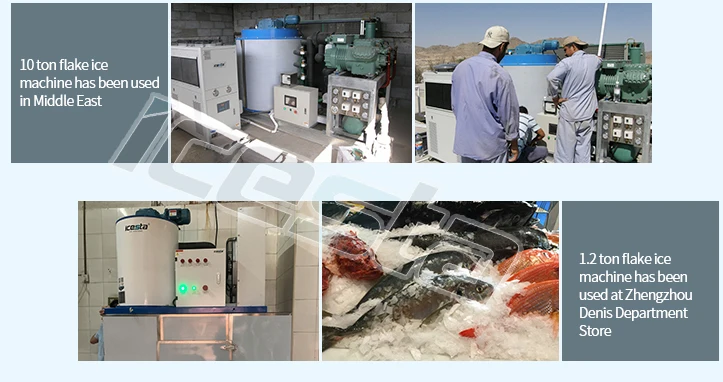

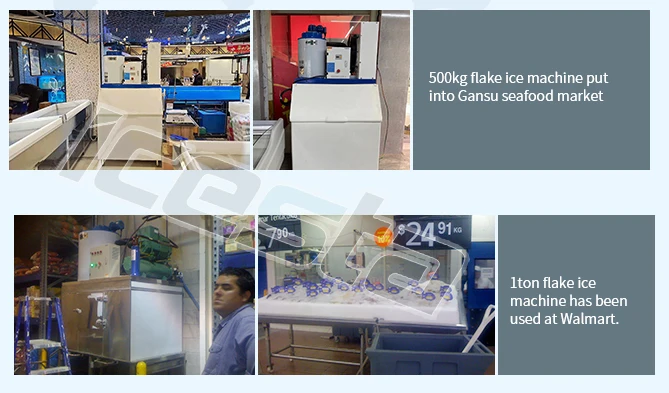

Engineering Case
Since 2007, ICESTA products have been sold to more than 80 countries around the world, and provide distributor services in many regions
Picture Display
Technology, change the world, innovate, and subvert tradition. We are committed to making people's production and life more convenient, efficient and beautiful,These pictures is just for references, if you need details, please contact us.
Product Hot Sale
Why choose us
ICESTA 20 years dedication in ice making technology to create excellence.
Shenzhen Brother Ice System Co., Ltd. ( ICESTA Brand), a well-known ice machine manufacturer and industry leader and pioneer in China.The product covers flake ice /Block ice machine, Tube ice /slurry ice/plate ice/cube ice machines, water
chillers,Plate/spiral/blast freezers, Automatic ice storing & delivery system with integrated container ice system,artificial snow making machine.etc
Experiences & History:
20-Years Team focus on innovative solution in Ice & Cooling technology.
18-Years Professional Manufacturer, Supplier of Excellent Turnkey ice & cooling projects.
Industry status& Reputation:
* TOP 3 of China industrial ice machine Brand with strong capability of R&D
* 20000㎡ Factory
* ISO 9001 , CE, PED, ASME (U.S ) Certificates etc
Technology & Management capability:
* 80+ patents Certificates
* High Technology enterprise Certificate
Services & Global Net:
* Export to 80+ countries
* Local service in 50+ countries with networks all over the world.
* 1-2 years warranty covers each component.
chillers,Plate/spiral/blast freezers, Automatic ice storing & delivery system with integrated container ice system,artificial snow making machine.etc
Experiences & History:
20-Years Team focus on innovative solution in Ice & Cooling technology.
18-Years Professional Manufacturer, Supplier of Excellent Turnkey ice & cooling projects.
Industry status& Reputation:
* TOP 3 of China industrial ice machine Brand with strong capability of R&D
* 20000㎡ Factory
* ISO 9001 , CE, PED, ASME (U.S ) Certificates etc
Technology & Management capability:
* 80+ patents Certificates
* High Technology enterprise Certificate
Services & Global Net:
* Export to 80+ countries
* Local service in 50+ countries with networks all over the world.
* 1-2 years warranty covers each component.
FAQ
FAQ (Frequently Asked Questions)
1. Questions before quotationA. Would you make ice from seawater, saltwater or freshwater?
B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?
C. What’s the power supply?
D. What is the application of the flake ice produced?
E. Which cooling mode would you prefer to? Water or air ,Evaporative cooling?
2. Installation & commissioning
A. Installed by customers according to the manuals, online instructions and live video conference of ICESTA.
B. Installed by ICESTA engineers.
a. ICESTA would arrange 1~3 engineers based on the projects to the installation sites for the final supervision of all
installations and commissioning.
b. Customers need to provide local accommodation and round-trip ticket for our engineers and pay for the commissions. US Dollars
100 per engineer per day.
c. Power, water, installation tools and spare parts need to be ready before ICESTA engineers arrive.
3. Warranty & Technical support
A. 1 year after Bill of Lading date.
B. Any failure occurred within the period due to our responsibility, ICESTA will supply the spare parts for free.
C.ICESTA provide full technical support and training courses after equipment installation and commissioning.
C. Permanent technical support & consultation all life long for the machines.
D. Over 25 engineers for instant after-sale services and more than 15 are available for serving overseas.
365 days X 7 X 24 hours phone / EMAIL assistance
4. Failure Claim procedures
a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed
description of failure.
b. Relevant pictures are required for failure confirmation.
c. ICESTA engineering and after-sales service team will check and form a diagnosis report.
d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $3300 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machine?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ice machine carry?
It is supplied with CE ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ice machine be supplied for my local voltage?
The standard configuration is 380V/220V/460V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Brother Ice System Co., Ltd., based in China. The company 19 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shenzhen Brother Ice System Co., Ltd. range on HVACR Nexus.
