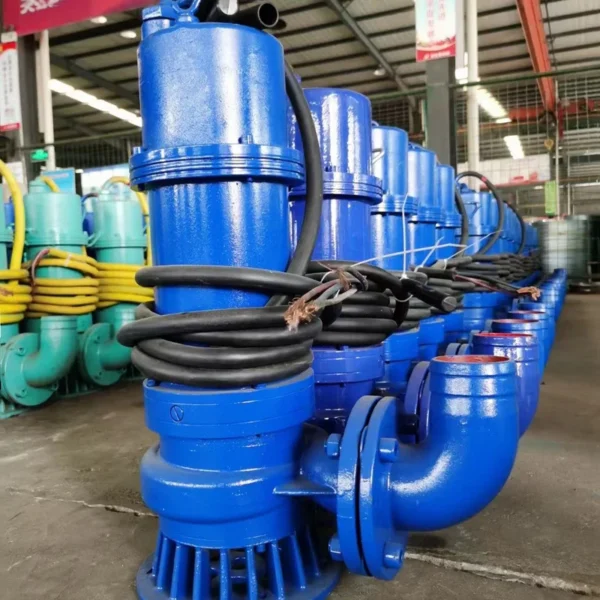

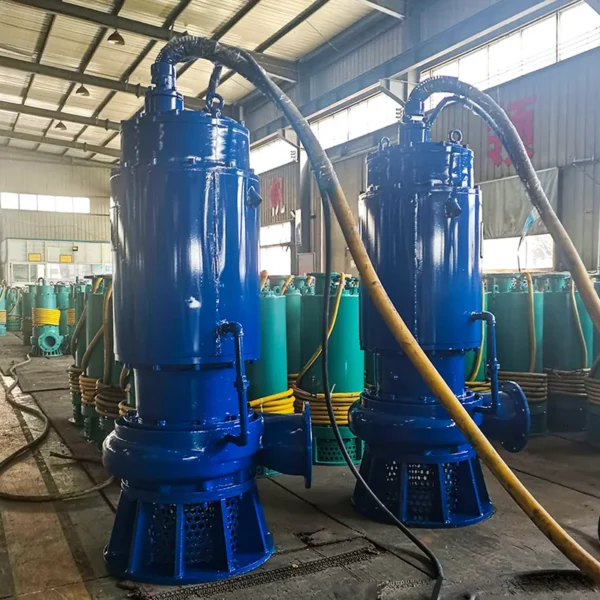

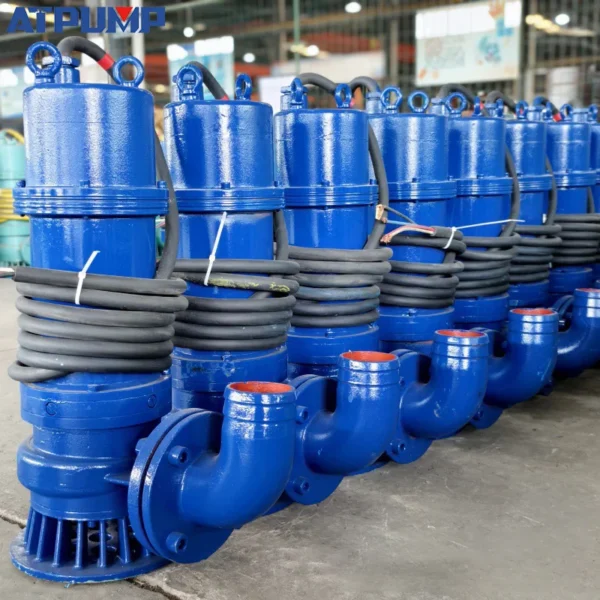

The mud sand slurry pump listed here carries voltage 380/660V,660/1140V, 400V,440V,460V, power source Electric, documented exactly as the manufacturer publishes it. Made by Jining Antai Mine Equipment Manufacturing Co., Ltd. (2 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Mud Sand Slurry Pump
- Model Number: WQ/WQ(B)/WQ(N) series
- Power Source: Electric
- Horsepower: 1.5-350KW(2.01-469.36hp)
- Power: 0.75-315 kW
- Voltage: 380/660V,660/1140V, 400V,440V,460V
- Sealing Material: Stainless Steel, cast iron
Technical Specifications
| Application | Mining Industry |
|---|---|
| Structure | Centrifugal |
| Voltage | 380/660V,660/1140V, 400V,440V,460V |
| Power Source | Electric |
| Chemical Compatibility | Water |
| Sealing Material | Stainless Steel, cast iron |
| Outlet Size | 40-350mm(1.57-13.78in) |
| Discharge Pipe Size | 1 in, 1/2 in, 1-1/2 in, 1-1/4 in, 3/4 in |
| Motor | 380/660 or 660/1140 |
| Warranty | 1 Year |
| Customized Support | OEM, ODM |
| Horsepower | 1.5-350KW(2.01-469.36hp) |
| Pressure | High Pressure |
| Model Number | WQ/WQ(B)/WQ(N) series |
| Place Of Origin | Shandong, China |
| Brand Name | ATPUMP |
| Product Name | Submersible Sewage Pump |
| Usage | Submersible/Explosion-proof |
| Theory | Centrifugal Submersible Pump |
| Head | 7-800 m |
| Flow | 10-6000 m3/h |
| Power | 0.75-315 kW |
| Outlet Diameter | 40-500 mm |
| Motor Protection Rating | IP68 |
| Insulation Level | Insulation F/H |
| Material | Cast Iron/Stainless Steel |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
ATPUMP can do for you: 1. We have over 50 full-automatic production lines. From R&D to manufacturing, our group operates with fully automated processes. 2. In the past 20 years, ATPUMP has completed over 50000 projects of various sizes, fully meeting all your requirements for submersible pumps. 3. Our group employs a fully digital production line across the entire industry chain, ensuring processing accuracy, standardized manufacturing, and more efficient production. 4. The PMS-A online testing center covers the entire range of pumps from 1kW to 5000kW with testing voltages from 220V to 10000V.
OUR ADVANTAGES
ATPUMP holds the belief that "only use the best material for the most durable pumps," keeping the focus on the customers' requirement. With excellent quality and service. ATPUMP warmly welcomes customers at home and abroad to build cooperation with us.
Working condition *Voltage: 380/660v, 660/1140V, 400V, 440V, 460V, customizable options are available. *Medium: Temperature not exceeding 40°C, PH 4-10, medium density s 1100 kg/m. (Customizable for special requirements). *Submersion depth: 20mMaterials suitable for highly corrosive fluids can be customized. *The diameter of solid particles in the medium should comply with the regulations of MT/T671-2005. *Please specify any special requirements when ordering. *MT818.5-2009 flame-retardant cable for coal mines.

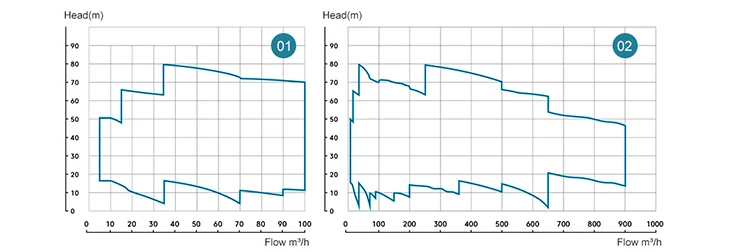

Note: BQS samples+statistical experimentalreports are combined to form the maximum range,while not counting BQS pumps with flows above 500 m3/h.
AT THE SAME TIME, WE ALSO MEET ALL YOUR CUSTOMIZATION NEEDS.
ATPUMP welcomes your inquiries.
We will return to you at SVIP prices.
"Click to consult."
Note: WQB samples + statistical experimental reports are combined to form the maximum range,while not counting WQB pumps with flows above 800 m3/h.

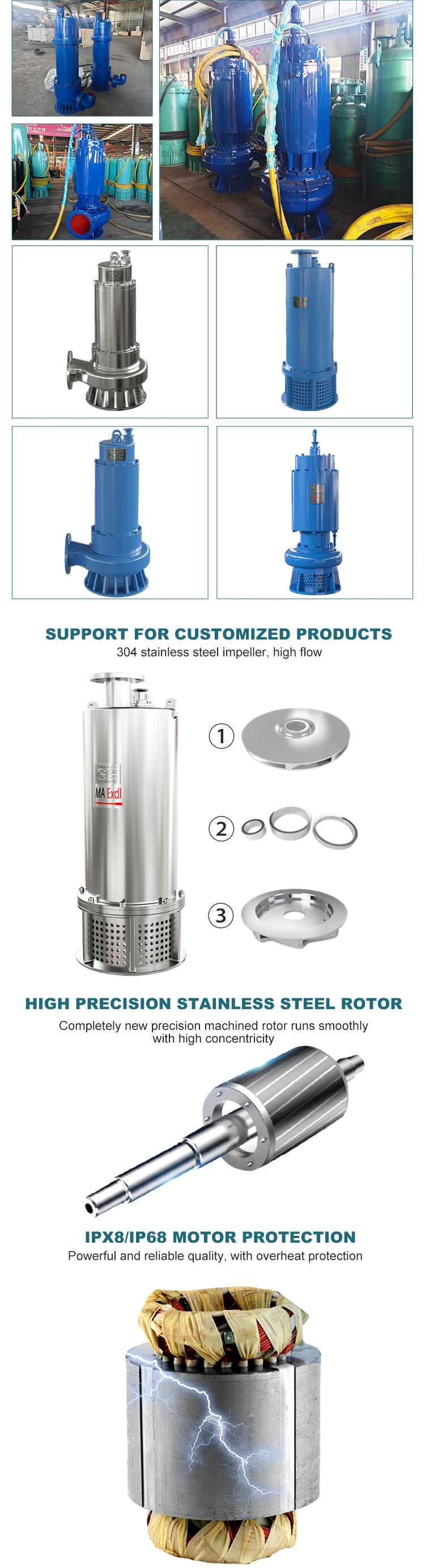

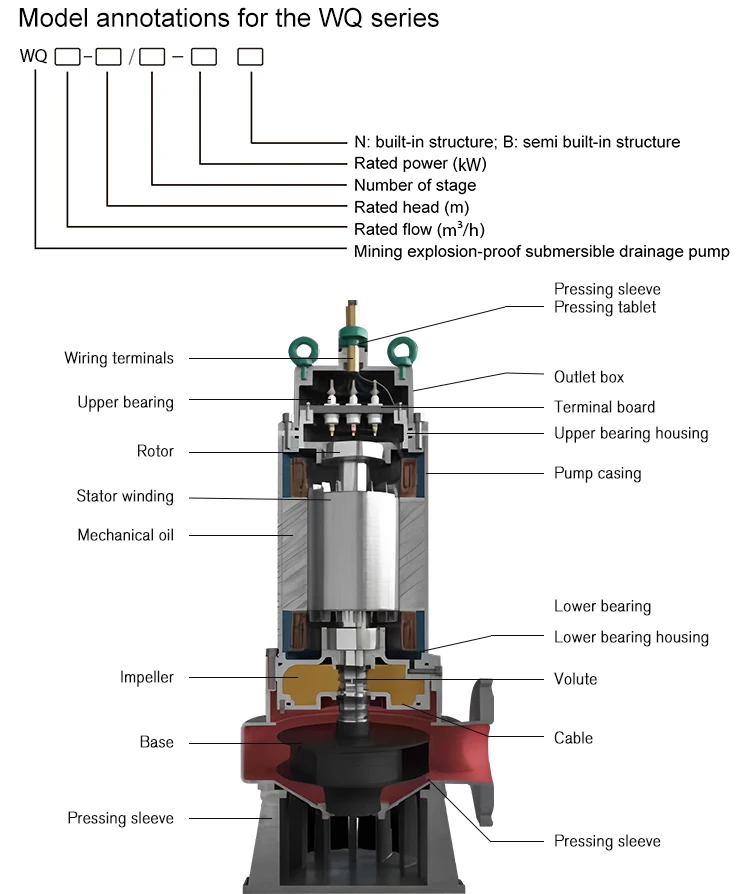

Structural advantage
·The flow parts adopt QBQ surface treatment process, which has excellent wear and corrosion resistance. ·The thickened impeller, pump body, and pump cover effectively extend the service life of the components. ·Suitable for long-term use in environments with corrosive liquids and abrasive particles (such as sediments and gravel). ·The bottom inlet and bottom outlet design ensures strong clogging resistance and high flow capacity, making it suitable for a wider range of applications. ·Simple strcuture, lightweight, easy to install and maintain.
Application ·Non-explosion-proof scenarios in the chemical, petroleum, pharmaceutical, mining, papermaking, cement, steelmaking, power generation, coal processing industries, etc. ·Urban sewage treatment plant drainage systems, municipal engineering, etc. ·Suitable for the construction industry and others requiring the conveyance of sewage containing particulates, as well as for pumping clear water or liquids with corrosive properties. ·Ponds, fish ponds, or scenes where corrosive liquids such as seawater and chemical wastewater need to be pumped.Material | Applicable PH range | Applicable environment characteristics |
SS304 | 5-9 | Non-chloride environment; suitable for mildly acidic or mildly alkaline conditions. |
SS316/SS316L | 4-11 | Contains small amounts of chloride ions, suitable for stronger acidic or alkaline environments. SS316L is superior to SS316 in chloride environments. |
DSS 2205 | 1-14 | Suitable for strong acidic, strong alkaline, and high chloride environments. Excellent resistance to pitting and crevice corrosion. |
Special alloys | <1 | Extreme strong acid environments; higher-grade alloys such as Hastelloy or titanium alloys can be considered |

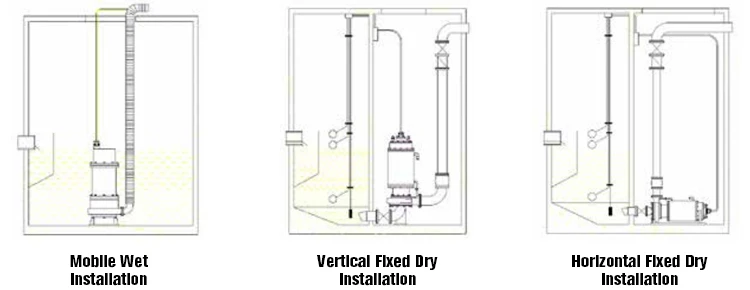

Installation Method
The pump is installed horizontally in a clean pump pit beside the pool, and personnel can enter the pump pit to quick repair.
Even if the pump pit is flooded, the pump can still operate normally

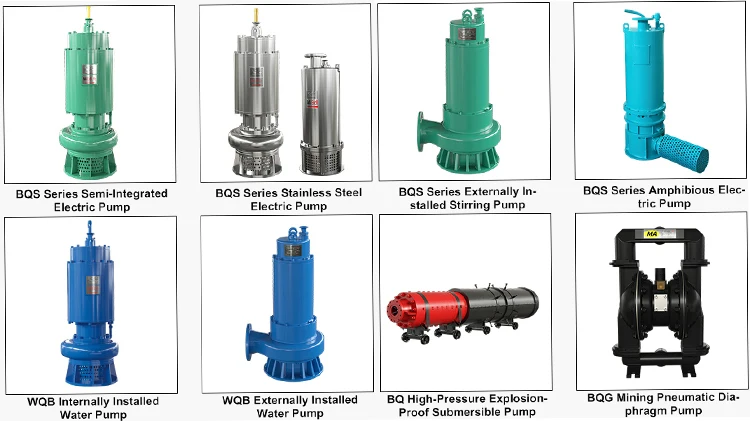

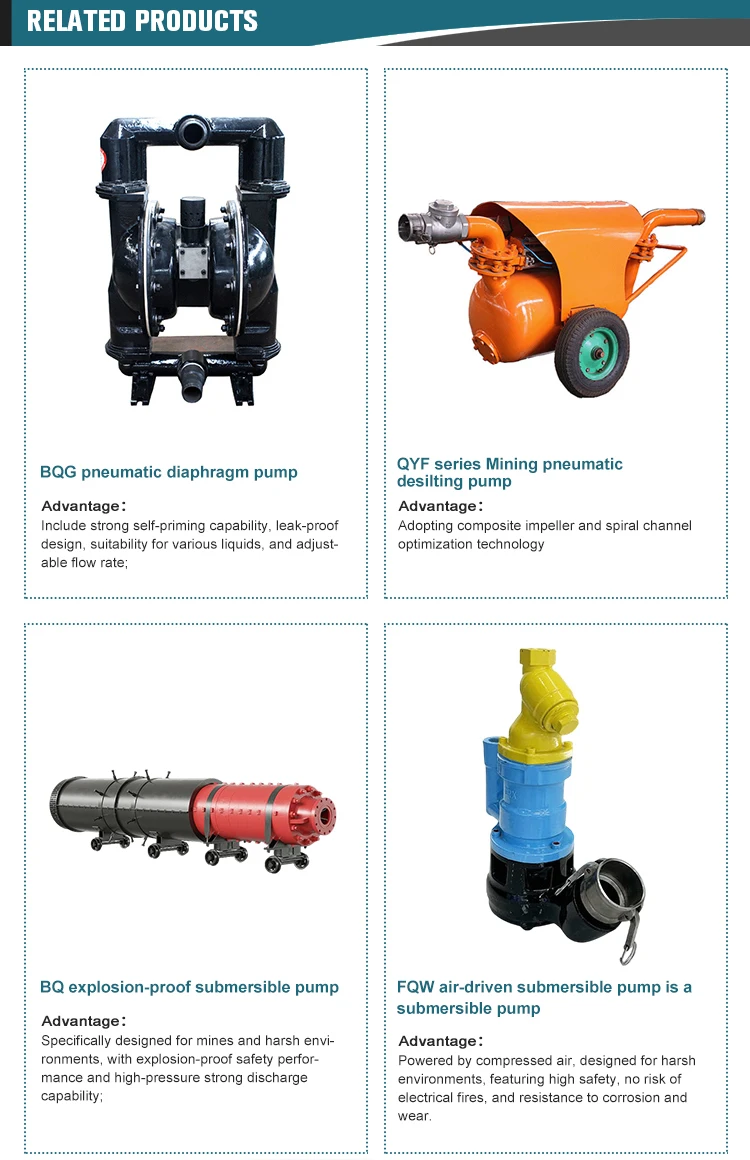

Related Products

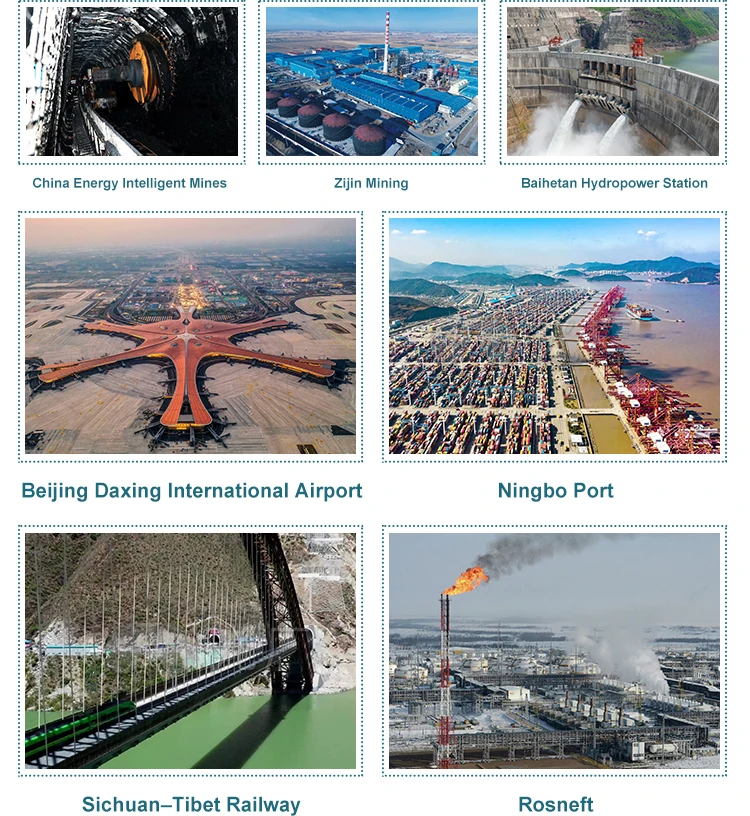

Classic Case
ATPUMP HAS COMPLETED OVER 5,0000 PROJECTS SINCE 2005
This includes domestic projects: China Energy Intelligent Mines, Baihetan Hydropower Station, Beijing Daxing International Airport, and Sichuan-Tibet Railway, Rosneft all using ATPUMP submersible pumps.
At the same time, our group is closely collaborating with well-known enterprises overseas.
ATPUMP HAS BEEN ESTABLISHED FOR OVER 20 YEARS
Our products are sold to over 80 countries overseas, and we are well-liked in the industry due to our strong capabilities.
ATPUMP SINCERELY INVITES GLOBAL AGENTS
We extend the most sincere invitation
"Click to join ATPUMP“

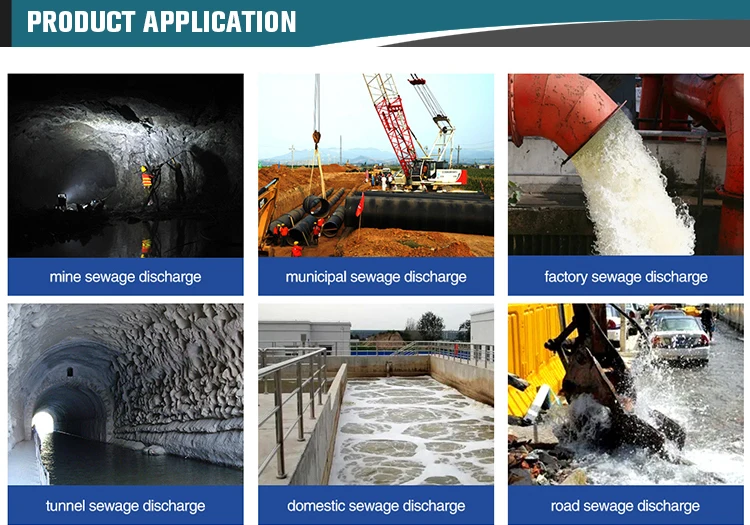

Product Application
Cooperative Partner
ATPUMP can do it for you 1. Pre-sales serviceCustomized technical services, product technical training 2. In-sales serviceComprehensive tracking service, providing technical support, professional training, guidance on installation & debugging 3. After-sales service"2-4-24 Principle": respond within 2 hours, provide remote guidance by video within 4 hours. and provide solutions within 24 hours

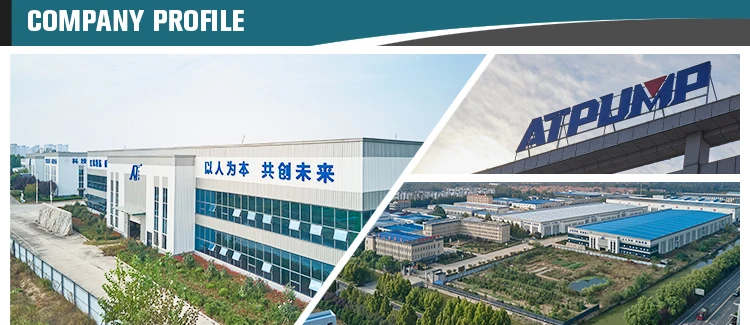

Established in 2005, JINING ANTAI MINE EQUIPMENT MANUFACTURING Co.,Ltd. is one of the leading industrial submersible pump manufacturers in China, which is specialized in the research, development, manufacture, marketing and service of submersible pumps. After 20 years of development, ATPUMP currently covers an area of 200,000 square meters, with fixed assets of 600 million Yuan. The company now has an annual production capacity of more than 50,000 sets of mining and industrial explosion-proof sewage submersible pump. ATPUMP has 6 series of pumps as total of 800 models which covers explosion-proof submersible drainage pumps for mine, high-voltage explosion-proof submersible pumps for mine, explosion-proof submersible sewage pumps for industrial, pneumatic desilting pump, pneumatic diaphragm pump, pneumatic submersible pump. Our products are of reasonable price and excellent quality and are widely used in the mining, petrochemical, natural gas engineering, civil engineering, industrial wastewater,sewage treatment, flood control and more.
So far, ATPUMP is the national high-tech enterprise and has obtained 86 invention patents and scientific & technological achievements, in addition, our trademark has been appraised as "China famous trademark". The company has passed the ISO9001,1SO14001, OHSAS18001, CE and other international certifications.
ATPUMP has built long-term strong relationship with many well-know companies, including China Shenhua, China National Coal Group, CNPC, SINOPEC, Sinohydro Group Ltd., YANCON GROUP etc. Zijin Mining, the company has also established stable and good cooperation with business partners from Russia, Australia, Peru, Chile and South Africa etc.
ATPUMP holds the belief that " only use the best material for the most durable pumps", keeping the focus on the customers'requirement. With excellent quality and service, ATPUMP warmly welcomes customers from at home and abroad to build cooperation with us!

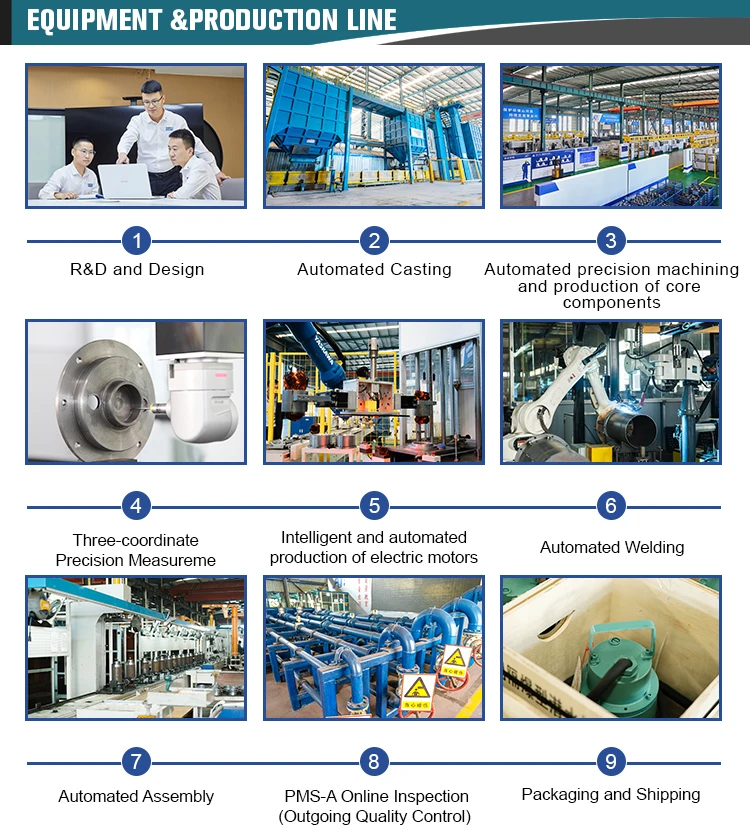

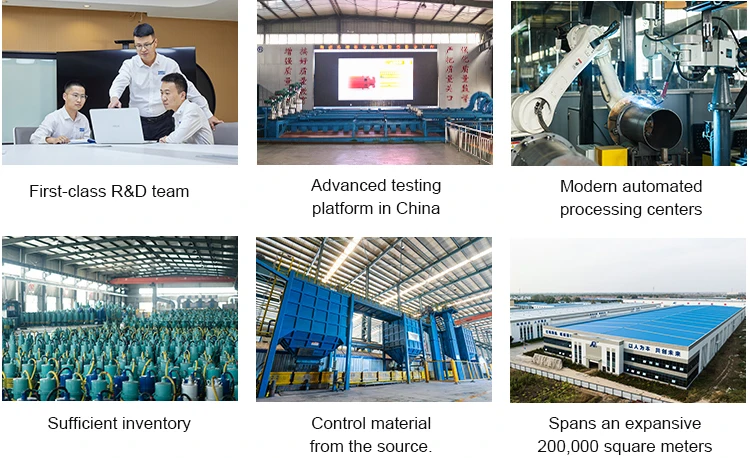

Our Factory
FAQ
Q1: What if the model I need is not in your catalog? A: We can accept customization, including but not limited to flow rate, head, material, function, etc. You only need to tell me the relevant information, and we have a professional technical team to provide you with plans and drawings. Q2: How do I place an order? A: Send us an inguiry – Tell us your needs and usage scenarios – Customize drawings and samples – Discuss details – Modify and confirm – Sign a contract/Deposit – Mass production – Final payment and delivery – Further cooperation. Q3: How to transport? A: We have a variety of transportation options. If there is a port in your area, sea transportation is an economical choice. If you are in a hurry to use it, we can ship it by air for you. If you don’t have your own freight forwarder, we can contract the relevant work from departure to arrival at the destination port. Q4: Why choose you? A: ATPUMP has been working with top domestic experts to develop and upgrade products since 2005. So far, it has participated in thousands of projects and cooperated with many major domestic projects. In China, we are the only one that can manufacture 1.5-4500kW products. We are the first choice for many domestic companies and projects, which proves that we have sufficient technical strength and quality support. Q5: What guarantees do I have when buying your products? A: Our after-sales service implements the "2-4-24 standard". 2-hour response, telephone remote guidance within 4 hours, and solutions within 24 hours. If there is a need, we can provide door-to-door after-sales service. Q6: I want to be your dealer, what are the conditions? A: No problem at all, dear, it is recommended that you purchase a sample first to try it out. If you have any special needs and modification suggestions, our technical team is at your service at any time. Looking forward to our further cooperation!
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–2 set: US $179 / set
- 3–4 set: US $90 / set
- 5+ set: US $56 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this mud sand slurry pump?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the mud sand slurry pump be supplied for my local voltage?
The standard configuration is 380/660V,660/1140V, 400V,440V,460V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
