This proof belt driven motor is published with the manufacturer’s full specification — 220v/380v/415v/440v 50HZ/60HZ, power source Electric. Made by Shandong Handun Environmental Technology Co., Ltd. (9 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Proof Belt Driven Motor
- Model Number: KT40
- Power Source: Electric
- Voltage: 220v/380v/415v/440v 50HZ/60HZ
- Material: Carbon Steel
- Blade Material: Cast Iron
- Impeller Material: Stainless steel/Aluminum/Carbon Steel
Technical Specifications
| Voltage | 220v/380v/415v/440v 50HZ/60HZ |
|---|---|
| Speed | 1450RPM, 2900rpm |
| Type | Roof Axial Fan |
| Material | Carbon Steel |
| Blade Material | Cast Iron |
| Mounting Type | Free Standing |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Shandong, China |
| Brand Name | Handun |
| Model Number | KT40 |
| Color | Silver, Blue, Grey |
| Name | Smoke Air Exhaust Fan |
| Impeller Size | 400mm |
| Application | Air exchange exhaust & Ventilation |
| Impeller Material | Stainless steel/Aluminum/Carbon Steel |
| Certificate | ISO/CE |
| Motor | AC Explosion Proof |
| Advantage | High Temperature Proof |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Smoke Air Exhaust Fan

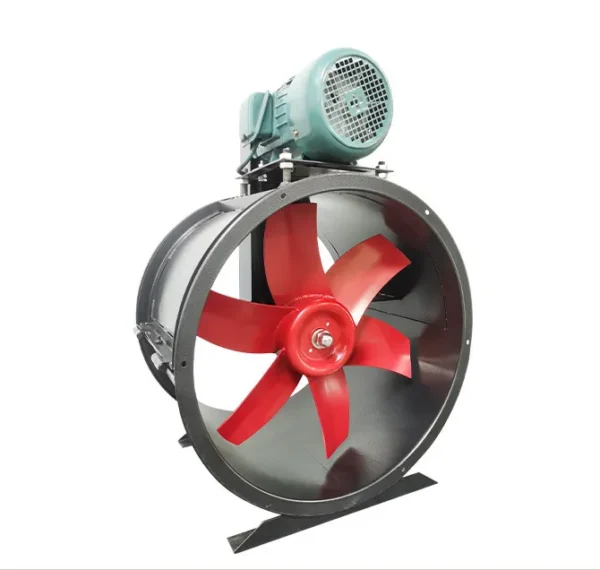

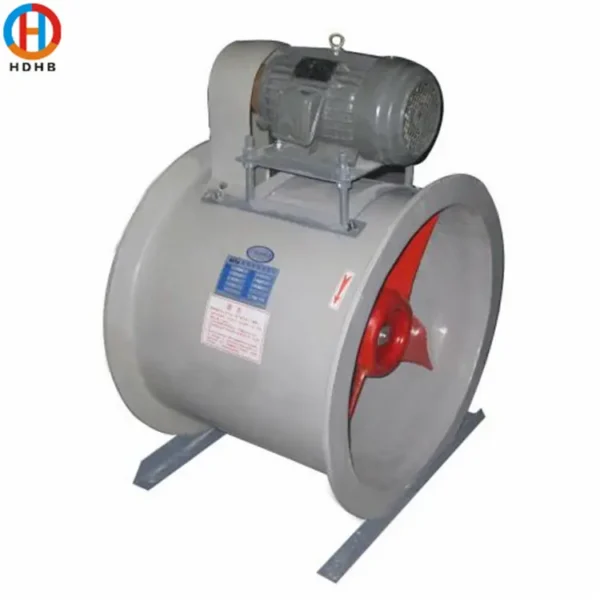

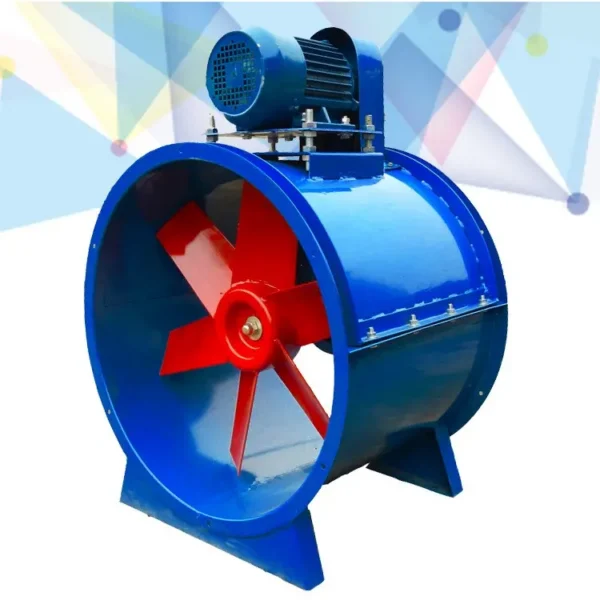

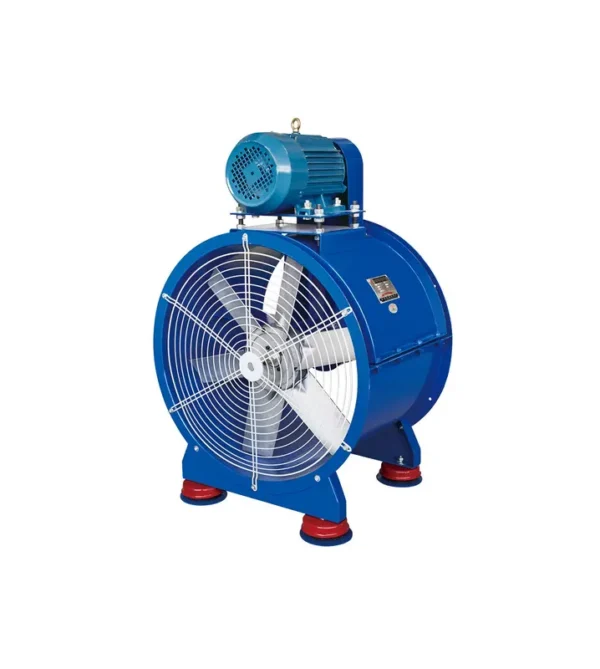

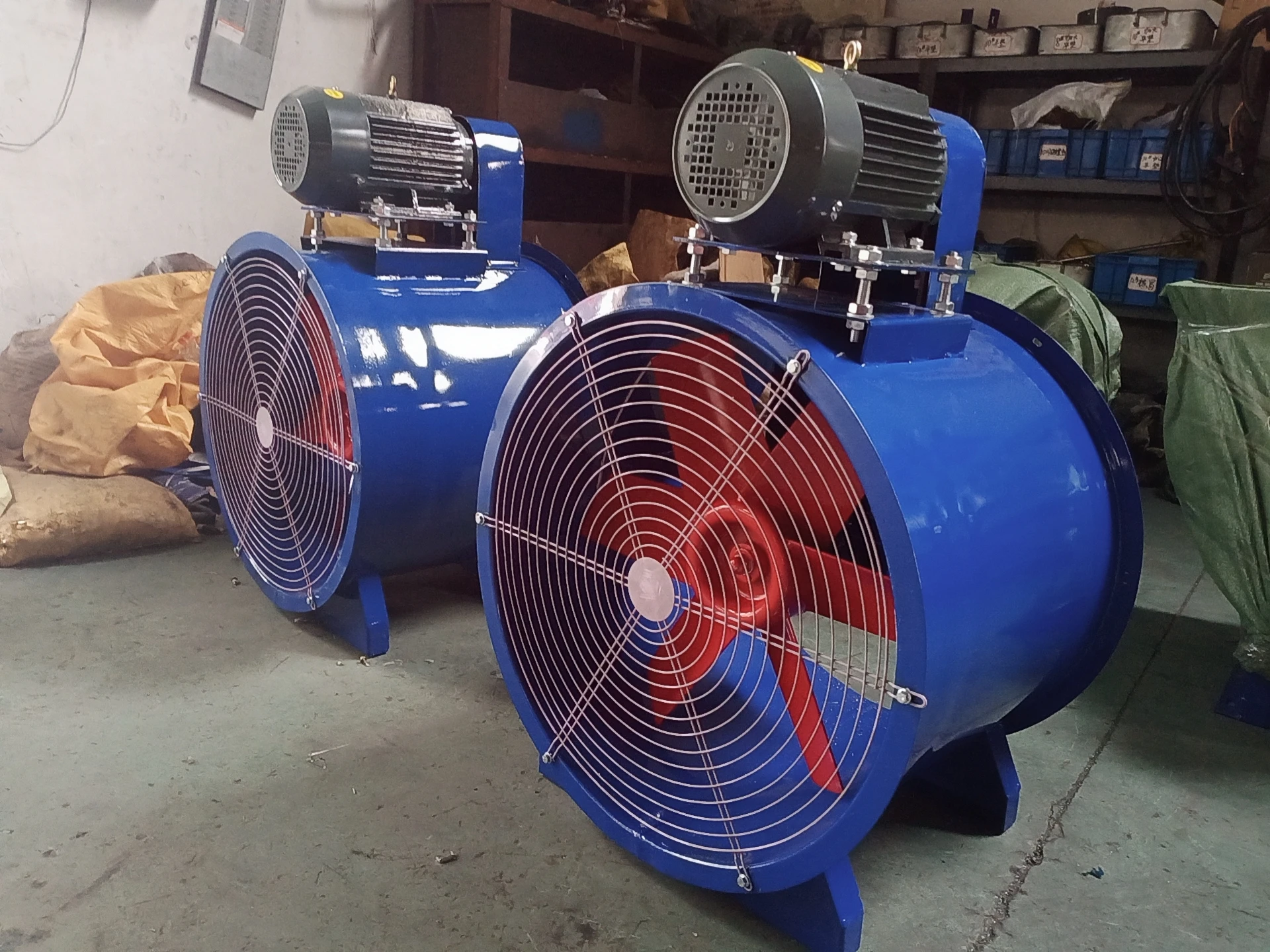

Model KT40 Axial Fan is applicable for the ventilation, air-exchange, warm air radiation reinforcement in the ordinary factory, warehouse, office, residence and so on. It can implement the interval series connecting installation in the long exhaust pipelines in order to enhance the air pressure in the pipelines. This series product adopts external placement of motor belt transmission (the motor is in the casing) in aspect of structural design according to the user’s requirement. The model is KT40. Its performances and parameters are the same as T40 fan. It can also change the rotational speed to fulfill the user’s required performance according to the user' s gas or moisture-proof gas demands. Its max function is to exhaust the high-Temperature Smoke Air.

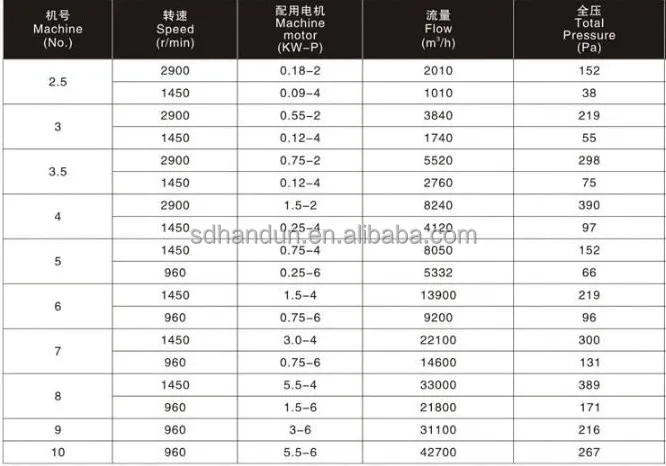

7.Technical Parameters :

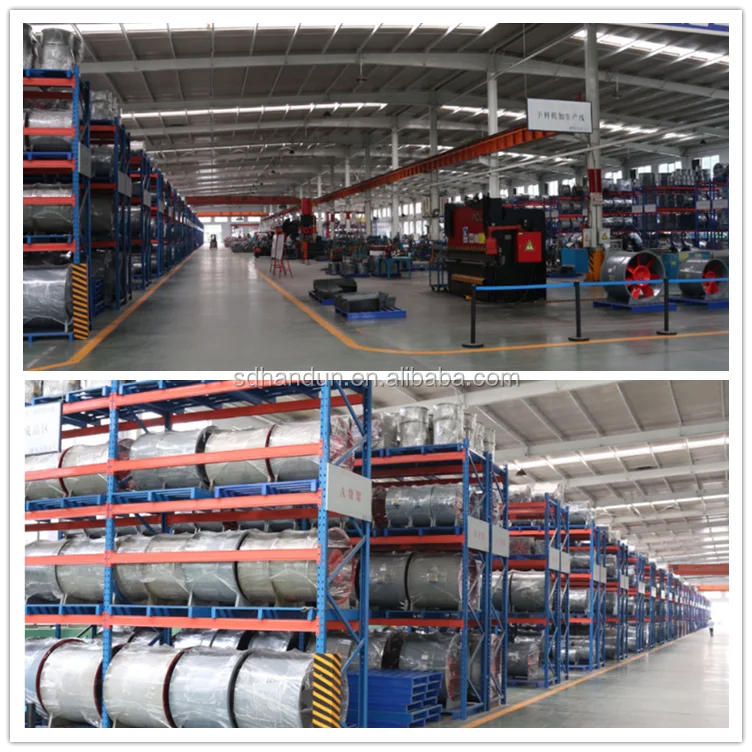

Shandong Handun Environmental Technology Co., Ltd is a leading international business company in China, mainly designs and manufacturers Centrifugal fan, Axial flow fan, Boiler induced draft fan and other Ventilation equipment and parts. Also customize fans water tank and cooling tower as requirements. Which are applied to industrial systems such as Coal-fired power, Metallurgy, Papermaking, Cement and Glass production, Chemical industry, Material handling, Sewage treatment, Waste incineration, Subway ventilation, Industrial boiler and Dust removal systems etc.
Main products : Centrifugal fan, Axial flow fan, Boiler induced draft blower and Industrial fans and parts, water tank and cooling tower
Ordering and Pricing
- Minimum order quantity: 5 set
- Volume pricing:
- 5–49 set: US $330 / set
- 50+ set: US $300 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this proof belt driven motor?
The standard minimum order quantity is 5 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this proof belt driven motor carry?
It is supplied with ISO/CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the proof belt driven motor be supplied for my local voltage?
The standard configuration is 220v/380v/415v/440v 50HZ/60HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shandong Handun Environmental Technology Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, Trading Company. Browse the full Shandong Handun Environmental Technology Co., Ltd. range on HVACR Nexus.
