Key specification for this proof smoke exhaust fan: voltage 380/220v/440v/480v, blade material Stainless Steel. Everything below is reproduced from the factory data sheet. Made by Qingdao Pengsheng Electric Appliance Co., Ltd. (12 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Proof Smoke Exhaust Fan
- Voltage: 380/220v/440v/480v
- Blade Material: Stainless Steel
- Warranty: 1 Year
- Certification: CE. ISO9001
- Place Of Origin: Shandong, China
- Mounting Type: Free Standing
Technical Specifications
| Voltage | 380/220v/440v/480v |
|---|---|
| Blade Material | Stainless Steel |
| Mounting Type | Free Standing |
| Warranty | 1 Year |
| After-Sales Service Provided | Field Maintenance and Repair Service |
| Customized Support | OEM, ODM |
| Place Of Origin | Shandong, China |
| Brand Name | PengSheng |
| Type | Axial Flow Fan |
| Electric Current Type | AC |
| Loading Port | Qingdao,China |
| Item | explosion proof smoke exhaust fan for fire rated |
| MOQ | 1 set |
| Certification | CE. ISO9001 |
| Mounting | wall mounted, floor, duct, standing etc |
| Selling Units | Single item |
| Single Package Size | 50X50X30 cm |
| Single Gross Weight | 40.0 kg |
Product Details

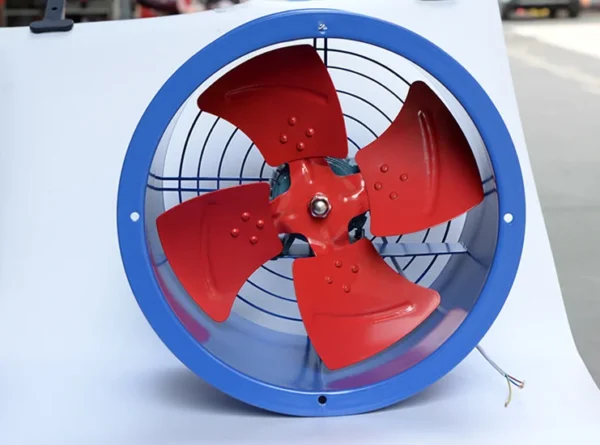

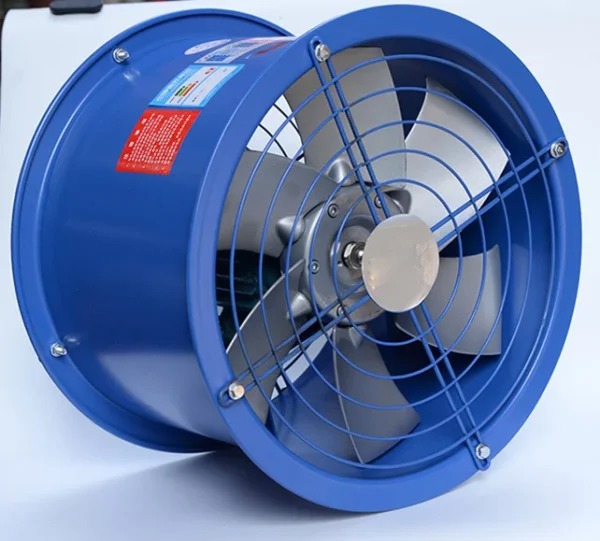

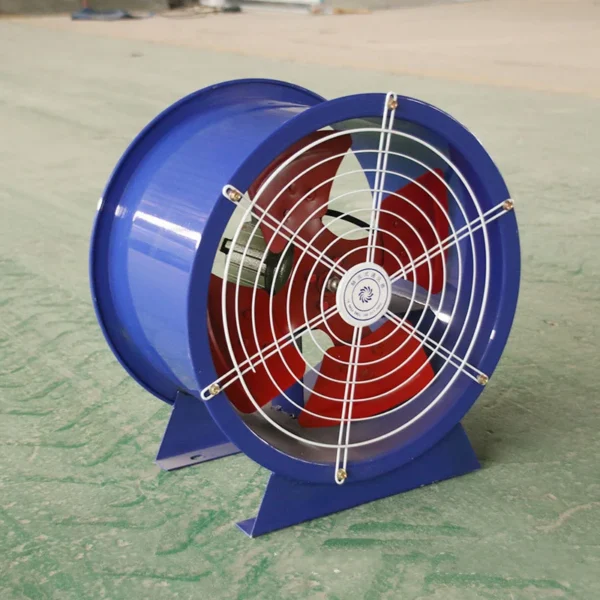

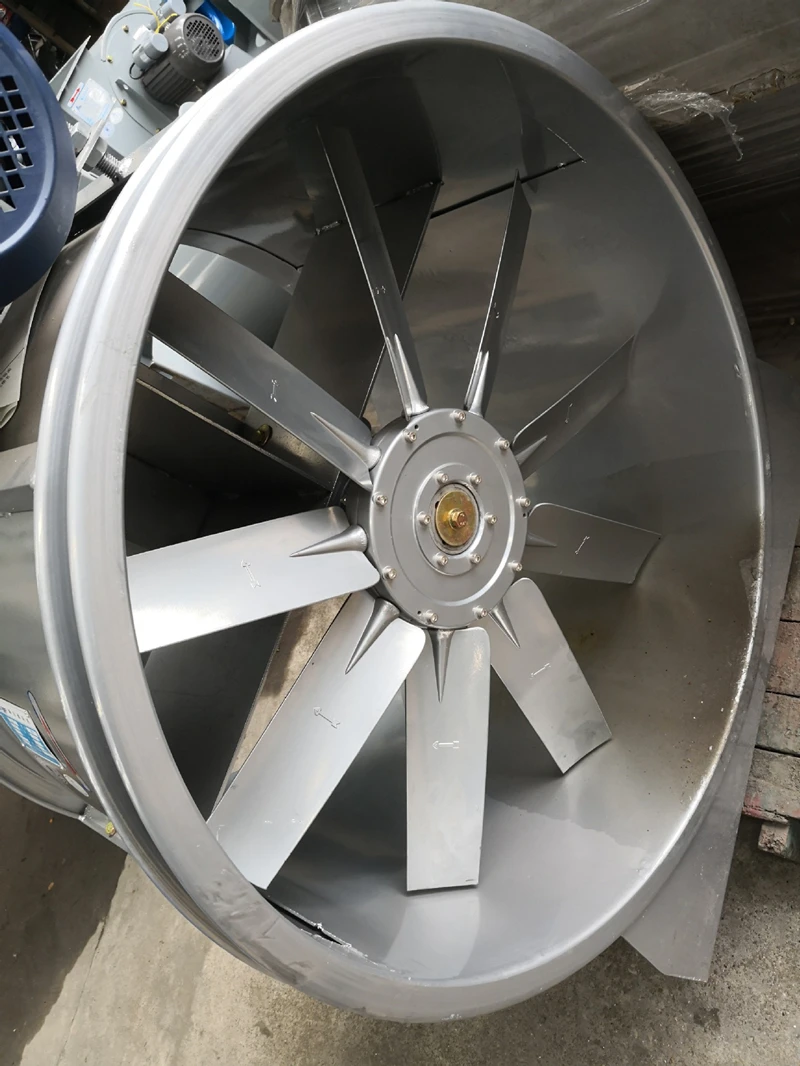

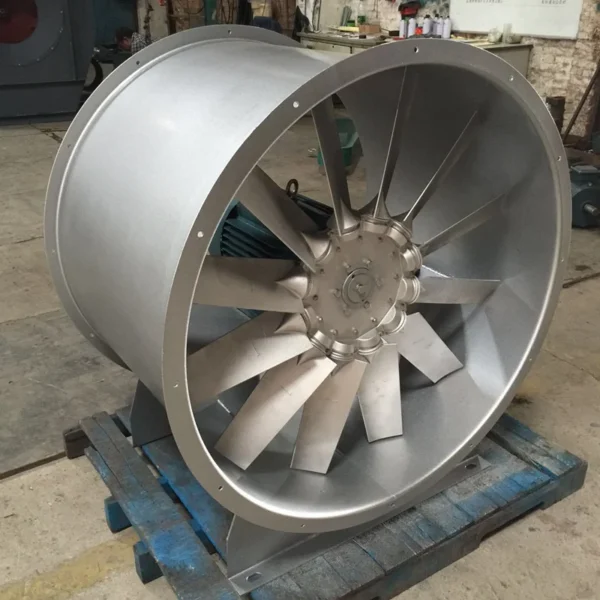

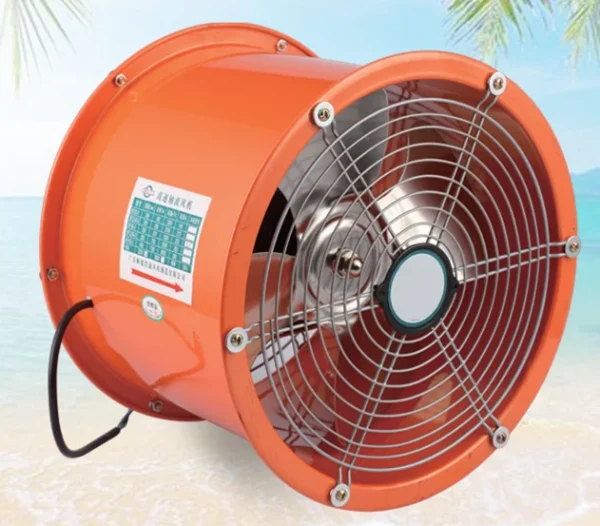

explosion proof smoke exhaust fan for fire rated
1. Explosive proof axial fan is suitable for conveying flammable, explosive and non-corrosive gas. The ambient temperature should not exceed 60 °C.
2. The blade is made from aluminum alloy to prevent sparks during operation.
3. The motor uses an explosion-proof motor.
4. At the tuber end of the fan, the wind collector must be installed and the protective mesh should be installed.
| Model | Rotation Speed | Airflow | Total Pressure | Motor | |
| No. | r.p.m | m3/h | pa | Motor Model | Power (kw) |
| 4 | 2800 | 5500-3000 | 230-300 | 712-2 | 0.55 |
| 6500-4000 | 250-330 | 801-2 | 0.75 | ||
| 7500-5000 | 270-380 | 802-2 | 1.1 | ||
| 1450 | 4300-2500 | 40-80 | 711-4 | 0.25 | |
| 5000-2800 | 100-120 | 712-4 | 0.37 | ||
| 5200-3200 | 70-90 | 713-4 | 0.55 | ||
| 5 | 2400 | 12000-7000 | 360-480 | 100L-2 | 3 |
| 2900 | 10000-5000 | 250-600 | 90L-2 | 2.2 | |
| 12000-7000 | 400-620 | 100L-2 | 3 | ||
| 1450 | 7000-4500 | 110-140 | 712-4 | 0.37 | |
| 7500-5000 | 115-150 | 801-4 | 0.55 | ||
| 8700-5400 | 140-170 | 802-4 | 0.75 | ||
| 9000-6000 | 190-210 | 802-4 | 0.75 | ||
| 9500-6500 | 200-220 | 90S-4 | 3 | ||
| 960 | 6300-4300 | 84-92 | 801-6 | 2.2 | |
| 6 | 2400 | 15000-8000 | 250-460 | 112M-2 | 4 |
| 3900 | 15000-8000 | 250- 650 | 100L-2 | 3 | |
| 1450 | 15000-8000 | 195-220 | 90S-4 | 1.1 | |
| 14500-9000 | 250-280 | 90L-4 | 1.5 | ||
| 16000-10000 | 270-310 | 100L1-4 | 2.2 | ||
| 960 | 8500-5000 | 90-100 | 801-6 | 0.37 | |
| 9600-6000 | 105-144 | 802-6 | 0.55 | ||
| 7 | 1450 | 18000-11000 | 170-250 | 90L-4 | 1.5 |
| 20500-13000 | 200-275 | 100L1-4 | 2.2 | ||
| 21500-13500 | 265-370 | 100L2-4 | 3 | ||
| 960 | 14000-9000 | 90-120 | 90S-6 | 0.75 | |
| 15000-10000 | 100-130 | 90L-6 | 1.1 | ||
| 8 | 1450 | 25000-16000 | 200-320 | 100L1-4 | 2.2 |
| 29000-20000 | 220-340 | 100L2-4 | 3 | ||
| 32000-22000 | 300-400 | 112M-2 | 4 | ||
| 35000-25000 | 320-420 | 132S-4 | 5.5 | ||
| 960 | 21000-14500 | 130-175 | 100L-6 | 1.5 | |
| 24000-16500 | 140-190 | 112M-6 | 2.2 | ||
| 9 | 1450 | 37000-24000 | 300-450 | 132S-4 | 5.5 |
| 40000-27000 | 320-470 | 132M-4 | 7.5 | ||
| 42000-30000 | 330-480 | 160M-4 | 11 | ||
| 960 | 26500-15000 | 170-205 | 112M-6 | 2.2 | |
| 29000-18000 | 180-230 | 132S-6 | 3 | ||
| 32000-21000 | 210-250 | 132M1-6 | 4 | ||
| 36000-23000 | 250-320 | 132M2-6 | 5.5 | ||
| 10 | 960 | 33000-21000 | 200-230 | 132M1-6 | 4 |
| 40000-27000 | 260-290 | 132M2-6 | 5.5 | ||
| 730 | 32000-20000 | 160-180 | 132S-8 | 3 | |
| 38000-26000 | 170-200 | 160M1-8 | 4 |
1. Heat and moisture resistance, durable
The cage is made of galvanized steel plate with no welding joint, as a whole, and the surface is covered by spraying plastics , heat-resistant and moisture-resistant, with long lifespan.
2. Low noise and stable operation
The impeller is made of a forward multi-blade arc-shaped blade and a front plate and a middle plate. The material is made of galvanized sheet. In order to ensure the accuracy of the impeller, all parts of the impeller are stamped and formed by a mold. After static and dynamic balance correction, the impeller has less vibration, low noise and stable operation during operation.
3. Motor
The externally-rotating low-noise three-phase asynchronous motor is used in the fans, the impeller and the motor are integrally connected by bolts, thereby reducing transmission loss and improving the overall efficiency of the fan.
↑Every picture has one interlinkage,you can choose your interested one to click it↑
◊ At present, the company has a variety of production and processing equipment more than and 100 Taiwan, more than and 20 sets of various types of testing equipment, to meet customers different requirements for quality and quantity. The company has been strengthening the construction of enterprise, adhere to the "quality of survival, with production efficiency and development of new varieties, and constantly develop new products, make the enterprise full of vitality.
◊ A famous company specializing in the production of air blower, Animal husbandry fan,Breeding temperature increasing fan ,exhaust fan, axial fan, centrifugal fan, the enterprise of science and technology of ventilation equipment, about 20years has been committed to developing of science and technology products.
◊ The company has pass the ISO9001 Quality system certificate ,and CAS (Chinese Academy of Sciences Authentication ). Our company also get Famous brand of China, National quality and credibility of the integrity of the double protection demonstration units , such as the honorary title.
◊ Now we have 20 selling-networks in china and exports to Asia , EU ,Africa and America etc ,more than 40 countries and areas.
Why choose Qingdao Peng Sheng Electrical Appliance Co., Ltd.?
1.Our company is a professional manufacturer of wind turbines, including various standard and non-standard axial fans, centrifugal fans, negative pressure fans, industrial fans and heaters etc. .
2.We have a good reputation in the fan industry for 20 years, now we have customers in many countries, such as USA, Canada, Lebanon, Thailand, German and Italy.
3.Our company can provide customized services for customers. The parameters and dimensions of the fans can be adjusted according to customers’ requirements to meet various individual needs.
4. We offer our customers competitive quotes, excellent quality and fast s ervice.
Welcome friends to visit our company for cooperation!
| QINGDAO PENG SHENG ELECTRICAL APPLIANCE CO.,LTD |
| Factory address:Huangjiabu South Village,Tongji Office, Jimo,Qingdao,Shangdong,China(Mainland) |
| Contact person :Alan +86 18853211099 |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–99 set: US $109 / set
- 100+ set: US $105 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this proof smoke exhaust fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this proof smoke exhaust fan carry?
It is supplied with CE. ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the proof smoke exhaust fan be supplied for my local voltage?
The standard configuration is 380/220v/440v/480v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Qingdao Pengsheng Electric Appliance Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Qingdao Pengsheng Electric Appliance Co., Ltd. range on HVACR Nexus.
