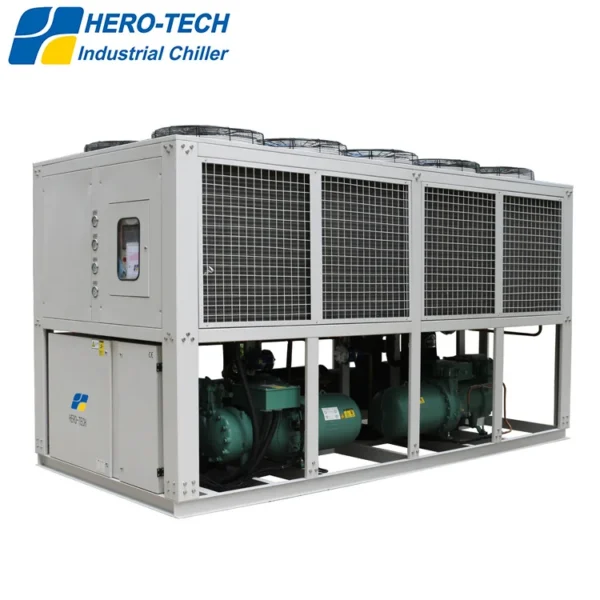

Screw Compressor, 120, 130kw, 10C-20C-30C

The screw compressor listed here carries voltage 3PH-380V-50HZ, refrigerant R22/R404A, documented exactly as the manufacturer publishes it. Made by Shenzhen Hero-Tech Refrigeration Equipment Co., Ltd. (10 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Screw Compressor

• Voltage: 3PH-380V-50HZ
• Refrigerant: R22/R404A
• Warranty: 1 Year
• After Warranty Service: Engineer Avalible
• Place Of Origin: Guangdong, China
• Application: Industrial Cooling Solutions

Technical Specifications

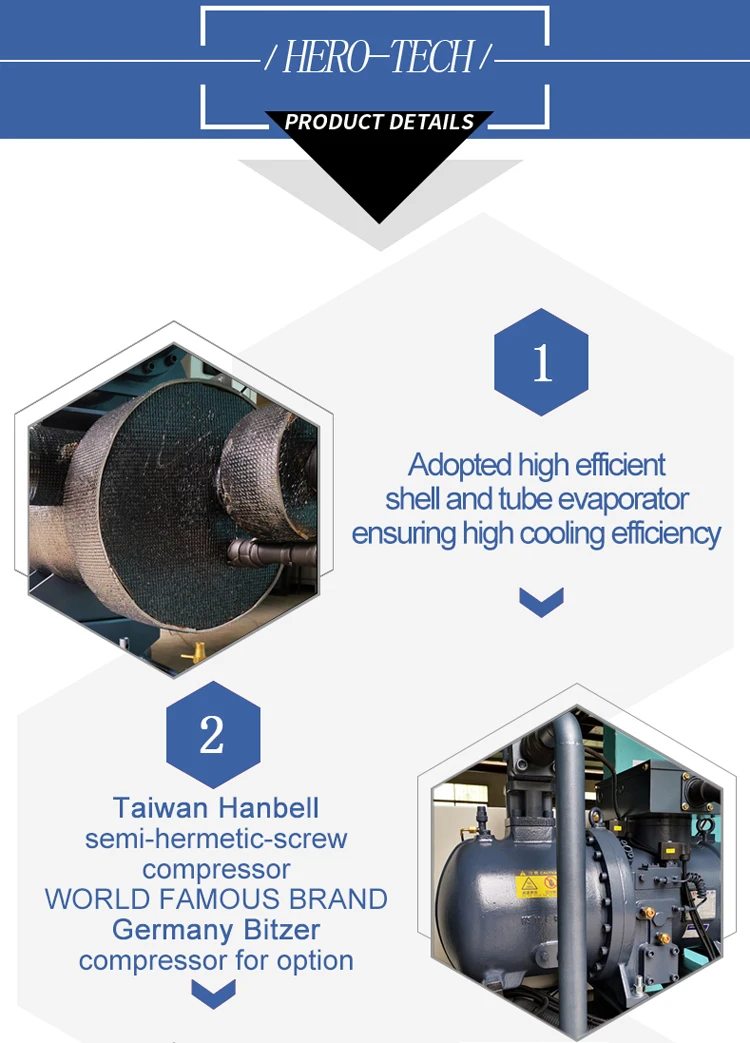

Product Details

Product Description

If you have a need for reliable low-temperature cooling for your industrial application,
we have the equipment you need. Our screw chillers are currently used around the world to guarantee a vast range of processes for many leading companies. We can create custom chilling solutions adapted to your specific cooling needs and find ways to add value to your process with our reliable and efficient low-temperature scroll chillers.
HERO-TECH products are designed to help lower environmental impact with next-generation, low Global Warming Potential (GWP) refrigerants and high-efficiency operation.

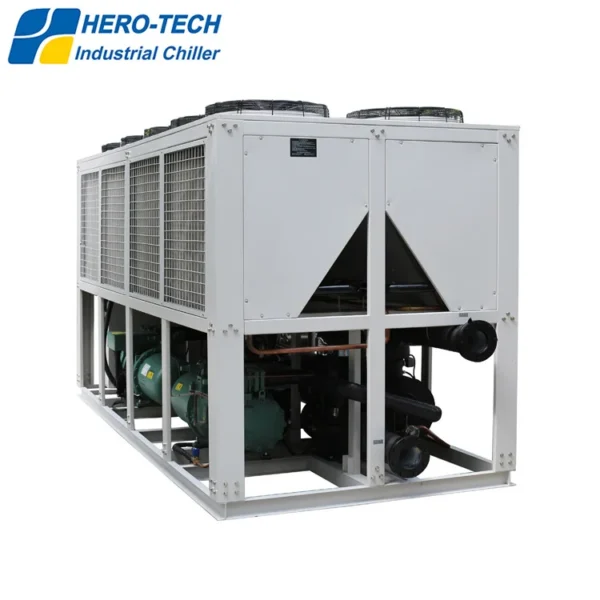

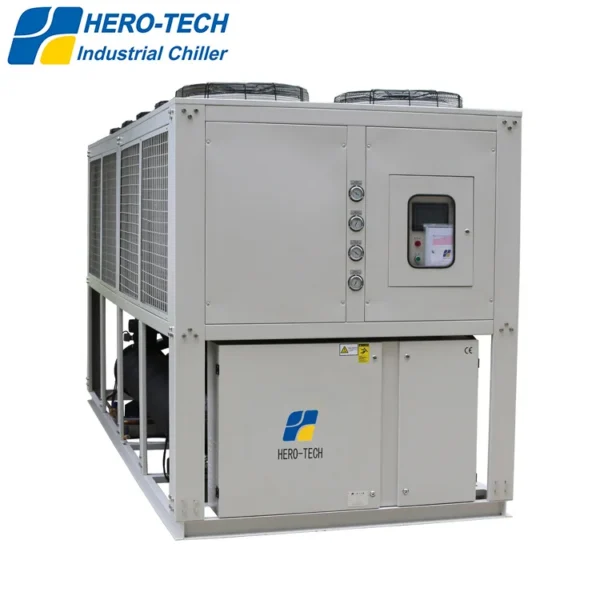

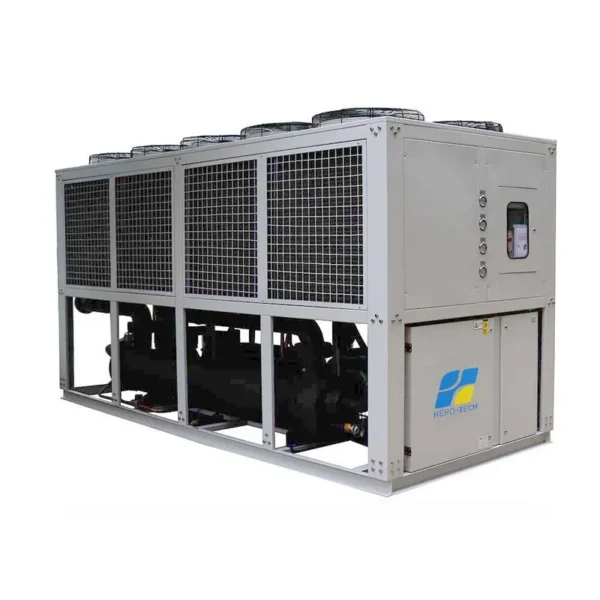

Model							HTSL-120AD
Nominal cooling capacity			-10℃	kw	132.6
			-20℃		76.4
			-30℃		36.4
Input power					kw	112.6
Power source						3PH 380V~415V 50HZ/60HZ
Refrigeration
Type						R22/R404A
Charge					kg	84
Control						Thermostatic expansion valve
Compressor
Type						Semi-hermetic screw
Motor power					kw	51.2*2
Start mode						Y-△
Capacity control					％	0-25-50-75-100
Evaporator
Type						Shell and tube(ss plate heat exchanger)
Chilled water volume	-10℃			m³/h	22.8
	-20℃				13.14
	-30℃				6.26
Water pressure drop					kPa	43
Pipe connection					inch	4
Condenser

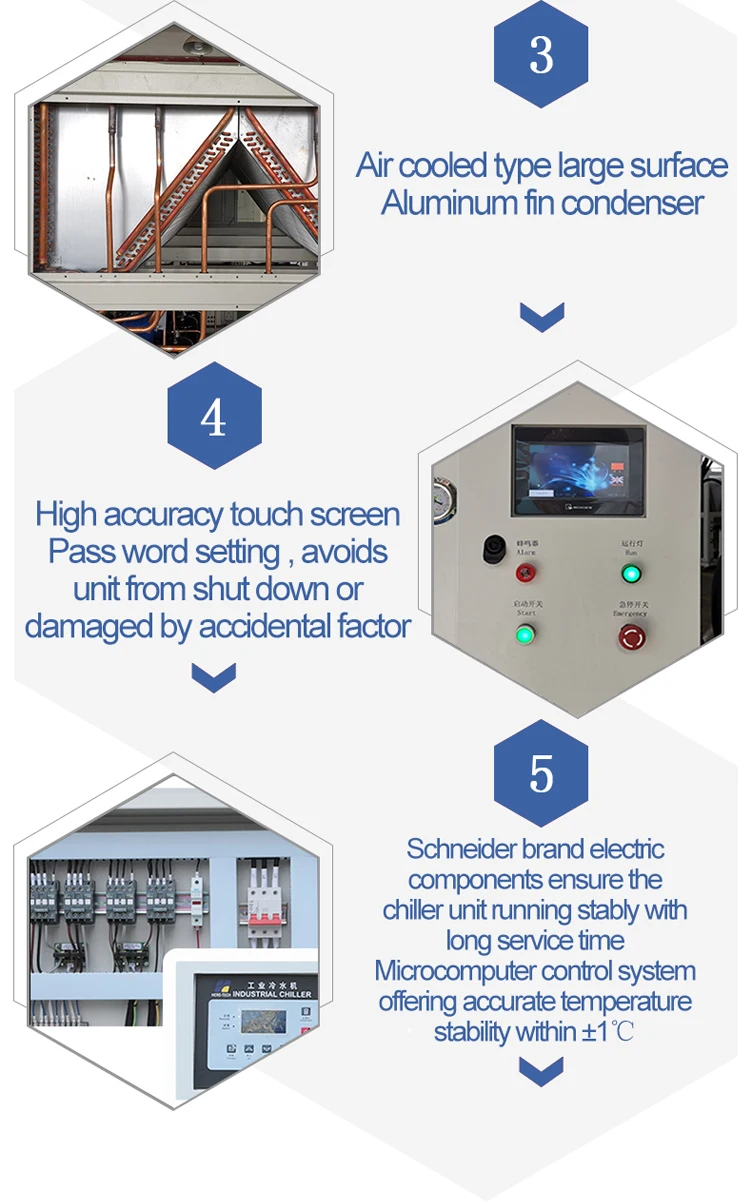

Type						Air cooled type high efficiency finned copper tube
Fan
Type						Big volume & low noise axial fan
Power					kw	0.8*12
Air volume					m³/h	149040
Safety devices							Compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti freezing protection, exhaust overheat protection
Dimension	Length			mm	5650
	Width			mm	2000
	Height			mm	2070
Net weight					kg	3450
Running weight					kg	3750
The above specifications are according to the following design conditions 1.Condensing temperature 35℃ 2.Volume fraction of glycol water solution 47.8% We reserve the right to modify the specifications without further notice.

Packing & Delivery

PE bag + plywood case

Company Profile

WHY CHOOSE US?

Hero-Tech Group Company Limited was established in 1997, which integrated with R&D, Production, Marketing and Technical service.
Shenzhen Hero-Tech Refrigeration Equipment Co., Ltd,subordinated to Hero-Tech Group, was founded in Shenzhen Guangdong Province in 2005. Hero-Tech is dedicated to research and develop the industry of industrial cooling and temperature controlling, product range including Industrial Chiller, Screw Type Chiller, Low Temperation Chiller,Laser Chiller, Heating&Cooling Chiller and Mold Temperature Controller, etc.

Since its inception, Hero-Tech adhered to Germany technique and management and passed certification of ISO9001:2000 and CE. Nearly 20 years experience in industrial refrigeration made HERO-TECH front-runner status in China. We have service network built in Guangzhou, Shanghai, Beijing , Tianjin, Zhengzhou, Jinan, Qingdao and Suzhou so as to provide more prompt and convenient service. Meanwhile, oversea sales network was built and improved, covering dozens of countries and areas, such as the Occident, Middle-East, South-East Asia and Australia. It brings continuing rapid growth of annual export volume. Till the end of 2011, export value contributes more than 80% of the annual sales turnover. Professional, therefore take the lead. After years of development, Hero-Tech won domestic and foreign customers consistent high praise because of excellent product performance and high efficiency service. HERO-TECH people Always adhered to the management philosophy "Treat work down-to-earth, treat people with integrity" "Quality reflects personality", by fulfilling every commitment to customer, perfecting every detail, Hero-Tech reciprocates every one for their attention and concern.

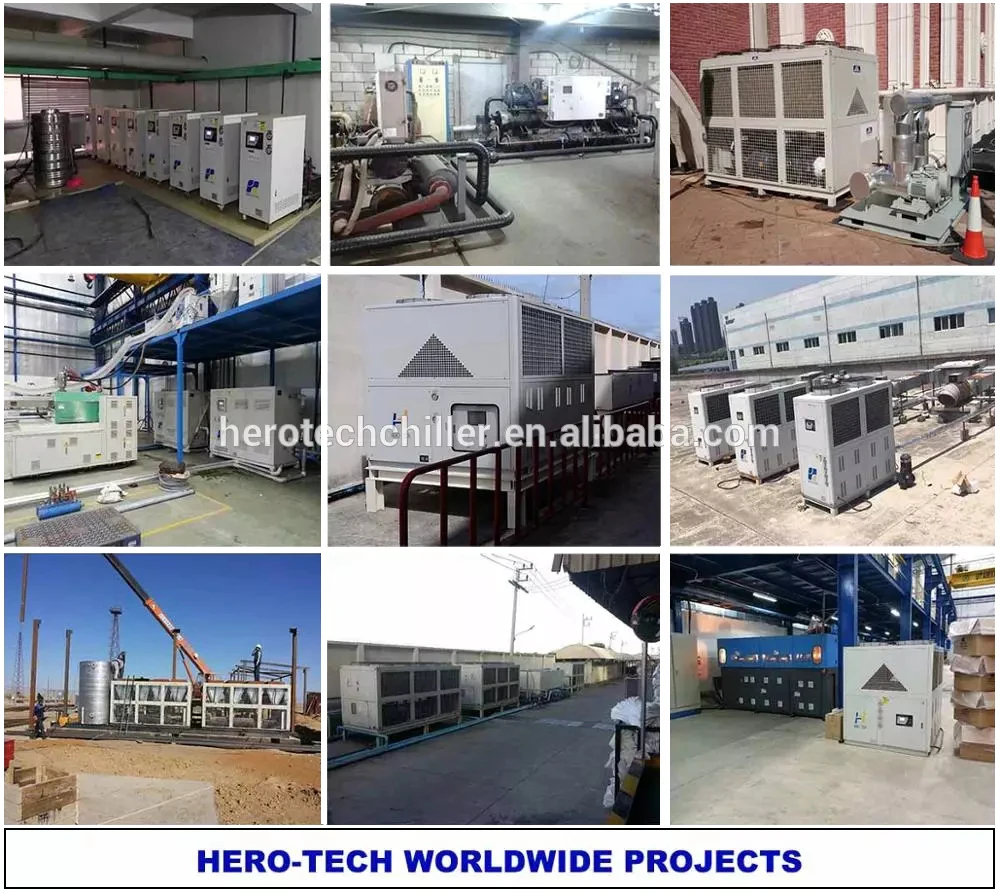

WORLDWIDE PROJECTS

EXHIBITION

Application Scope in the Industry

FAQ

1. who are we?
We are based in Guangdong, China, start from 2010,sell to Domestic Market(30.00%),Southeast Asia(22.00%),South America(7.00%),Mid East(7.00%),South Asia(6.00%),Africa(6.00%),Eastern Asia(4.00%),North America(4.00%),Western Europe(3.00%),Eastern Europe(3.00%),Oceania(2.00%),Southern Europe(2.00%),Central America(2.00%),Northern Europe(2.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Industrial Chiller,Screw Chiller,Glycol Chiller,Laser Chiller,Heating And Cooling Chiller

4. why should you buy from us not from other suppliers?
23 years R&D experience; 12 years Manufacture experience; Original branded refrigeration and electrical components; 12 to 24 months warranty according to differenct prodcuts; Exported to 78 countreis, and have partners in different countries and areas.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Japanese,French

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–2 set: US $54000 / set
  • 3+ set: US $27000 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this screw compressor?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the screw compressor be supplied for my local voltage?

The standard configuration is 3PH-380V-50HZ. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
