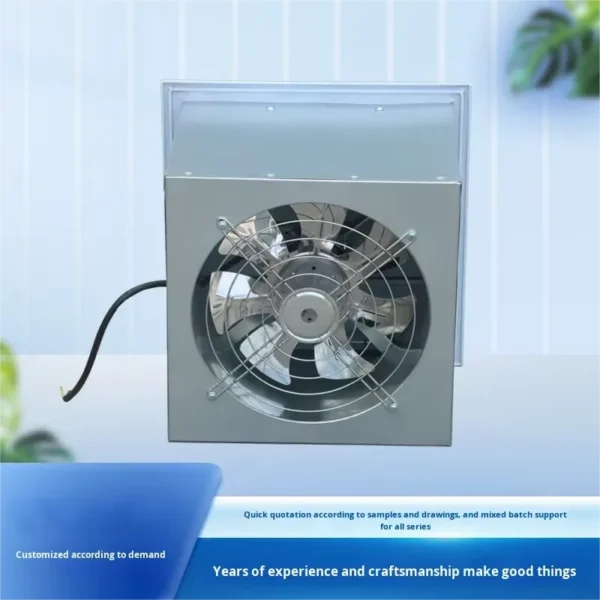

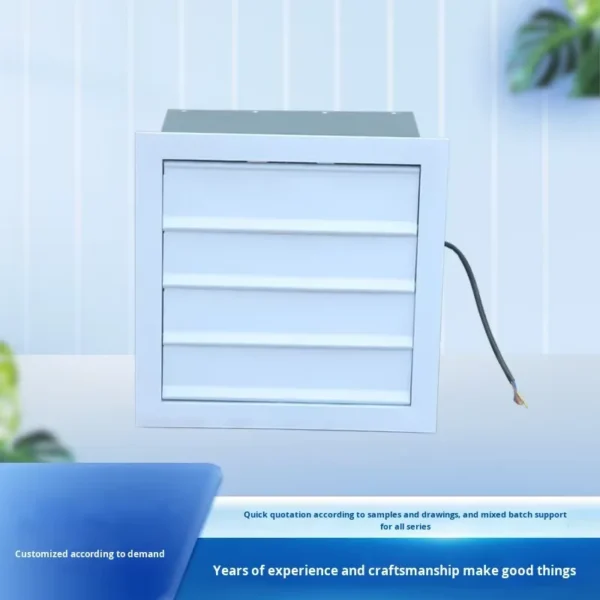

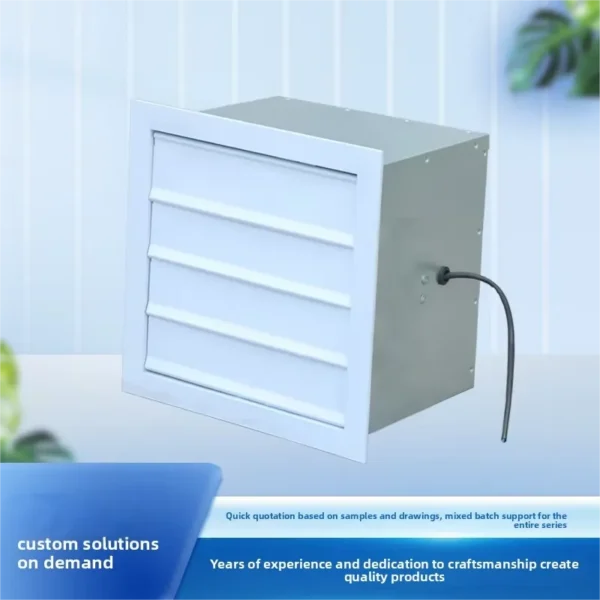

Square Wall Axial Fan, XJTKJ, 220V/380V, Explosion-Proof

The square wall axial fan listed here carries 220v/380v,220v/380v, blade material Carbon Steel, documented exactly as the manufacturer publishes it. Made by Jiangxi Jinjinwo Environmental Protection Co., Ltd. (1 year on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Square Wall Axial Fan

• Voltage: 220v/380v,220v/380v
• Blade Material: Carbon Steel
• Noise Level: 60-70
• Warranty: 1 Year
• Place Of Origin: China
• Mounting: Wall Fan

Technical Specifications

Product Details

Products Description

T35-11 type axial flow fan

The T35-11 axial flow fan is a common general-purpose ventilation device. It is a new type of fan improved on the basis of the T30-11. It is suitable for conveying gases that are non-flammable, non-explosive, non-corrosive and free of significant dust. It is widely used for ventilation and air exchange or strong heating heat dissipation in general factories, warehouses, offices and residences. This includes the FT35-11 type anti-corrosion axial flow fan with anti-corrosion materials and motor, as well as the BT35-11 type explosion-proof axial flow fan equipped with aluminum alloy impeller and explosion-proof motor. It is composed of an impeller, a casing and a wind collector.

Product Paramenters

型号 Model	风量（m³/h） Air volume	全压（Pa） Total pressure	功率（KW） Power	转速（r/min） Rotational speed
T35-11-2.8	1640	152	0.12	2900
		2100-3000	169-186		0.18
		3200	232		0.25
		800-1350	40	0.025	1450
		1400-1600	48-60	0.04
T35-11-3.15	2340	192	0.18	2900
		3100	214		0.25
		3800-4200	226		0.37
		4550	294		0.55
		1150	48	0.025	1450
		1500-1900	54	0.04
		2070	59	0.06
		2270	74	0.09
T35-11-3.55	3300	241	0.37	2900
		4400-5500	275		0.55
		6000	300		0.75
		6500	373		1.1
		1680	61	0.04	1450
		2200	68	0.06
		2700-3000	72	0.09
		3265	93	0.12
T35-11-4	4800	310	0.55	2900
		6300-8500	345-380		1.1
		9300	474		1.5
		2400	77	0.09	1450
		3100-3900	87	0.12
		4260	95	0.18
		4670	119	0.25
T35-11-4.5	3420	98	0.12	1450
		4500	110		0.18
		5880	113		0.25
		6070-6660	121-150		0.37
T35-11-5	4700	122	0.25	1450
		6170-7650	136		0.37
		8320	149		0.55
		9100	185		0.75
		3100-6100	53-81	0.37	960
T35-11-5.6	6600	151	0.37	1450
		8660	169		0.55
		10300	174		0.75
		11600-12800	186-232		1.1
		4300-8470	67-101	0.37	960
T35-11-6.3	9390	192	0.75	1450
		12300	214		1.1
		15290-16640	228		1.5
		182150	294		2.2
		6220-10100	84-96	0.37	960
		11000-12000	104-128	0.75

Installation Instructions

Company Profile

Our Services

Certifications

FAQ

Ordering and Pricing

• Minimum order quantity: 1 piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this square wall axial fan?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the square wall axial fan be supplied for my local voltage?

The standard configuration is 220v/380v,220v/380v. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Jiangxi Jinjinwo Environmental Protection Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, Trading Company. Browse the full Jiangxi Jinjinwo Environmental Protection Co., Ltd. range on HVACR Nexus.
