This stainless steel shell tube is published with the manufacturer’s full specification — 380 V, material Stainless Steel. Made by Shangqiu Ruike Mechanical Equipment Co., Ltd. (8 years on the platform, typical reply ≤8h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Stainless Steel Shell Tube
- Voltage: 380 V
- Flow Capacity: 50gpm
- Material: Stainless Steel
- Tube Material: 316 Stainless Steel
- Warranty: 2 Years
- Certification: ASME, GB, API, ISO9001
Technical Specifications
| Heat Exchanger Type | Tube Heat Exchanger |
|---|---|
| Flow Capacity | 50gpm |
| Fluid Compatibility | Water |
| Material | Stainless Steel |
| Maximum Operating Temperature | 400-600c |
| Voltage | 380 V |
| Core Components | Pressure Vessel |
| Warranty | 2 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Energy Saving |
| Working Temperature Range | -50-500 |
| Place Of Origin | Henan, China |
| Weight (Kg) | 50 |
| Brand Name | Ruike |
| Maximum Pressure Rating | 10MPA(1450.38psi) |
| Application | Waste Oil Refinery Equipment |
| Function | Heating exchanger |
| Type | Shell and Tube Condensate Heat Exchanger |
| Tube Diameter | 12mm, 16mm, 19mm, 25mm (customizable) |
| Design Pressure (Shell) | Up to 10MPa |
| Design Pressure (Tube) | Up to 15MPa |
| Heat Transfer Area | 5m² – 500m² (customizable) |
| Certification | ASME, GB, API, ISO9001 |
| Tube Material | 316 Stainless Steel |
| Usage | Heat Exchange Parts |
| Selling Units | Single item |
| Single Package Size | 100X50X30 cm |
| Single Gross Weight | 500.0 kg |
Product Details
Product Description
Product Description of Ruike Heating Exchanger
Henan Ruike Petrochemical Equipment Manufacturing Co., Ltd. proudly presents our premium shell and tube condensate heat exchanger,
engineered to deliver exceptional performance in condensing and heat transfer processes across diverse industrial sectors.
Designed with precision and built to withstand rigorous operating conditions, this heat exchanger efficiently converts vaporized
fluids into liquid while recovering and transferring heat to maximize energy utilization.
Ideal for applications in petrochemical plants, chemical processing facilities, power generation systems, and HVAC industries, our
shell and tube condensate heat exchanger features a robust construction with high-quality materials—including carbon steel,
stainless steel, and special alloys—to ensure corrosion resistance, durability, and long service life. The innovative design
optimizes heat transfer efficiency through a strategic arrangement of tubes and baffles, minimizing pressure drop and enhancing
thermal performance. Whether handling steam, hydrocarbons, or other industrial fluids, our heat exchanger guarantees reliable
operation, reduced energy consumption, and lower maintenance costs, making it a cost-effective solution for your thermal
management needs. Backed by Henan Ruike's decades of expertise in petrochemical equipment manufacturing, each unit undergoes
strict quality control to meet international standards such as ASME, GB, and API, ensuring compliance and peace of mind for global
clients.
engineered to deliver exceptional performance in condensing and heat transfer processes across diverse industrial sectors.
Designed with precision and built to withstand rigorous operating conditions, this heat exchanger efficiently converts vaporized
fluids into liquid while recovering and transferring heat to maximize energy utilization.
Ideal for applications in petrochemical plants, chemical processing facilities, power generation systems, and HVAC industries, our
shell and tube condensate heat exchanger features a robust construction with high-quality materials—including carbon steel,
stainless steel, and special alloys—to ensure corrosion resistance, durability, and long service life. The innovative design
optimizes heat transfer efficiency through a strategic arrangement of tubes and baffles, minimizing pressure drop and enhancing
thermal performance. Whether handling steam, hydrocarbons, or other industrial fluids, our heat exchanger guarantees reliable
operation, reduced energy consumption, and lower maintenance costs, making it a cost-effective solution for your thermal
management needs. Backed by Henan Ruike's decades of expertise in petrochemical equipment manufacturing, each unit undergoes
strict quality control to meet international standards such as ASME, GB, and API, ensuring compliance and peace of mind for global
clients.
Ruike Shell and Tube condenser Features
* Superior Heat Transfer Efficiency: Advanced tube bundle design with optimized baffle spacing ensures maximum heat exchange
between condensate and cooling media, reducing energy waste.
* Durable Construction: Crafted from high-grade materials (carbon steel, 304/316 stainless steel, Hastelloy) to resist corrosion,
high pressure, and high temperatures, suitable for harsh industrial environments.
* Customizable Design: Available in various sizes, tube counts, and material combinations to meet specific flow rates, pressure
requirements, and fluid compatibility needs.

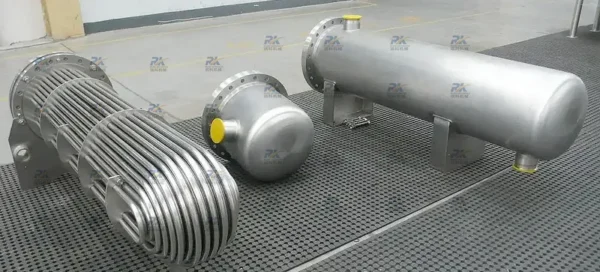

* Easy Maintenance: Removable tube bundles and accessible components simplify cleaning, inspection, and repair, minimizing
downtime.
* Energy-Saving Performance: Efficient condensate recovery reduces operational costs by reusing thermal energy, aligning with
sustainable industrial practices.
* Compliant with International Standards: Manufactured in accordance with ASME, GB, API, and other global regulations, ensuring
safety and reliability.
between condensate and cooling media, reducing energy waste.
* Durable Construction: Crafted from high-grade materials (carbon steel, 304/316 stainless steel, Hastelloy) to resist corrosion,
high pressure, and high temperatures, suitable for harsh industrial environments.
* Customizable Design: Available in various sizes, tube counts, and material combinations to meet specific flow rates, pressure
requirements, and fluid compatibility needs.
* Easy Maintenance: Removable tube bundles and accessible components simplify cleaning, inspection, and repair, minimizing
downtime.
* Energy-Saving Performance: Efficient condensate recovery reduces operational costs by reusing thermal energy, aligning with
sustainable industrial practices.
* Compliant with International Standards: Manufactured in accordance with ASME, GB, API, and other global regulations, ensuring
safety and reliability.
Specification
Parameter | Specification |
Type | Shell and Tube Condensate Heat Exchanger |
Shell Material | Carbon Steel (Q235B), Stainless Steel (304, 316), Alloy Steel (optional) |
Tube Material | Copper, Carbon Steel, Stainless Steel (304, 316), Titanium (optional) |
Tube Diameter | 12mm, 16mm, 19mm, 25mm (customizable) |
Number of Tubes | 50 – 1000+ (depending on size and requirements) |
Design Pressure (Shell) | Up to 10MPa |
Design Pressure (Tube) | Up to 15MPa |
Design Temperature | -40°C to 450°C |
Heat Transfer Area | 5m² – 500m² (customizable) |
Baffle Type | Segmental, Disk and Doughnut (optional) |
Connection Type | Flanged, Threaded, Welded |
Certification | ASME, GB, API, ISO9001,CE |
Operation Process of Ruike Heat Exchanger

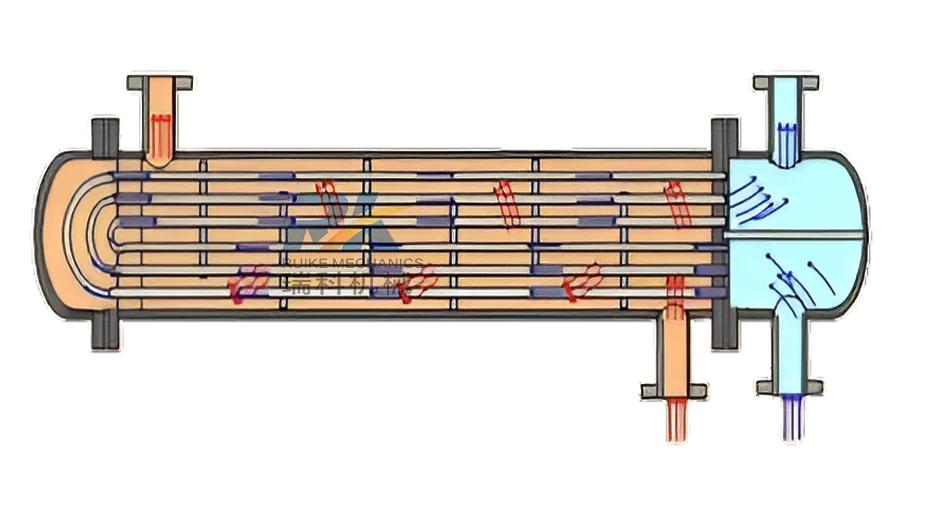

The operational process of our shell and tube condensate heat exchanger is designed for seamless efficiency. First, the hot vapor
or condensate enters the shell side through the inlet nozzle, flowing around the exterior of the tube bundle. Simultaneously, a
cooling medium (such as water or air) is introduced into the tube side, traveling through the tubes. As the two fluids come into
contact across the tube walls, heat is transferred from the hot vapor/condensate to the cooler medium. This heat transfer causes
the vapor to condense into a liquid, which then collects at the bottom of the shell and is discharged through the condensate
outlet. The heated cooling medium exits through the tube side outlet, completing the cycle.
or condensate enters the shell side through the inlet nozzle, flowing around the exterior of the tube bundle. Simultaneously, a
cooling medium (such as water or air) is introduced into the tube side, traveling through the tubes. As the two fluids come into
contact across the tube walls, heat is transferred from the hot vapor/condensate to the cooler medium. This heat transfer causes
the vapor to condense into a liquid, which then collects at the bottom of the shell and is discharged through the condensate
outlet. The heated cooling medium exits through the tube side outlet, completing the cycle.
Ideal for applications
Ideal for applications in petrochemical plants, chemical processing facilities, power generation systems, and HVAC industries, our
shell and tube condensate heat exchanger features a robust construction with high-quality materials—including carbon steel,
stainless steel, and special alloys—to ensure corrosion resistance, durability, and long service life. The innovative design
optimizes heat transfer efficiency through a strategic arrangement of tubes and baffles, minimizing pressure drop and enhancing
thermal performance. Whether handling steam, hydrocarbons, or other industrial fluids, our heat exchanger guarantees reliable
operation, reduced energy consumption, and lower maintenance costs, making it a cost-effective solution for your thermal
management needs. Backed by Henan Ruike's decades of expertise in petrochemical equipment manufacturing, each unit undergoes
strict quality control to meet international standards such as ASME, GB, and API, ensuring compliance and peace of mind for global
clients.
shell and tube condensate heat exchanger features a robust construction with high-quality materials—including carbon steel,
stainless steel, and special alloys—to ensure corrosion resistance, durability, and long service life. The innovative design
optimizes heat transfer efficiency through a strategic arrangement of tubes and baffles, minimizing pressure drop and enhancing
thermal performance. Whether handling steam, hydrocarbons, or other industrial fluids, our heat exchanger guarantees reliable
operation, reduced energy consumption, and lower maintenance costs, making it a cost-effective solution for your thermal
management needs. Backed by Henan Ruike's decades of expertise in petrochemical equipment manufacturing, each unit undergoes
strict quality control to meet international standards such as ASME, GB, and API, ensuring compliance and peace of mind for global
clients.
FAQ
Q1: What factors should I consider when selecting a shell and tube condensate heat exchanger for my application?
A1: Key factors include the type of fluids (vapor and cooling medium) being handled, operating pressure and temperature, required
heat transfer area, material compatibility (to resist corrosion), and flow rates. Our team can assist in analyzing these
parameters to recommend the optimal configuration.
Q2: Can the heat exchanger be customized to fit specific space or performance requirements?
A2: Yes, we offer extensive customization. This includes adjusting tube diameter, number of tubes, shell size, baffle type, and
material selection (e.g., stainless steel for corrosive environments). Simply share your specific needs, and we’ll engineer a
solution tailored to your setup.
Q3: How often does the heat exchanger require maintenance, and what does it involve?
A3: Maintenance frequency depends on operating conditions, but typical intervals are 6–12 months. It includes cleaning tube
surfaces to remove scale or deposits, inspecting gaskets and seals for wear, and checking for tube corrosion or leaks. Our design
with removable tube bundles simplifies these tasks, reducing downtime.
Q4: Does the product come with a warranty, and what support is available after purchase?
A4: We provide a 12–24 month warranty (depending on configuration) covering manufacturing defects. Post-purchase, our technical
team offers support for installation guidance, troubleshooting, and spare parts supply. We aim to ensure seamless operation
throughout the product’s lifespan.
Q5: Are your heat exchangers compliant with international safety and quality standards?
A5: Absolutely. All our shell and tube condensate heat exchangers are manufactured in compliance with ASME, GB, API, and ISO9001
standards. We can also provide certification documentation to meet your industry’s regulatory requirements.
A1: Key factors include the type of fluids (vapor and cooling medium) being handled, operating pressure and temperature, required
heat transfer area, material compatibility (to resist corrosion), and flow rates. Our team can assist in analyzing these
parameters to recommend the optimal configuration.
Q2: Can the heat exchanger be customized to fit specific space or performance requirements?
A2: Yes, we offer extensive customization. This includes adjusting tube diameter, number of tubes, shell size, baffle type, and
material selection (e.g., stainless steel for corrosive environments). Simply share your specific needs, and we’ll engineer a
solution tailored to your setup.
Q3: How often does the heat exchanger require maintenance, and what does it involve?
A3: Maintenance frequency depends on operating conditions, but typical intervals are 6–12 months. It includes cleaning tube
surfaces to remove scale or deposits, inspecting gaskets and seals for wear, and checking for tube corrosion or leaks. Our design
with removable tube bundles simplifies these tasks, reducing downtime.
Q4: Does the product come with a warranty, and what support is available after purchase?
A4: We provide a 12–24 month warranty (depending on configuration) covering manufacturing defects. Post-purchase, our technical
team offers support for installation guidance, troubleshooting, and spare parts supply. We aim to ensure seamless operation
throughout the product’s lifespan.
Q5: Are your heat exchangers compliant with international safety and quality standards?
A5: Absolutely. All our shell and tube condensate heat exchangers are manufactured in compliance with ASME, GB, API, and ISO9001
standards. We can also provide certification documentation to meet your industry’s regulatory requirements.
Ordering and Pricing
- Minimum order quantity: 1 cubic meter
- Volume pricing:
- 1+ cubic meter: US $850 / cubic meter
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this stainless steel shell tube?
The standard minimum order quantity is 1 cubic meter. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this stainless steel shell tube carry?
It is supplied with ASME, GB, API, ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the stainless steel shell tube be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shangqiu Ruike Mechanical Equipment Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shangqiu Ruike Mechanical Equipment Co., Ltd. range on HVACR Nexus.
