The steam boiler listed here carries type Natural Circulation, documented exactly as the manufacturer publishes it. Made by Qingdao East Power Industry Equipment Co., Ltd. (15 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Steam Boiler
- Steam Capacity: 1-20 T/h
- Boiler Material: Boiler specific carbon steel
- Warranty: 1 Year
- Warranty Of Core Components: 1 Year
- Place Of Origin: Shandong, China
- Application Field: Food,Textile,Dyeing and Printing, Papermaking Industry
Technical Specifications
| Output | Steam, saturated steam, superheated steam |
|---|---|
| Usage | Industrial |
| Steam Production | Max. 20t/h |
| Fuel | Gas (Natural gas, LPG, coal gas) |
| Pressure | Low Pressure |
| Structure | Horizontal; Corrugated furnace; Wet back; Three pass; Fire tube |
| Type | Natural Circulation |
| Core Components | Burner, Pump, Electric Control |
| Key Selling Points | Easy To Operate |
| Style | Horizontal |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Shandong, China |
| Brand Name | EPCB |
| Dimension(L*W*H) | Depends |
| Boiler Name | Industrial 1 to 20 ton gas fired steam boiler |
| Keywords | Gas fired steam boiler |
| Steam Capacity | 1-20 T/h |
| Working Pressure | 0.7-2.5Mpa (7-25 bar) |
| Steam Temperature | 170-225℃ |
| Boiler Material | Boiler specific carbon steel |
| Thermal Efficiency | Up to 94% |
| Application Field | Food,Textile,Dyeing and Printing, Papermaking Industry |
| Local Service Location | Philippines, Pakistan,Bangladesh,Uzbekistan |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Applicable Industries | hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops |
| Showroom Location | Philippines, Pakistan, Bangladesh, Uzbekistan |
| Warranty Of Core Components | 1 Year |
| Condition | New |
| Weight | 5~50ton |
| Selling Units | Single item |
| Single Package Size | XX cm |
| Single Gross Weight | 0.0 kg |
Product Details

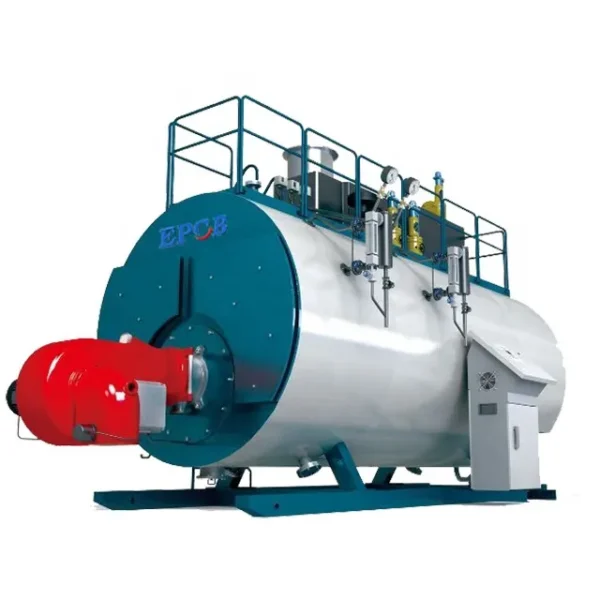

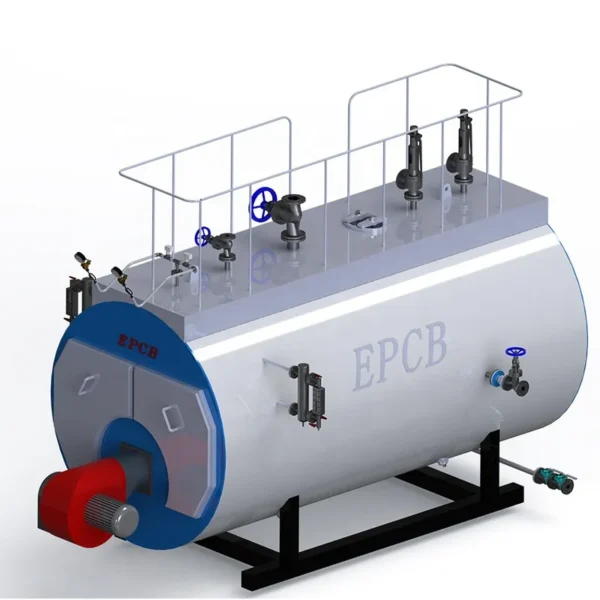

1 2 3 4 6 8 10 12 15 20 Ton Industrial Gas Fired Steam Boiler With corrugated furnace three passes and web back structure
Product Features
Experience Unmatched Efficiency with Our Industrial Gas Fired Steam Boiler Unleash the Power of Steam for Your Industrial Needs Key Features: – Versatile Steam Capacity: With a steam capacity ranging from 1 to 20 tons per hour, this gas-fired steam boiler is designed to meet the demands of various industrial applications. Whether you need saturated steam or superheated steam, it delivers with ease. – Superior Efficiency: Achieve thermal efficiency of up to 94% with our advanced boiler design. It ensures optimal fuel utilization, saving you operational costs in the long run. – Durable Construction: Crafted with precision using specific carbon steel, this horizontal boiler is built to last. The corrugated furnace, wet back structure, and three-pass design further enhance its durability. – Easy Operation: Designed with simplicity in mind, this gas-fired steam boiler is easy to operate. It's the ideal choice for hotels, garment shops, manufacturing plants, and more. Exceptional After-Sales Service:We understand the importance of reliable customer support. Our team of engineers is available to service machinery overseas, ensuring that your boiler continues to perform at its best. Global Reach, Local Service:Our gas-fired steam boilers have found their way to satisfied customers in the Philippines, Pakistan, Bangladesh, and Uzbekistan. Our worldwide showroom locations make it easy for you to see our products in action. Fuel Options to Suit Your Needs:This versatile boiler can run on natural gas, LPG, or coal gas, providing flexibility to adapt to your specific requirements.
Click here to get your industry solution!
Item/Type | Horizontal Fire Tube Automatic Oil/Gas Fired Steam Boiler | ||||||||||||||||
Rated capacity t/h | 3 | 4 | 5 | 6 | 8 | 10 | 15 | 20 | |||||||||
Rated steam pressure MPa | 0.7/1.0/1.25/1.6 | ||||||||||||||||
Rated steam temperature ℃ | 170/184/194/204 | ||||||||||||||||
Boiler thermal efficiency % | 92.55 | 92.6 | 92.5 | 92.9 | 93.1 | 93.4 | 93.5 | 93.7 | |||||||||
Body heating area m2 | Boiler body | 67.87 | 80.37 | 110.5 | 140.13 | 194.27 | 142.3 | 218.5 | 275.3 | ||||||||
Economizer | 30.4 | 43.41 | 46.5 | 57.1 | 74.4 | 112.6 | 155 | 225.5 | |||||||||
Boiler water volume m3 | 6.25 | 7.54 | 8.9 | 8.5 | 13.9 | 19.5 | 24.5 | 31.5 | |||||||||
Flue diameter mm | φ450 | φ520 | 750×410 | 800×410 | 940×520 | 850×500 | 1200×600 | 1500×600 | |||||||||
Water inlet diameter DN | 40 | 50 | 50 | 50 | 50 | 50 | 65 | 80 | |||||||||
Main steam valve diameter DN | 100/40 | 100/40 | 125/40 | 125/40 | 150/40 | 150/40 | 200/50 | 200/65 | |||||||||
Safety valve diameter DN | 2×40 | 50+40 | 2×50 | 2×65 | 2×65 | 2×80 | 2×100 | 2×100 | |||||||||
Blowdown diameter DN | 40 | 40 | 40 | 40 | 40 | 2×50 | 2×50 | 2×50 | |||||||||
Fuel consumption | Diesel kg/h | 177.65 | 236.74 | 296.25 | 353.97 | 470.95 | 586.79 | 879.25 | 1169.83 | ||||||||
Natural gas Nm³/h | 217.25 | 289.51 | 362.28 | 432.40 | 573.44 | 717.57 | 1075.21 | 1430.55 | |||||||||
Largest transportation size | Length mm | 4600 | 4900 | 5250 | 5850 | 6500 | 6240 | 8500 | 9200 | ||||||||
Width mm | 2200 | 2300 | 2350 | 2400 | 2600 | 2850 | 3500 | 3950 | |||||||||
Height mm | 2500 | 2650 | 2680 | 2700 | 2850 | 3100 | 4000 | 4350 | |||||||||
Largest transportation weight kg | 8000 | 8700 | 11200 | 12500 | 17800 | 22000 | 32500 | 40500 | |||||||||
Related Products
About EPCB
Contact Us
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $5800 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this steam boiler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Qingdao East Power Industry Equipment Co., Ltd., based in China. The company 15 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Qingdao East Power Industry Equipment Co., Ltd. range on HVACR Nexus.
