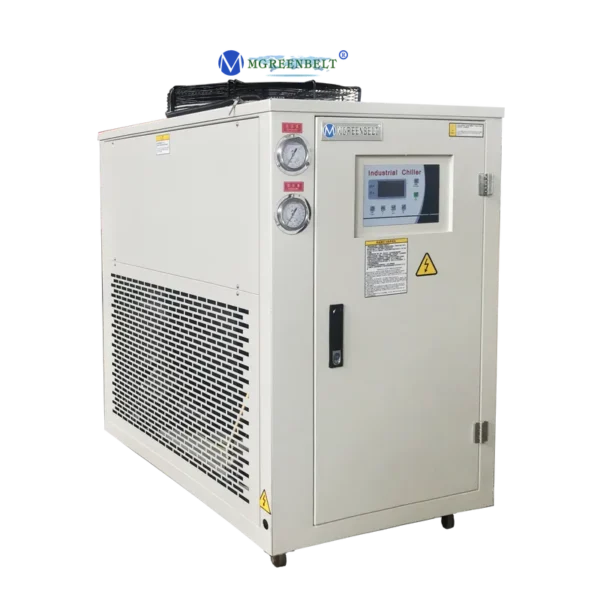

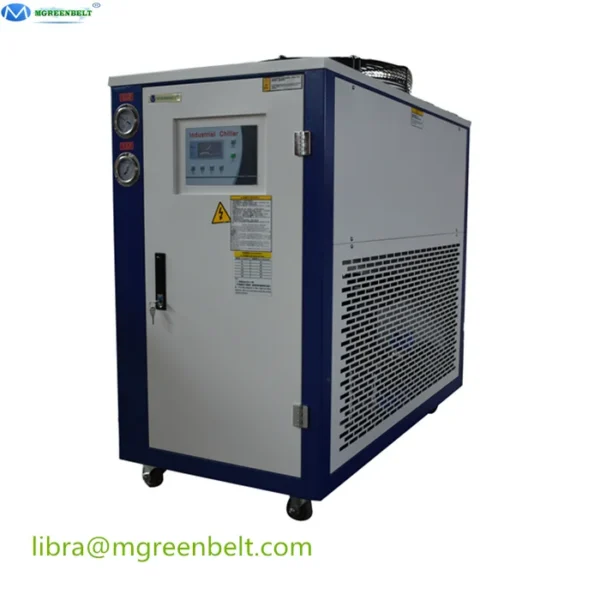

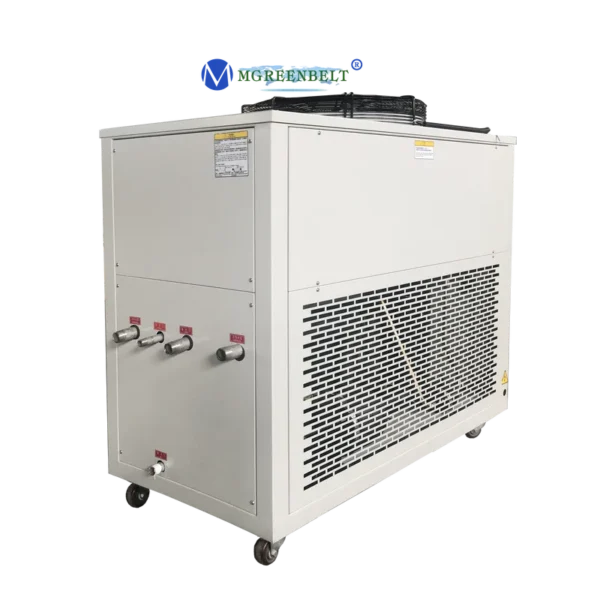

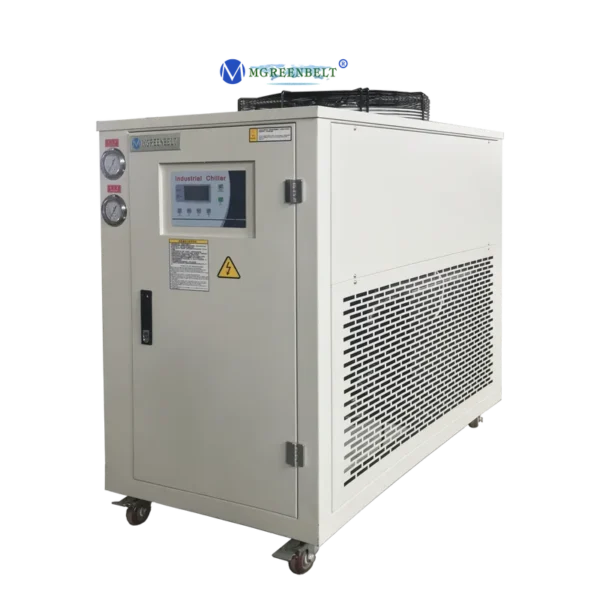

Temperature Beer Glycol Chiller, 10/-5/0, 3PH-220V-60HZ, 4.2KW

This temperature beer glycol chiller is published with the manufacturer’s full specification — voltage 3PH-220V-60HZ, other customize, 4.2KW. Made by Shandong Mgreenbelt Machinery Co., Ltd. (15 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Temperature Beer Glycol Chiller

• Power: 4.2KW
• Compressor Power: 5hp
• Pump Power: 1HP
• Voltage: 3PH-220V-60HZ, other customize
• Refrigerant: R22/R134a/R407c/R410a
• Warranty: 1 Year

Technical Specifications

Product Details

Products Description

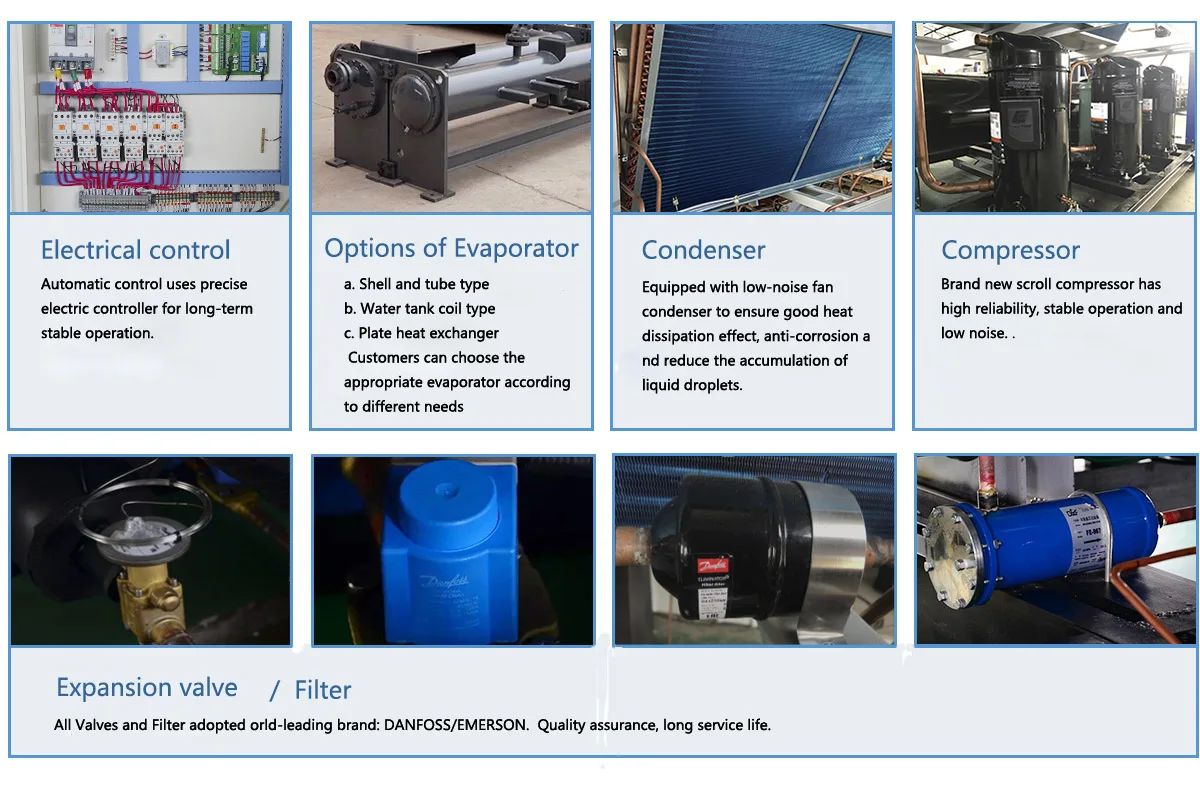

1, Equipped with international brand hermetic scroll compressor, low noise, high efficiency, long life, and low failure rate. 2, Evaporator and condenser made of high efficiency red cooper (anti-corrosion material can also be used), high heat transferring efficiency; 3,Throttle valve and expansion valves are world famous brand, to maximize the cooling ability and ensure high stability; 4, Equipped with imported pumps, good stability of equilibrium, watertight, ensure stable and sustainable flow of chilled water; 5,Equipped with a full-featured microcomputer control system, set and adjust temperature (5 ºC -35 ºC) by itself, easy operation 6, Full-featured microcomputer control system, can directly control (startup, shut down, operate) compressors, pumps and others 7, Reserved pipe connection is easy for installation, Only need to connect the pipe and power supply for machine usage. Equipped with castors for flexible movement and convenient 8,Optional for cryogenic unit, environmentally friendly refrigerant unit

Specification

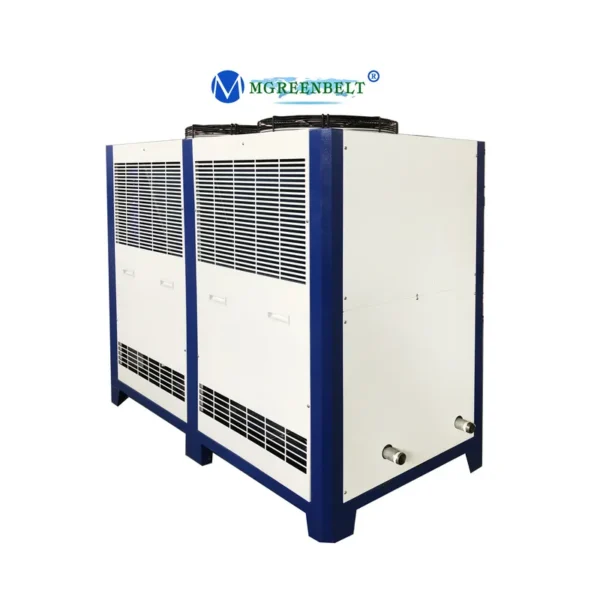

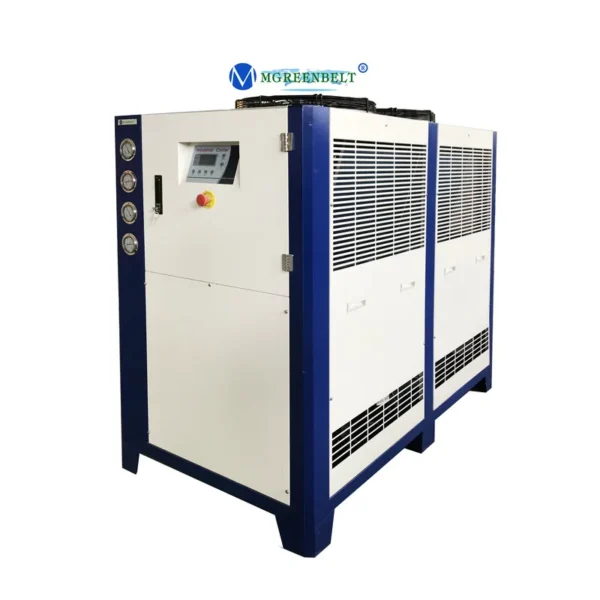

Air cooled scroll chiller
Model			MG-5C	MG-10C	MG-15CD	MG-20CD	MG-30CT	MG-40CF
Cooling capacity	Kcal/h	11266	24510	35948	47558	71896	100104
		kw	13.1	28.5	41.8	55.3	83.6	116.4
power	kw	5.61	10.83	16.31	21.27	32.33	41.66
Power input			3PH-380V-50HZ
Refrigerant	Type	R22/R407C
		Control	Thermostatic expansion valve
Compressor	Type	Hermetic scroll type
		Power（kw）	4.2	9.05	6*2	9.05*2	9.05*3	9.05*4
Evaporator	Type	SS Tank with coil or Shell and tube								SS Tank with coil or Shell and tube
		Water flow m³/h	2.25	4.89	7.17	9.48	14.33	19.95
		Capacity L	70	200	270	350	450	580
		Inlet/Outlet	DN25	DN32	DN40	DN40	DN65	DN65
Condenser	Type	High efficiency hydrophilic aluminum foll finned type
		Power	0.52	0.46*2	0.55*2	0.78*2	1.32*2	0.78*4
pump	Power kw	0.55	0.55	1.5	1.5	2.2	2.2
		Lift m	25	20	20	20	21	20
Protection System			Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension	L mm	1220	1610	1870	2120	2700	2300
		W mm	690	820	900	1000	1120	1860
		H mm	1200	1500	1600	1720	1800	1800
Wight	kg	200	450	750	850	1150	1350

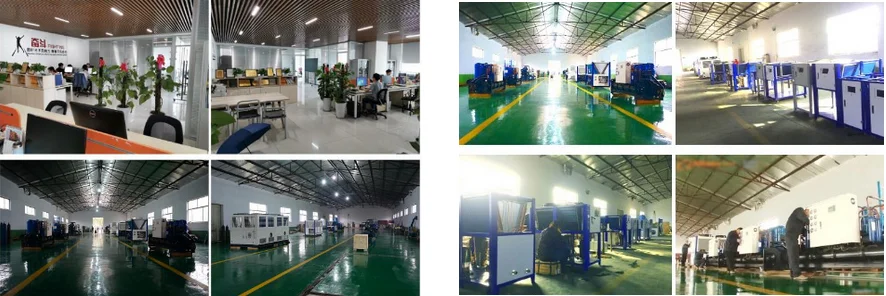

Company Profile

Advantages Of MGREENBELT Air Cooled Water Chiller

1.MGREENBLET have been a professional refrigeration solution provider and chiller manufacturer for 17 years. It is one of the most experienced chillers manufacturer in China . After years of operation, our products have been distributed in various industries all over the world. We can provide the most reliable and cost-effective solution according to the needs of customers, and provide high-quality chillers.

2.Our partners are all world famous brands. COPELAND, DANFOSS, EMERSON, SCHNEIDER all provide their best accessories for our chillers, because we always pursue product quality and user experience.

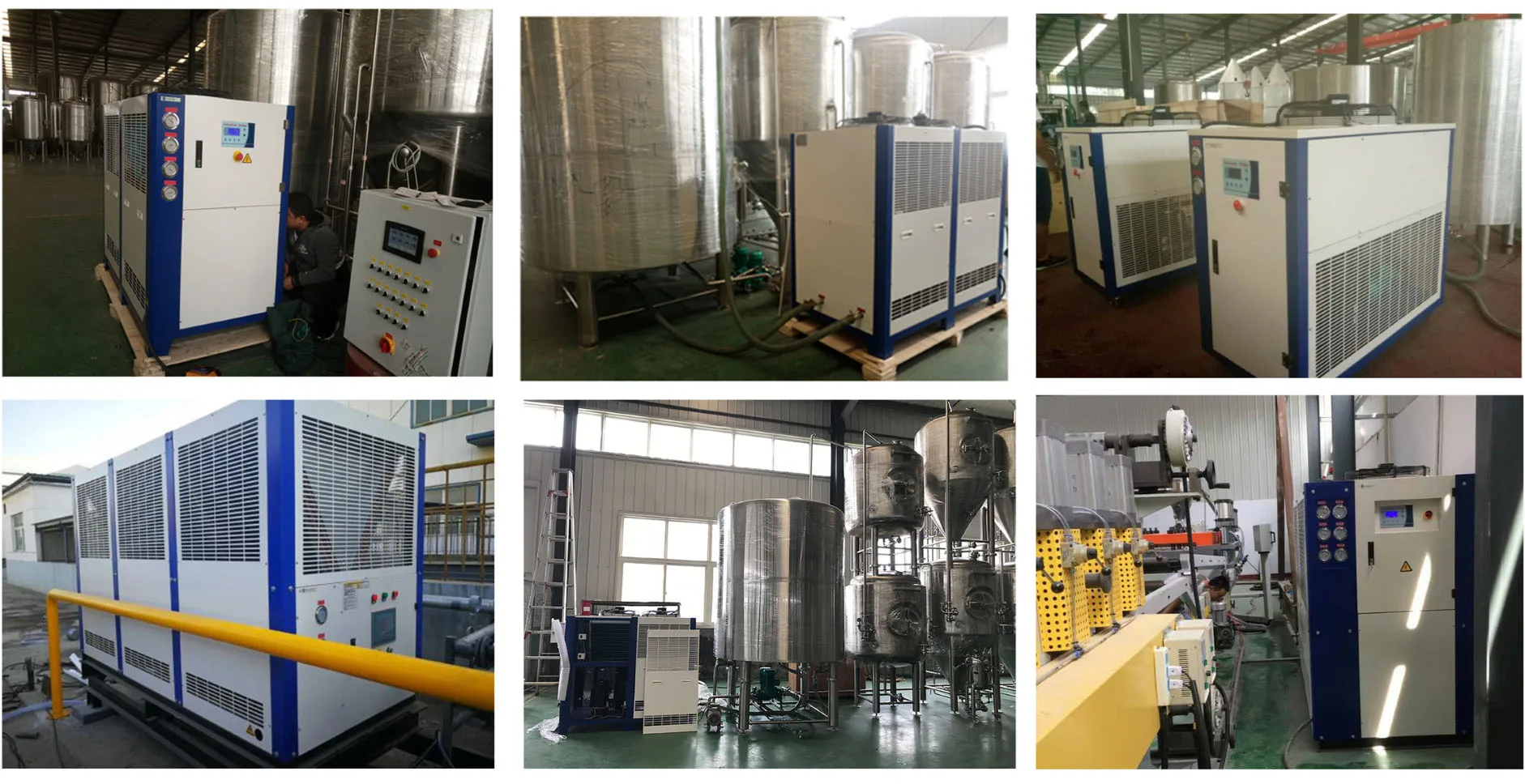

Our Customer Use It

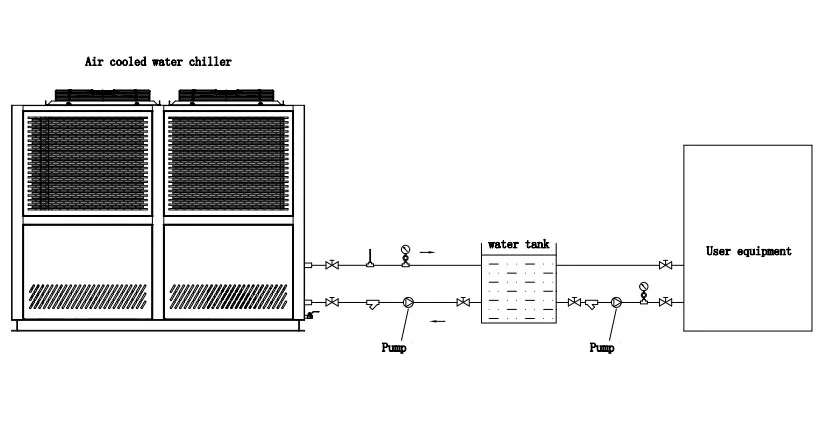

Double cycle diagram

Packing & Delivery

PACKAGE:
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough packagewith 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS:
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant
gas can't allowed by air ,so you must filling them whenmachine arrive if you choose the air ship.
2. FOB,CNF,CIF,DDU can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.

Certifications

FAQ

Q: How to choose the water chiller model you need?
A: Please make sure the details as follow :
1. Flow rate
2. Inlet and outlet temperature
3. Power supply ( Phase-Voltage/Frequency)
4. Refrigerant (R22,R407c,R410A,R134a and etc)
5. Cooling capacity
6. Other requirement
Q: What's the lead time ?
A: Standard configuration 10 days, speical request need 25 days.
Q: What is the payment terms?
A: 50% in advance and the balance before delivery.

Ordering and Pricing

• Minimum order quantity: 1 unit
• Volume pricing:
  • 1–2 unit: US $5000 / unit
  • 3+ unit: US $1000 / unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this temperature beer glycol chiller?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the temperature beer glycol chiller be supplied for my local voltage?

The standard configuration is 3PH-220V-60HZ, other customize. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shandong Mgreenbelt Machinery Co., Ltd., based in China. The company 15 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shandong Mgreenbelt Machinery Co., Ltd. range on HVACR Nexus.
