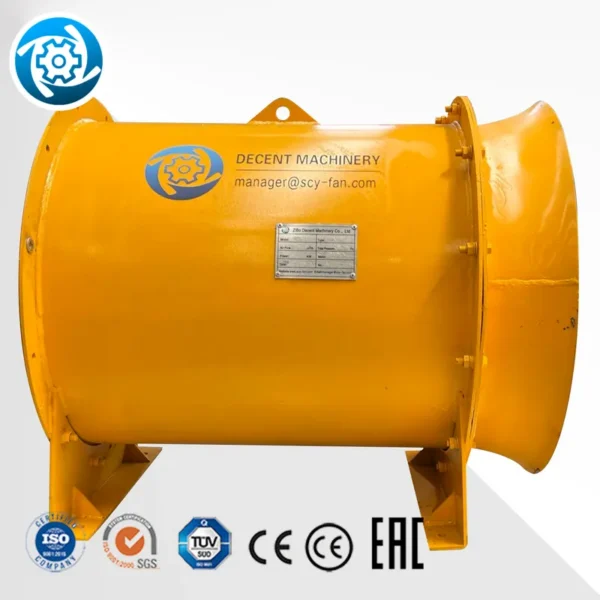

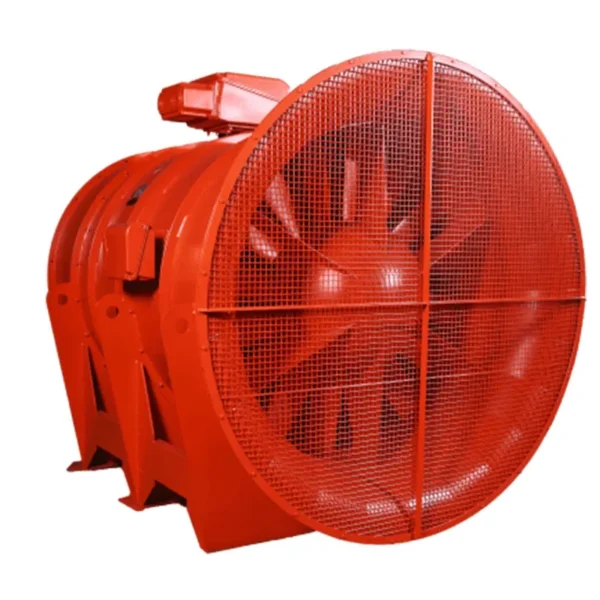

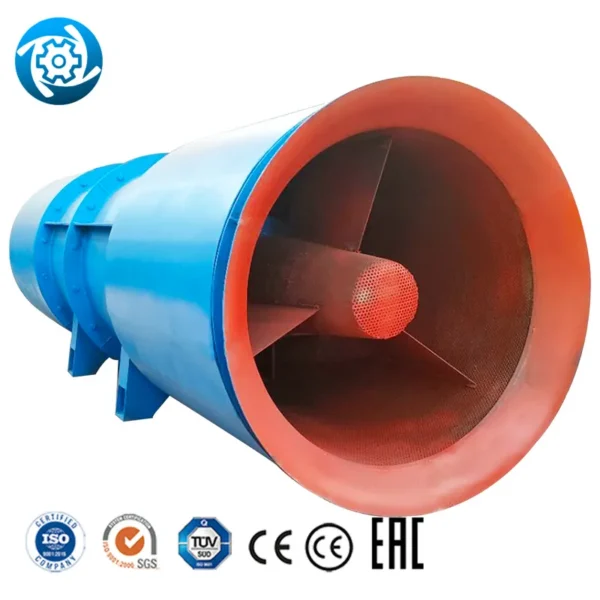

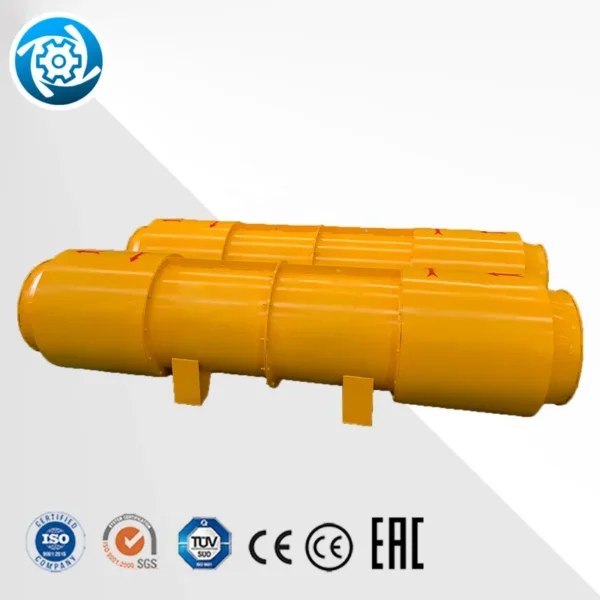

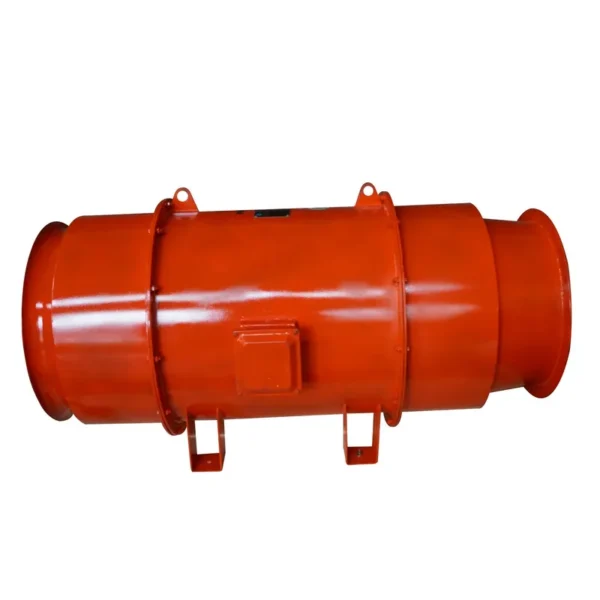

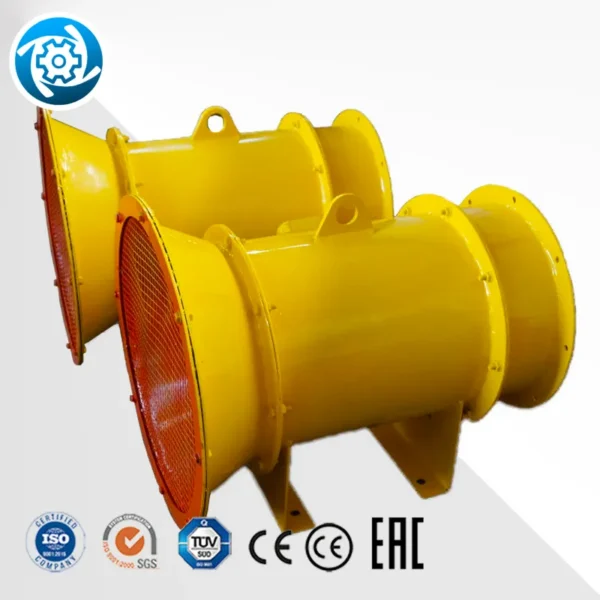

Tunnel ventilation fan — 380V/400V/415V/440V/660V, power source Power source. The complete factory specification follows. Made by Decent Machinery Co., Ltd. (10 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Tunnel Ventilation Fan
- Model Number: FBD
- Power Source: Power source
- Voltage: 380V/400V/415V/440V/660V
- Blade Material: Cast Iron
- Material: SS304,SS316,Carbon steel
- Warranty: 5 year
Technical Specifications
| Voltage | 380V/400V/415V/440V/660V |
|---|---|
| Blade Material | Cast Iron |
| Mounting Type | Free Standing |
| Warranty | 5 year |
| After-Sales Service Provided | Field installation, commissioning and training |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Shandong, China |
| Brand Name | Zibo Decent Machinery |
| Model Number | FBD |
| Product Name | Tunnel Ventilation fan |
| Motor | ABB, |
| Impeller Testing | Dynamic blancing adjusting |
| Power Source | Power source |
| Efficiency(%) | 85 |
| Application | Cement kiln ,Boiler,Tunnel, factory,Engineering construction |
| Diameter | 300~3000mm |
| Pressure | 900~18500Pa |
| Material | SS304,SS316,Carbon steel |
| Certification | CE/CCC |
| Applicable Industries | hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Home Use, Construction works , Chemical plant,Thermal power plant,Petrochemical plant,Alumina plant,Glass factory,Tobacco,Cement plant |
| Selling Units | Single item |
| Single Package Size | 125.00X80.00X90.00 cm |
| Single Gross Weight | 500.000 kg |
Product Details
ZIBO DECENT MACHINERY CO., LTD offers customers a wide range of different systems of tunnel ventilation, starting from 315 up to 2.500 mm. We believe in building on the best, and therefore our Total Mine Ventilation Solution is built upon the world's best OEM ventilation equipment advantages:
2. More than 100 customers visited us and felt very satisfied
3. Exported to over 130 countries
4.CE,ISO,SGS,ETA,MA,AMCA
5. Live video for the workshop via WhatsApp WeChat or youtube.
6. Oversee technical support at your site
7. Better customers' experience after sales: we visit our customers each year
8. Production according to your drawing(2D/3D)
9. Famous motor brand(Siamens/ABB/TECO/WEG)
10. High standard quality control– Testing video/Testing report available
11. Welding / Materials testing report available
12. Surface Treatment: automatic electrostatic powder coating ( ie spray) or spray paint.
13. Corrosion protection and rust removal treatment
14. Tracking number for each piece of equipment available
| Model | YBT-2.2 | YBT-5.5 | YBT-7.5 | YT-11 | YBT-18.5 | YBT-22 | YBT-30 |
| Full pressure (Pa) | 960-380 | 1700-800 | 1900-900 | 2250-800 | 2400-520 | 3200-680 | 3500-800 |
| Air capacity (min) | 55-101 | 90-180 | 100-210 | 130-240 | 195-300 | 240-370 | 250-800 |
| Efficiency (%) | 76 | 76 | 80 | 80 | 80 | 80.0 | 80 |
| dB(A) Level | 87 | 89 | 89 | 91 | 95 | 95 | 95 |
| Diameter (mm) | 315 | 400 | 500 | 560 | 600 | 600 | 630 |
| Power (KW) | 2.2 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 |
YBT Copper/Co
al/ explosion-proof / underground/ tunnel /mine/ fan
Zibo Decent Machinery Co., Ltd (Huge Wind), as a professional tunnel ventilation expert, always sticks to the principle of making tunnel excavation safer and more comfortable. Till now, we have served customers from more than 130 countries and provided fresh air and security for 150+ mine/tunnel projects.
One of our strategic partners is VALE S.A., which was established in Brazil, as the largest mining company in Brazil. mainly in the field of the mining area.
We received an email from VALE in 2013, wanting to purchase tunnel ventilations and air ducts for their new project. After telephone communication, we learned that the tunnel is relatively short, only 500 meters, and the diameter of the tunnel is narrow. We designed VME-5 compact tunnel fan for them. On the premise of meeting the air supply distance of 500 meters, it can be matched with a minimum 300mm air duct to meet the ventilation requirements. After only three days of communication, VALE Brazil was impressed by our positive work attitude and professional design and placed an order for 2 sets of VME-5 fans and 500 meters of 300mm diameter PVC ventilation pipes.
| 1. Q: Can you give us a quotation right now? |
| A: Please tell us your detailed technical data or special needs. Then we will make a design and quotation for you within 2 hours. (Email address can be found below ) |
| 2. Q: Can you give us your price list? |
| A: Sorry, we don’t have any. Our products are all manufactured according to customers’ requirements. So our products are all different and special. |
| 3. Q: What is your MOQ of your axial fan centrifugal fan blower? |
| A: 1 piecet. |
| 4. Q: Do you have anyone in stock? |
| A: Yes, for common types, we have some in stock and can be delivered within 1 day. |
| 5. Q: Do you accept a special specification order? |
| A: Yes, we do. We can manufacture all kinds of fans according to your technical drawings. |
| 6. Q: Can you make a design for us? |
| A: Yes, we can. What we supply is not only products but also solutions and design. And if you make the product in our factory, the design will be free. If not, design fees will be charged accordingly. |
| 7. Q: Can you give us the technical drawing and data? |
| A: We will give you the overall dimension drawing for your plan and project. |
| 8. Q: Do you provide after-sales service? |
| A: Yes, we do.
|
| 9. Q: Can your engineer come to our place for an installation guide? |
| A: Yes, we can. We will provide a video and document for installation. |
Ordering and Pricing
- Minimum order quantity: 1 carton
- Volume pricing:
- 1–9 carton: US $6830 / carton
- 10–29 carton: US $6313 / carton
- 30–49 carton: US $5900 / carton
- 50+ carton: US $4999 / carton
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this tunnel ventilation fan?
The standard minimum order quantity is 1 carton. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this tunnel ventilation fan carry?
It is supplied with CE/CCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the tunnel ventilation fan be supplied for my local voltage?
The standard configuration is 380V/400V/415V/440V/660V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
