Variable Frequency Motor, Axial, 380V, 130mm

Key specification for this variable frequency motor: 380 V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Zhejiang Hongke Electromechanical Co., Ltd. (6 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Variable Frequency Motor

• Model Number: G-71B
• Power Source: Electric
• Voltage: 380 V
• Material: Carbon Steel
• Blade Material: Carbon Steel
• Speed: 2800 rpm

Technical Specifications

Product Details

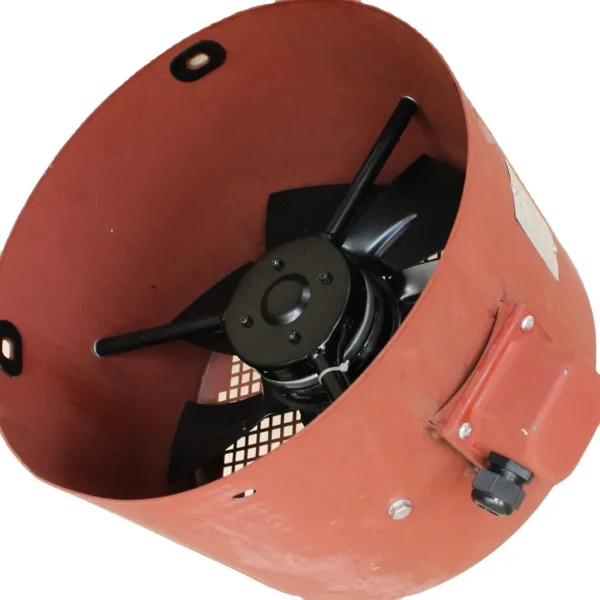

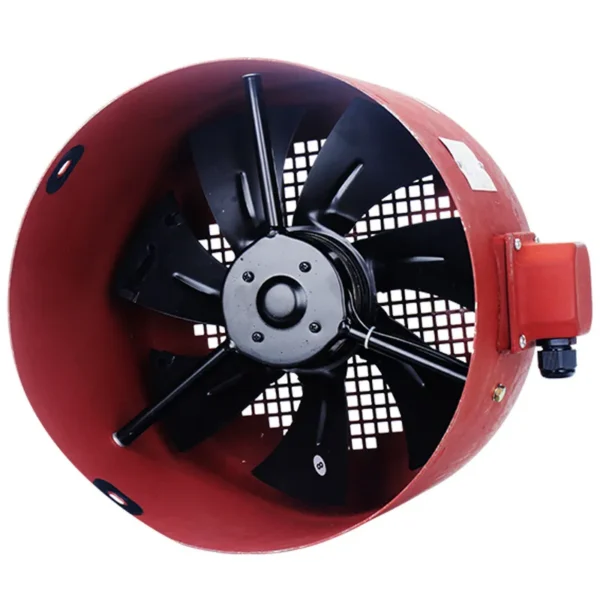

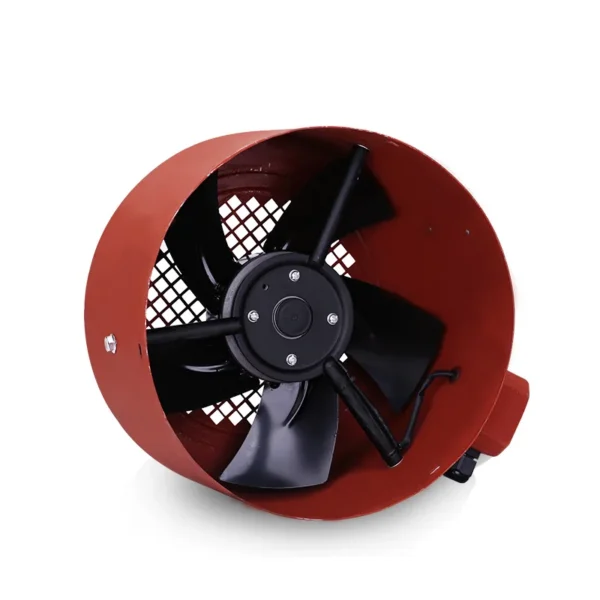

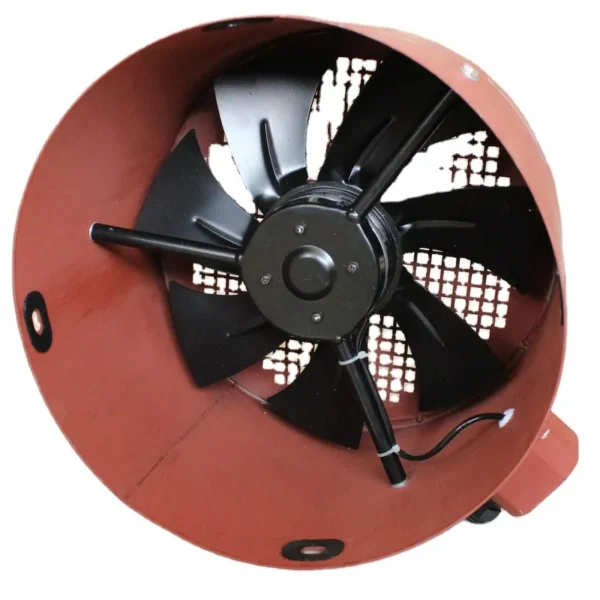

Variable Frequency Motor Cooling Fan

High-efficiency cooling protects the motor

Buying the Wrong Fan = Wasting Money!

90% of customers make the wrong choice the first time!

How to Quickly Select a Fan Model that Is 100% Compatible with Your Motor.

Method 1

According to the motor nameplate model

Method 2

Based on the size of the motor tail section.

If the nameplate is unclear or missing, you can measure the diameter ФD at the tail of the motor to select the corresponding model.

Method 3

Check the internal motor of the G-type fan.

For example, G80A paired with 140FZL3-2W.

Product Technical Parameters; Complete Range of Specifications.

Choose your product based on your needs.

Fan Model	Motor Model	Voltage (V)	frequency (Hz)	Input current (A)	Input power (W)
G63	110FZL3-2W	380	50	0.075	20
G-71	130FZL3-2W	380	50	0.08	30
G-80	140FZL3-2W	380	50	0.08	30
G-90	165FZL3-2W	380	50	0.08	30
G-100	185FZL3-2W	380	50	0.12	40
G-112	200FZL3-4W	380	50	0.12	70
G-132	250FZL3-4W	380	50	0.21	50
G-160	300FZL3-4W	380	50	0.25	60
G-180	330FZL3-4W	380	50	0.25	80
G-200	380FZL3-4W	380	50	0.27	200
G-225	400FZL3-4W	380	50	0.37	200
G-250	450FZL3-4V	380	50	0.4	300
G-280	500FZL3-4W	380	50	0.56	450
G-315	550FZL3-4W	380	50	0.78	550
G-355	600FZL3-4W	380	50	1.9	600

Fan Model	Motor Model	Rotational speed (r/min)	Air volume (m³/h)	Wind pressure (Pa)	Noise (dBA)	Protection Level
G63	110FZL3-2W	2800	45	40	62	54
G-71	130FZL3-2W	2800	300	50	55	54
G-80	140FZL3-2W	2800	350	50	55	54
G-90	165FZL3-2W	2800	500	80	55	54
G-100	185FZL3-2W	2800	660	80	60	54/55
G-112	200FZL3-4W	2800	900	110	60	54/55
G-132	250FZL3-4W	1400	780	50	60	54/55
G-160	300FZL3-4W	1400	1300	50	60	54/55
G-180	330FZL3-4W	1400	1300	50	60	54/55
G-200	380FZL3-4W	1400	2400	65	72	54/55
G-225	400FZL3-4W	1400	4200	70	74	54/55
G-250	450FZL3-4V	1400	4200	80	75	54/55
G-280	500FZL3-4W	1400	5000	85	78	54/55
G-315	550FZL3-4W	1400	5000	110	81	54
G-355	600FZL3-4W	1350	6500	150	85	54

Installation dimensions

(The product is measured manually and there may be some error.The actual product received shall prevail.)

External dimensions and installation dimensions (Type A, standard model)
Fan Model	ΦD	L1	L2	X	L3
G-63A	121	9	30	7	125
G-71A	140	9	62	7	131
G-80A	151	12	76	7	152
G.90A	176	20	86	7	161
G-100A	196	13	85	10	161
G-112A	220	15	65	10	163
G-132A	258	22	88	10	177
G-160A	314	21	101	10	203
G-180A	355	40	125	10	236
G-200A	397	40	130	10	272
G-225A	445	45	155	12	302
G-250A	484	55	160	12	322
G-280A	543	65	185	12	335
G-315A	610	65	190	20	385
G-355A	696	70	195	20	405

Fan Model	Thickness	A	B	N	C
G-63A	1.2	10	6	3	115
G-71A	1.2	10	6	3	115
G-80A	1.2	10	6	3	130
G.90A	1.2	10	6	3	135
G-100A	1.2	10	6	3	150
G-112A	1.2	10	6	3	155
G-132A	1.2	10	6	3	175
G-160A	1.5	14	8	4	205
G-180A	1.5	14	8	4	210
G-200A	1.5	15	9	4	240
G-225A	1.5	15	9	4	270
G-250A	1.5	15	9	4	295
G-280A	1.5	20	11	4	330
G-315A	1.5	20	11	4	395
G-355A	1.5	20	13	4	430

External dimensions and installation dimensions (Extended Type B)
Fan Model	ΦD	L1	L2	X	L3
G-63B	121±1	9	48±3	7	131
G-71B	139±1	9	60±3	7	150
G-80B	155±1	12	85±3	7	175
G-90B	173±1	12	96±3	7	190
G-100B	194±1	12	96±3	10	200
G-112B	219±1	15	100±3	10	200
G-132B	256±1	17	110±3	10	220
G-160B	310±1	15	149±3	10	250
G-180B	352±1	20	190±3	10	300
G-200B	393±1	40	190±3	10	315
G-225B	445±1	40	220±3	12	380
G-250B	482±1	40	240±3	12	395
G-280B	546±1	50	265±3	12	435
G.315B	614±1	60	310±3	20	500
G-355B	700±1	70	380±3	20	595

Fan Model	Thickness	A	B	N	C
G-63B	1.2	10	6	3	115
G-71B	1.2	10	6	3	120
G-80B	1.2	10	6	3	130
G-90B	1.2	10	6	3	140
G-100B	1.2	10	6	3	151
G-112B	1.2	10	6	3	163
G-132B	1.2	10	6	3	182
G-160B	1.5	14	8	4	210
G-180B	1.5	14	8	4	231
G-200B	1.5	15	9	4	252
G-225B	1.5	15	9	4	276
G-250B	1.5	15	9	4	296
G-280B	1.5	20	11	4	362
G.315B	1.5	20	11	4	398
G-355B	1.5	20	13	4	437

How Do I Choose Between the Standard A-type and the Extended B-type?

Hongke Can Customize Everything that Other Companies Don't Have.

Compatible with 99% of motors worldwide, a true all-around cooling expert. For customization details, please contact customer service.

Why Choose Hongke Fans?

Why choose us? Shh! Just compare a few points quietly and the difference will be obvious. Things that look similar can actually be quite different.

Six Core Advantages: Exquisite Craftsmanship and Upgraded Functionality.

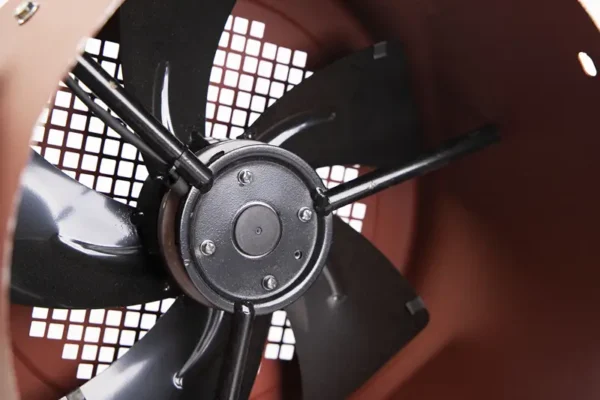

External Rotor High Speed Motor

The movement uses high-quality copper wire, resulting in faster rotation speed and 30% improved heat dissipation.

High-strength carbon steel blades.

Impact-resistant, deformation-resistant, sturdy and durable, with more efficient airflow.

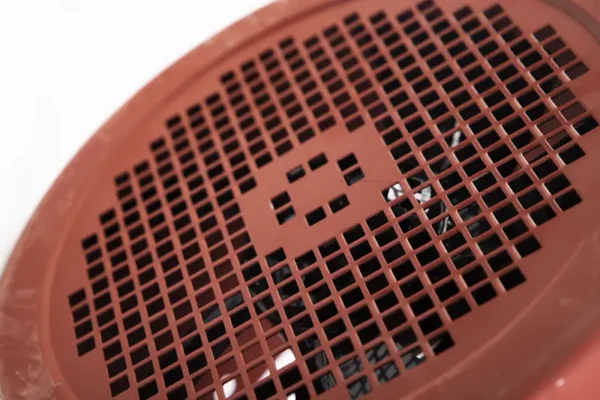

Thickened Carbon Steel Outer Shell.

Corrosion resistant, with a lifespan 80% longer than ordinary fans.

Excellent Details Lead to an Extraordinary User Experience.

Worry-Free After-Sales Service Throughout the Entire Process.

About the product | We dare to guarantee | Buy with complete peace of mind.

1. who are we? We are based in Zhejiang, China, start from 2010,sell to Domestic Market(70.00%), North America(10.00%),Southeast
Asia(10.00%),Eastern Europe(2.00%),Western Europe(2.00%),Southern Europe(2.00%),South America(00.00%),Africa(00.00%), Mid
East(00.00%),Eastern Asia(00.00%). There are total about 51-100 people in our office. 2. how can we guarantee quality? Always a
pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? Blower
fan,Centrifugal fan,Axial fan,Industrial fan,Pipe fan 4. why should you buy from us not from other suppliers? Zhejiang Hongke
Electric, founded in 2010, is a professional manufacturer of fans and supporting products. Committed to providing small and
medium-sized enterprises with plant ventilation and equipment cooling solutions, 5. what services can we provide? Accepted
Delivery Terms: FOB； Accepted Payment Currency:USD; Accepted Payment Type: T/T,L/C; Language Spoken:English,Chinese

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–49 piece: US $32.3 / piece
  • 50–499 piece: US $31.3 / piece
  • 500+ piece: US $30.3 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this variable frequency motor?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the variable frequency motor be supplied for my local voltage?

The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
