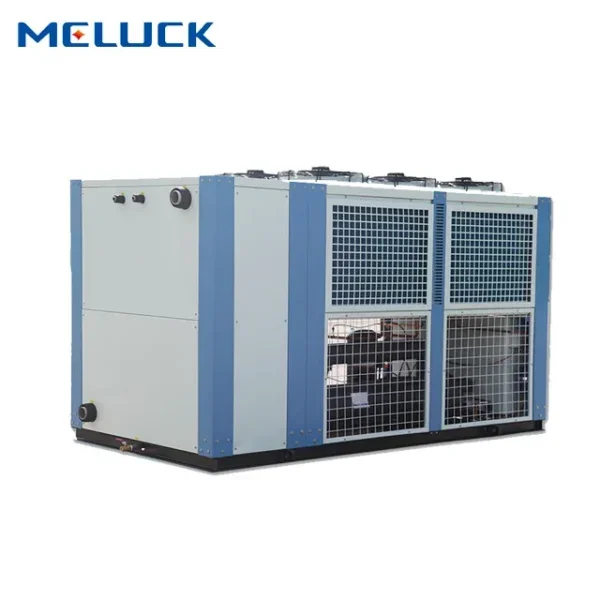

Key specification for this air cooled industrial chiller: 380V/3P/50HZ, cooling capacity 2tons-500tons. Everything below is reproduced from the factory data sheet. Made by Anhui Meluck Refrigeration Air-Condition Equipment Co., Ltd. (8 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Air Cooled Industrial Chiller
- Power: 500 W
- Voltage: 380V/3P/50HZ
- Cooling Capacity: 2tons-500tons
- Warranty: 1 Year
- After Warranty Service: Support
- Place Of Origin: Anhui, China
Technical Specifications
| Voltage | 380V/3P/50HZ |
|---|---|
| Power | 500 W |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Easy To Operate |
| Core Components | compressor, condenser, evaporator |
| Place Of Origin | Anhui, China |
| Weight (Kg) | 30 |
| Brand Name | Meluck |
| Dimension(L*W*H) | – |
| Product Name | Water chiller |
| Function | Chilled Water |
| Application | Industrial Cooling Solutions |
| Cooling Capacity | 2tons-500tons |
| Compressor | Hermetic Scroll Piston Screw Compressor |
| Cooling Type | Air cooled/ water cooled condenser |
| Evaporator | Shell-and-Tube/ plate heat exchnager |
| After Warranty Service | Support |
| Chilled Medium | water/glycol.salt water |
| Selling Units | Single item |
| Single Package Size | 50X50X50 cm |
| Single Gross Weight | 60.000 kg |
Product Details
Chillers, also called industrial chiller units, chilled water plants or chilled water systems, are cooling equipment that produce chilled water (-40°C to +35°C) and are suitable for a variety of industrial and commercial applications.

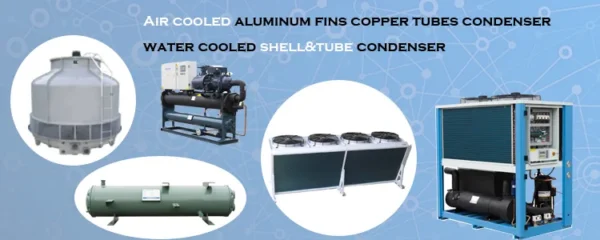

"Meluck"Chiller offers a variety of water chillers that suit a wide range of industries:Plastic extruder, Beverage, Oil cooling, Pharmaceutical, Construction,milk cooling, Vintage.There are two different cooling media (air or water) that absorb the heat when the refrigerant changes from vapor to liquid. Therefore, chillers can use two different types, air-cooled and water-cooled.Use word famos brand componenets make sure the unit have higher COP, energy saving, long running life.Either air cooled or water coold type, u all can get best option.
| Refrigerant:R407C,R134a; Chilled Water in: 12℃ Chilled Water Out:7℃ | |||||||||||
| Comp Type | Hermetic Scroll/ Semi-hermetic Reciprocating | ||||||||||
| Chiller Model | LSQ03ASE | LSQ05ASE | LSQ08ASE | LSQ10ASE | LSQ12ASE | LSQ15ASE | LSQ20ADE | LSQ25ADE | LSQ30ADE | LSQ40ADE | |
| CompPower | 3HP | 5HP | 8HP | 10HP | 12HP | 15HP | 20HP | 25HP | 30HP | 40HP | |
| Cooling Capacity(KW) | 8.3 | 13.7 | 22.1 | 29.5 | 34 | 44.1 | 59 | 68 | 88.2 | 120 | |
| Comp input(KW) | 3.1 | 4.8 | 7.2 | 9.5 | 11.7 | 14.9 | 18.9 | 22.7 | 29.7 | 39.9 | |
| Refrigerant:R407C,R134a; Chilled Water in: 12℃ Chilled Water Out:7℃ | |||||||||||
| Comp Type | Semi-hermetic Screw | ||||||||||
| Chiller Model | LSLG30AS | LSLG40AS | LSLG50AS | LSLG60AS | LSLG70AS | LSLG80AS | LSLG90AS | LSLG100AS | LSLG120AS | LSLG130AS | |
| Comp Power | 30HP | 40HP | 50HP | 60HP | 70HP | 80HP | 90HP | 100HP | 120HP | 130HP | |
| Cooling Capacity(KW) | 82.2 | 113.7 | 148.4 | 199.4 | 214.7 | 267.4 | 297.7 | 320.8 | 423.6 | 442.9 | |
| Comp input(KW) | 29 | 38.3 | 48 | 63.4 | 69.14 | 83.4 | 91 | 98.7 | 130.3 | 133.3 | |
1.How does a chiller system work?
Chiller has two circulation,one is process water circulation,the other is refrigerant gas circulation.Heat picked up from the process.Heat transfers to refrigerant circulation.Heat is remove to air or water.
2.How to calculate cooling capacity for chillers?
Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-t2)/0.86
Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)
3.Types of chiller system?
Air Cooled Chiller and Water Cooled Chiller.Water cooled chiller needs a separated cooling tower and has a higher efficiency,but less easier than air cooled.
4. What type of the chiller should I use ?
It depend on the local environment temperature and water source. If lack of water and low ambient temp , we advise you use the air cooled chiller, if not , air cooled chiller is ok. But for installation,air cooled is more convenient than water cooled.
5. How to select the model of the chiller ?
It is better to tell us some parameter, such as : Cooling Capacity, Outlet Temperature, Power Supply,Environment Temperature, Application Field, Anti-rust Or Anti-corrosion, and so on.Meanwhile,we could do customized chiller according to your end user consumption.
6.Cooling capacity unit conversion?
1 kcal/h = 1.163W,1 W = 0.8598 kcal/h;
1 Btu/h = 0.2931W,1 W = 3.412 Btu/h;
1 USRT = 3.517 kW,1 kW = 0.28434 USRT;
1 kcal/h = 3.968 Btu/h,1 Btu/h = 0.252 kcal/h;
1 USRT = 3024 kcal/h,10000 kcal/h = 3.3069 USRT;
7.The chiller can heat?
Yes,by the electrical heating wire.Please kindly inform us the hot water temp or heating capacity.
8. What is production period ?
Generally speaking, it is 15-30 days,some standard model there are some stocks, but it all depend on the model ,quantity.
9.What is your company after-sales service ?
Our warranty period is one year. If there is any problem in this year, we will send you the new parts for replacement. Meanwhile, welcome to consulting the technical knowledge.
10.Chiller maintenance?
Step 1: Keep Tubes Clean
Step 2: Ensure a Leak-free Unit
Step 3: Sustain Proper Water Treatment(prevent scale, corrosion)
Step 4: Analyze Oil and Refrigerant
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air cooled industrial chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air cooled industrial chiller be supplied for my local voltage?
The standard configuration is 380V/3P/50HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

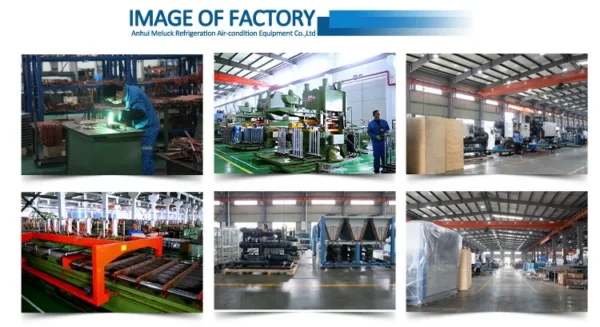

About the Manufacturer
