This aluminum impeller is published with the manufacturer’s full specification — voltage 12 VDC, 38.25 CFM / 65 m3/H. Made by Pbm Motor And Fan(suzhou) Co., Ltd. (4 years on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Aluminum Impeller
- Model Number: PC30B12248B
- Voltage: 12 VDC
- Air Flow: 38.25 CFM / 65 m3/H
- Blade Material: Aluminium alloy
- Warranty: 5 year
- Place Of Origin: Jiangsu, China
Technical Specifications
| Voltage | 12 VDC |
|---|---|
| Mounting | Free Standing |
| Blade Material | Aluminium alloy |
| Customized Support | OEM, ODM |
| After-Sales Service Provided | Online support |
| Warranty | 5 year |
| Place Of Origin | Jiangsu, China |
| Brand Name | PBM |
| Model Number | PC30B12248B |
| Insulation Class | Class B |
| Input Current | 0.16 A |
| Acoustical Noise | 32 dB(A) |
| Direction Of Rotation | Clockwise seen on motor |

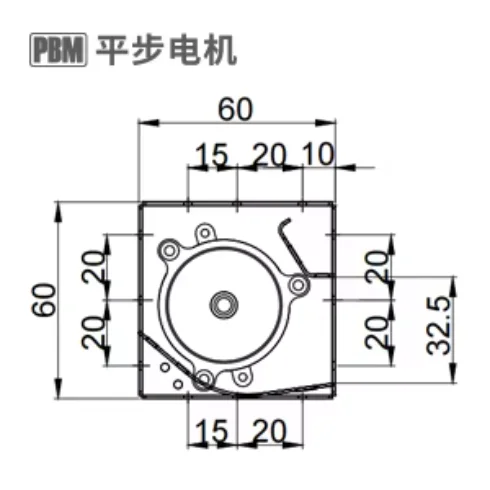

| Dimension | 48x50x302 (see dimension drawing) |
| Air Flow | 38.25 CFM / 65 m3/H |
| Static Pressure | 1.43 mmH2O / 14 Pa |
| Operating Temperature | -25℃ to 60℃ |
| Storage Temperature | -40℃ to 75℃ |
| RoHS | All the material meets RoHS standard. |
| Selling Units | Single item |
Product Details
PRODUCT HIGHLIGHTS
- Dia:30-150mm; Power:10-330W; Air flow:35-4,200m³/h Air pressure:17-110Pa

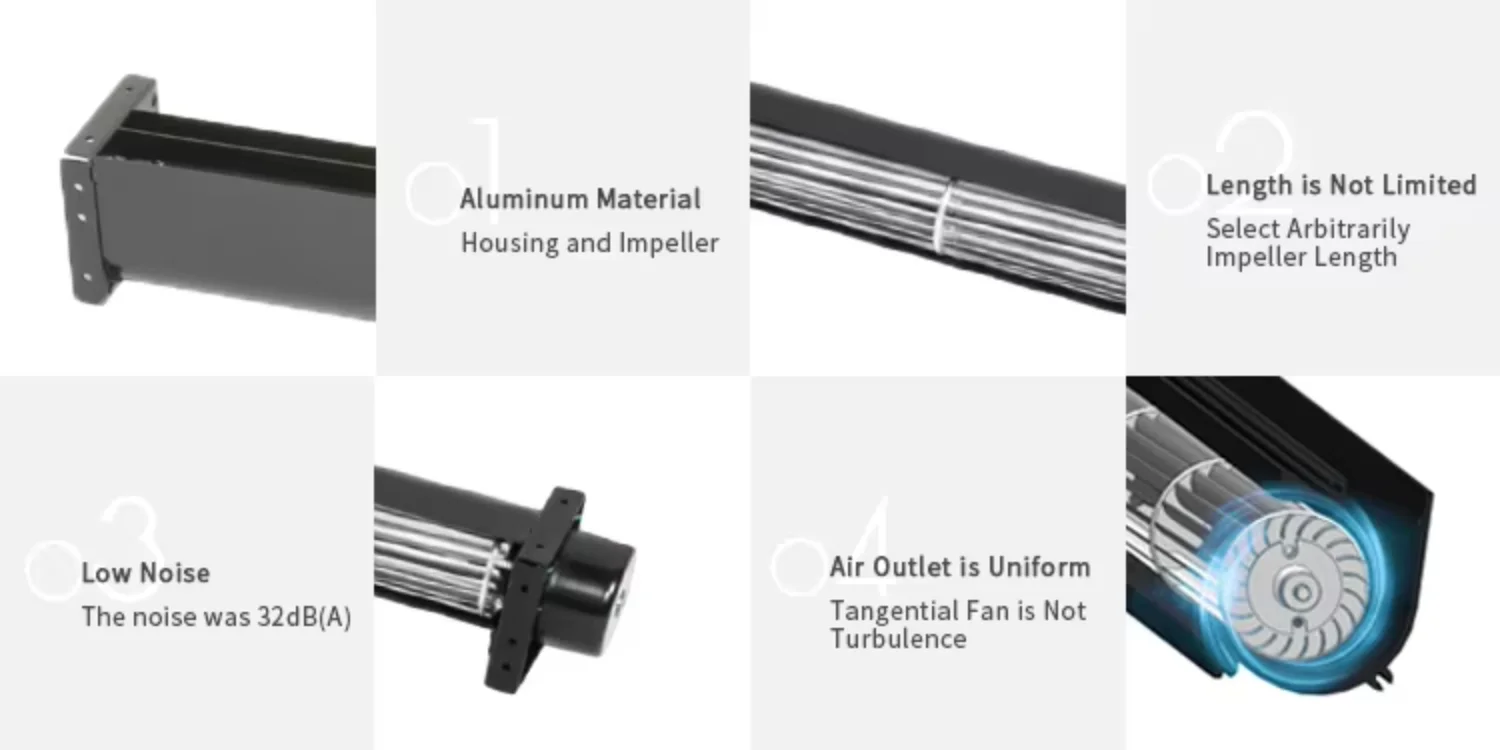

- Stable Operation: The entire unit is dynamically balanced for high-speed, long-term operation, eliminating fatigue resonance and ensuring quieter, more stable operation.
- Grate Design and Rust-Proof Coating: A reinforced protective grate prevents foreign objects from being drawn in, ensuring safer and more reliable operation. The entire unit uses a rust-proof and corrosion-resistant coating, resisting oxidation and corrosion, effectively extending the unit's lifespan.
- Energy Saving and Low Consumption: Utilizing a professional fluid flow design for the volute and impeller, and compatible with an EC motor, the fan's energy consumption is significantly reduced, resulting in higher energy efficiency.
Rated Voltage | 12 VDC | Insulation Class | Class B |
Operating Voltage | 9 ~ 15 VDC | Static Pressure | 1.22 mmH2O / 12 Pa |
Rated Speed | 2400 RPM | Input Power | 2.4 W |
Input Current | 0.20 A | Speed Control | Control input 0~10VDC |
Acoustical Noise | 35 dB(A) | Air Flow | 49.43 CFM / 84 m3/H |
Life Expectance | 50,000Hours(L10) At 40℃ room, humidity 15%~65%RH | Motor Protection | Locked rotor protection Polarity protection Automatic restart capability |
Direction of Rotation | Clockwise seen on motor | Protection Type | IP44 |
Model | Rated Voltage | Air Flow | Air Pressure | Rated Speed | Sound Level | Total Length |
Part No. | VDC | m3/H | Pa | RPM | dB(A) | mm |
PC30B1298B | 12 | 35 | 17 | 3000 | 29 | 152 |
PC30B2498B | 24 | 35 | 17 | 3000 | 29 | 152 |
PC30B12160B | 12 | 42 | 15 | 2800 | 30 | 214 |
PC30B12198B | 12 | 52 | 14 | 2700 | 31 | 252 |
PC30B12248B | 12 | 65 | 14 | 2600 | 32 | 302 |
PC30B12300B | 12 | 72 | 13 | 2500 | 33 | 354 |
PC30B12352B | 12 | 84 | 12 | 2400 | 35 | 406 |
PC30B24160B | 24 | 42 | 15 | 2800 | 30 | 214 |
PC30B24198B | 24 | 52 | 14 | 2700 | 31 | 252 |
PC30B24248B | 24 | 65 | 14 | 2600 | 32 | 302 |
PC30B24300B | 24 | 72 | 13 | 2500 | 33 | 354 |
PC30B24352B | 24 | 84 | 13 | 2400 | 35 | 406 |

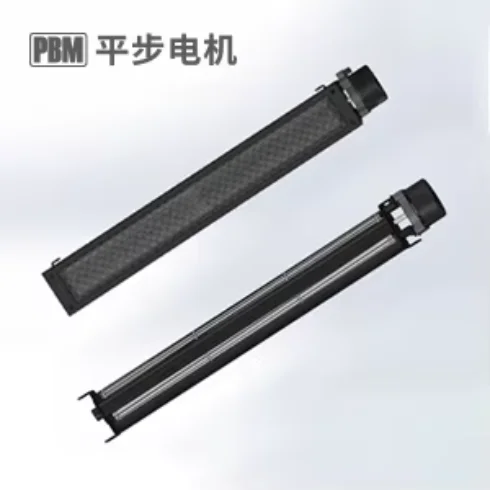

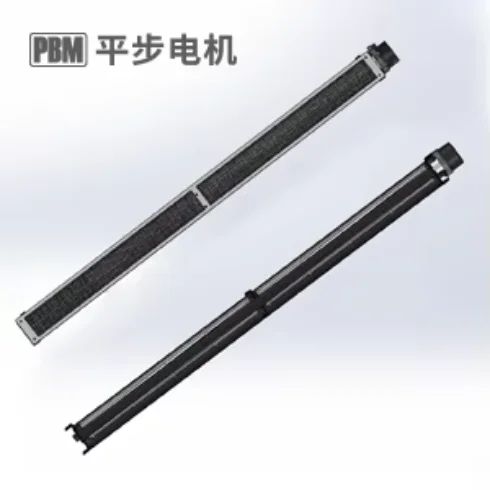

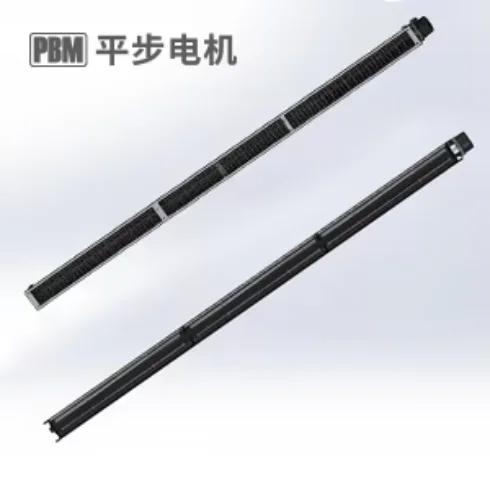

PBM Cross Flow Fan 30mm Blades
Application: Air Conditioners, Air Curtain Equipment, Heater, Dryers, Laser Instruments, Home Appliances, Floor Convector, Trench
Heater.
Heater.
PBM Cross Flow Fan 40mm Blades
Application: Heat Pump, Hybrid Systems, Electrical Heating, Fireplace, Electric Corner Heater, Heat Recovery.
PBM Cross Flow Fan 43mm Blades
Application: Storage Heaters, Underfloor Convectors, Air Doors, Stove Jacket Cooling.
PBM Cross Flow Fan 45mm Blades
Application: Air Conditioners, Air Curtain Equipment, Heater, Dryers, Laser Instruments, Home Appliances, Floor Convector, Trench Heater.
PBM Cross Flow Fan 50mm Blades
Application: Heat Pump, Hybrid Systems, Electrical Heating, Fireplace, Electric Corner Heater, Heat Recovery.
PBM Cross Flow Fan 60mm Blades
Application: Storage Heaters, Underfloor Convectors, Air Doors, Stove Jacket Cooling.
PBM Cross Flow Fan 65mm Blades
Application: HVAC, air curtains, refrigeration applications.

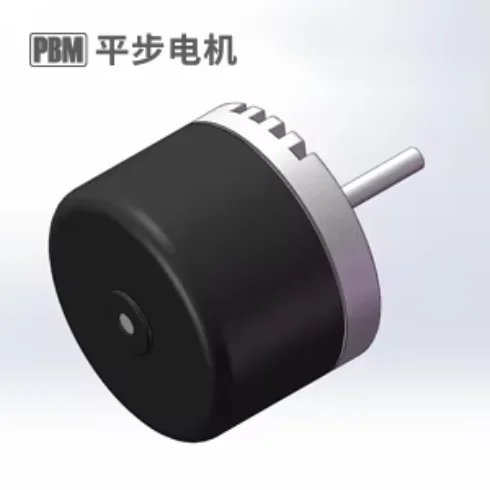

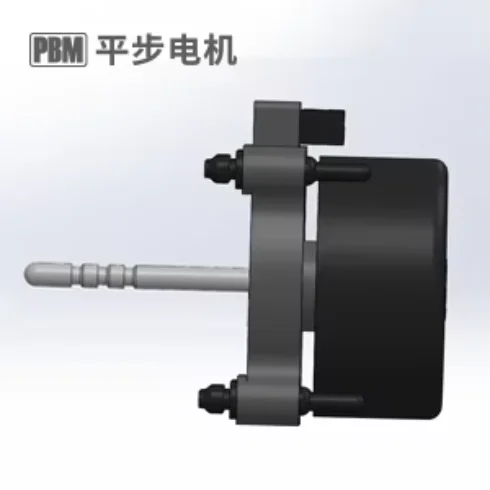

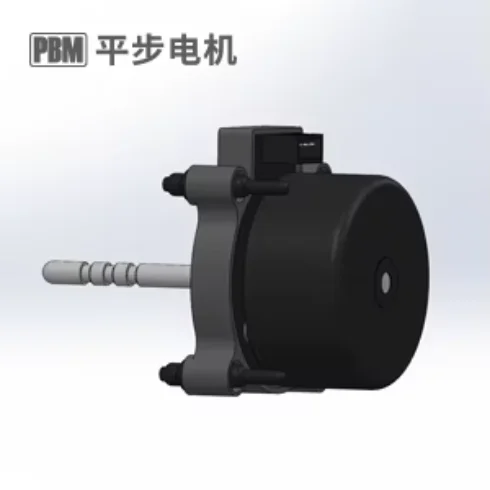

PBM DC 37.5mm Motor
Application: Air Conditioners, Air Curtain Equipment, Heater, Dryers, Laser Instruments, Home Appliances, Floor Convector, Trench
Heater, Rooms, Public Places, Vehicles, Underfloor Convectors, Air Doors.
Heater, Rooms, Public Places, Vehicles, Underfloor Convectors, Air Doors.
PBM DC 50mm Motor
Application: Heat Pump, Hybrid Systems, Electrical Heating, Fireplace, Electric Corner Heater, Heat Recovery, Storage Heaters,
Underfloor Convectors, Air Doors, Stove Jacket Cooling,.
Underfloor Convectors, Air Doors, Stove Jacket Cooling,.
PBM DC 72mm Motor
Application: Refrigeration and Display Cabinets, Air Conditioning Fans (Air Conditioning Fans, Building Fans, Tower fans), Air Heaters, Electric Fireplaces, Air Curtain Machines, Embedded Ovens, Wood-burning Stoves, Air Conditioners and Storage Heaters etc.
Single Tangential Blower
Double Tangential Blower
Triple Tangeltial Blower
FAQs
Q: What are the typical applications for these cross-flow blowers?
A: They are ideal for home appliances including indoor stoves,fireplaces, ovens, wood burners, underfloor convectors, air doors,
air curtains, air conditioners, and heaters.
Q:How about the delivery time ?
A:Within 25 days after we receive the order.
Q:What kind of payments do you support?
A:T/T & L/C, other types please contact us.
Q: What's the MOQ?
A: Generally speaking, the MOQ is 100 pieces. Different products have different MOQ. Please contact us.
Q: Transportation?
A: All available shipping ways could be applied, by courier, air or sea. Appointed shipping company or our own forwarders all could be used in shipment Full-way tracking the cargos for you before the goods arrive.
air curtains, air conditioners, and heaters.
Q:How about the delivery time ?
A:Within 25 days after we receive the order.
Q:What kind of payments do you support?
A:T/T & L/C, other types please contact us.
Q: What's the MOQ?
A: Generally speaking, the MOQ is 100 pieces. Different products have different MOQ. Please contact us.
Q: Transportation?
A: All available shipping ways could be applied, by courier, air or sea. Appointed shipping company or our own forwarders all could be used in shipment Full-way tracking the cargos for you before the goods arrive.
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100–499 piece: US $13.46 / piece
- 500–999 piece: US $12.71 / piece
- 1000+ piece: US $12.37 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this aluminum impeller?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.
Can the aluminum impeller be supplied for my local voltage?
The standard configuration is 12 VDC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
