Key specification for this bldc mini blower: 12v, air flow 120m³/h. Everything below is reproduced from the factory data sheet. Made by Ningbo Wonsmart Motor Fan Co., Ltd. (17 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Bldc Mini Blower
- Model Number: WS9260B-12-250-S200
- Power Source: Electric
- Rated Voltage: 12v
- Voltage: 12V
- Air Flow: 120m³/h
- Material: Plastic
Technical Specifications
| Application | Air Blower |
|---|---|
| Power Source | Electric |
| Rated Voltage | 12v |
| Electric Current Type | DC |
| Material | Plastic |
| Blade Material | Aluminium Alloy |
| Noise Level | 60-70dB |
| Pressure | High Pressure |
| Warranty | 1 years |
| Customized Support | OEM, ODM |
| Place Of Origin | Zhejiang, China |
| Brand Name | Wonsmart |
| Model Number | WS9260B-12-250-S200 |
| Certification | CE/ROHS/ETL/REACH |
| Part No | WS9260B-12-250-S200 |
| Speed | 28000rpm |
| Voltage | 12V |
| Current | 15A |
| Air Pressure | 7Kpa |
| Air Flow | 120m³/h |
| Product Weight | 420g |
| Motor Type | dc brushless motor |
| Driver | External driver |
| Selling Units | Single item |
| Single Package Size | 15X15X15 cm |
| Single Gross Weight | 3.000 kg |
Product Details
Part Name | Centrifugal Fan |
Part No | WS9260B-12-250-S200 |
Rated votlage | 12VDC |
Life time(MTTF) | >20,000hours |
Max power consumption | 180W |
Unit weight | 420g |
Bearing | NMB Ball bearing |
Driver board | External |
sized brushless dc motors and brushless dcblowers. Our blower's max airflow reaches 200 cubic meter per hour and a max pressure of 60 kpa. With our high quality parts and precise manufacturing process, WONSMART motors and blowers can serve more than 20,000 hours.
machines,Environment condition analyzers, Medical and other revolutionary Industrial equipment.
Wonsmart production and inspection equipment include auto winding machines, balancing machines, and CNC machines. We also have airflow and pressure testing equipment and motor performance testing equipment. All products are 100% inspected before delivery to guarantee all the products arrive at the customers with satisfied quality.
Wonsmart is certificated by I S O 9 0 0 1 and I S O 1 3 4 8 5,we have paid attention to product quality and customer service. Our professional and spry team hold the same goal of being one of the best brushless motor and blower supplier.Wonsmart has obtained a number of patent certifications and honored with high-tech enterprise,engineering techology center.
With ETL,CE, ROHS, REACH certification, 60% of Wonsmart's products are exported to North America, EU, Japan and Korea. Customers
from these countries are very satisfied with Wonsmart's stable quality, fast delivery and reasonable price.
We also accept ODM and OEM projects and customized specification.
Please feel free to contact us.
A: We are a manufacturer.
A: Yes, this is one blower of our company which can be used on Cpap and ventilator.

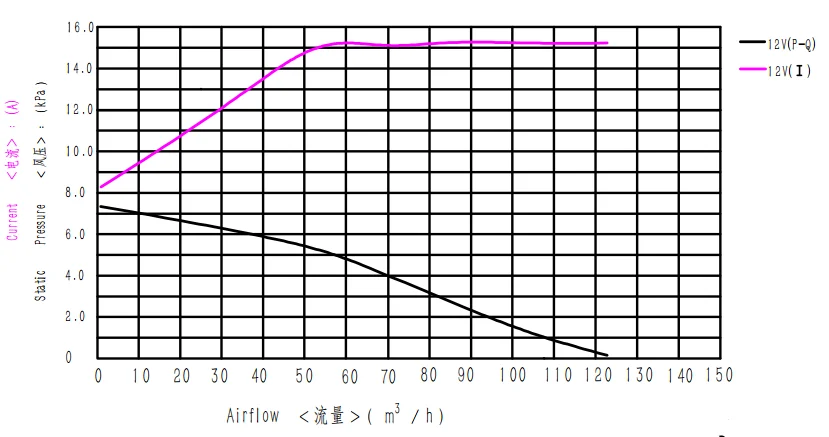

Q: What is the maxmum air pressure?
A: As it shown in the drawing, the maxmum air pressure is 7 Kpa.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–10 piece: US $51.7 / piece
- 11–49 piece: US $38.4 / piece
- 50–99 piece: US $36.3 / piece
- 100+ piece: US $35.3 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this bldc mini blower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this bldc mini blower carry?
It is supplied with CE/ROHS/ETL/REACH documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the bldc mini blower be supplied for my local voltage?
The standard configuration is 12v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
