Cross flow fan — 12V, blade material Aluminum Alloy. The complete factory specification follows. Made by Shenzhen Feng Huishun Technology Development Co., Ltd. (4 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Cross Flow Fan
- Model Number: FH25250CFH1
- Voltage: 12V
- Blade Material: Aluminum Alloy
- Material: Aluminum Alloy Impeller &Cast Iron Frame
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Voltage | 12V |
|---|---|
| Mounting | Free Standing |
| Blade Material | Aluminum Alloy |
| Customized Support | OEM, ODM, OBM |
| After-Sales Service Provided | Online support |
| Warranty | 1 Year |
| Place Of Origin | Guangdong, China |
| Brand Name | FH/ODM/OEM |
| Model Number | FH25250CFH1 |

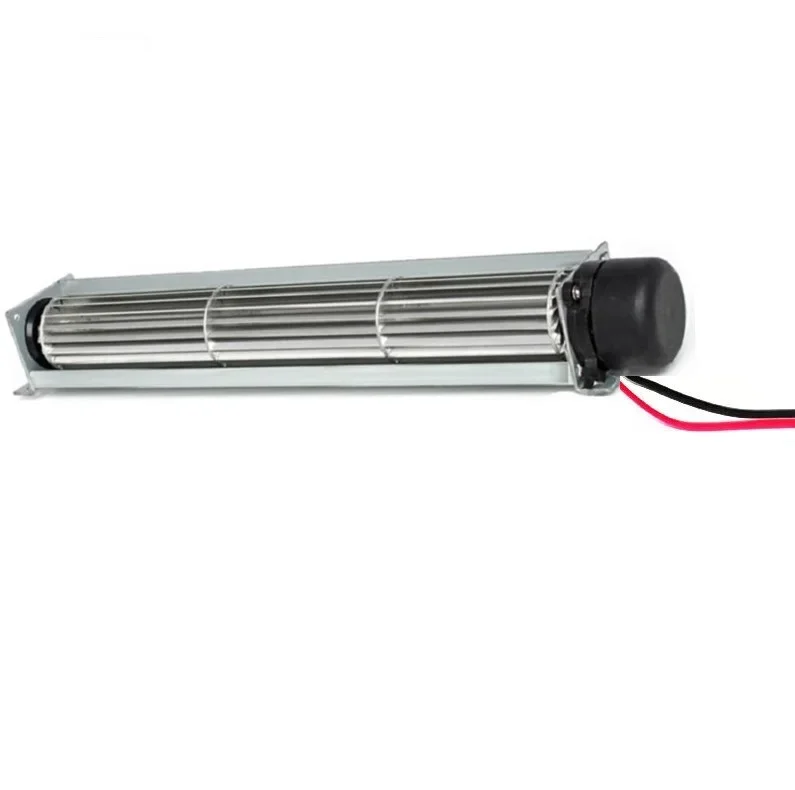

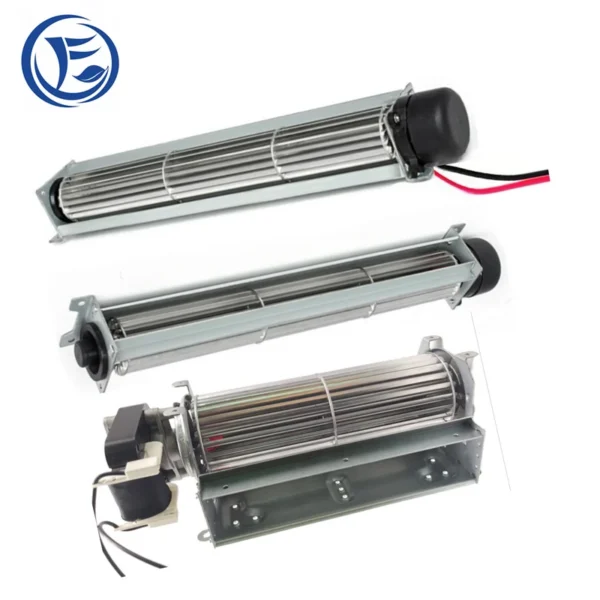

| Product Name | DC Cross Flow Fan |

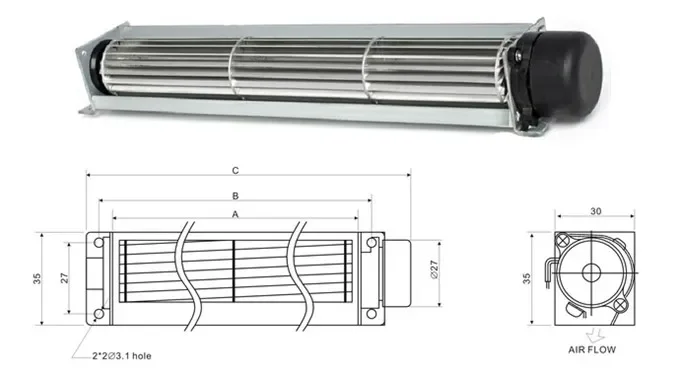

| Size | 340 x 30 x35mm |
| Bearing Type | Dual Ball Bearing |
| Motor | DC Brushless Motor |
| Material | Aluminum Alloy Impeller &Cast Iron Frame |
| Application | Industrial Equipment,Home Appliance |
| Usage | High Pressure Blowing |
| Expected Life | 50,000 hours |
| Optional Function | PWM,FG,IP54 IP58 IP68 |
| Selling Units | Single item |
| Single Package Size | 55X30X15 cm |
| Single Gross Weight | 1.0 kg |
Product Details
Product Name | DC Cross Flow Fan/DC tangential fan |
Series | 25 MM Impeller diameter series |
Bearing type | Ball bearing |
Material | Impeller:Aluminum Alloy , Frame:Steel +Aluminum Alloy |
Voltage | DC 12V |

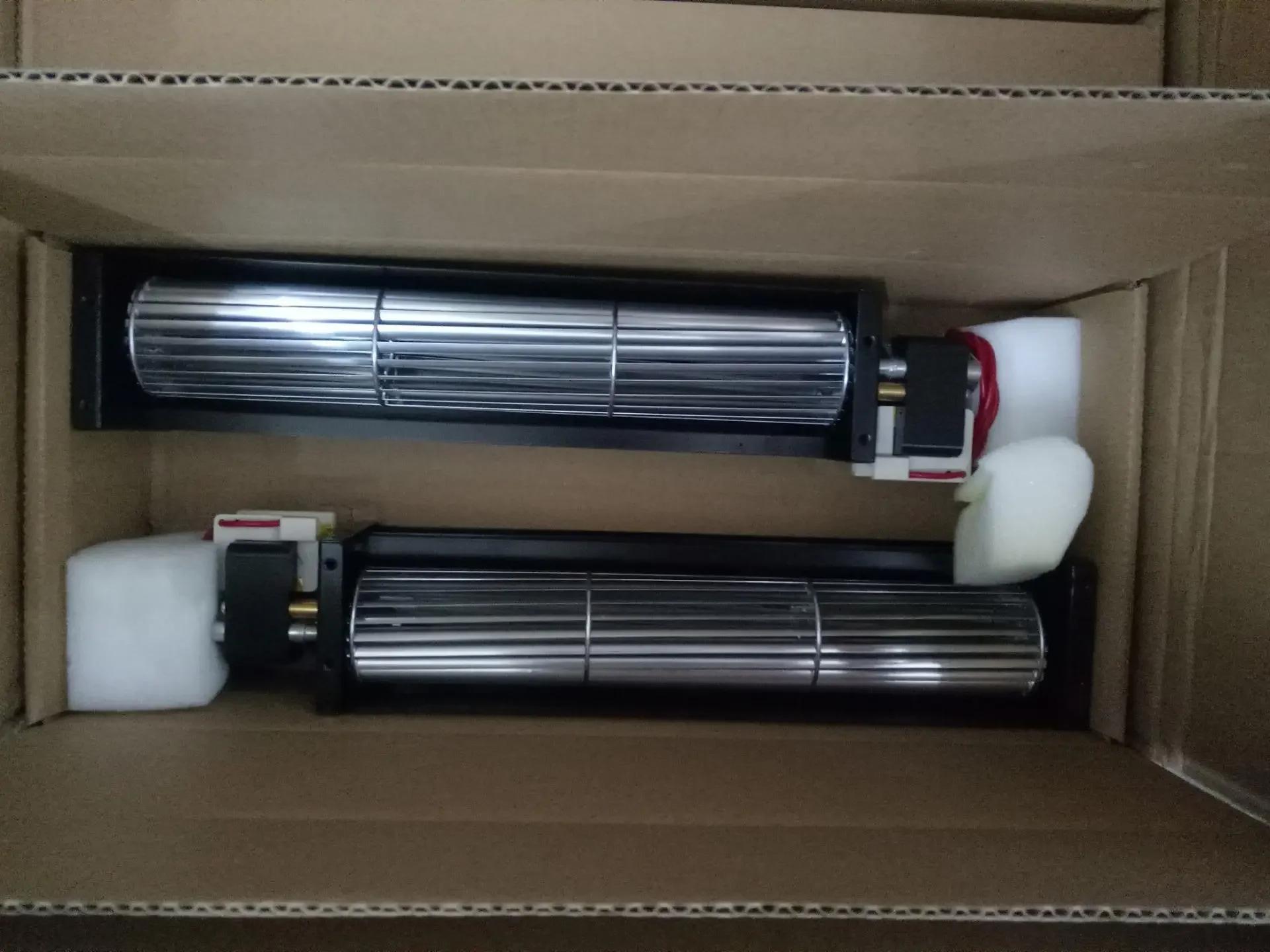

Package | Carton box,we can also according to the requirements of customers. |

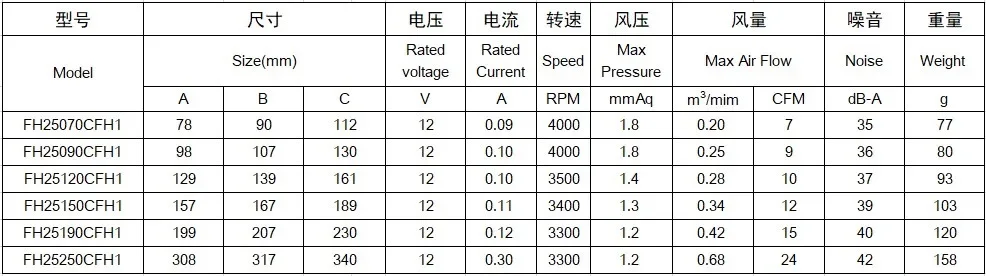

Product description:
Fan voltage: dc 12V
Fan speed: 3300 RPM
Fan air flow rate: 24CFM
Rated current: 0.30A
Fan air pressure: 1.2mmAq
Noise level: 42 dB-A
Optional functions: tachometer output or locked rotor alarm signal; PWM speed control
Storage temperature range : -40~+70 C°
Operating temperature range : -10~ +70 C°
Life time : above 50000hours for ball bearing

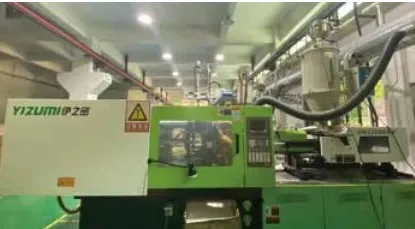

Factory

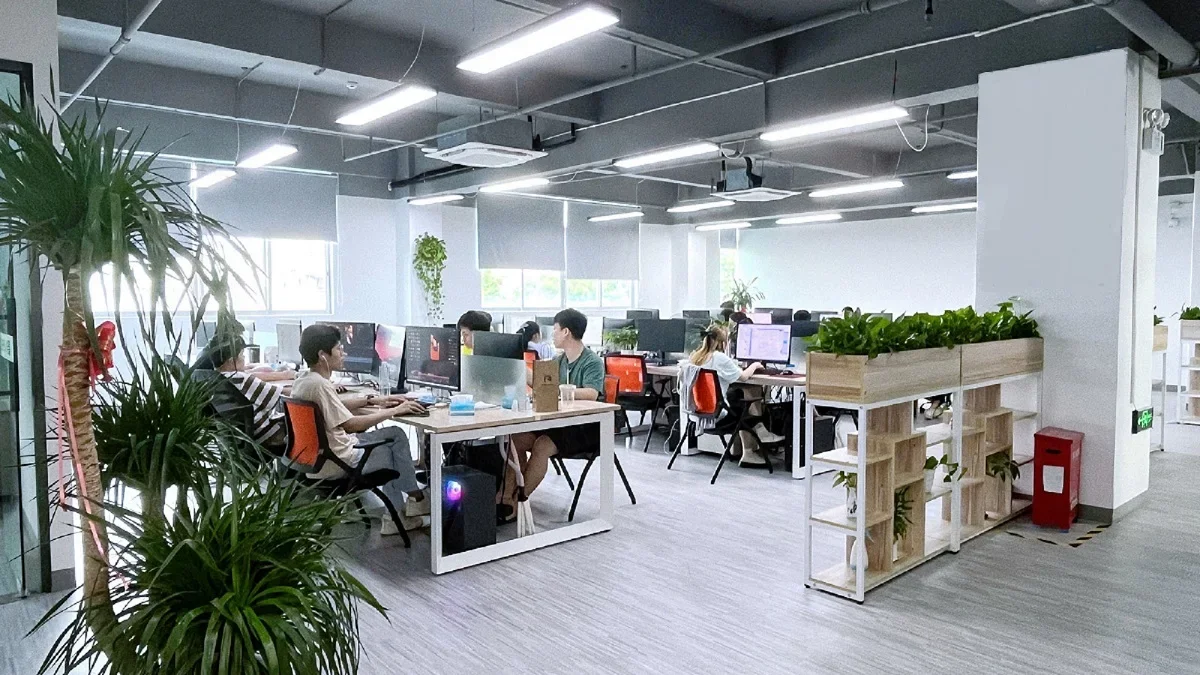

Sales department

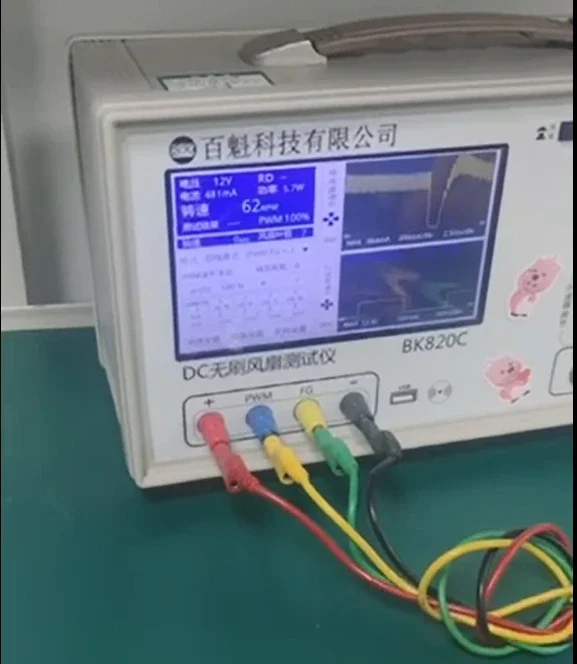

Workshop Quality control

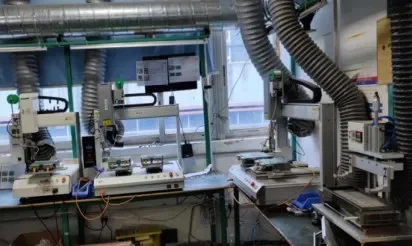

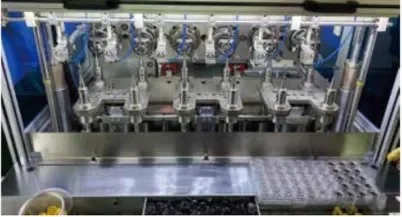

Assembly line 1
Assembly line 2
Wind Tunnel
Salt Spray Machine

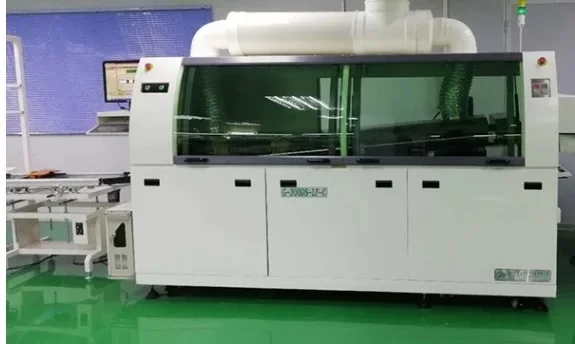

Automatic Welding Machine
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–499 piece: US $16.5 / piece
- 500–4999 piece: US $15 / piece
- 5000–29999 piece: US $14 / piece
- 30000+ piece: US $13 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cross flow fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cross flow fan be supplied for my local voltage?
The standard configuration is 12V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Feng Huishun Technology Development Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Feng Huishun Technology Development Co., Ltd. range on HVACR Nexus.
