Gas heater — voltage 110/220V, 11KW. The complete factory specification follows. Made by Chongqing Haodong Technology Co., Ltd. (18 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Gas Heater
- Power Source: LPG, Natural Gas, butane, propane
- Voltage: 110/220V
- Heating Capacity: 11KW
- Material: 2mm galvanized sheet case
- Warranty: 1 Year
- Place Of Origin: Chongqing, China
Technical Specifications
| Type | Infrared Heater |
|---|---|
| Power Source | LPG, Natural Gas, butane, propane |
| Voltage | 110/220V |
| Material | 2mm galvanized sheet case |

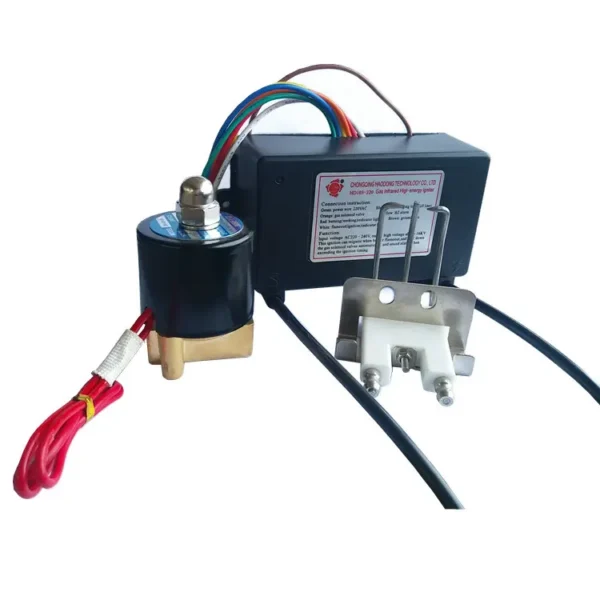

| Core Components | catalytic ceramic plate, electric pulse igniter |
| Key Selling Points | Energy Saving |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Heating Capacity | 11KW |
| Place Of Origin | Chongqing, China |
| Weight (Kg) | 7.9 |
| Brand Name | THD |
| Dimension(L*W*H) | 930*130*175mm |
| Working Temperature Range | 1 – 400 ℃ |
| Heating Mode | Infrared radiant heating |
| Media | Catalyst on ceramic plate |
| Charator | Energy-saving and High efficiency |
| Lifespan | above 11000hrs |
| Burner Heating Part | cordierite honeycomb ceramic plate with rare-earth catalyst |
| Fuel | Natural gas, LPG, LNG, butane, propane |
| Advantage | 20% gas saving than non-catalyst infrared gas burner |
| Conversion Rate | above 95% |
| Application | powder coating oven, curing/drying/baking oven |
| Selling Units | Single item |
| Single Package Size | 96X23X14 cm |
| Single Gross Weight | 8.5 kg |
Product Details
About us:
Chongqing Haodong Technology Co,. LTD is the first and only company who apply rare-earth catalytic combustion technology on infrared burner & heater, this kind of technology could save 10~20% energy than non-catalytic infrared heater.
Now we produce gas burner, infrared burner, gas heater, BBQ burner, bakary oven burner, industrial burner etc.

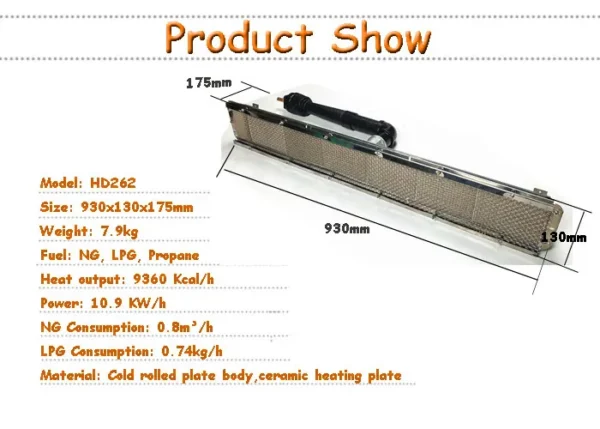

Heating Equipment Used In Painting Industry–Infrared Gas Heater HD262
| MODEL | Dimension | Weight | Gas Type | Heat Output | Consumption | ||
| mm | kg | KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | ||
| HD162 | 570*130*175 | 5.9 | NG/LPG | 6.3 | 5400 | 0.49 | 0.47 |
| HD242 | 840*130*175 | 7.3 | NG/LPG | 9.4 | 8120 | 0.75 | 0.71 |
| HD262 | 930*130*175 | 7.8 | NG/LPG | 10.9 | 9360 | 0.8 | 0.82 |

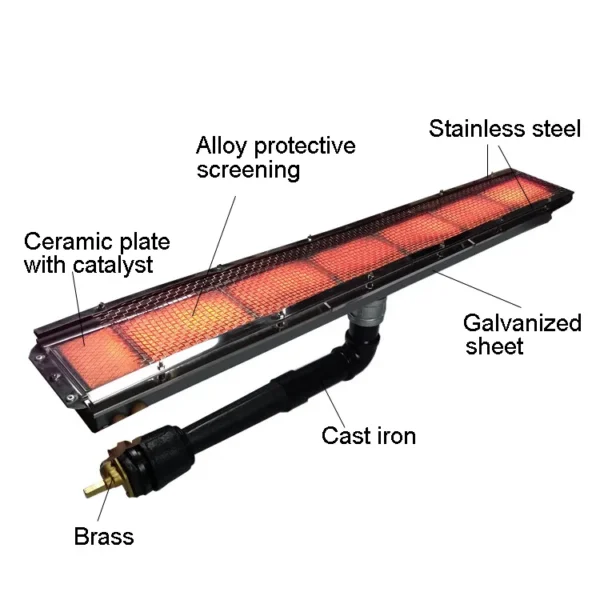

Material :
Shell:gray cast iron
Upper cover:stamped stainless iron
Burning net:Fe-Cr-Al material
Nozzle:brass
Core components:cordierite honeycomb burner plates with rare-earth catalyst-coated
Technical parameters:
| Items
| Technical parameters |
|
Types |
natural gas (NG),liquefied petroleum gas (LPG)
|
| Light-off temperature | ≥350 |
| complete combustion temperature | ≤380 |
|
Heat source temperature
| around 850 |
| Baking temperature range | 30—850 |
| Wavelength range | 1.9m–15m |
| Furnance pressure natural | Gas 150mmAq;liquefied petroleum gas 280mmAq
|
Advantages:
1. Energy saving: conversion rate:≥95%
2. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
3. Whole combustion: 95% of energy released in the form of infrared ray ;heating the objects directly
4. Long life:≥11000hr
5. Easily installed
6. Flameless & smokeless
Application:

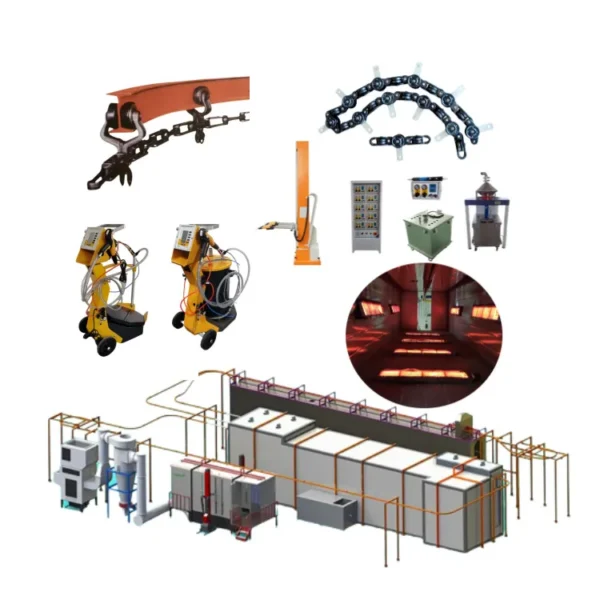

Coating Industry, industrial oven, powder coating oven, pre-heating, spray booth, drying curing machine,surface painting, galvanizing line, car painting oven, furnature painting line etc.

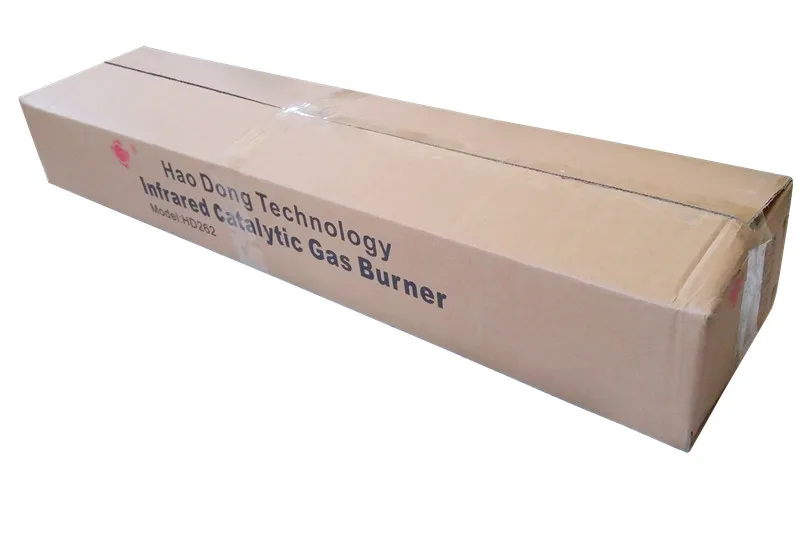

Factory & Packing Photos:
Contact information
If any need, welcome to contact us freely!!
We'll do our best to serve for you!!
Your satisfaction is our passion!!!
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $85 / piece
- 50–199 piece: US $78 / piece
- 200+ piece: US $71 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this gas heater?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the gas heater be supplied for my local voltage?
The standard configuration is 110/220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
