The medium pressure centrifugal fan listed here carries 230 V 50/60 Hz, power source Electric, documented exactly as the manufacturer publishes it. Made by ASIA PACIFIC SHENGRUI LIMITED (1 year on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Medium Pressure Centrifugal Fan
- Power Source: Electric
- Voltage: 230 V 50/60 Hz
- Material: Anti-corrosive in plastic material
- Blade Material: Sheet steel casing
- Speed: 920rpm, 1450RPM
- Warranty: 1 Year
Technical Specifications
| Voltage | 230 V 50/60 Hz |
|---|---|
| Speed | 920rpm, 1450RPM |
| Type | Centrifugal Fan |
| Material | Anti-corrosive in plastic material |
| Blade Material | Sheet steel casing |
| Mounting Type | Free Standing |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Spain |
| Brand Name | SODECA |

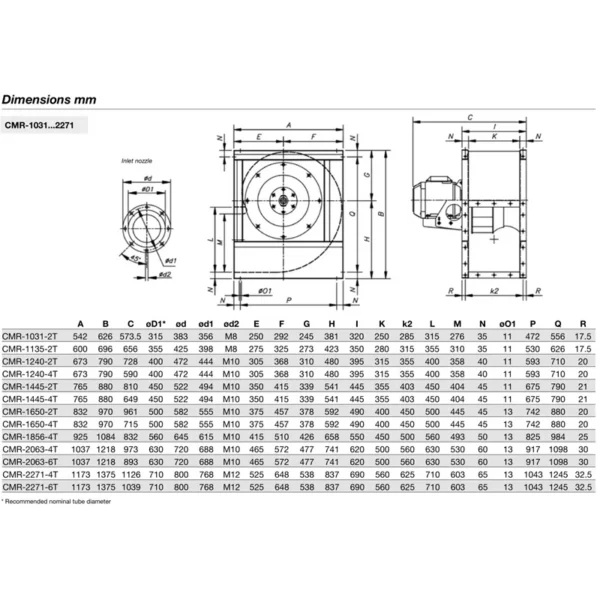

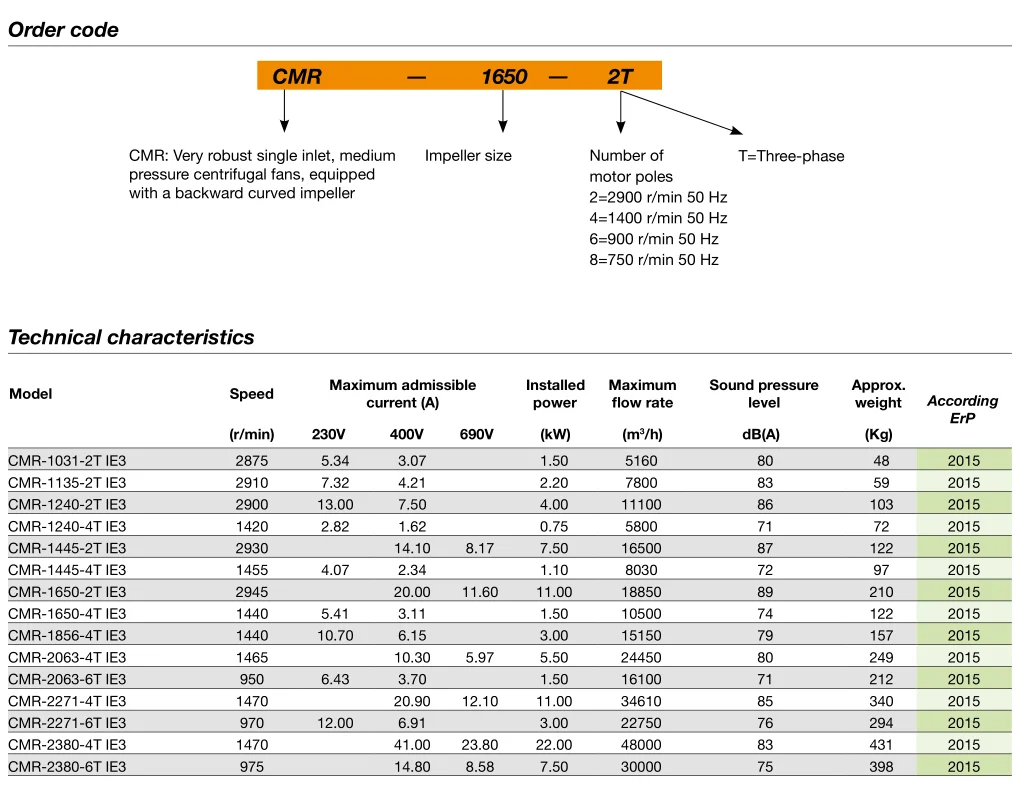

| Model Number | CMR-1031-2T IE3, CMR-1135-2T IE3, CMR-1240-2T IE3, CMR-1240-4T IE3, CMR-1445-2T IE3, CMR-1445-4T IE3, CMR-1650-2T IE3, CMR-1650-4T IE3, CMR-1856-4T IE3, CMR-2063-4T IE3, CMR-2063-6T IE3, CMR-2271-4T IE3, CMR-2271-6T IE3, CMR-2380-4T IE3, CMR-2380-6T IE3 |
| Color | polyester resin |
| Finish | Anti-corrosive in plastic material |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product Description

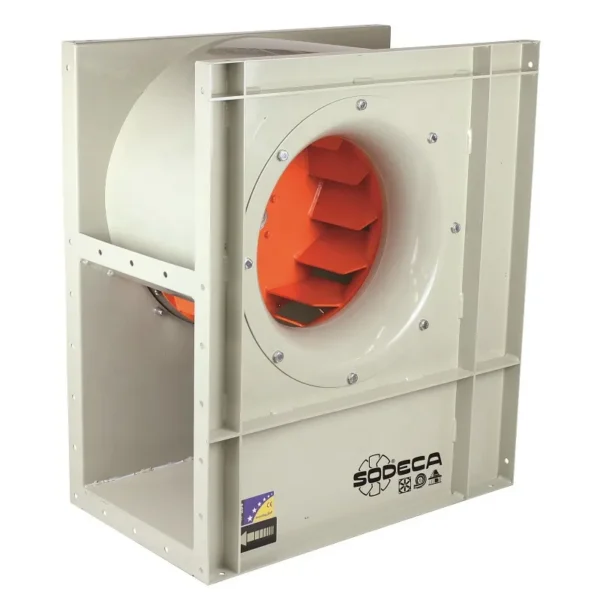

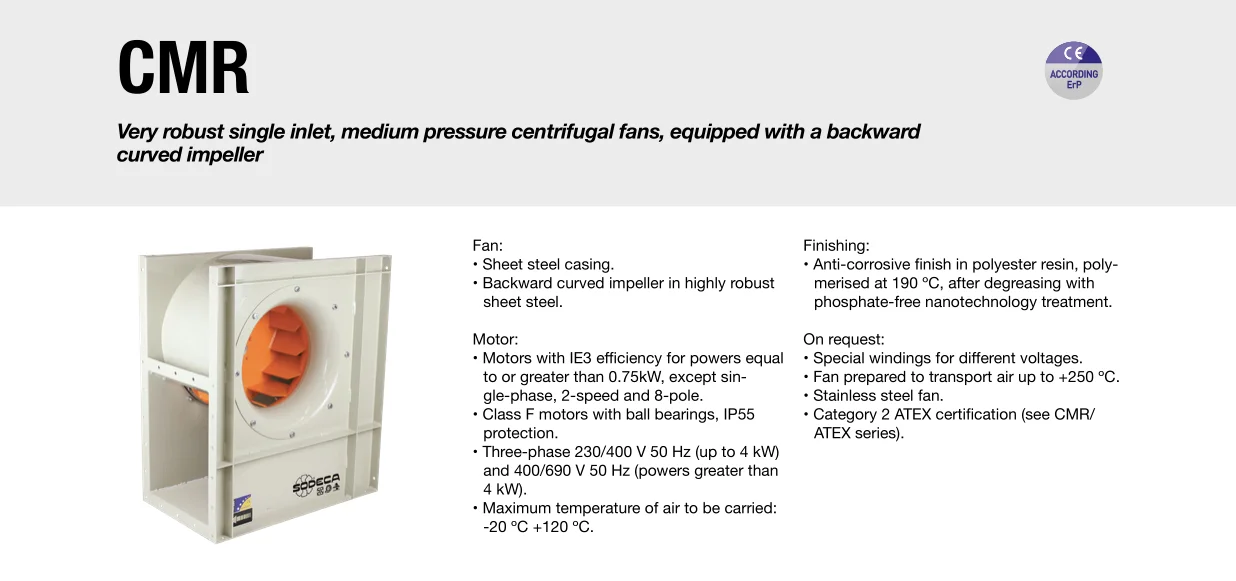

Very robust single inlet, medium pressure centrifugal fans, equipped with a backward curved impeller. Fan: Wrapped in steel sheet. Turbine with blades forward, in galvanized steel sheet. Maximum temperature of air to be carried: -20 ºC +120 ºC. Engine: IE3 motor with integrated electronics, specially designed for high energy efficiency. Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW). Finish: Anti-corrosive finish in polyester resin,polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.
Specification
item | value |
Product name | Centrifugal medium pressure single inlet fans |
Applicable Industries | Applied to industrial and commercial environments |
Customized support | OEM, ODM |
Blade Material | Sheet steel casing |
Mounting | Equipment preconfigured in constant pressure mode with 100 Pa set point |
Place of Origin | Spain |
Brand Name | Sodeca |
Power | 1.10kW; 0.75kW; 0.37kW; 0.25kW; |
Voltage | Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW) |
Warranty | 1 Year |
After-sales Service Provided | Online support |
Speed | 1420 r/min; 1455 r/min; 2760 r/min; 2780 r/min; 2830 r/min; |
Current | 4-20 mA |
Ambient temperature | -2 ºC +120 ºC |
Trusted Supplier of Genuine SODECA Smoke Extract Fans
High-performance SODECA smoke extract fans and ventilation solutions for critical applications—tunnels, car parks, high-rise buildings, industrial sites, and emergency fire scenarios.
Why SODECA
When a fire develops inside any building, removing smoke quickly becomes a critical part of protecting lives and property. Proper
smoke extraction ensures that escape routes remain usable, limits structural damage caused by heat, and helps emergency teams
reach the affected area in time.
smoke extraction ensures that escape routes remain usable, limits structural damage caused by heat, and helps emergency teams
reach the affected area in time.
SODECA’s smoke extraction systems are designed and tested to meet strict international requirements, ensuring dependable performance in emergency situations.
> EN 12101-3 and F400/F300 Certification> High-temperature resistance up to 400°C / 2 hours
> Robust steel construction and fire-safe design
> Tested for emergency operation under extreme conditions
> Robust steel construction and fire-safe design
> Tested for emergency operation under extreme conditions
> Suitable for everyday ventilation and fire emergencies > Support for Evacuation Improved Conditions for
Firefighters Reduced Smoke
> Density Cleaner Air Supply
> Lower Heat Levels
Firefighters Reduced Smoke
> Density Cleaner Air Supply
> Lower Heat Levels
Products Recommendations
Applications
Car Parks
Underground and enclosed parking areas require either natural or mechanical ventilation. When mechanical systems are used, jet fans play a critical role in directing airflow, ensuring proper air quality during daily operation and maintaining safe conditions during fire emergencies.
Industrial Buildings
In industrial facilities, smoke extraction systems remove the hot gases produced in the early stages of a fire. By keeping the lower zones free of smoke, these systems support safe evacuation and give firefighters better access to the area. They also help control temperature levels, reduce the spread of fire, and protect the building’s structural integrity.
Cold Storage Rooms
Smoke control in refrigerated warehouses requires a distinct approach compared to typical industrial spaces. Because these buildings often have a dual-roof configuration, routing smoke to the outside becomes more challenging. All smoke extraction equipment installed on the cold-room envelope must be specially insulated to prevent energy loss while still ensuring effective smoke removal in an emergency.
Evacuation Routes
Pressurization systems safeguard stairwells, corridors, and escape paths by keeping smoke out through controlled overpressure. When doors open or leaks occur, the system increases airflow automatically, ensuring that evacuation routes remain clear and safe throughout a fire incident.
Tunnels
Reliable tunnel ventilation is essential for long-term user safety. While some tunnels rely on natural airflow, many require mechanical ventilation to maintain acceptable air conditions. In forced ventilation systems, high-performance fans are used to deliver the necessary airflow for everyday operation and to ensure safe conditions if a fire occurs.
About APAC FAN
ASIA PACIFIC SHENGRUI LIMITED is located in Hong Kong, the global trade center, specializing in providing ventilation and air-conditioning related products and solutions. Attached to advantages of import and export price in Hong Kong, we represent and sell various world famous brands of fans, blowers and ventilation related products. Quality is our life, customers are our market, the pursuit of excellence is our belief. We sincerely welcome cooperation with friends from all walks of life, and endeavor to develop and create a better future with our integrity and professional.
Sold To World Market
The company has set up a number of distribution points in Germany, Wuxi, Singapore and other key regional markets, distributing ebmpapst, ZIEHL-ABEGG, Wistro, Rosenberg, DELTA, SANYO, FULLTECH, SANMU and other brands of fans. Products are exported to Europe, North America, Central and South America, Southeast Asia, the Middle East, Africa, Oceania, Russia and other more than 150 countries and regions.
Order Instructions
> About Express Delivery Receipt
· When receiving the express delivery, please be sure to unpack and inspect the goods in the presence of the courier! · If the goods are damaged, the courier is responsible for compensation and handling. · If you sign for it directly without inspection, and later find that the product is deformed or damaged due to
transportation, it cannot be returned or exchanged! We will not be responsible at all!
> About After-sales Instructions
We guarantee the quality under normal working conditions, with a one-year warranty period.In cases such as electroplating factories, humid environments, strong acids and alkalis, oil fumes, high temperatures, heavy dust, 24-hour continuous use, unstable voltage, or three-phase power phase loss, which lead to motor burnout. Or if the motor is disassembled, modified, or damaged manually. We cannot provide warranty for these unsuitable motor environments and conditions.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $1880 / piece
- Ships from: HK
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this medium pressure centrifugal fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the medium pressure centrifugal fan be supplied for my local voltage?
The standard configuration is 230 V 50/60 Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by ASIA PACIFIC SHENGRUI LIMITED. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full ASIA PACIFIC SHENGRUI LIMITED range on HVACR Nexus.
See more in Centrifugal Fans on HVACR Nexus.
