The steam boiler listed here carries material Carbon Steel, type Natural Circulation, documented exactly as the manufacturer publishes it. Made by Henan AIX Equipment Co., Ltd. (1 year on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Steam Boiler
- Material: Carbon Steel
- Warranty: Unavailable
- Place Of Origin: Henan, China
- Type: Natural Circulation
- Fuel Type: Biomass Wood
- Weight (Kg): 500
Technical Specifications
| Output | Steam |
|---|---|
| Usage | Industrial |
| Fuel | Wood Burning |
| Pressure | Max. 1.25MPa |
| Structure | Fire Tube |
| Type | Natural Circulation |
| Material | Carbon Steel |
| Core Components | PLC, Engine |
| Key Selling Points | Automatic, High Safety Level |
| Style | VERTICAL |
| Warranty | Unavailable |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Weight (Kg) | 500 |
| Place Of Origin | Henan, China |
| Brand Name | AIXBOILER |
| Dimension(L*W*H) | 1m*1.5m*1m |
| Function | Multifunctional |
| Fuel Type | Biomass Wood |
| Steam Temperature | 194 (accept Customization) |
| Thermal Efficiency | 85% |
| Fuel Available | Wood chips |
| Selling Units | Single item |
Product Details
Products Description
The LSH vertical biomass boiler is an environmentally friendly thermal energy device that uses biomass fuels (such as wood chips, straw, rice husks, etc.). It features a compact structure, small footprint, and is suitable for spaces with limited space. Its core design utilizes a vertical configuration, ensuring complete combustion of fuel within the furnace. Heat is rapidly transferred through high-efficiency heat transfer surfaces to heat water or generate steam, achieving a thermal efficiency of over 80% and significantly reducing energy consumption.
This boiler is equipped with an intelligent control system that automatically adjusts combustion intensity, reducing pollutant emissions and meeting environmental standards. It is widely used in small factories, rural heating, food processing, and other fields, characterized by low operating costs and easy maintenance.
Product Parameters
Model | LSH0.3 | LSH0.5 | LSH0.7 | LSH1 | LSH1.5 | LSH2 | |||||
Rated evaporation capacity(t/h) | 0.3 | 0.5 | 0.7 | 1 | 1.5 | 2 | |||||
Rated working pressure( Mpa ) | 0.7 | 0.7 | 0.7/1.0 | 0.7/1.0 | 0.7/1.0 | 0.7/1.0 | |||||
Rated steam temperature（℃） | 170 | 170 | 170/184 | 170/184 | 170/184 | 170/184 | |||||
Feed water temperature （℃） | 20 | 20 | 20 | 20 | 20 | 20 | |||||
Themal efficiency (%) | >80 | ||||||||||
Fuel type | Coal,biomass pellet,wood sawdust,bamboo chip,wood block,straw,jute, palm shell | ||||||||||
Fuel consumption (kg/h) | 60 | 105 | 146 | 198 | 280 | 390 | |||||
Max transportation weight(t) | 2 | 3.5 | 4 | 4.5 | 5.5 | 6.5 | |||||
Details Images

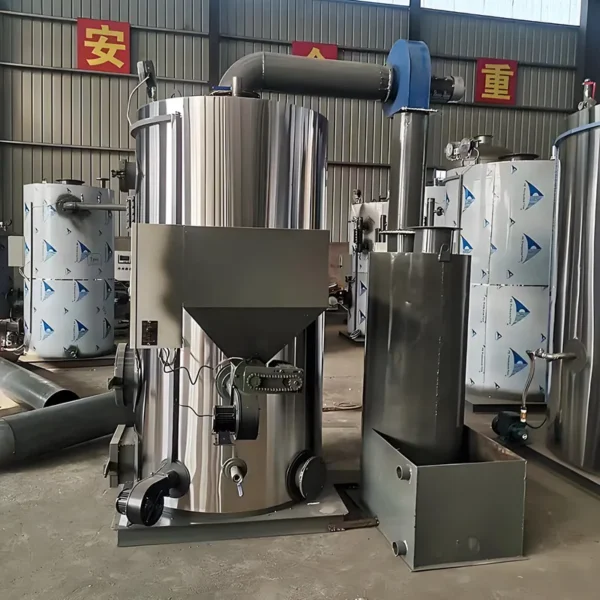

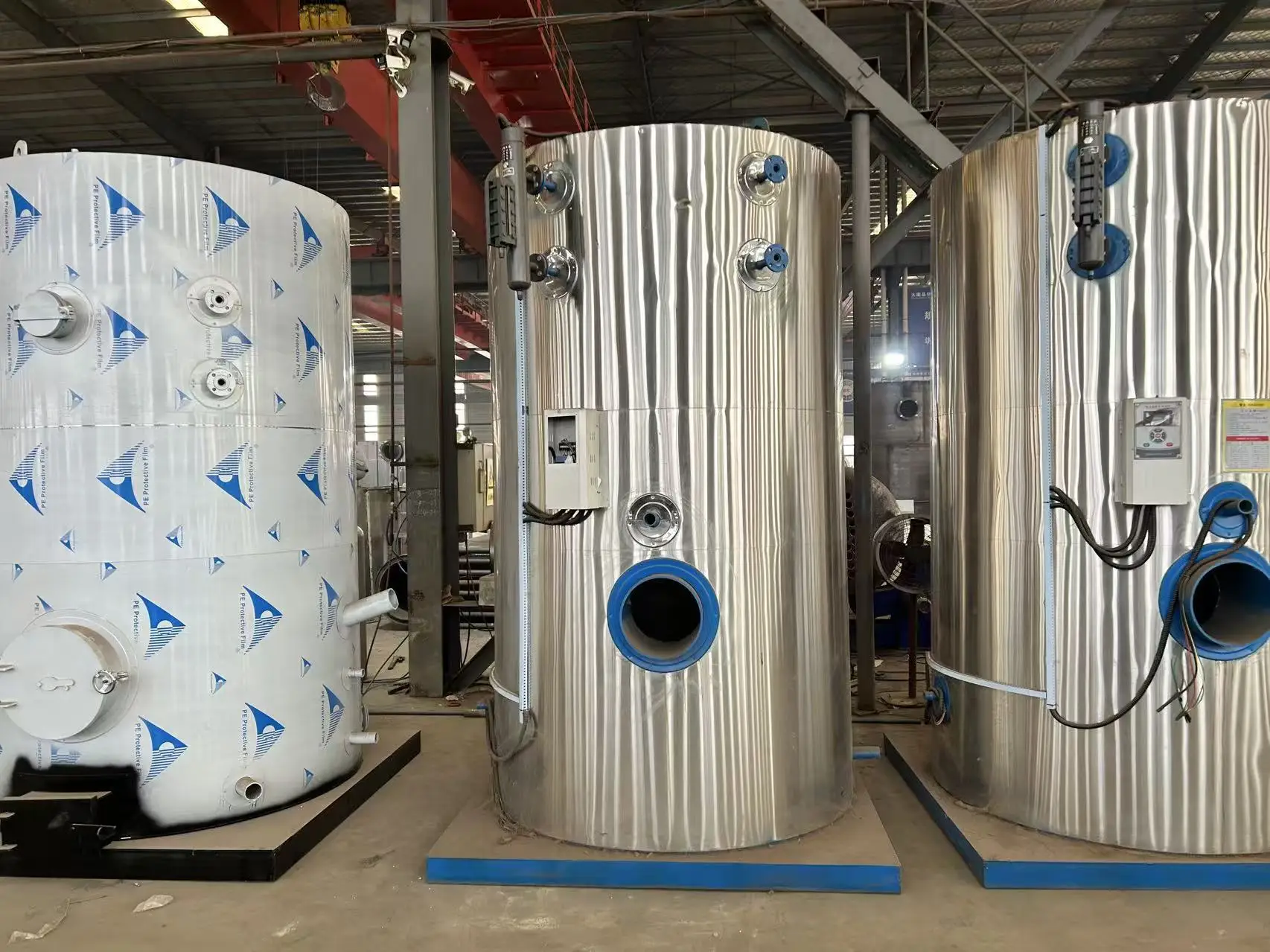

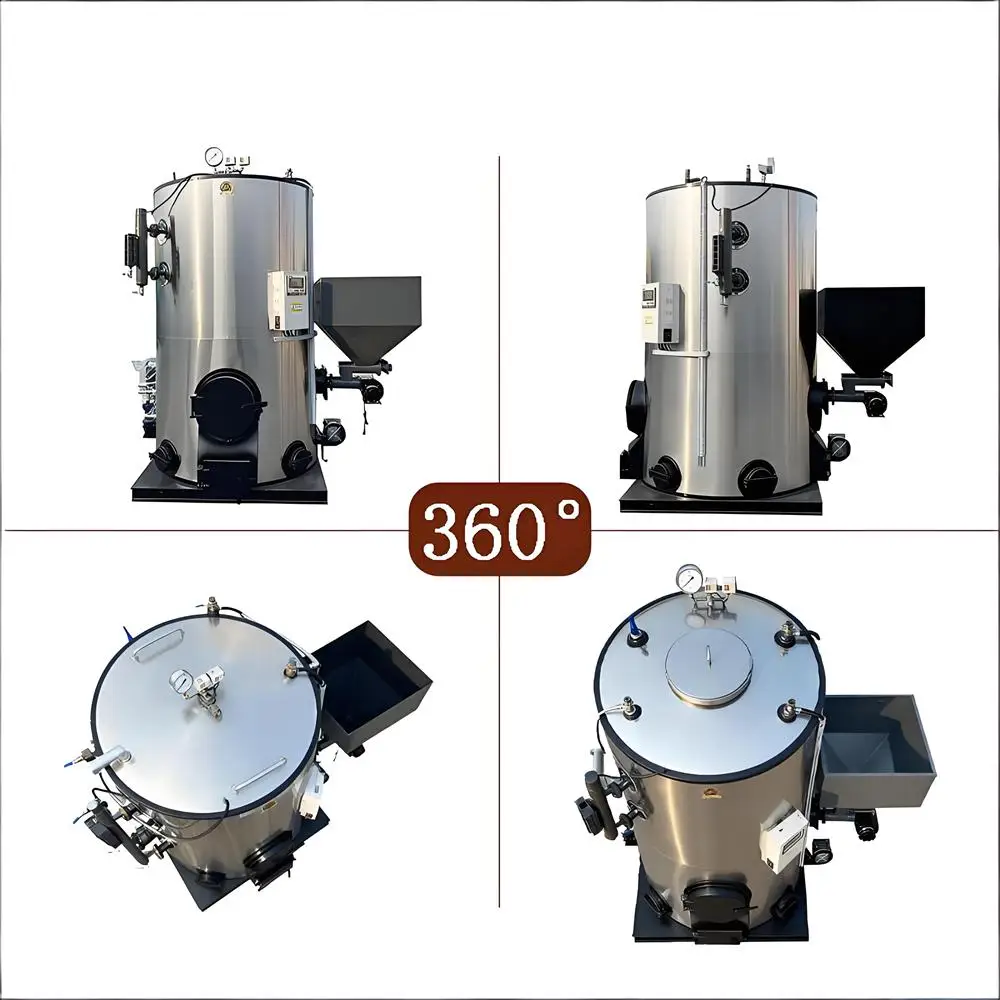

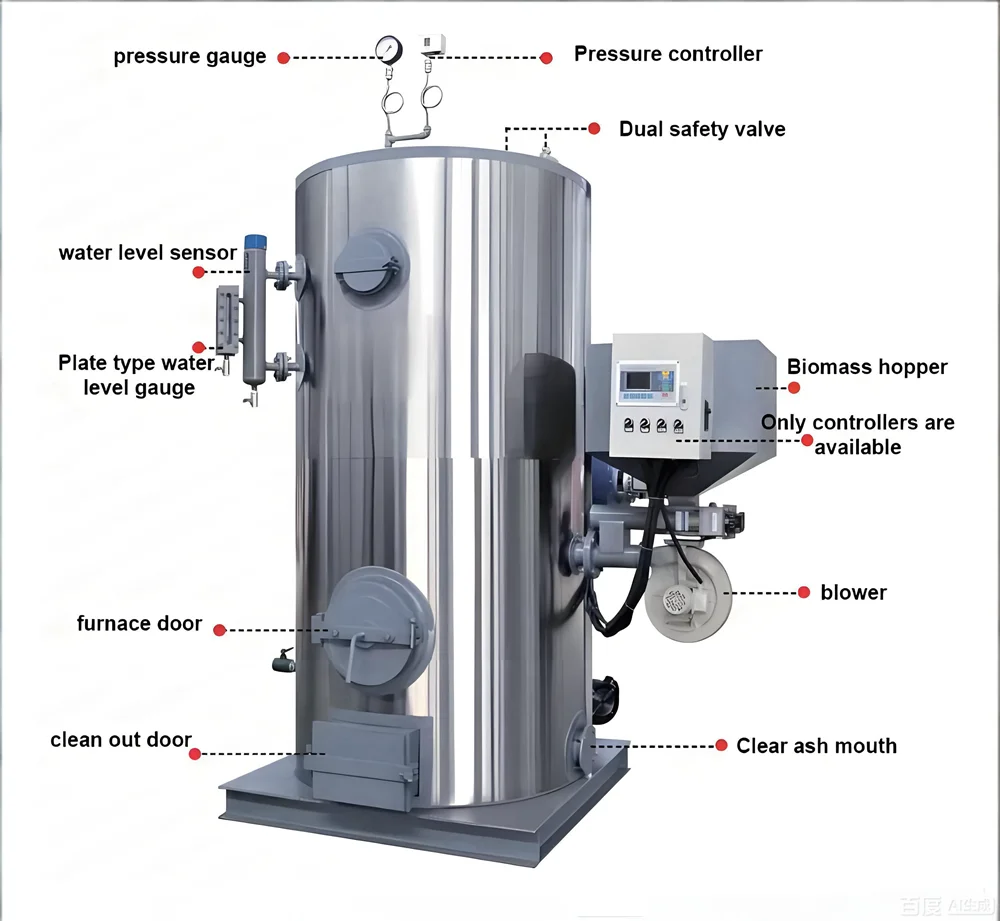

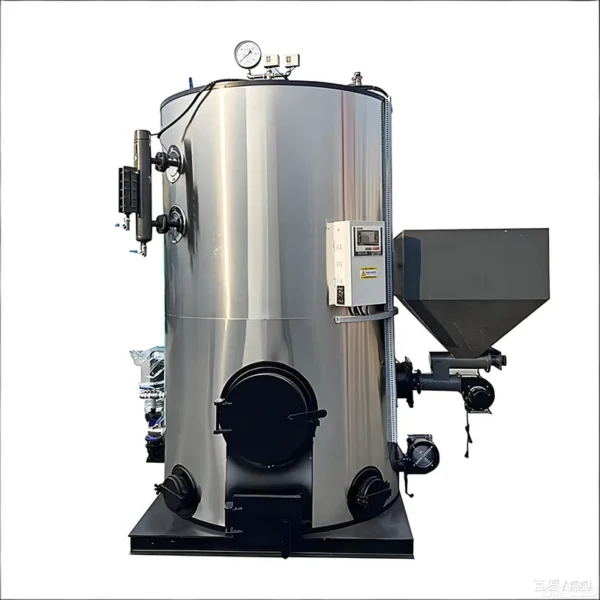

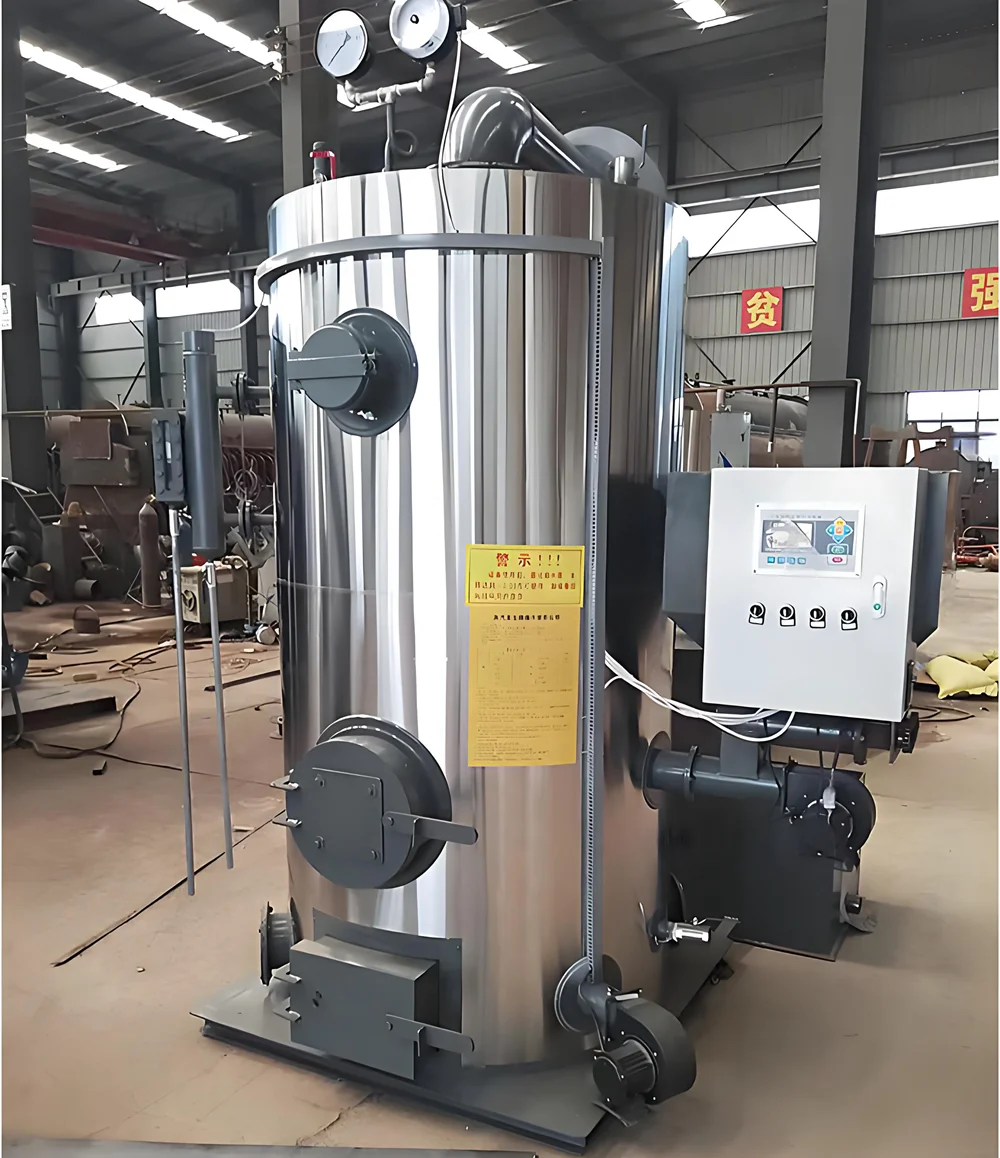

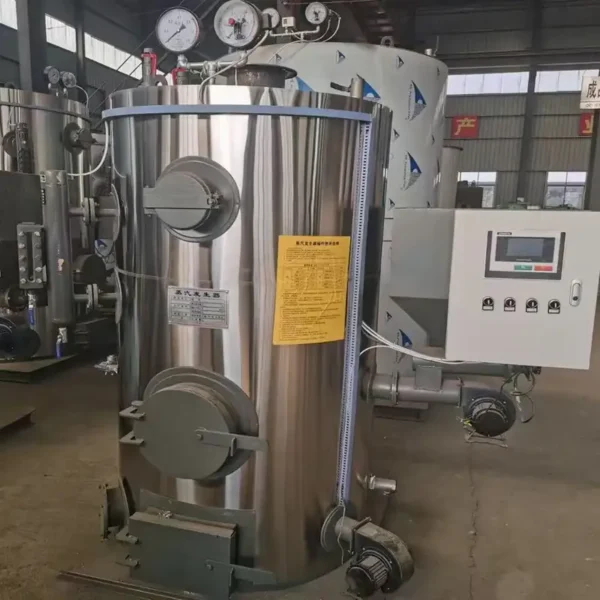

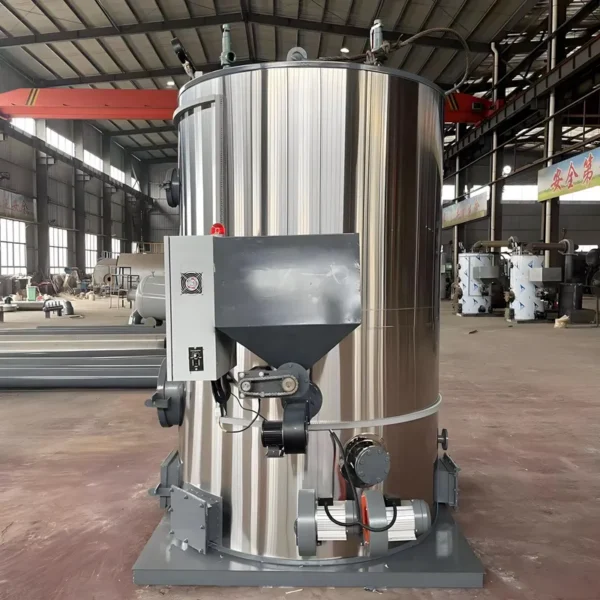

Boiler Display

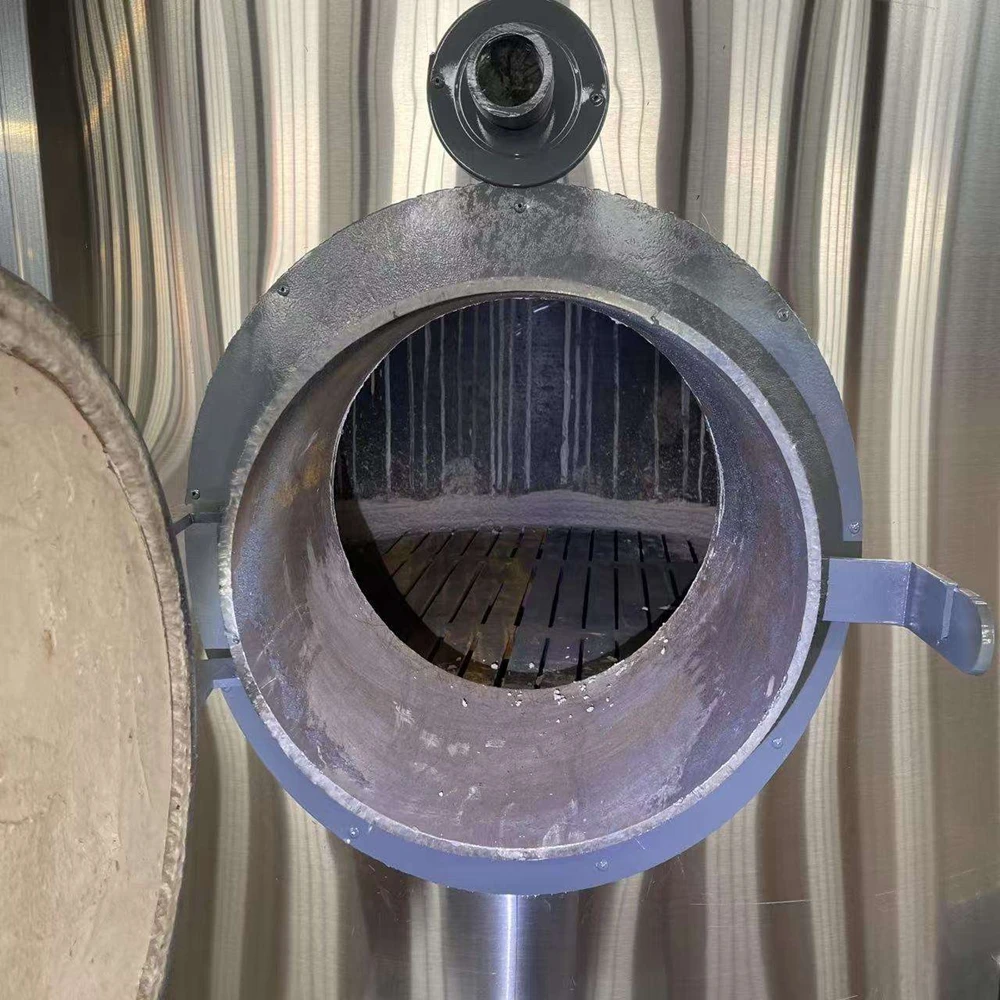

Grate Detail

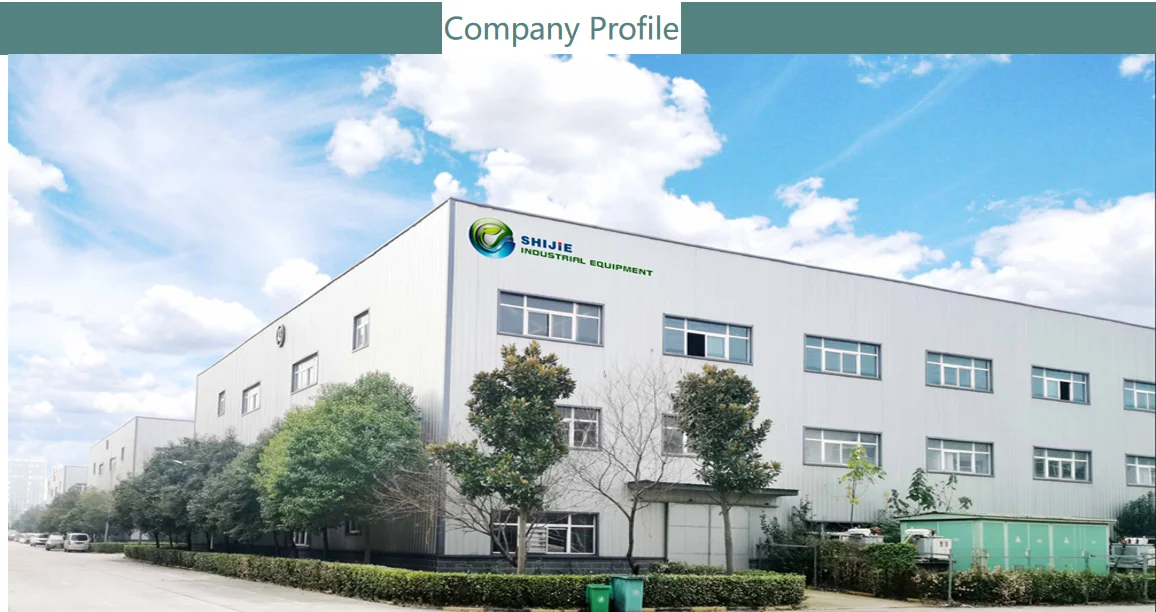

Company Profile
AIX Boiler is a brand under Henan Shijie Industrial Equipment Co., Ltd. Established on January 7, 2019, with a registered capital of 35 million RMB and a National Enterprise Credit Code of 91411627MA47YRXXX9, the company primarily engages in the research,development, manufacturing, technical training, and import/export trade of mid-to-high-end boilers and pressure vessels.Headquartered in Taikang, Henan, known as the "Hometown of Boilers in China," the company boasts an 80,000-square-meter factory and over 100 employees. The company mainly focuses on the research, development, production, and sales of biomass boilers, oil/gas boilers, electric boilers, and pressure vessels. Its products not only sell well in the domestic market but are also exported to more than ten countries and regions, including Morocco, Egypt, Ethiopia, Peru, Mongolia, the Philippines, and Indonesia. An excellent workforce, advanced technology, sophisticated equipment, and strict management are the cornerstones of the company's continued growth and the trust it has earned from its customers.

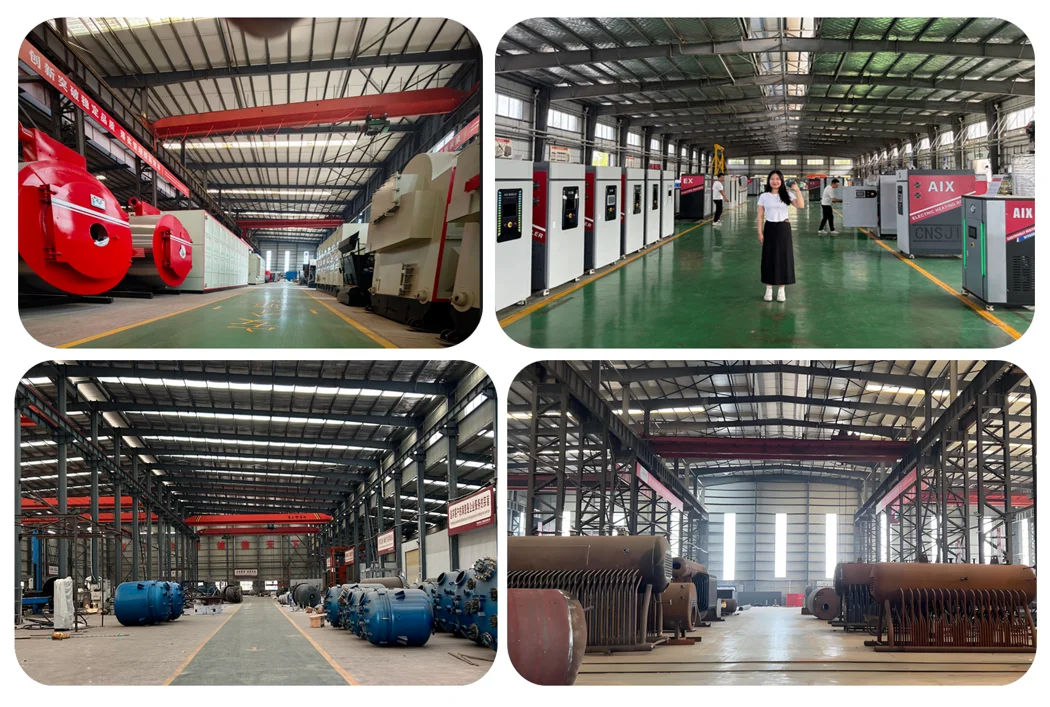

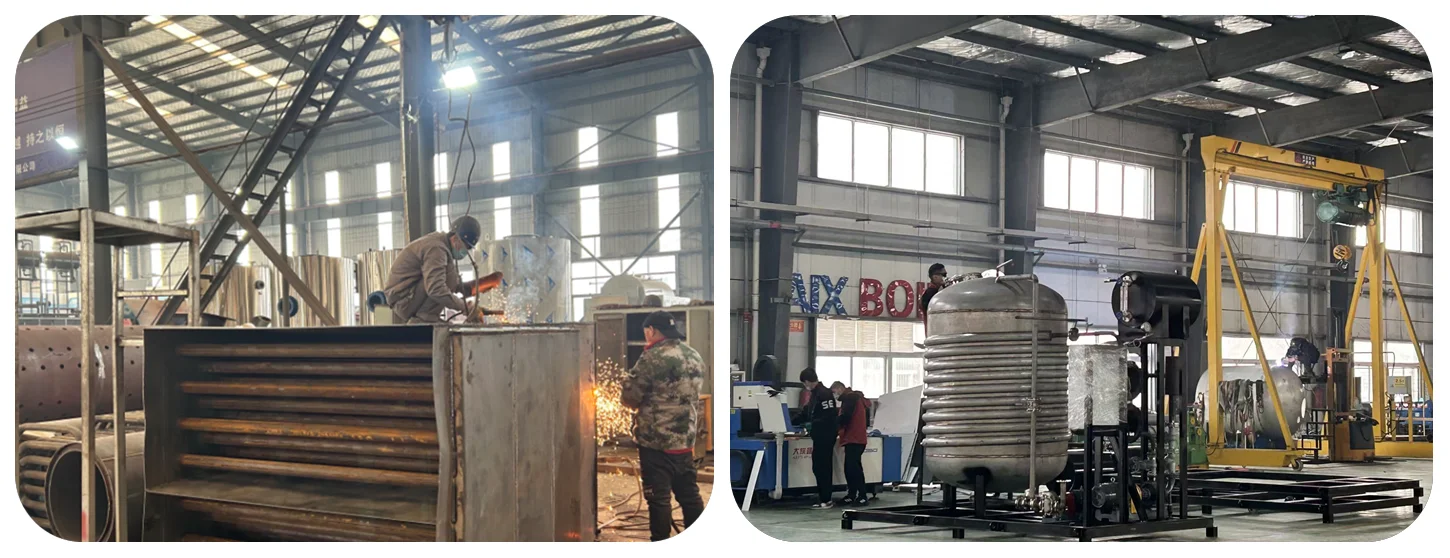

Factory Showcase
AIX Boiler – More than 20 core boiler patents, major supplier of electrical components in the industry, and drafter of Chinese boiler production standards.
Customer Visiting
Certifications
FAQ
Q1: How to get the best quote quickly?
A: We need to know the boiler capacity, the fuel you plan to use, and the required steam pressure to confirm the boiler model.
Customers need to provide their name, email address, and company name, and we will send a quote immediately. If you use WhatsApp, Skype, or WeChat, you can provide your ID for easier communication.
Q2: Why choose us?
A:1. Over 40 years of boiler manufacturing experience and 10 years of export experience. A-level boiler factory.
A:1. Over 40 years of boiler manufacturing experience and 10 years of export experience. A-level boiler factory.
2. Free parts replacement within one year, lifetime maintenance of the main unit (excluding improper human operation).
Q3:What is your delivery time?
A: Generally, the delivery time is 15~25 days for boilers≤6Ton , 25~40 days for boilers>6Ton.
Q4:What is the using life of your boiler?
A: Generally, the delivery time is 15~25 days for boilers≤6Ton , 25~40 days for boilers>6Ton.
Q4:What is the using life of your boiler?
A:Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1 set: US $4299 / set
- 2+ set: US $3980 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this steam boiler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a Unavailable warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
