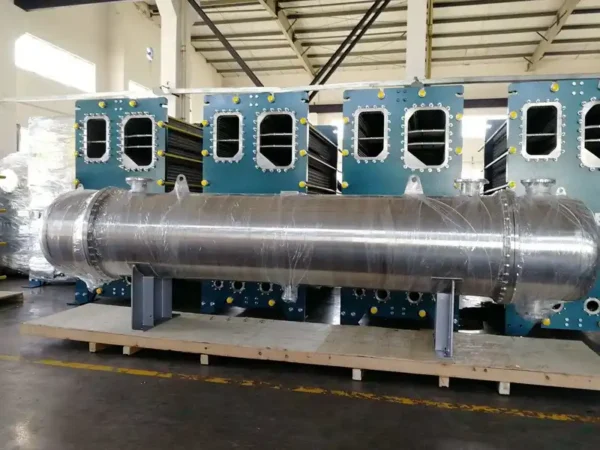

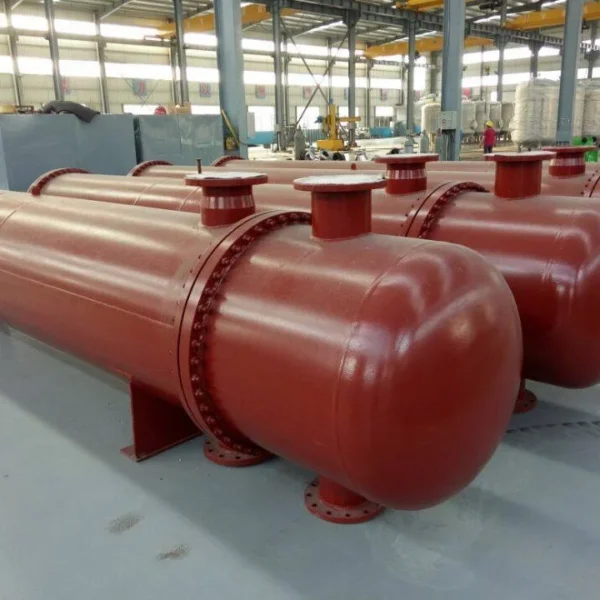

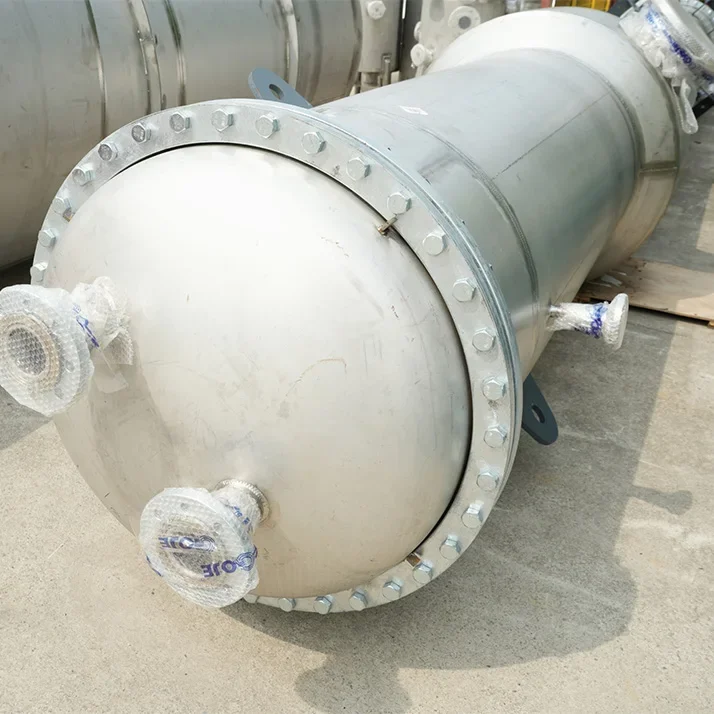

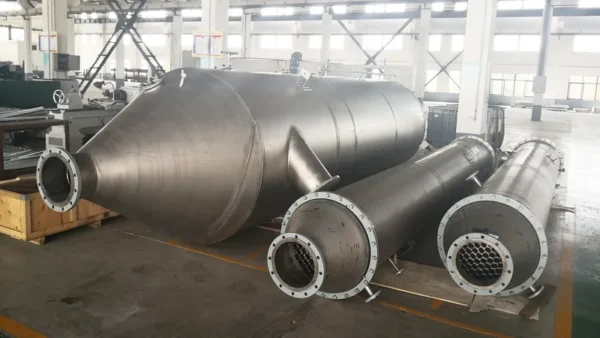

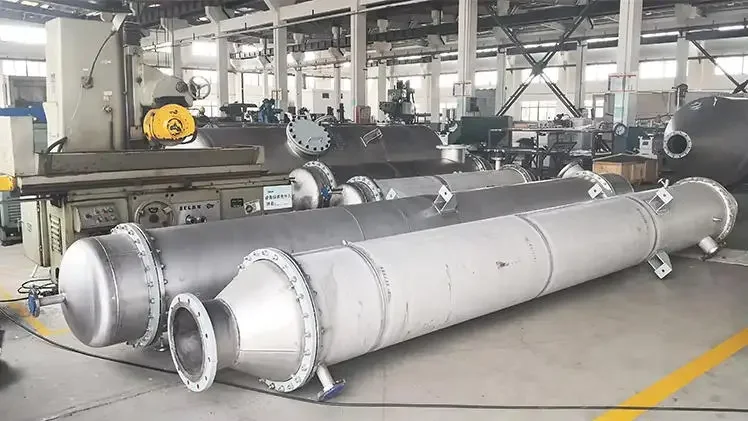

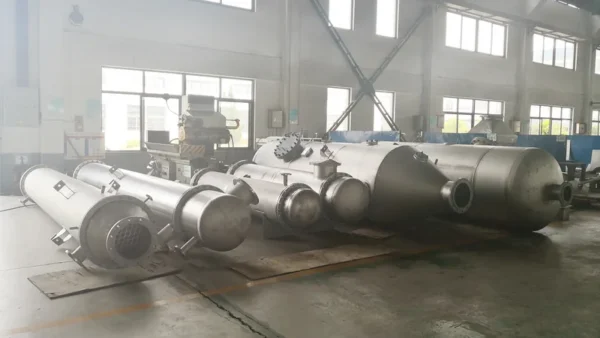

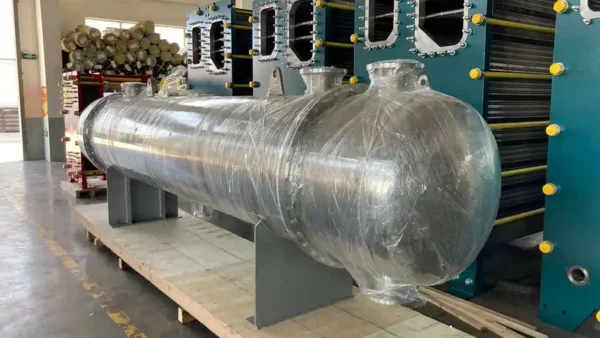

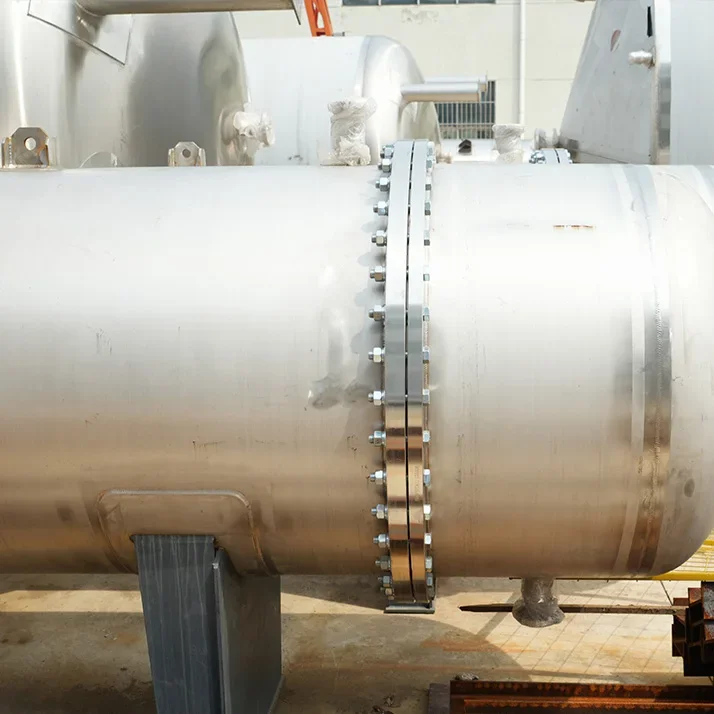

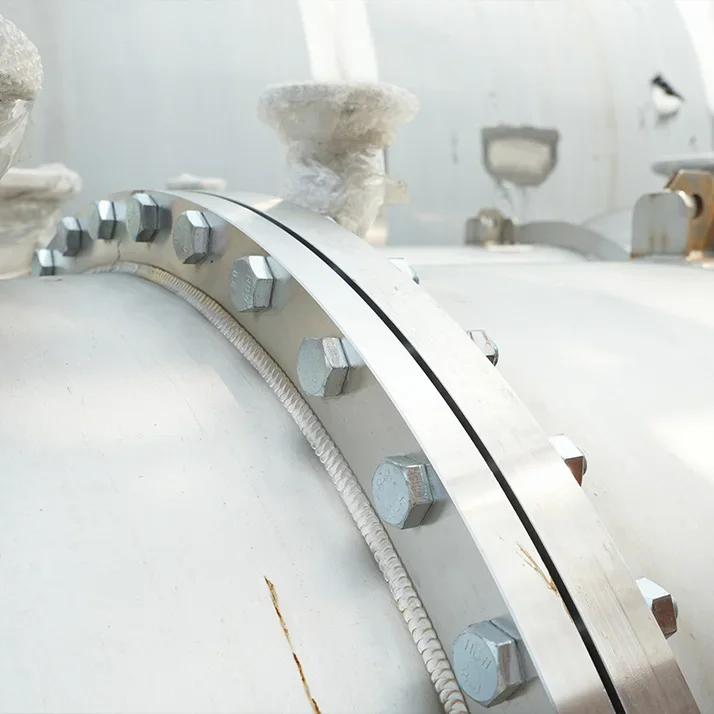

Shell and Tube Heat Exchanger, ASME, as per request

The shell and tube heat exchanger listed here carries voltage as per request, material Stainless Steel, documented exactly as the manufacturer publishes it. For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Shell And Tube Heat Exchanger

• Voltage: as per request
• Flow Capacity: Customized
• Material: Stainless Steel
• Tube Material: SS304/SS316/SS316L/other
• Shell Material: Carbon Steel/SS304/SS316
• Warranty: 1 Year

Technical Specifications

Product Details

Welcome To GOJE

Applications：

At present, shell and tube heat exchanger is the most widely used heat exchanger Although shell and tube heat exchanger can’t compare with plate heat exchanger or fin heat exchanger in terms of compact structure, heat transfer intensity and metal consumption per unit heat transfer area, it has a wide range of operating temperature and pressure, low manufacturing cost, convenient cleaning, large processing capacity and reliable work. The shell and tube heat exchanger made by our company includes cooler, heater and condenser.

Shell and tube heat exchanger has the characteristics of:

1、good sealing performance, 2、elimination of leakage, 3、high heat exchange efficiency, 4、easy maintenance, 5、long corrosion life and so on.

Product Details

Structure and Heat Transfer Principle：

The cooler consists of the following parts .Heat transfer principle: heat and cold for heat transfer of two kinds of fluid, one in the pipe flow, known as pipe fluid;The otherflow outside the tube is called shell – side fluid.In order to improve the heat transfer coefficient of the fluid outside the tube, several baffles are usually installed in the shell.The baffle can increase the fluid velocity of the shell side, force the fluid to cross the tube bundle several times according to the prescribed route, and enhance the degree of fluid turbulence.The heat exchange pipes can be arranged in equilateral triangle or square on the tube plate.The equilateral triangle has compact arrangement, high turbulence and high heat transfer coefficient.The square arrangement makes it convenient to clean the outside of the tube and is suitable for the fluid that is easy to scale.

How To Order From Us

Its Easy to Order A Correct PHE!

You just need to provide the following information, then we will do the rest things for you:

1. Your application.

2. Hot side & cold side inlet/outlet temperaure range value.

3. Hot side & cold side inlet/outlet flow rate range value.

4. Medium name.

Normally we will take 1-2 hours to make quotation for your confirmation.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–4 set: US $1500 / set
  • 5–9 set: US $1200 / set
  • 10+ set: US $1000 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this shell and tube heat exchanger?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this shell and tube heat exchanger carry?

It is supplied with Ce/ISO9001:2008 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the shell and tube heat exchanger be supplied for my local voltage?

The standard configuration is as per request. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

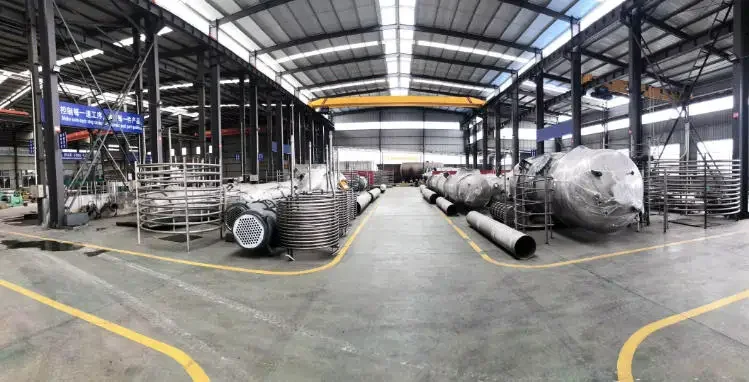

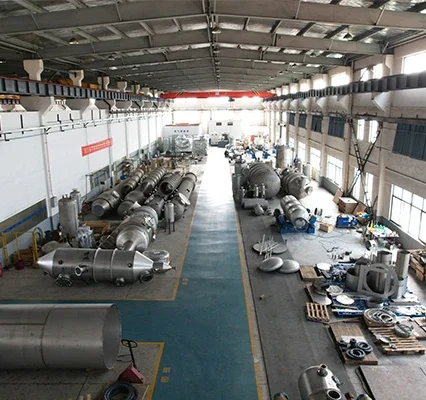

This product is produced by JIANGSU GAOJIE ENERGY SAVING EQUIPMENT GROUP CO., LTD., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full JIANGSU GAOJIE ENERGY SAVING EQUIPMENT GROUP CO., LTD. range on HVACR Nexus.
